Dry Transformer Coil
SHENGTE
| Quantity: | |
|---|---|
As a leading manufacturer in China, we specialize in supplying high-quality High-Voltage (HV) and Low-Voltage (LV) cast resin winding coils, epoxy-encased conductors, and insulated transformer windings as spare parts for transformer assembly factories worldwide. Our products include resin-coated copper and aluminum windings, vacuum-cast transformer coils, toroidal winding assemblies, and precision-crafted transformer core components, all engineered to meet international standards. These components ensure excellent compatibility, durability, and performance across a variety of dry-type transformer applications.
We pride ourselves on offering cost-effective and reliable solutions, including resin-encapsulated conductors, transformer core windings, and low-loss transformer components, tailored to the needs of transformer assembly operations in diverse industries. Partner with us for precision-crafted electrical winding components, encapsulated HV and LV windings, and dependable service that supports your business success.

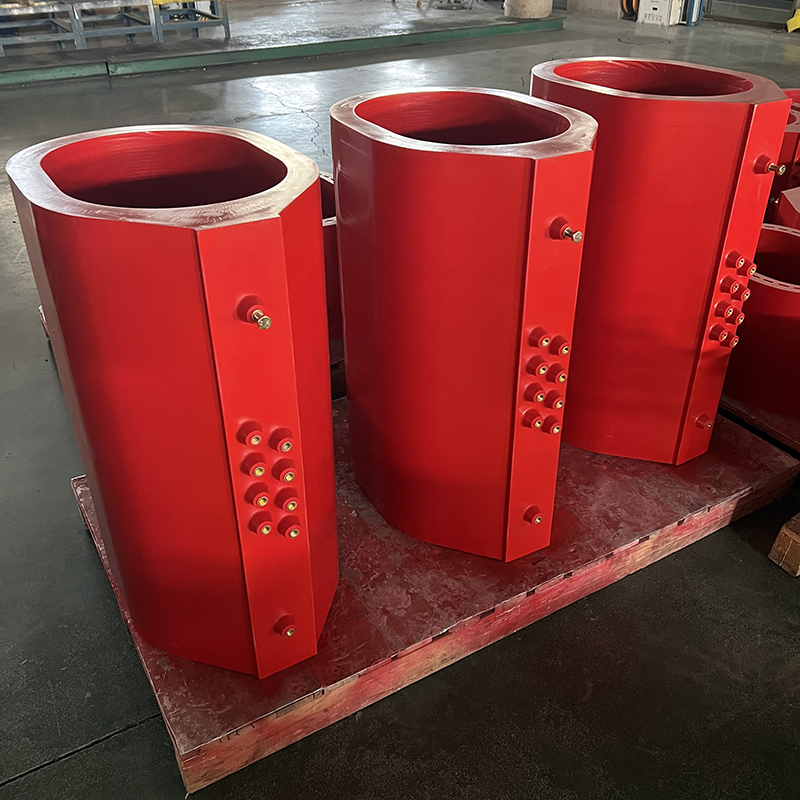

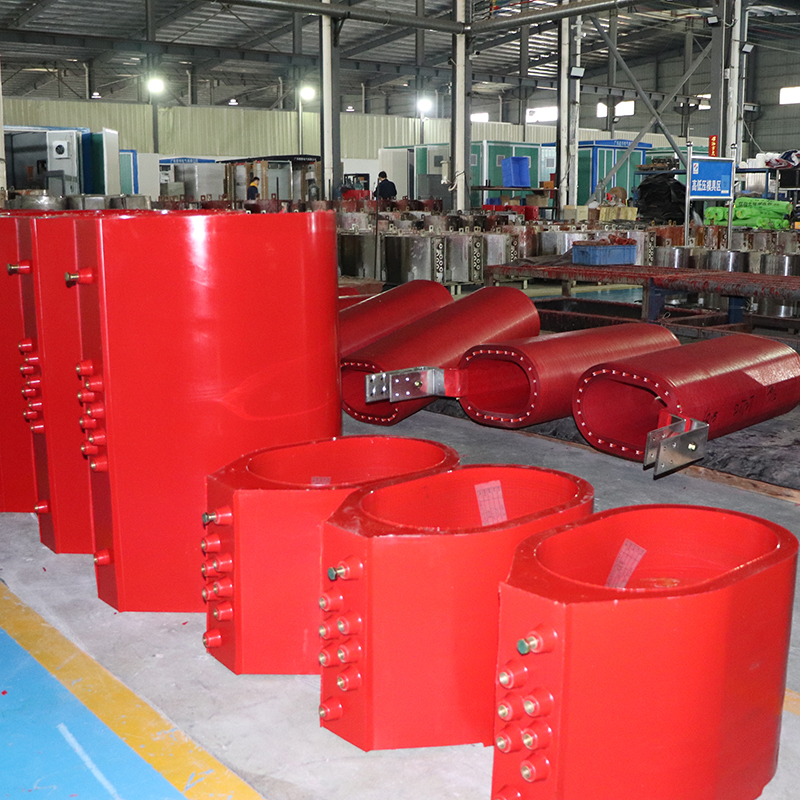

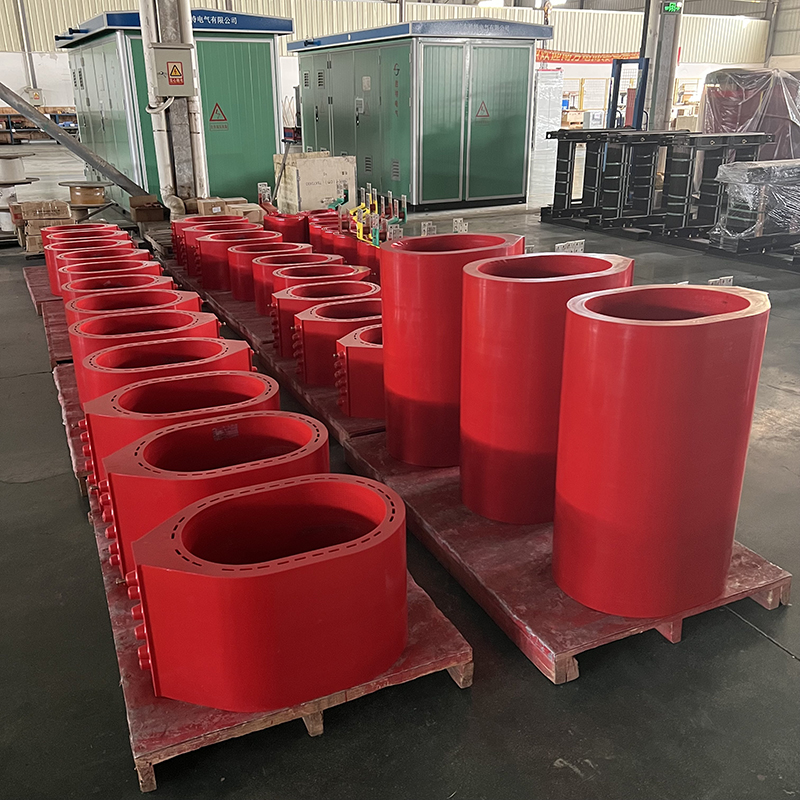

The high-voltage coil is vacuum cast with epoxy resin filled with fillers, with low partial discharge and high electrical strength of the coil. The inner and outer walls of the winding are reinforced with glass fiber mesh plates, which increases the mechanical strength of the coil and improves the ability of the transformer to withstand sudden short circuits.

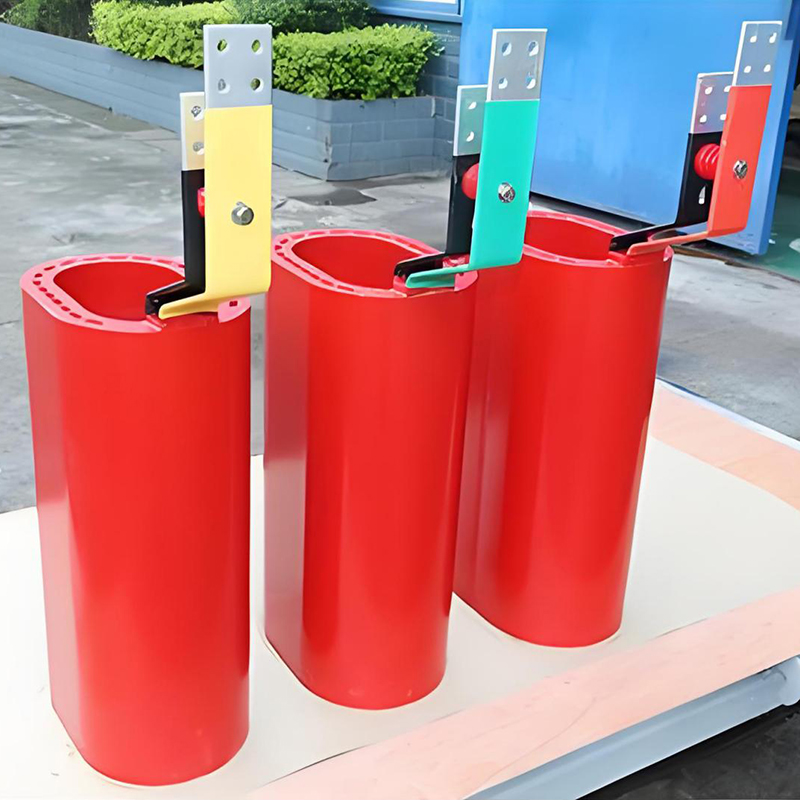

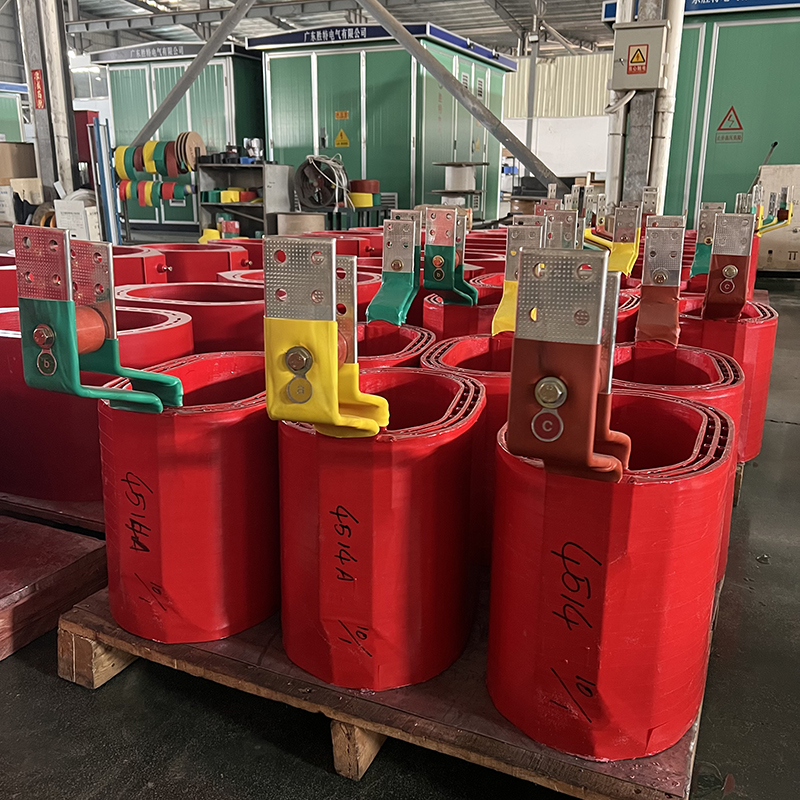

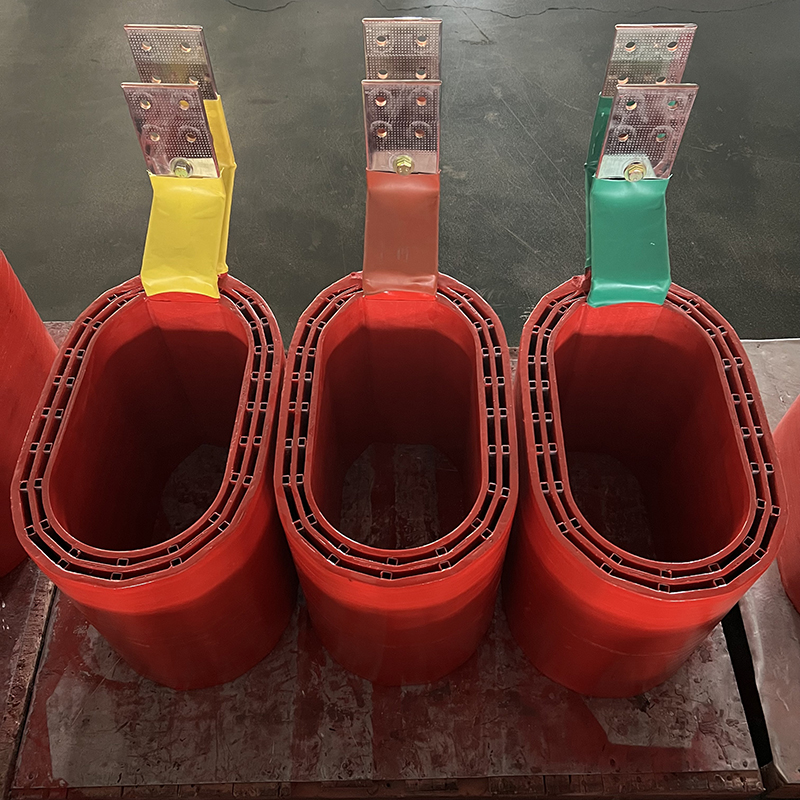

The low-voltage coil adopts a foil structure, which solves the problem of axial spiral angle when using wire winding, making the ampere turn more balanced. At the same time, the coil adopts axial cooling air duct, enhancing the heat dissipation capacity. The DMD epoxy resin pre impregnated cloth is used between the winding layers, and the overall solidification is formed.
Capacity Range: 50kVA to 6300 kVA to meet a variety of power needs.
Voltage Levels:
Primary: 6kV, 10kV, 11kV, 20kV, 33kV, 35kV.
Secondary: 0.4kV, 3kV, 6kV or customized as required.
Model | Rated Capacity (KVA) | Rated Voltage (KV) | Connection Method | No-load Loss (W) | Load Loss (W) | No-load Current (%) | Short Circuit Impedance (%) | ||
High Voltage | Voltage Regulation Range | Low Voltage | |||||||
| SCB10-30 | 30 | 6 6.3 6.6 10 10.5 11 | ±5% ±2×2.5% | 0.4 | Yyn0 Dyn11 | 190 | 710 | 2 | 4 |
SCB10-50 | 50 | 270 | 1000 | 2 | 4 | ||||
SCB10-80 | 80 | 370 | 1380 | 1.5 | 4 | ||||
SCB10-100 | 100 | 400 | 1570 | 1.5 | 4 | ||||
SCB10-125 | 125 | 470 | 1850 | 1.3 | 4 | ||||
SCB10-160 | 160 | 540 | 2130 | 1.3 | 4 | ||||
SCB10-200 | 200 | 620 | 2530 | 1.1 | 4 | ||||
SCB10-250 | 250 | 720 | 2760 | 1.1 | 4 | ||||
SCB10-315 | 315 | 880 | 3470 | 1 | 4 | ||||
SCB10-400 | 400 | 980 | 3990 | 1 | 4 | ||||
SCB10-500 | 500 | 1160 | 4880 | 1 | 4 | ||||
| SCB10-630 | 630 | 1300 | 5960 | 0.85 | 6 | ||||
SCB10-800 | 800 | 1520 | 6960 | 0.85 | 6 | ||||
SCB10-1000 | 1000 | 1770 | 8130 | 0.85 | 6 | ||||
SCB10-1250 | 1250 | 2090 | 9690 | 0.85 | 6 | ||||
SCB10-1600 | 1600 | 2450 | 11700 | 0.85 | 6 | ||||
SCB10-2000 | 2000 | 3050 | 14400 | 0.7 | 6 | ||||
| SCB10-2500 | 2500 | 3600 | 17100 | 0.7 | 6 | ||||
Guangdong Shengte Electric Co., Ltd., based in Foshan, China, is a distinguished transformer manufacturer known for reliability and exceptional after-sales service. With over a decade of experience, we've provided high-quality, cost-efficient transformers for governmental and private sector projects worldwide, earning a reputation for excellence.
Our commitment to quality is demonstrated by meeting the rigorous standards of our German Power Utility clients, ensuring only the highest quality solutions.
Spanning 10,000 square meters, our Foshan facility is equipped with cutting-edge production and testing equipment, enabling us to offer customized solutions, including OEM and ODM services. Our product range includes oil-immersed transformers, resin cast dry-type transformers, pad mounted transformers, prefabricated substations, and more.
Certified by ILAC-MRA and CNAS, our IEC certificate underscores our dedication to international quality standards. Additionally, we hold ISO9001, CE, and Innovative Product Certifications, with active pursuit of the UL certificate to further demonstrate our commitment to global compliance.
Q1: Are you a manufacturer or trading company?
A1: Our factory covers an area of over 10000m2, we can produce 2000 more transformers each year.
Q2: Do you have the relevant certifications and test reports?
A2: Yes, we have ISO9001 and CE certification, and can provide the test reports according to IEC standard.
Q3: How long is the warranty period?
A3: It is 12 months.
Q4: Would you accept using customer's logo?
A4: Yes, we can provide OEM and ODM service.
Q5: What's the MOQ?
A5: It is 1 set.
Q6: What are the payment methods and terms?
A6: We accept T/T, Western Union, PayPal, etc. 30% advance payment before production, 70% balance payment before delivery.
Q7: How long is the delivery time?
A7: Generally it is 20-30 days, it depends on the order quantity.
Q8: What is the standard of package?
A8: Wooden case or special package according to customer's requirement.
