KYN28A-12 Indoor Metal-Clad Withdrawable High-Voltage Switchgear
KYN28A-12
SHENGTE
| Quantity: | |
|---|---|

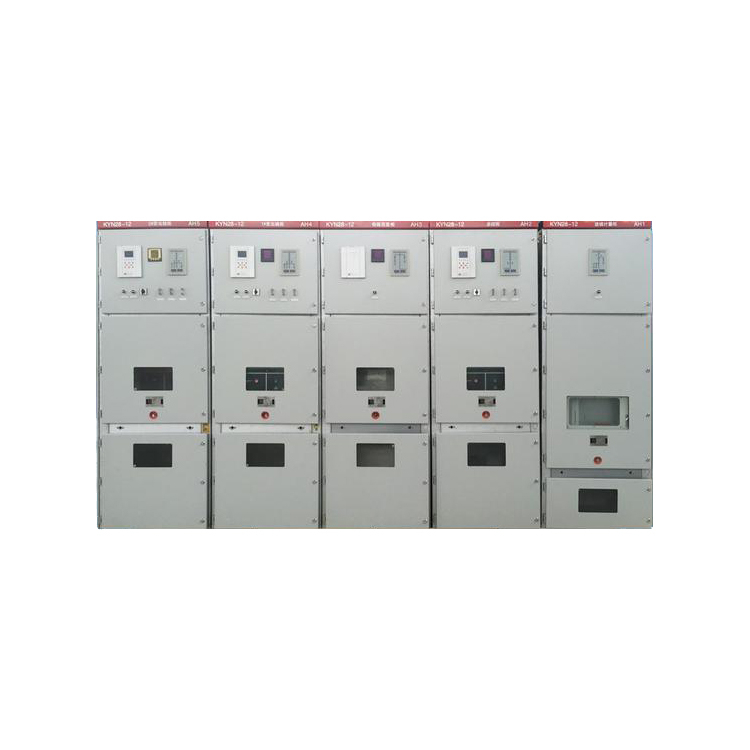

The KYN28A-12 indoor metal-clad withdrawable switchgear is ideal for power reception, distribution, and starting large motors in power plants, industrial facilities, and mining enterprises. This switchgear is used in secondary substations for control, protection, real-time monitoring, and measurement. It supports various vacuum circuit breakers, including VS1 (ZN63A-12) from China, ABB's VD4, HS (ZN82-12) from Shanghai Fuji Electric, and VEP (ZN96-12) from Xiamen Huadian. It is a dominant player in the 12kV market.
Cabinet Exterior Dimensions:
Cable Inlet/Outlet and Connection Cabinets:
1. Width 800(1000) x Depth 1500 x Height 2300
2. Width 800(1000) x Depth 1660 x Height 2300
3. Width 800(1000) x Depth 1800 x Height 2300
Overhead Inlet/Outlet Lines:
1. Width 800(1000) x Depth 1660 x Height 2300
2. Width 800(1000) x Depth 1800 x Height 2300
Note:
GZS1 + Cable Inlet/Outlet and Connection Cabinets:
Width 650 x Depth 1500 x Height 2300
Phase spacing: 150mm (800 width: 210mm, 1000 width: 275mm)
| Item | Unit | Data |
| Rated Voltage | kV | 12 |
| 1min Power Frequency Withstand Voltage (Rated Insulation Level) | kV | 42 (Relatively and Interphase) 48 (Isolated Fracture) |
| Lightning Impulse Withstand Voltage (Rated Insulation Level) | kV | 75 (Relatively and Interphase) 85 (Isolated Fracture) |
| Rated Frequency | Hz | 50 |
| Main Busbar Rated Current | A | 630 1250 1600 2000 2500 3150 4000 |
| Branch Busbar Rated Current | A | 630 1250 1600 2000 2500 3150 4000 |
| 4s Thermally Stable Current | kA | 16 20 25 31.5 40 |
| Rated Dynamic Stable Current | kA | 40 50 63 80 100 |
| Protection Class | The enclosure is IP4X, the compartment and door are IP2X when opened. |
