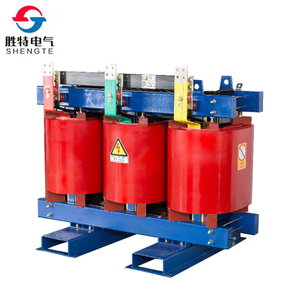

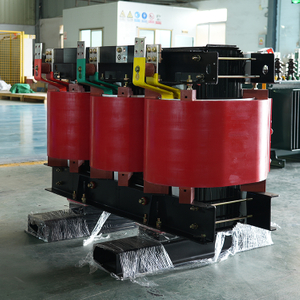

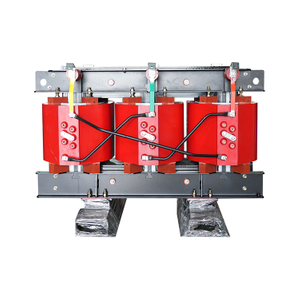

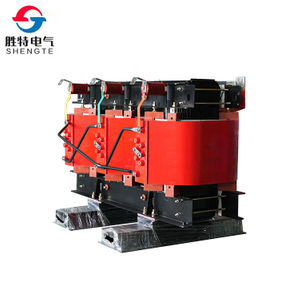

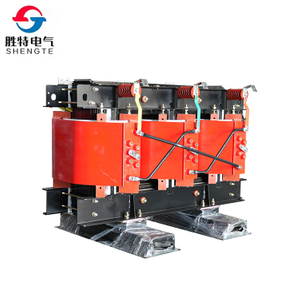

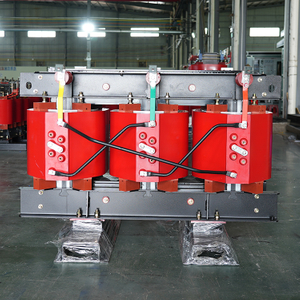

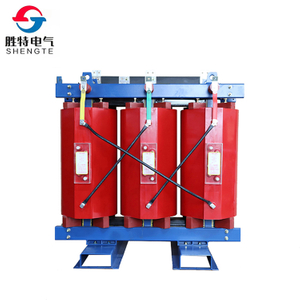

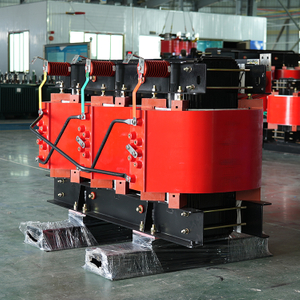

SG(B)
SHENGTE
| Quantity: | |
|---|---|
In addition to all the advantages of all dry-type transformers in China, the transformer also has the following features:
1. Insulation
The insulation grade is H (180 C) and the design redundancy is large.
2. Safety
SG (B) 10 series dry-type transformer is designed as H-class insulation grade, while the main insulation material is DuPont NOMEX paper of the United States with C-class (heat resistance can reach 220 C). The transformer will not be flame-retardant, flame-retardant and will not explode to release toxic gases.
3. Environmentally Friendly
Transformer core is cold rolled silicon steel sheet with high magnetic conductivity and high quality. With special Dell design, the operation noise is far below the national standard. It can be recovered after full service life and does not pollute the environment.
4. Moisture Shielding
Because of the dense NOMEX insulated transformer, it can work satisfactorily in the most humid environment. When the coil is treated as a whole, the sealing level of the conductor and the mechanical strength of the coil are strengthened again by vacuum pressure dipping paint for many times. At the same time, the antisepsis and moisture resistance of the transformer are improved.
5. Durability
Class H insulation can withstand the working temperature of 180 C. It has good heat resistance, high mechanical strength, good heat dissipation conditions, strong overload capacity, long thermal life, not affected by thermal expansion and contraction, good toughness and elasticity, never cracking.
6. Economy
Because of the high temperature resistance of the insulation system, the cooling space of the transformer can be reduced. Compared with the transformer with the same insulation level, the structure can be designed more compact and the weight can be reduced relatively. Compared with the type 09 transformer, the no-load loss ratio of the type 10 transformer is reduced by 15% and the operation cost is greatly reduced.
Product Parameters
| Rated Capacity（KVA) | Loss | No-Load Current (%) | Short Circuit Impedance (%) | Sound Level DB (A) | Profile Reference Dimension (mm) | Body Weight (kg) | Gauge (mm) | ||
| No Load | Load (145°C) | L × W × H (without Casing) | L × W × H (with Casing) | ||||||
| 30 | 215 | 655 | 1 | 4 | 40 | 1050x1050x950 | 1280x1050x1050 | 480 | 400 |
| 50 | 270 | 320 | 1050x1050x975 | 1280x1050x1075 | 480 | ||||
| 80 | 370 | 1275 | 1120x1120x1030 | 1360x1100x1130 | 700 | 550 | |||
| 100 | 395 | 1455 | 1120x1120x1070 | 1360x1100x1170 | 720 | ||||
| 125 | 470 | 1700 | 41 | 1120x1120x1070 | 1390x1100x1170 | 800 | |||
| 160 | 540 | 1960 | 0.8 | 1120x1120x1130 | 1390x1100x1310 | 900 | |||
| 200 | 610 | 2300 | 1120x1120x1200 | 1510x1100x1230 | 1200 | ||||
| 250 | 690 | 2450 | 0.7 | 42 | 1220x1220x1330 | 1510x1100x1430 | 1300 | ||
| 315 | 840 | 3050 | 1220x1220x1450 | 1510x1100x1430 | 1480 | ||||
| 400 | 920 | 3320 | 0.6 | 1360x1360x1480 | 1600x1200x1590 | 1660 | 660 | ||
| 500 | 1110 | 4150 | 43 | 1360x1360x1575 | 1600x1200x1670 | 1855 | |||
| 630 | 1290 | 5200 | 1360x1360x1725 | 1600x1200x1830 | 2000 | ||||
| 630 | 1270 | 1900 | 1560x1560x1680 | 1810x1200x1700 | 2000 | 820 | |||
| 800 | 1370 | 6130 | 0.5 | 6 | 45 | 1560x1560x1680 | 1710x1200x1780 | 2400 | |
| 1000 | 1570 | 8650 | 1580x1200x1550 | 1820x1200x1825 | 2920 | ||||
| 1250 | 1680 | 11640 | 46 | 1610x1300x1725 | 1860x1200x1825 | 3885 | |||
| 1800 | 2180 | 12300 | 0.4 | 48 | 1800x1800x2030 | 2100x1500x2140 | 4020 | 1070 | |
| 2000 | 2600 | 13400 | 1920x1920x2195 | 2250x1500x2300 | 4710 | ||||
| 2500 | 3130 | 15100 | 1980x1980x2225 | 2250x1500x2330 | 5590 | ||||
Guangdong Shengte Electric Co., Ltd., based in Foshan, China, is a distinguished transformer manufacturer known for reliability and exceptional after-sales service. With over a decade of experience, we've provided high-quality, cost-efficient transformers for governmental and private sector projects worldwide, earning a reputation for excellence.
Our commitment to quality is demonstrated by meeting the rigorous standards of our German Power Utility clients, ensuring only the highest quality solutions.
Spanning 10,000 square meters, our Foshan facility is equipped with cutting-edge production and testing equipment, enabling us to offer customized solutions, including OEM and ODM services. Our product range includes oil-immersed transformers, resin cast dry-type transformers, pad mounted transformers, prefabricated substations, and more.
Certified by ILAC-MRA and CNAS, our IEC certificate underscores our dedication to international quality standards. Additionally, we hold ISO9001, CE, and Innovative Product Certifications, with active pursuit of the UL certificate to further demonstrate our commitment to global compliance.
Certifications
Project Cases
Exhibition
Packaging & Shipping
FAQ
Q1: Are you a manufacturer or trading company?
A1: Our factory covers an area of over 10000m2, we can produce 2000 more transformers each year.
Q2: Do you have the relevant certifications and test reports?
A2: Yes, we have ISO9001 and CE certification, and can provide the test reports according to IEC standard.
Q3: How long is the warranty period?
A3: It is 12 months.
Q4: Would you accept using customer's logo?
A4: Yes, we can provide OEM and ODM service.
Q5: What's the MOQ?
A5: It is 1 set.
Q6: What are the payment methods and terms?
A6: We accept T/T, Western Union, PayPal, etc. 30% advance payment before production, 70% balance payment before delivery.
Q7: How long is the delivery time?
A7: Generally it is 20-30 days, it depends on the order quantity.
Q8: What is the standard of package?
A8: Wooden case or special package according to customer's requirement.
