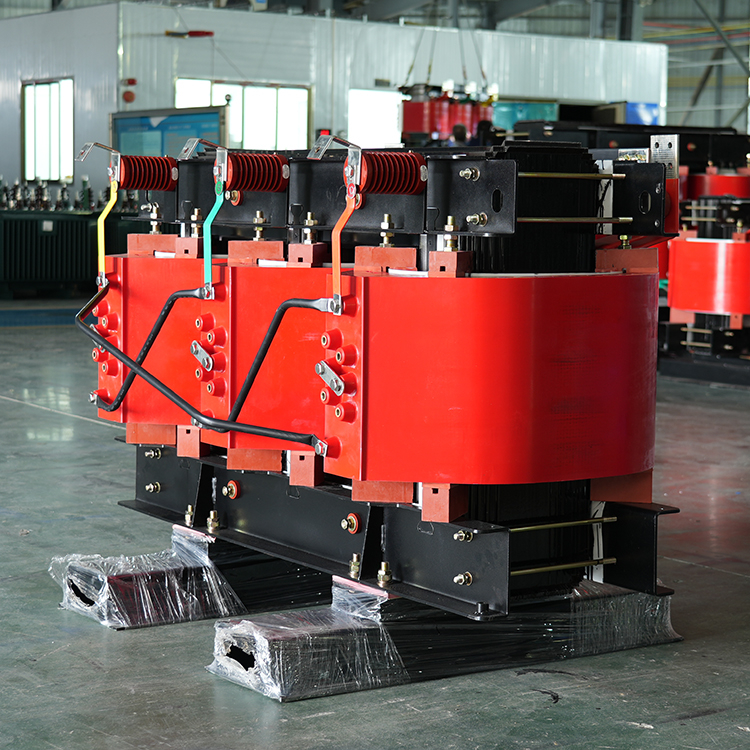

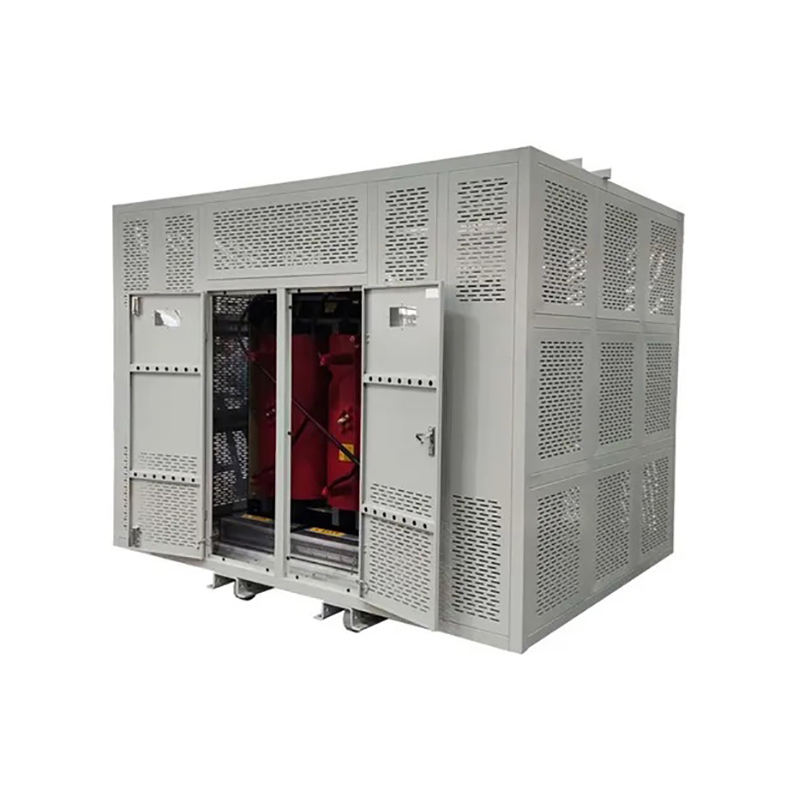

Best Price SC(B)10 dry-type transformer with technical parameters Supplier-shengte

short description:


  • MOQ: 1pcs
  • Payment: UnionPay
  • Place of Origin: FoShan, Guangdong, China
  • Brand: SHENGTE
  • Delivery Time: 10-12 days for sample, 10-15 days for mass production after payment confirmed
  • Start Port: FoShan
  • Product Detail

    Product Tags

    dry-type transformer (6)
    dry-type transformer (3)
    dry-type transformer (1)
    dry-type transformer (5)
    dry-type transformer (2)
    dry-type transformer (4)

    PRODUCT CHARACTERISTICS

    A.

    Low loss, low partial discharge, low noise, strong heat dissipation, 120% rated load operation under forced air cooling conditions.

    B.

    Good moistureproof performance. It can operate normally under 100% humidity. It can be put into operation without pre-drying after shutdown.

    C.

    Safe operation, non-flammable and fire-proof, pollution-free, can be installed directly in the load center.

    D.

    It is equipped with perfect temperature protection control system to provide reliable guarantee for the safe operation of transformers.

    E.

    Maintenance-free, simple installation, low comprehensive operation cost.

    F.

    High reliability. According to the research on the operation of the products that have been put into operation, the reliability of the products has reached the international advanced level.

    PRODUCT CHARACTERISTICS

    Technical parameters of SC(B)10 dry-type transformer

    Epoxy resin cast SC (B) 10, SC (B) 11-50 ~ 2500 series resin insulated dry power transformer, suitable for hotels, high-rise buildings, commercial centers, residential areas, sports venues, petrochemical plants, airports, ports, subway, etc.

    Features:

    1. Low noise: reasonable magnetic circuit design and selection of high-quality oriented cold rolled silicon steel sheet, full oblique four-seam step lamination, special draught reduction assembly process, so the noise level is lower than the national standard.

    2. Local discharge: the coil adopts the latest international advanced casting technology, so that the resin is poured under vacuum and pressure. The local discharge is small, which can ensure the long-term safe operation under the working voltage.

    3. Strong ability to resist sudden short circuit: coil used for packing structure of epoxy glass fibres, vacuum pouring winding layers, turn-to-turn into resin, after curing, the coil to form a high strength of rigid body, and using the plate structure and the block positioning way up and down, to ensure the transformer mechanical strength of the whole, make the products have high short circuit ability.

    4. Strong impact resistance: special segmental circular structure and foil structure are adopted in the pouring group, which can reduce the voltage between layers, improve the electric field distribution, and have stronger lightning impact resistance.

    SC(B)10dry transformer technical parameters

    Model uk% Air loss(w) Loss (120C) (W) 0.1 LPA(AN)DB Size mm Total (kg) Low voltage terminal
    LxBxH M N I P K1 K2
    SC10-30/10 4 190 710 2 42 880x460x862 400 400 300 160 263 223 440
    SC10-50/10 270 1000 2 42 950x750x915 550 550 325 170 271 229 575
    SC10-80/10 370 1380 1.2 42 1000x750x977 550 550 340 180 280 255 620
    SC10-100/10 400 1570 0.7 42 1030x750x1020 550 550 350 190 293 260 830 (a)
    SC10-125/10 470 1850 0.7 43 1050x750x1057 550 550 360 190 300 290 940
    SC10-160/10 540 2130 0.7 43 1080x750x1147 550 550 365 190 295 295 1100 (a)
    SC10-200/10 620 2530 0.7 43 1100x860x1185 550 550 370 200 295 295 1245 (a)
    SC10-250/10 720 2760 0.7 43 1120x960x1262 660 660 380 200 300 300 1415 (a)
    SCB10-315/10 880 3470 0.7 45 1200x860x1362 660 660 390 120 268.5 268.5 1450 (b)
    SCB10-400/10 980 3990 0.7 45 1240x860x1195 660 660 425 120 263.5 263.5 1655 (b)
    SCB10-500/10 1160 4800 0.6 46 1255x860x1195 660 660 430 120 269 269 1945 (c)
    SCB10-630/10 1340 5880 0.6 46 1406x860x1280 820 820 480 135 336 336 2440 (c)
    SCB10-630/10 6 1300 5960 0.6 46 1405x860x1260 820 820 485 135 320 320 2475 (c)
    SCB10-800/10 1520 6960 0.5 48 1425x1020x1385 820 820 485 165 323 323 2990 (d)
    SCB10-1000/10 1770 8130 0.4 48 1500x1270x1385 820 820 515 145 333.5 331.5 3395 (d)
    SCB10-1250/10 2090 9690 0.4 49 1580x1270x1597 820 820 540 185 332 338 3520 (e)
    SCB10-1600/10 2450 11730 0.3 49 1658x1270x1660 1070 1070 565 185 338 345 4165 (f)
    SCB10-2000/10 3050 14450 0.3 50 1805x1270x1847 1070 1070 615 205 338 347 5545 (g)
    SCB10-2500/10 3600 17170 0.3 50 1890x1270x2020 1070 1070 640 205 380 393 6670 (g)
    SCB10-1600/10 8 2450 12960 0.3 49 1680x1270x1680 1070 1070 565 185 338 345 3720 (f)
    SCB10-2000/10 3050 15960 0.3 50 1885x1270x1850 1070 1070 615 205 338 347 4920 (g)
    SCB10-2500/10 3600 18890 0.3 50 1910x1270x2080 107 1070 640 205 380 393 5900 (g)

    Technical parameters of S(B)H15-M-30~1600/10/0.4 series amorphous alloy distribution transformers

    Model uk% Air loss(w) Loss (120C) (W) 0.1 LPA(AN)DB Size mm Total (kg) Low voltage terminal
    LxBxH M N I P K1 K2
    SC11-30/10 4 170 660 1.8 41 880x460x862 400 400 300 160 263 223 440
    SC11-50/10 240 940 1.7 41 950x750x915 550 550 325 170 271 229 575
    SC11-80/10 320 1300 1.6 41 1000x750x977 550 550 340 180 280 255 620
    SC11-100/10 350 1480 1.5 41 1030x750x1020 550 550 350 190 293 260 830 (a)
    SC11-125/10 410 1740 1.4 42 1050x750x1057 550 550 360 190 300 290 940
    SC11-160/10 450 2000 1.4 42 1080x750x1147 550 550 365 190 295 295 1100 (a)
    SC11-200/10 490 2280 1.2 42 1100x860x1185 550 550 370 200 295 295 1245 (a)
    SC11-250/10 580 2590 1.2 42 1120x960x1262 660 660 380 200 300 300 1415 (a)
    SCB11-315/10 660 3260 1 44 1200x860x1362 660 660 390 120 268.5 268.5 1450 (b)
    SCB11-400/10 780 3750 1 44 1240x860x1195 660 660 425 120 263.5 263.5 1655 (b)
    SCB11-500/10 970 4600 1 45 1255x860x1195 660 660 430 120 269 269 1945 (c)
    SCB11-630/10 1080 5610 0.6 45 1406x860x1280 820 660 480 135 336 336 2440 (c)
    SCB11-630/10 6 1050 5500 0.6 45 1405x860x1260 660 485 485 135 320 320 2475 (c)
    SCB11-800/10 1300 6540 0.4 47 1425x1020x1385 820 485 485 165 323 323 2990 (d)
    SCB11-1000/10 1500 7650 0.4 47 1500x1270x1385 820 515 515 145 333.5 331.5 3395 (d)
    SCB11-1250/10 1720 9100 0.3 48 1580x1270x1597 820 540 540 185 332 338 3520 (e)
    SCB11-1600/10 2090 11050 0.3 48 1658x1270x1660 1070 565 565 185 338 345 4165 (f)
    SCB11-2000/10 2660 13600 0.3 49 1805x1270x1847 1070 615 615 205 338 347 5545 (g)
    SCB11-2500/10 3200 16100 0.2 49 1890x1270x2020 1070 640 640 205 380 393 6670 (g)
    SCB11-1600/10 8 2090 12160 0.3 49 1680x1270x1680 1070 1070 565 185 345 338 3720 (f)
    SCB11-2000/10 2660 14960 0.3 49 1885x1270x1850 1070 1070 615 205 347 338 4920 (g)
    SCB11-2500/10 3200 17780 0.2 49 1910x1270x2080 1070 1070 640 205 393 590 (g)
