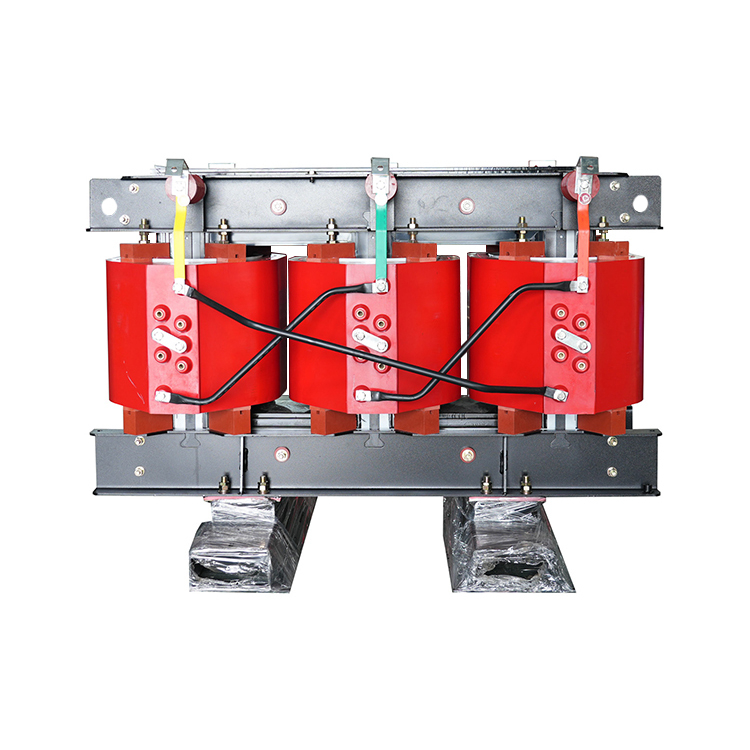

Dry Type Transformers are constructed with epoxy resin insulation that reliably stops arcing and separates electrical currents. Unlike oil-filled versions, the three-phase dry type transformer setup relies on air for cooling. It uses either natural airflow or forced air. This approach provides safer performance and better dependability. The design removes the requirement for upkeep. It also delivers low partial discharge and moisture resistance. These features make it perfect for tough settings. Moreover, the dry type transformer advantages feature explosion-proof qualities. This boosts its safety in vital uses.

Features:

• Peak Efficiency: Notable for its low operational losses, quiet function, and controlled partial discharge. It excels in heat dissipation, allowing it to run at 120% of its rated capacity with forced air cooling.

• Moisture Resilience: Able to perform in extremely humid conditions (up to 100%) and can immediately continue operations after halts, without the need for drying.

• Safety and Eco Compliance: Fire-resistant and devoid of pollutants, making it a safe addition to any load center.

• Temperature Regulation: Incorporates an advanced system for temperature control that secures reliability and safety during operations.

• Installation and Maintenance Ease: Designed for quick installation and is maintenance-free, which significantly reduces operational costs.

• Reliability Assurance: Field performance aligns with top international standards, confirming its reliability.

Our Advantages:

1. High-Performance Windings:

   High-voltage winding: It is vacuum-cast with epoxy resin insulation. Glass fiber mesh adds strength for low partial discharge and strong electrical power. This boosts its ability to handle short circuits.

   Low-voltage winding: It employs a foil build for even ampere turns. An axial cooling air duct helps with better heat removal. DMD epoxy resin cloth provides firm bonding between winding layers.

2. Efficient Core Design: The iron core comes from quality cold-rolled silicon steel sheets. It features a three-stage slanted joint setup. Plus, epoxy resin wrapping lowers no-load loss, no-load current, and core noise.

3. Advanced Cooling System: It includes a low-noise, high-wind-pressure cross-flow top-blowing cooling fan. This raises overload capacity for improved results.

4. Intelligent Temperature Control: A built-in temperature controller boosts operational safety. It also ensures steady, dependable work.

5. Explosion-Proof & Moisture Resistance: The dry type transformer enclosure gives IP33 protection. Materials such as aluminum alloy, cold-rolled steel, or stainless steel provide lasting strength and moisture resistance.

Product Parameters

Production Process

Company Profile

Guangdong Shengte Electric Co., Ltd., based in Foshan, China, is a distinguished transformer manufacturer known for reliability and exceptional after-sales service. With over a decade of experience, we've provided high-quality, cost-efficient transformers for governmental and private sector projects worldwide, earning a reputation for excellence.
Our commitment to quality is demonstrated by meeting the rigorous standards of our German Power Utility clients, ensuring only the highest quality solutions.
Spanning 10,000 square meters, our Foshan facility is equipped with cutting-edge production and testing equipment, enabling us to offer customized solutions, including OEM and ODM services. Our product range includes oil-immersed transformers, resin cast dry-type transformers, pad mounted transformers, prefabricated substations, and more.
Certified by ILAC-MRA and CNAS, our IEC certificate underscores our dedication to international quality standards. Additionally, we hold ISO9001, CE, and Innovative Product Certifications, with active pursuit of the UL certificate to further demonstrate our commitment to global compliance.

Certifications

Project Cases

Exhibition

Packaging & Shipping

FAQ

Q1: What is the typical lifespan of a dry type transformer?

A1: Dry type transformers serve for 20-30 years. They provide enduring service with little upkeep. This comes from their epoxy resin insulation and moisture resistance.

Q2: Can a three phase dry type transformer be used in high-humidity environments?
A2: Yes, these transformers suit high-humidity spots. Their moisture resistance and epoxy resin insulation guarantee steady performance.

Q3: Is the cast resin dry type transformer maintenance-free?
A3: Yes, cast resin dry type transformers require no maintenance. This is due to their epoxy resin insulation and moisture resistance. They ensure lasting dependability.

Q4: What environments are suitable for installing a dry type transformer?
A4: It fits well in high-humidity, explosion-proof areas. Examples include medical institutions, data centers, and industrial plants. It offers moisture resistance and safety.

Q5: What protection levels and safety features does the dry type transformer offer?
A5: Equipped with IP33 protection and explosion-proof housing, these transformers are designed to handle moisture and harsh conditions.
