1.What Is a Pad-Mounted Transformer?
2.Where Are the Core Applications of Pad Mounted Transformers?
3.Why Choose a Pad Mounted Transformer?
4.Comparison of Pad Mounted vs. Dry Type vs. Oil Immersed Transformers
5.Why Choose SHENGTE’s Pad Mounted Transformers?
Ever thought about what keeps the lights on in your neighborhood without those big, ugly poles cluttering the view? It’s often a pad mounted transformer working quietly underground or on a concrete pad. These units handle power distribution in a sleek, safe way. If you’re in the electrical field—maybe planning a new subdivision or upgrading an old factory—getting the right one matters a ton. As someone who has seen plenty of installs go south from bad choices, I’ll walk you through the basics, where they fit best, and why SHENGTE’s options stand out. This blog will cover real-world uses, comparisons, and tips to pick a winner. Stick around; this could save you headaches down the road.

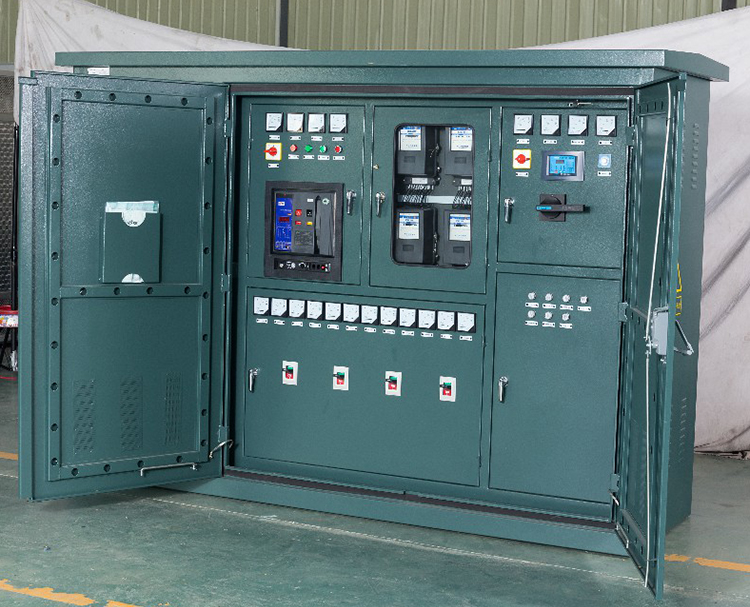

Pad mounted transformers sit on a concrete base, usually at ground level. They're boxed up tight to protect the guts from weather and vandals. Think of them as the workhorse for stepping down high voltage to something usable, like from 10kV to 400V in many setups.

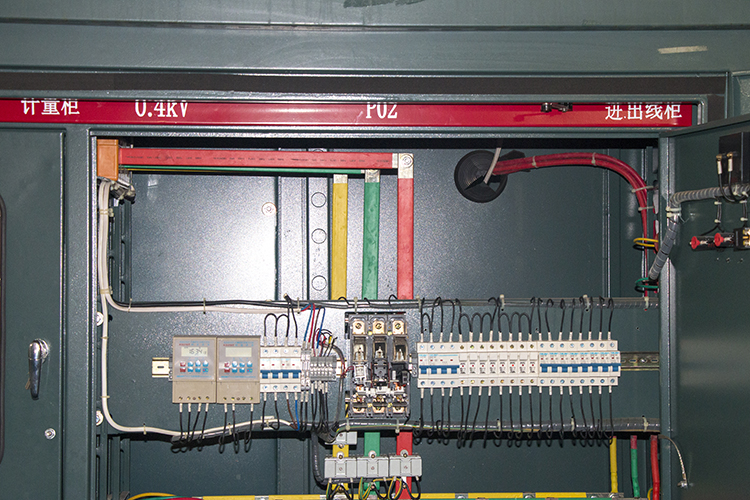

The core of the pad transformer is a tank holding the transformer coils and oil or dry insulation. The high-voltage side connects to underground cables, while the low side feeds out to homes or buildings. It works on electromagnetic induction—AC current in one coil creates a magnetic field that induces voltage in another. Simple, right? But the pad design adds layers. Doors lock for safety, vents keep it cool, and sometimes there's even a fuse bay built in.
Pad mounted transformers come in single-phase or three-phase flavors. The 3 phase pad mounted transformer handles bigger loads, like 125kVA for a small commercial spot. Efficiency hits 98% or more in good models, cutting losses.
Pad mounted transformers are everywhere power needs to flow reliably without taking up space. They’re perfect for urban spots where aesthetics count. Let’s break down the main areas.
Residential Communities and Streets: In housing developments, pad mounted transformers tuck away in green spaces or alleys. They power streetlights, homes, even EV chargers now. One project I recall fed 50 homes off a single 100kVA unit, keeping blackouts rare.
Commercial Centers and Office Buildings: Malls and offices need steady juice for HVAC and elevators. Box type substations, also called the American box transformers, integrate switching gear right in. They handle spikes from rush hours. In a downtown plaza, we installed one that supported 200kW without a hitch, blending into the landscape.
Industrial Parks and Schools: Factories crave robust setups for machinery. Schools use them for labs and lighting. Industrial ones might rate up to 2500kVA.
These areas show how versatile pad-mounted transformers are. No more climbing poles for repairs—everything’s at eye level.
Why go pad-mounted over other types? It’s not just hype. They shine in safety, toughness, and practicality. Here’s the scoop. The advantages of them are as follows.
Excellent Safety: Safety is crucial. These units lock up high-voltage parts, cutting accident risks. Tamper-resistant doors and grounding keep folks safe. In tests, they withstand short circuits better than some alternatives. About fire ratings, many hit UL standards, with oil models using less-flammable fluids.
Strong Environmental Adaptability: They tough out weather—rain, snow, even salt air in coastal areas. Enclosures rate IP54 or higher for dust and water. Corrosion-resistant paint lasts 20 years easy. In a windy industrial park, one held up through storms that took down overhead lines.
Space Saving: No need for big vaults. A compact footprint—say 2m×2m for a 500kVA unit—frees up land. Urban planners love this; it means more parking or greenspace. Compared to substation buildings, you save thousands in construction.
Easy Installation and Maintenance: Drop it on a pad, hook up cables, done. No cranes needed like for pole-mounts. As for maintenance, all you have to do is open the door, check the oil level, and test the fuses, all within an hour. Downtime drops; one client reported 30% less service time.
Other Bullet Points: In confined spaces, installation costs can be reduced by 20-40%. And the noise level is very low, typically below 55 decibels, which means neighbors won’t complain. Finally, scalability is key; additional units can be added as load increases.
Choosing boils down to needs. Pad mounted transformers often win for outdoor use, but let's stack them against dry type and oil immersed ones. Dry types use air cooling, no fluids—great indoors. Oil immersed dunk coils in oil for cooling, common in big setups.
Here’s a table to make it clear:

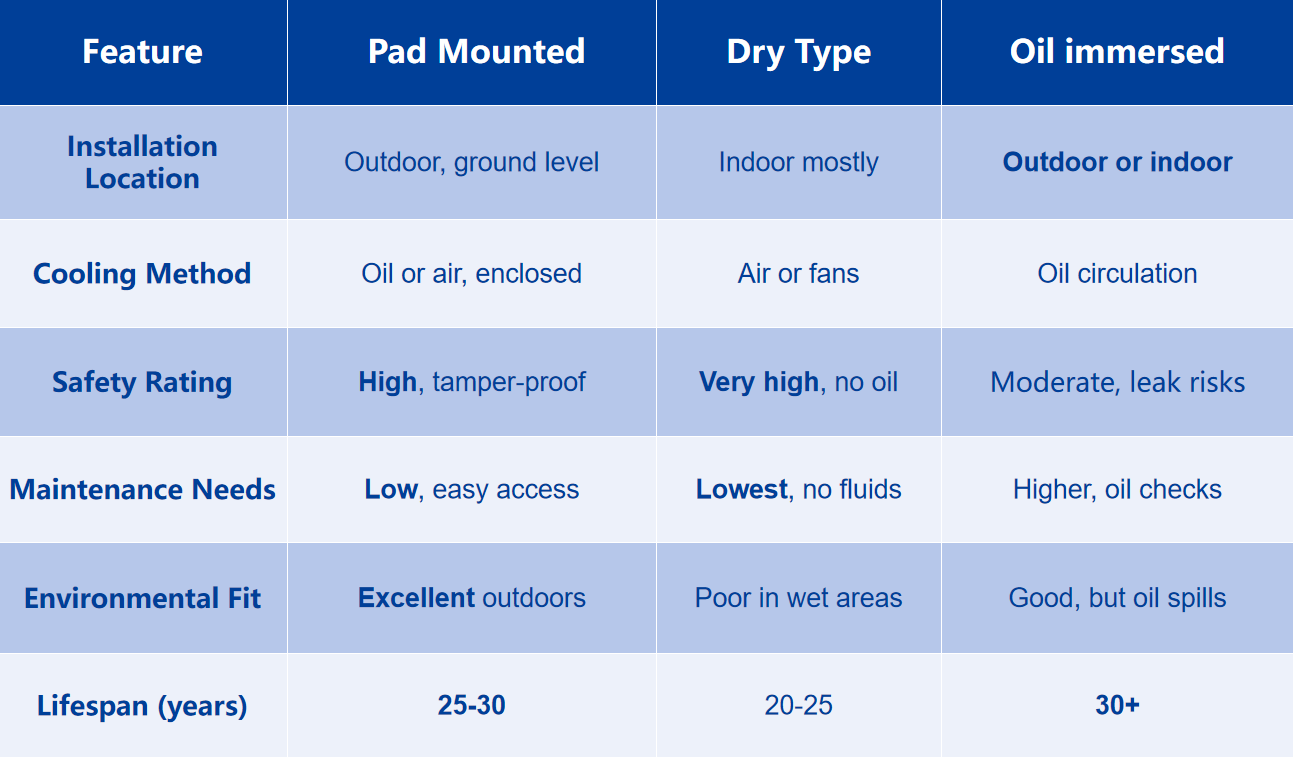

Pad mounted transformers blend the best of both worlds for distribution. Dry types suit clean rooms—no oil mess. But you’ll see the dry ones are too pricey for outside. Oil immersed types handle heavy loads cheap, but watch for leaks. In a factory retrofit, pad mounted cut space use by 50% over oil units.

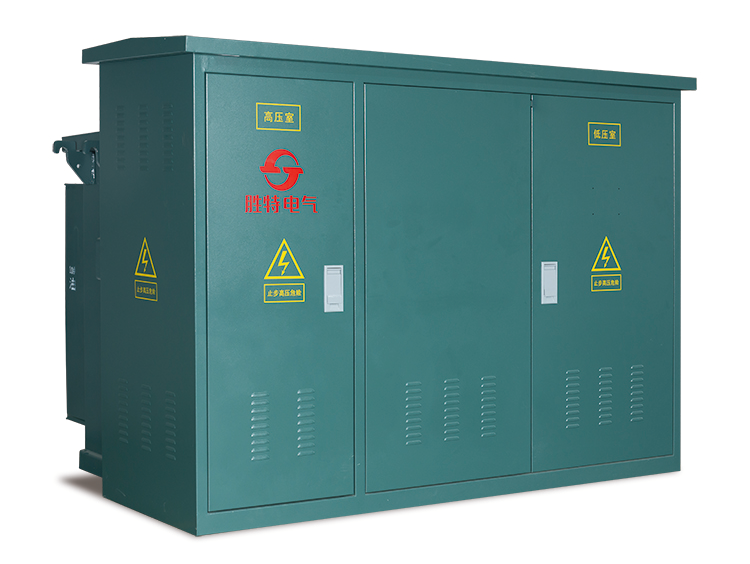

As a professional box-type transformer manufacturer, SHENGTE provides partners with equipment that combines practicality and superior performance. Our ZGS11-125kVA model is a 3 phase pad mounted transformer that can also serve as a box type substation, making it ideal for streamlined deployments. Let’s dig into what sets it apart.
One-Stop Integrated Solution: This unit packs it all: transformer, switchgear, and fuses in one tidy box. No hunting for parts or juggling vendors. It follows the American box transformer style, making installs a breeze. One contractor I know set it up in a tight urban lot in under a day, powering a strip mall without extra gear. That kind of ease saves time and cash.
Excellent Space Efficiency: Space is gold, especially in cities. The ZGS11-125kVA squeezes into a footprint smaller than most, handling 10kV down to 400V output. It’s ideal for crowded sites where every square meter counts. In a recent school project, it fit where a bigger unit wouldn’t, cutting land costs by thousands. Compact yet mighty—that’s the draw.
Beautiful Outdoor Design: Aesthetics matter outdoors. These transformers come in sleek green or gray finishes, blending into parks or streets. One installation near a playground looked like part of the scenery—no complaints from locals. Moreover, the lockable doors add security without clashing with the view.
Ingenious Craftsmanship: SHENGTE uses premium steel and smart design. Safety features like pressure relief valves and real-time monitoring keep risks low. Field data shows 99.9% uptime, even in harsh weather. It’s built to last, not just look good.
SHENGTE has been in the power industry for more than 15 years. As a leading dry type transformer manufacturer, we back our products with international certifications like IEC, ISO9001, and CE. Behind the scenes, a 10,000m2 modern plant and an annual output of over 2,000 units keep our supply steady and our quality consistent. We also offer tailored solutions, including OEM and ODM services, along with a hands-on after-sales team to help you find the power setup that actually works for you. Whether it’s meeting tough fire-safety standards or cutting long-term energy use and costs, our technology is built to deliver.
Pad mounted transformers nail it for safe, efficient power distribution. They adapt to tough spots, save space, and keep things running smooth. Picking the right one, like a solid SHENGTE 3 phase pad mounted transformer, boosts your setup’s longevity and cuts costs long-term. SHENGTE’s options, with the integrated design and tough build, offer real value. For custom fits, please contact our experts at juanie@shengtetransformer.com. Don’t wait—get in touch and power up right.
