Electrical transformers are vital in today's power setups, making sure electrical energy moves safely and smoothly between different voltage levels. Among the various kinds available, hermetically sealed and conservator type transformers stand out as popular choices. Each comes with unique benefits tailored to specific uses and surroundings. Knowing how they differ helps engineers, building managers, and utility planners pick the best option for their power distribution systems.
Transformers are essential for handling voltage in transmission and distribution networks.
At their heart, electrical transformers change electrical energy from one voltage to another using electromagnetic induction. This job is crucial for lowering high voltages from transmission lines to safer levels for homes, shops, and factories. Without them, sending electricity over long distances would be wasteful and expensive due to huge energy losses.

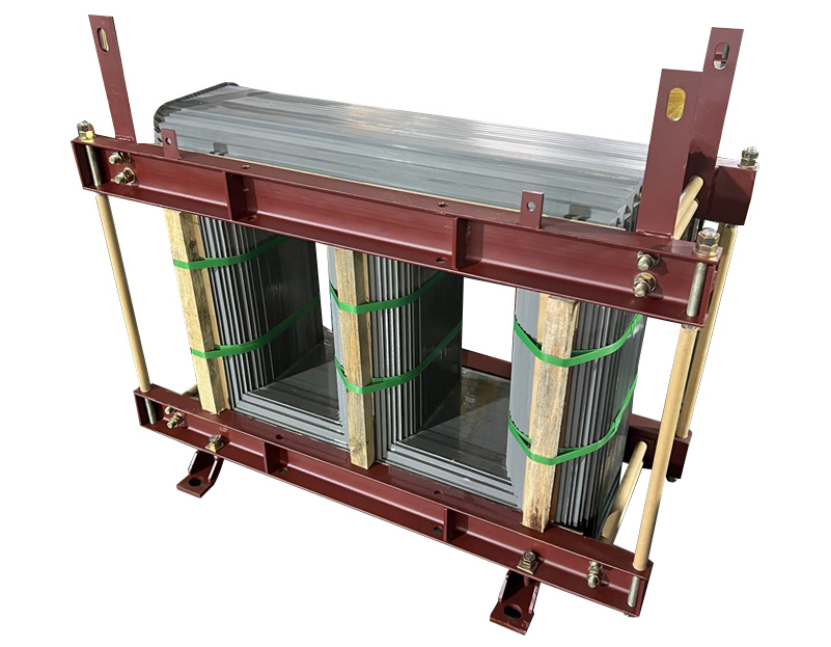

A standard transformer has a magnetic iron core and at least two windings, known as primary and secondary coils, which help change the voltage. The core uses top-notch cold-rolled silicon steel sheets and features a three-step slanted joint design. The windings are protected with materials like epoxy resin or soaked in oil to stay safe under high heat or heavy loads.
Low voltage switchgear is key for managing, safeguarding, and separating electrical gear downstream of the transformer. The GGD type AC low voltage switchgear works with AC 50Hz systems, handling a rated voltage of 380V and currents up to 3150A. It keeps things steady by allowing safe disconnection during repairs or faults, while also aiding smooth power distribution.
Hermetically sealed transformers are built to shield against outside elements with extra care.
These transformers are fully closed off to block air or water from getting inside.

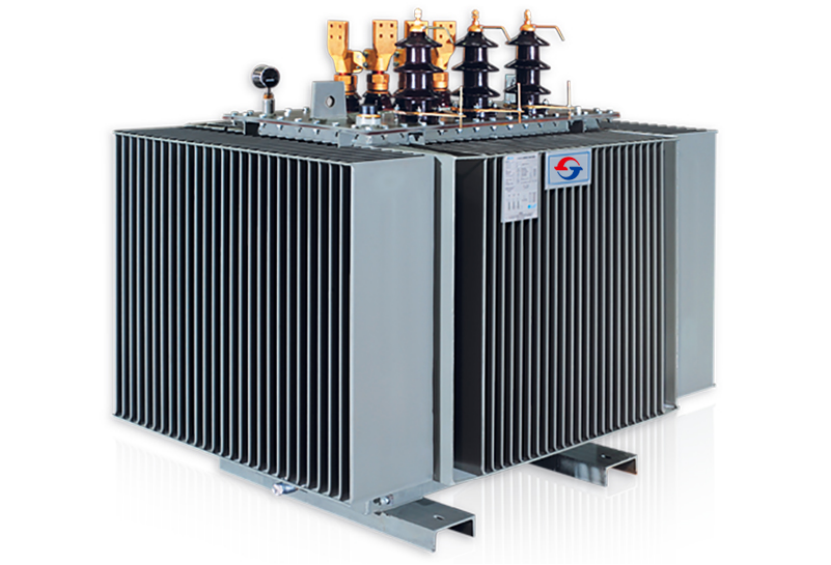

With a completely shut structure, the oil tank keeps insulation and heat release at their best for the transformer oil inside. This setup skips the need for an outside conservator tank. Instead, it uses bendable wavy walls to handle pressure shifts internally.
To guard the inner parts even more, these units often have nitrogen gas or a vacuum within the tank. This stops the insulation materials and transformer oil from breaking down over time due to oxidation.
Hermetically sealed transformers bring several handy perks that fit certain needs well.
They’re tightly sealed with a fully insulated build, needing no extra insulation space, which keeps people safe. By stopping air from sneaking in, these units cut down on water damage, a frequent reason for insulation breakdowns.
Since they’re closed off from dirt or grime outside, these transformers don’t need checkups as often as open designs. There’s no hassle of watching or topping up oil levels all the time.
These units work great in tight spots like city substations or pad-mounted setups where room is scarce. They’re widely used in urban zones, housing areas, hotels, medical centers, factories, oil depots, airports, train stations, and ports.
Conservator type transformers come with an extra tank outside to manage oil swelling when temperatures shift.
Their build lets transformer oil interact with outside air in a controlled way.
A conservator tank sits above the main body and holds spare insulating oil. When temperatures rise or fall during use, this tank lets the oil expand or shrink without putting strain on the main container.
A breather setup, often packed with silica gel, cleans the air that enters the conservator tank as oil levels change. This cuts down on water sneaking in while keeping pressure steady inside the transformer.
Conservator designs bring certain plus points, especially for bigger capacity needs.
They handle bigger changes in oil volume without harming the structure. So, these units deal with higher heat loads better than hermetically sealed ones.
Workers can check oil levels just by looking at gauges on the conservator tank. Plus, taking samples or swapping out old oil is simpler with easy-to-reach spots on both tanks.
These transformers often show up in big industrial plants or countryside substations. Space isn’t usually a big issue there, but the demand for power is high.
Picking the right type means looking at how they work side by side.
The transformer oil is thin, moves heat well, and insulates nicely. In sealed units, cooling happens through internal flow in a closed loop. On the other hand, conservator types use an open-breathing system. This can cool better at heavy loads since more oil moves through radiators.
Sealed models need less regular care. But if something goes wrong inside, they might need a full swap since getting in is tough. Conservator types ask for frequent checks. Yet, they allow fixes at the part level over time. This could mean lower costs in the long run, even with more upkeep work.
Sealed designs shine in damp or dirty places where stuff in the air could harm insulation fast. Meanwhile, conservator units do well in cleaner, rural spots where regular checks are easy to manage.
Deciding between hermetically sealed and conservator transformers takes more than just looking at the price tag.
In spots with lots of moisture or dust, like near the coast, sealed models last longer since they’re cut off from outside elements. Their surface gets cleaned of oil, rust, and treated with phosphate before a special paint that fights rain, dampness, and salty air is added.
Places needing steady, heavy power might do better with conservator designs. They manage heat well under constant strain due to bigger oil reserves that help release heat more effectively.
If you want little hands-on work, like in unmanned stations, sealed options cut down on labor needs over time. But for setups with maintenance crews nearby often, conservator types give more options with easy access for checks via breathers or sample points.
No matter which transformer you pick, matching it with downstream switchgear is a must for smooth power delivery in any network.
Both transformer styles work well with current low voltage switchgear setups like GGD cabinets built to IEC439 rules. These cabinets handle power for lights and other needs without a hitch.

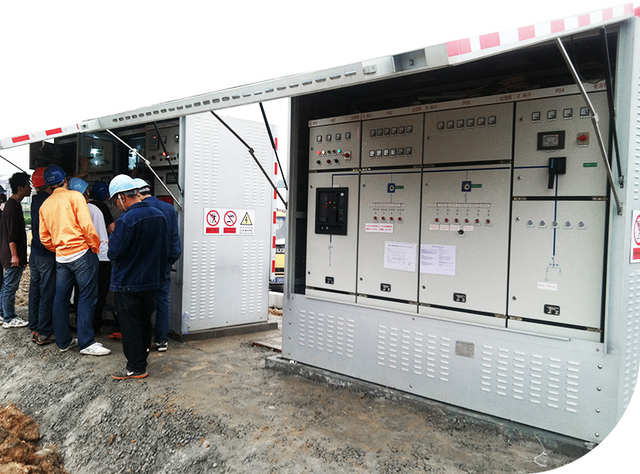

Good pairing ensures protection from overloads while allowing real-time control, which is key for a stable grid. This is especially true when linked with smart monitoring tools in prefabricated or underground systems built to fit either transformer type’s space needs.
Going with a trusted maker ensures top-notch products that meet global standards and come with solid support after purchase across many fields worldwide.
SHENGTE focuses on crafting high-quality electrical gear, including dry type transformers, pad-mounted units, prefabricated substations, and underground combined systems. Their work is backed by cutting-edge methods and years of know-how, serving markets around the world with ease since they started.
Their wide range covers hermetically sealed S11-M series models perfect for small spaces, as well as classic S11-M-50 conservator types for bigger loads. All pair smoothly with MNS/GCK/GCS low-voltage switchgear sets made to GB7251 standards, ensuring strong results under different power demands, widely trusted globally.
Every piece goes through strict checks to meet GB/T17467 rules. They also add smart features like temperature controls, anti-dampness parts, and rust-proof casings. On top of that, their helpful tech support team offers peace of mind for owners over the long haul.
Figuring out if your project fits better with the straightforward hermetically sealed type or the adaptable conservator style depends on many things. Think about where it’ll be set up, what power it needs to handle, and how you plan to maintain it down the road.
Teaming up with skilled suppliers who offer a full range of products built for your exact needs means you’ll get the best value. This holds true from buying to setting up and running the system smoothly as time goes on.
Q1: What is the main difference between hermetically sealed and conservator transformers?
A: Hermetically sealed transformers are totally closed off, keeping air away from the insulating oil with flexible wavy tanks instead of outside storage. Conservator transformers have an external tank linked by pipes, letting air in through silica gel breathers to manage water entry better during use.
Q2: Which transformer type needs less upkeep?
A: Hermetically sealed ones usually need less care. They block out air and dirt completely, so there’s less need for checks on water or rust risks, unlike the open-breathing conservator systems.
Q3: Can both transformer types work with low voltage switchgear?
A: Yes, for sure. Both hermetically sealed and conservator transformers pair well with modern low voltage switchgear like GGD cabinets. These support steady power changes and distribution in factories, office buildings, and utility stations alike.
