Key Engineering Principles Behind Underground Substation Design
Advantages of Underground Substations in Urban Infrastructure
Summary of Why Underground Substation Design Ensures Reliable Power Delivery

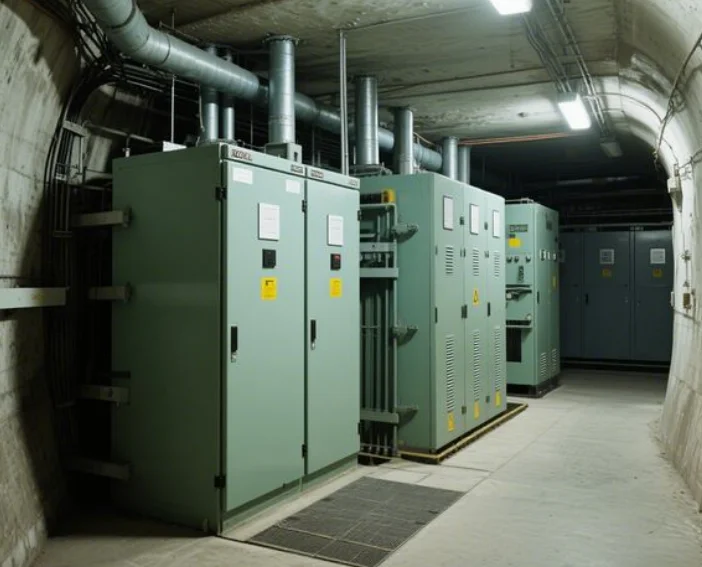

City power networks are changing fast, and underground substations have become a key answer for a steady energy supply in urban areas. These setups bring big benefits like saving space, keeping things safe, and blending well with the surroundings. Built to handle the needs of today’s city structures, they use smart design ideas to guarantee strong performance and toughness. In this piece, we’ll look at why underground substation designs are so dependable and why they’re becoming a top pick in packed city settings.
To keep power flowing without breaks, underground substations are crafted with care in terms of their build, electrical setup, and safety features.
The strength of an underground substation’s build is super important. An underground combined substation is a full package of power changing and sharing gear, including high-voltage switchgear, a buried transformer, and a low-voltage distributor. This setup lets the main part sit partly or fully below ground, cutting down on the land needed while staying super sturdy. The buried transformer sits in a stainless steel oil tank with an IP68 rating, which means it can keep working just fine even if it’s completely underwater.
A smart layout helps lower the chance of problems and makes repairs easier. The high-voltage unit uses SF6-insulated ring network switchgear or SF6 load switchgear, which is small in size, very dependable, lasts a long time, and doesn’t need much upkeep. On the low-voltage side, GGD distribution cabinets are often used. They can include metering tools and automatic capacitor devices for better power control. This flexible design allows options like ring network setups or dual-power supply systems to meet different needs.
Safety is built right into the system with full insulation and tightly sealed covers. The high-voltage side of the transformer connects with a completely sealed and insulated cable plug, while the low-voltage side uses a pluggable sealed lead device. These features stop any contact with live parts and provide protection from overloads or short circuits through high-tech switchgear systems.
In busy cities where every bit of space matters, underground substations give handy perks beyond just delivering power.
With the main body partly or fully hidden below ground, it takes up very little or no surface land, making great use of tight spaces. This makes it perfect for placing under streets, green areas, or public spots without messing up what’s above. The outcome is better land use, which is a huge plus for city planners.
Being underground and guarded by tough materials like stainless steel or aluminum-zinc plates, these substations are safe from damage by vandals, harsh weather, or sunlight wear. The buried box is built to resist rust and pressure, and it’s sealed tight to keep out any threats.
Noise issues are almost gone thanks to their below-ground spot. The sound from the transformer stays underground, so it doesn’t bother anyone on the surface. Plus, since the gear is hidden under parks or sidewalks, it fits right into the city's look without standing out.
A truly reliable power system is defined by its multifaceted performance under pressure. It extends beyond simple availability to encompass a robust combination of fault tolerance, physical durability, and operational continuity. This means the system must not only operate efficiently during normal conditions but also demonstrate the resilience to manage high-demand scenarios, withstand severe environmental hazards, and facilitate swift maintenance without compromising the continuous supply of electricity.
Underground substations can be set up in ring networks or dual-source systems. In a power-sharing setup, they work for ring network systems, dual power supplies, or radial terminal systems. These options help balance the load during high demand or if something breaks down, keeping things running smoothly.
Unlike setups above ground that can get hit by storms or car crashes, underground units are protected from most outside dangers. Their IP68-rated transformers keep working even in floods, which is a must-have for areas that often face disasters.
Even though they’re underground, there’s plenty of room inside for workers to get in and fix things. Smart monitoring tools also cut down on the need for hands-on checks by giving real-time updates from afar.
Today’s underground substations use the latest technology to make them work smarter and better.
Automatic systems speed up finding issues and make things run more smoothly. They use new tech to boost performance, with features like automatic heat control, emergency water drainage, humidity control, and remote checking systems. These tools not only stop overheating but also warn workers before anything goes wrong.
A double-layer top cover stops heat from building up while still letting air flow. The top is made with two layers and has good airflow to keep things cool. Inside, there’s also a setup to stop moisture buildup, helping keep the right temperature all year long.
Following global rules makes sure these systems work everywhere and keep people safe.
Prefabricated substations meet GB/T17467-1998 and IEC1330 standards. These rules cover everything from insulation strength to handling short circuits, making sure the system stays safe even under heavy electrical strain. Protecting nature is handled with sealed oil tanks that stop leaks into the ground. Even if the transformer leaks oil, it won’t harm the surroundings. Along with quiet running that lowers noise for nearby people or animals, these designs match well with green city planning ideas.
When picking an underground substation for city needs like yours, the quality of design is just as important as meeting rules.

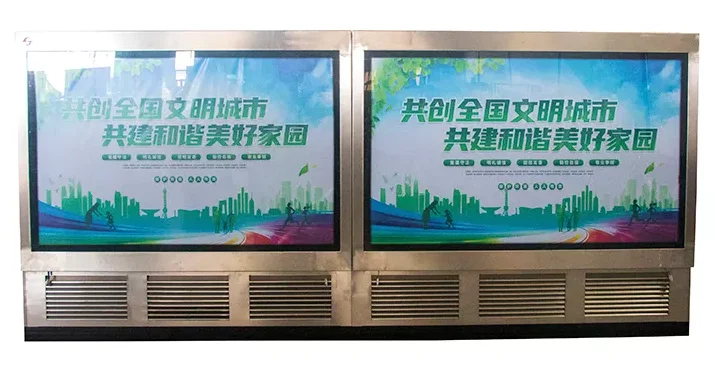

SHENGTE brings a solid choice with their YBD 1000 KVA 12 KV 400 V Power Transmission Box-Type Underground Transformer Unit Substation. It packs all the key parts—high voltage cabinet (12kV), low voltage output (400V), and smart monitoring—into a setup that fits neatly in tight city spaces. With many years of know-how in big projects worldwide, from homes to train stations, they’ve earned trust for steady performance. Their team also offers custom options based on your site’s needs, from changing capacity to upgrading materials, so your setup works great no matter where it’s placed.
Underground substations stand out for steady power thanks to their small but strong build, clever electrical plans, tough safety features, low impact on nature, smooth fit into city spaces, smart automatic systems, and meeting all needed rules. Most of all, they’ve got real-world results from trusted names like SHENGTE. Whether you’re building for today’s huge cities or future smart power grids, this method ensures safe, nonstop energy right where it’s needed.
Q1: What makes underground substations more reliable than traditional ones?
A: They give better shielding from dangers like floods or damage by vandals with their sealed IP68-rated build. They’re less likely to break from physical hits, support backup setups like ring networks, and use smart checking tools—all of which help keep them running longer without issues.
Q2: Are underground substations suitable for flood-prone areas?
A: Yes. Even if the transformer is fully underwater, it can keep running without trouble, thanks to its stainless-steel cover with IP68 protection that blocks water completely.
Q3: How does an underground substation benefit urban development projects?
A: It frees up precious land by sitting underground without messing with surface uses like parks or roads. It stops noise from being a problem, keeps the city looking nice, and shrinks the space needed for power setups—all while giving strong energy support.
