Views: 0 Author: Site Editor Publish Time: 2025-08-29 Origin: Site
Overview of Pad Mounted Switchgear in Power Distribution Systems
Conclusion: Enhancing Transformer Safety Through Strategic Switchgear Deployment
In today's power distribution setups, keeping transformers safe isn’t just about the transformer unit itself. It’s also about the gear that guards it. Pad mounted switchgear is a vital component of this safety ecosystem, especially when used alongside pad-mounted transformers in busy, crowded places. This piece dives into how switchgear boosts safety, keeps systems running smoothly, and improves overall efficiency. We’ll also look at real-life uses and smart design ideas.

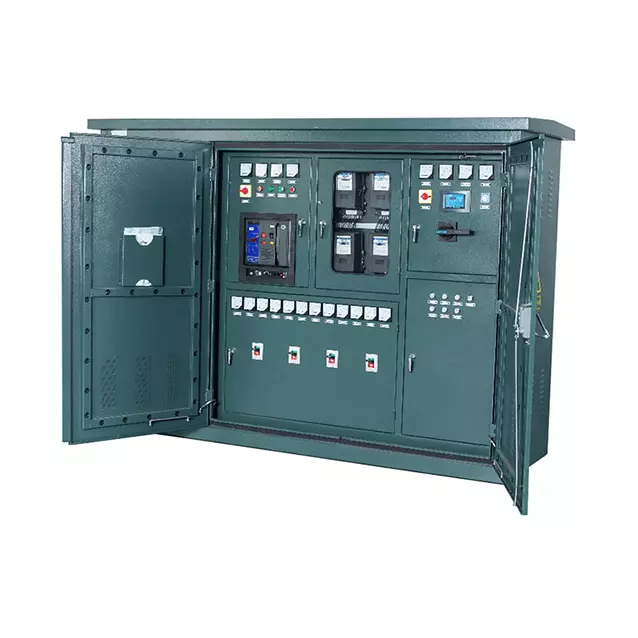

Pad mounted switchgear is a key part of underground power networks. It sits in a sturdy metal box at ground level, making it safe to use without the need for overhead wires. This equipment can be deployed as a standalone unit protecting an adjacent pad-mounted transformer, or it can be integrally mounted within a 'combined' transformer assembly. This article will explore the critical safety functions it provides in both configurations.
Pad mounted switchgear is a kind of electrical tool made for managing, safeguarding, and separating electrical paths in medium-voltage setups. It helps split up sections and switch power even when the system is live. This makes it essential for handling problems and keeping things running during repairs or urgent situations.
You’ll often spot pad mounted switchgear in city areas where looks and limited space mean overhead lines aren’t an option. It’s also widely used in housing areas, shopping centers, and factory zones because of its small size and tough, weatherproof build.
The combination transformer, often called the American Box Transformer or Pad-Mounted Transformer, is a major power supply piece in cable-based networks. When paired with pad mounted switchgear, it forms the core of dependable underground power systems.
Safety is the paramount concern in medium-voltage setups. Today’s pad mounted switchgear comes with several built-in protections that keep both workers and equipment safe from electrical dangers.
Arc faults are intense bursts of energy that can cause catastrophic failure. Pad mounted switchgear is built to trap these faults inside its sections with special arc-proof designs. This trapping stops damage from spreading outside and lowers the chance of harm during a fault.
Good grounding makes sure any stray current finds an easy path to the ground. This keeps both workers and connected gear safe. Grounding switches in the equipment allow for secure separation before any repair work begins.
A combined or integrated unit, it includes high-voltage load switches and fuses right inside the transformer box. The fully closed build offers great insulation and heat release. This tight design blocks out dampness, rust, or dirt—common reasons for early breakdowns in outdoor setups.
How well pad mounted switchgear works with transformers decides how effectively your system deals with issues while staying up and running.
Switchgear manages the power flow to the transformer’s main side. Proper teamwork ensures that switching loads or cutting off faults doesn’t put extra strain on the transformer’s coils or insulation.
When fitted with vacuum breakers or SF6 systems, pad mounted switchgear can stop fault currents without outside fuses. This quick cutoff limits harm to transformers by separating issues before they spread further down the line.
By allowing sections to be cut off during faults or planned fixes, pad mounted switchgear cuts down on outage times a lot. Only the broken parts go offline, while the rest keep working. This is a must-have for important places like hospitals or tech hubs.
Strategic design considerations can make a huge difference in making transformers last longer while keeping things safe.
Using SF6 gas or solid insulation in switchgear boosts its power to handle high voltage without needing more space. This makes it more dependable under tough conditions often seen near transformers.
Inner walls split up key parts like busbars, cable ends, switches, and fuses into different zones. This stops internal sparks from jumping across pieces, cutting down a big risk through careful sectioning.
Designs with front entry let workers check or swap out parts without shutting down the whole system. When matched with bypass switches or dual-power setups, transformers stay on even while nearby gear gets fixed.
To keep things working right in all kinds of settings, following global rules is a must.
Pad mounted switchgears need to meet IEEE C37 rules (for medium voltage), IEC 62271 (for high-voltage tools), and ANSI C37 guides. These rules cover everything from voltage tests to how well they hold up under faults.
Voltage tests under fake fault setups check if arc trapping works. Other checks include heat rise tests, short-circuit strength tests, and partial discharge checks—all needed before putting gear into use.
Big utility setups often need reports on environmental effects along with proofs of electromagnetic fit (EMC), earthquake strength, and fire safety levels. These factors help pick the right gear based on local laws.

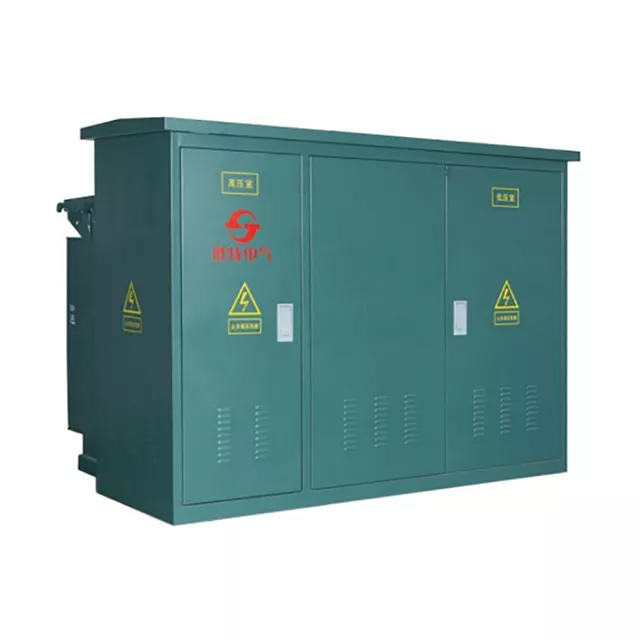

For those seeking reliable solutions made just for your network needs—be it for homes or factory areas—think about SHENGTE. Located in Foshan City with more than ten years of building know-how, SHENGTE offers carefully crafted products with ISO9001 certification and CE approval. Their ZGS11 125kVA 10kV 400V Three Phase Combined Pad-Mounted Transformer Box Type Substation blends high-voltage switching and low-voltage sharing into one neat box. It’s perfect for modern city grids that need to save space without losing safety or power.
From arc fault containment to seamless coordination with transformers during switching operations, pad mounted switchgear is an indispensable asset for protecting critical electrical equipment from electrical breakdowns. Builds that focus on easy swaps, safe separation areas, strong voltage handling—and above all—meeting worldwide rules, ensure steady performance even in rough outdoor spots.
For the best setups where small size meets top results, the ZGS11 125kVA Combined Pad-Mounted Transformer brings a tough fix made exactly for these tough spots.
Q1: How does pad mounted switchgear help transformers last longer?
A: It extends a transformer's lifespan by mitigating electrical stress. Its protective mechanisms, such as arc fault containment and rapid fault interruption via load break switches or fuses, prevent damaging overcurrents from reaching the transformer's windings.
Q2: Can pad mounted switchgears work in areas that flood a lot?
A: Yes. Their sealed, weather-resistant construction provides a high degree of protection against water ingress, making them highly suitable for deployment in areas prone to heavy rainfall or temporary flooding, provided they are installed on an appropriately elevated pad.
Q3: What is the primary advantage of an integrated design where the switchgear is housed within the transformer enclosure?
A: The primary advantages are space optimization and enhanced protective coordination. An integrated design eliminates the need for a separate switchgear enclosure, significantly reducing the overall footprint. Furthermore, the close proximity of protective devices (fuses/switches) to the transformer windings allows for faster and more precise fault interruption.
