Key Differences Between Dry Type and Oil Cooled Distribution Transformers
SHENGTE: Reliable Supplier of SG(B)10 Series Dry Type Distribution Transformers
Summary of Technical Advantages of Dry Type Transformers for Indoor Use
Selecting the right distribution transformer for an indoor setting is a critical decision that impacts safety, long-term cost, and operational efficiency. While oil-cooled transformers have long been a standard, their reliance on flammable mineral oil presents inherent risks for indoor installations. In contrast, dry-type transformers offer a modern, safer, and more environmentally friendly alternative by eliminating the need for liquid coolants. Their innovative design and construction make them an ideal solution for a wide range of indoor applications where fire prevention, ecological responsibility, and minimal maintenance are top prio
rities.
When picking a transformer for indoor setups, you often have to decide between dry-type and oil-cooled models. These two kinds stand apart in how they’re built, how well they work, how safe they are, and what kind of care they need. Making the right choice can really affect how smoothly things run, how much you spend over time, and whether you meet safety rules.
The biggest difference is how these transformers handle heat. Oil-cooled ones rely on mineral oil to keep things insulated and cool. On the other hand, dry-type transformers use special materials to block electric current and stop sparks. Their iron core and windings aren’t soaked in oil. Instead, they cool down with either natural air flow or fans pushing air around. This setup makes dry-type units a much safer bet for indoor spots where anything that can catch fire is a big concern.
Also, epoxy resin cast dry transformers are great at getting rid of heat. They can even handle 120% of their normal load when fans help cool them. This extra strength is super handy in busy indoor places that need a lot of power.
In tight indoor areas like hospitals, shops, or factories, safety comes first. Oil-cooled transformers can be risky because their oil might leak or catch fire since it burns easily. But dry-type transformers don’t have this problem. They resist fire and don’t pollute, so they can be placed right where the power is needed most. This makes them perfect for spots with lots of people or strict fire safety rules.
How well a transformer works, like how much power it can handle and how it manages heat, decides if it fits your needs. Choosing between dry type and oil-cooled should depend on these important details.
You might ask if dry-type transformers can keep up with oil-cooled ones when it comes to power load. The answer is yes, and they even have some perks. Shengte epoxy resin dry-type transformers work really well with low energy loss, quiet operation, and awesome heat control. They can run at 120% load when cooled with fans. This means they’re super dependable for nonstop indoor use without risking safety or dropping in performance.
In places where noise is a big deal, like offices or schools, the sound a transformer makes matters a lot. These units come with a special fan that blows air from the top and keeps noise low while pushing strong air to boost the transformer’s power capacity. Take the SCB10-800 model, for instance—it runs at just 48 dB(A), which is quiet enough for calm spaces.
When it comes to heat, the coil has a design with air channels that help cool it down. This keeps the transformer running steady, even when it’s working hard.
Besides how they perform, there’s more to think about. How does your transformer affect safety rules, upkeep plans, and eco-friendly standards? These are big factors, too.
Oil cooled setups naturally have a higher chance of fire because of the stuff inside them that can burn. On the flip side, epoxy resin cast dry transformers don’t catch fire easily and are built to stop flames. This matches up with today’s building rules that often ban risky equipment indoors.
Upkeep is another area where they differ. Dry type transformers need almost no care, last a long time, and cost less to run overall. Unlike oil-filled ones that need regular checks on the oil for water or strength, dry types skip all that. This cuts down on work costs and time when the system is off.
Oil leaks from old-style transformers can mess up the ground or water, leading to pricey cleanups. But dry-type units don’t cause pollution at all. There’s no chance of spills or harmful fumes. Plus, they fit in easily with green rules for indoor power setups.
Even though the starting price can be different for each type, it’s smart to look at the total cost over the years. This includes savings from using less energy and spending less on fixes.
Dry-type distribution transformers might cost a bit more at first compared to oil-cooled ones. But they save money in the long run since they don’t need much care. Over time, this means you spend less on workers, new parts, insurance (because fire risks are lower), and fines for not following rules.
Think about models like SCB10-1000. It only loses 1770W of power when idle and can handle up to 1000KVA. These small loss numbers add up to real energy savings year after year. This is a strong reason for places wanting to cut down on pollution or get green building awards.
In today’s crowded city spaces, you often need small solutions that still work great. Here, dry type units shine brighter than the old oil-filled kinds.
Since they don’t need pits to hold oil or extra air systems like oil-cooled designs do, dry types can be set up right where the power is used. Their small size helps save precious space, which is a big deal in packed places like tall buildings or underground power spots. Because they cool with air and not liquid, dry types don’t need as much heavy support compared to the bigger oil-filled systems. This makes setting them up easier and cheaper when it comes to building costs.

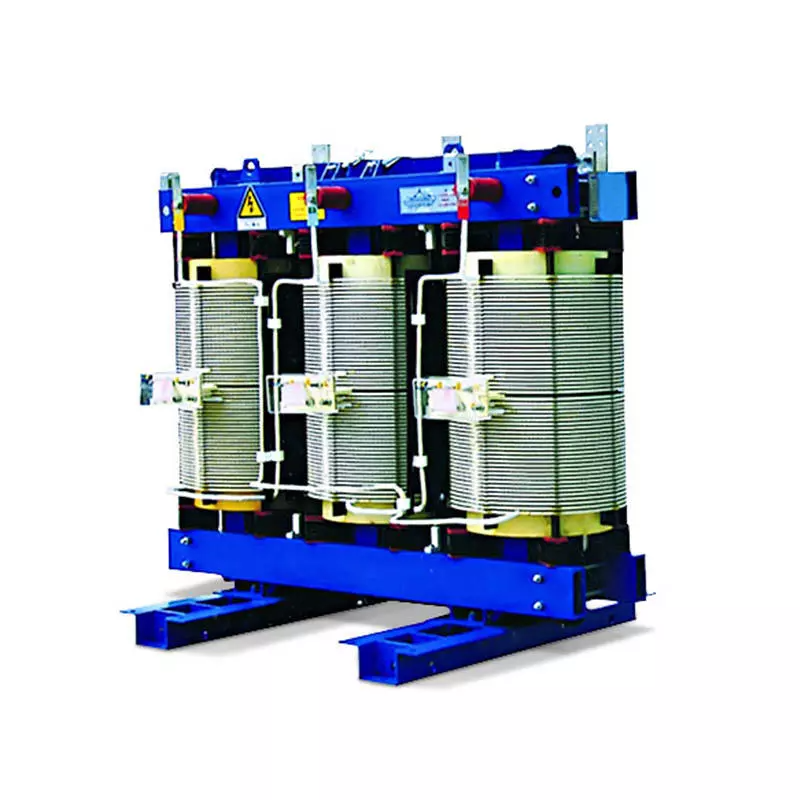

If you’re hunting for a dependable supplier with top-notch dry type options for indoor use, check out SHENGTE. Their Best Price For SG(B)10 Series Distribution Transformers collection mixes the latest tech with trusted performance in all sorts of work settings.
From smart controls for temperature to tough protective covers with IP ratings, these transformers pass tough checks like routine tests, type tests, and short-circuit strength tests to meet global standards. Whether you’re updating an old setup or starting fresh, their custom options bring great worth, especially for big projects.
Their gear is used in shopping centers, factories, hospitals, and pretty much anywhere safe power is a must. With quality backed by official testing groups, samples meet all the needed rules like the GB/T1094 series standards. This gives you confidence with every setup.
Dry-type distribution transformers bring top safety with materials that don’t burn. They cut running costs with little upkeep. They boost energy savings with designs that lose less power. They make setup easy with their small size. Plus, they follow green rules without hassle. And when you get them from SHENGTE, you tap into leading know-how with guaranteed quality.
Q1: What are the main safety advantages of dry-type transformers for indoor use?
A: Dry-type transformers don’t have burnable oils inside. They resist fire and don’t pollute, so they’re great for closed spaces where you need to keep fire risks low.
Q2: How does maintenance differ between dry-type and oil-cooled transformers?
A: Oil-cooled units need regular oil checks. But dry types need no care and last longer. This saves a lot of work over time.
Q3: Can dry-type transformers handle the same load as oil-cooled ones?
A: Yes, and sometimes they do it better. They can run at 120% of their normal load with fan cooling, making them good for tough indoor jobs.
