The Role of Cooling and Insulation in Electrical Transformers
The Role of Cooling and Insulation in Electrical Transformers
Introduction to SHENGTE as a Trusted Supplier in the Power Equipment Industry
Conclusion: The Critical Role of Oil in Reliable Transformer Operation

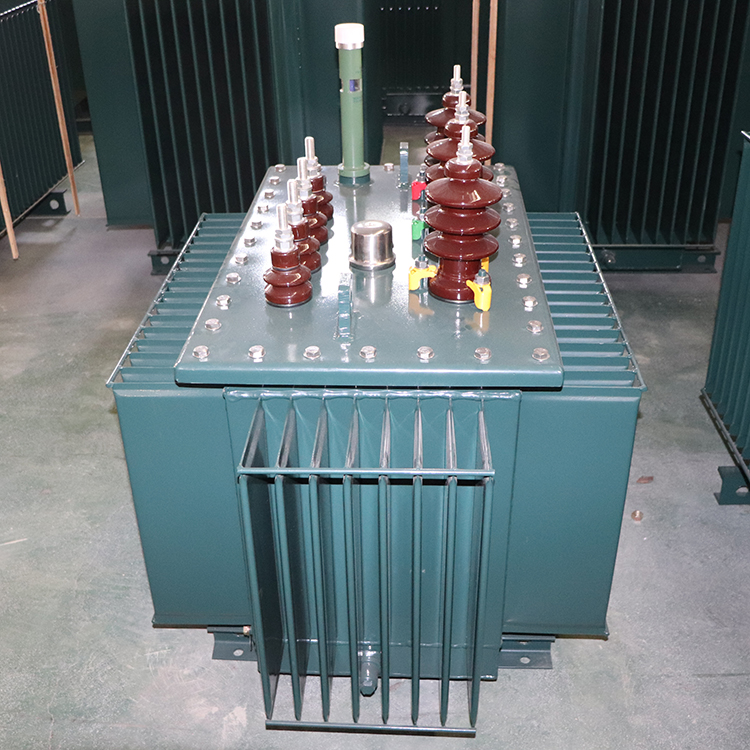

In today’s power distribution setups, electrical transformers are vital for delivering electricity safely and effectively from power plants to homes and businesses. Among them, oil-immersed distribution type transformers stand out because of their great ability to handle heat and provide insulation. This piece dives into the key features of these oil-immersed transformers, looking at their build, purpose, cooling methods, and the important role oil plays in keeping them running smoothly.
To understand the role of distribution type transformers in delivering electricity, let’s explore their purpose, functions, and common uses.
A distribution transformer is a tool that lowers high-voltage power from transmission lines to a safer, lower voltage for use in homes, shops, or factories. You’ll usually find it close to the people who use the power, and it’s a big part of the electricity distribution system.
These transformers make sure the voltage drops to a safe level for users. They also keep the voltage steady across the network and shield equipment from sudden power jumps or drops.
You can spot these transformers in all kinds of places—busy city areas, housing neighborhoods, countryside spots, hospitals, airports, and factory zones. Pad-mounted transformers, which are compact, light, quiet, and energy-efficient with high dependability, are often used in living areas, business hubs, airports, plants, medical centers, and similar locations.
For any electrical transformer to work well, it must handle heat properly and avoid electrical issues.
Transformers create heat while running due to losses in the core and resistance in the wires. If there’s no good cooling system, this heat can damage the materials inside.
If a transformer gets too hot, the insulation might fail. This could cause short circuits or even major breakdowns. Good insulation keeps the electrical parts separate, even under high voltage.
Oil has two main jobs in these transformers—cooling and protecting. Both are essential for keeping the equipment working well over time.
Transformer oil is great at carrying heat away. It pulls heat from the wires and core, keeping things from getting too hot.
The pad-mounted transformer uses a completely sealed design. Its oil tank ensures the transformer oil inside stays insulated and cools effectively. This setup keeps the temperature steady, even when the transformer is under a heavy load.
Transformer oils are made to stay strong at high heat. They don’t break down or leave harmful buildup that could hurt performance.
Besides cooling, transformer oil also acts as a barrier between live parts inside the unit.
By covering the inner parts with oil, the chance of sparks jumping between wires drops a lot. That’s because oil has powerful insulating qualities.
Transformer oils have high dielectric strength, which stops current from leaking. Plus, they don’t soak up water easily, which often causes insulation to fail.
Different oils are chosen based on the environment and how well they need to perform.
These oils are the most common because they’re affordable and work well for heat and electrical protection. However, they can catch fire easily and don’t break down naturally.
Ester oils are safer against fire since they have a higher flash point. They’re also better for the environment. But, they cost more and are often used in places sensitive to nature.
Mineral oils work well for a low price but can harm the environment. Ester oils are safer and kinder to nature, though they might need special care due to their unique makeup.
Oil-immersed distribution type transformers have many benefits compared to dry-type options.
Oil cools the parts so well that it reduces wear from heat. This means the transformer lasts much longer than systems cooled by air.

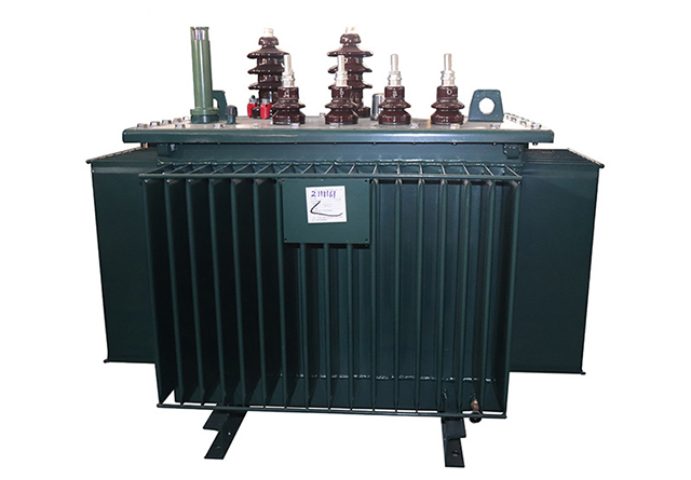

Units like the S11 type transformer come with strong overload capacity. This makes them perfect for places with changing power needs, such as factories or business areas.
Dry-type transformers, like those made with epoxy resin, are fire-safe and need little upkeep. But they often cost more at the start. Oil-filled ones offer a good mix of efficiency and affordability for big projects.
Keeping oil-immersed transformers in good shape is key to making them last.
Checking the oil often helps catch problems early. This stops small issues from turning into big failures.
DGA looks for gases in the oil that form when things break down inside. It’s an early sign of problems like sparks or overheating.
Too much water in the oil can weaken its insulating power. Regular checks make sure the insulation stays strong over time.
Sealed tanks with pressure relief valves keep the oil clean and safe. The high-voltage room has an oil drain valve, which helps during upkeep and lowers the risk of spills harming the environment.
Even with its perks, transformer oil brings some risks that need careful handling.
Mineral oils can catch fire easily because of their low flash point. Using sealed tanks and fireproof covers helps lower this danger a lot.
Used transformer oil can be harmful, so it must be thrown away following strict rules. Biodegradable ester oils are a better choice for the planet when the budget allows.
As caring for the environment grows more important, new ideas are popping up in this area.
Natural esters made from plants are non-toxic and safer against fire. They’re a great pick for city spots or nature-sensitive areas like parks and schools.
Today’s transformers often have sensors to check heat and spot issues from afar. This fits with smart grid systems, helping manage energy better across networks with planned upkeep.
SHENGTE is known worldwide as a dependable maker of power equipment, crafting solutions for all kinds of needs across the globe.
With strong skills in engineering, SHENGTE offers top-notch products. Their strict quality checks ensure great performance in setups everywhere.
SHENGTE’s lineup includes oil-immersed and dry-type transformers, ready-made substations, underground combined substations, and modern Electrical Switchgear. All meet global rules like IEC and GB/T17467-1998, ensuring they work well anywhere.
SHENGTE focuses on new ideas through ongoing research. They also provide solid help after purchase, like remote checks and on-site service, to keep customers happy from buying to using and beyond.
Oil is super important for cooling and protecting in distribution type transformers. It directly affects how dependable and long-lasting the system is under different power loads. From boosting insulation against inner faults to handling heat better during tough times, oil immersion is key to a strong power delivery setup now and in future smart grid systems.
Q1: Why do some transformers still use mineral-based oils despite environmental concerns?
A: Mineral oils are still used because they’re good at moving heat and cost less than ester or synthetic options. With safety steps like sealed tanks and special fins for cooling, their harm to nature can be reduced while still working well.
Q2: How often should I test my transformer's insulating oil?
A: It’s a good idea to test the oil once or twice a year, based on how it’s used. Important tests include Dissolved Gas Analysis (DGA), checking for acid levels, and looking at water content. These help spot wear early before things break.
Q3: Can I switch mineral oil to natural ester fluid without changing the equipment?
A: In some cases, you can swap oils if they’re similar in thickness. But, always check with the maker first. Ester fluids might not mix well with older seals or parts in older systems.
