Consequences of Poor Insulation Maintenance in Distribution Type Transformers
SHENGTE: A Trusted Supplier of Electrical Equipment Solutions
Conclusion: The Long-Term Value of Proactive Insulation Maintenance
In the world of electrical systems, transformers are key to making sure power moves smoothly from one place to another. Among the many parts that affect how well a transformer works, insulation is super important. Good insulation keeps things safe and helps electrical transformers, especially distribution type transformers, last longer. These transformers are used in homes, businesses, and factories, so their reliability matters a lot.
Insulation in transformers is built to keep different parts separate electrically. It also handles heat and physical strain while the transformer runs.
Insulation stops electrical problems between the windings or between windings and the core. For distribution type transformers, which are often placed near people, keeping insulation strong is crucial. It ensures steady service and keeps everyone safe. Dry type transformers use special materials to block current and stop sparks. This shows how vital tough insulation is, even in small setups.
Top-notch insulation cuts down energy waste from stray currents. It also lowers the chance of dangerous short circuits. SHENGTE epoxy resin dry type transformers are a great example. They work very well, make little noise, lose less energy, and handle heat nicely. This proves that better insulation tech boosts performance in a big way.
Transformer insulation comes in different forms like solid, liquid, gas, or mixed types, based on what the job needs.
Solid insulation is widely used in dry-type transformers and other small-scale setups.
Paper made from cellulose is common because it has great electrical blocking power. Often, it’s soaked in oil or resin to make it stand up to heat better.
Pressboard is thicker than paper and gives both strength and electrical protection. Laminates stack up layers to stay tough under pressure.
Liquid insulation works as both an electrical shield and a cooling helper.

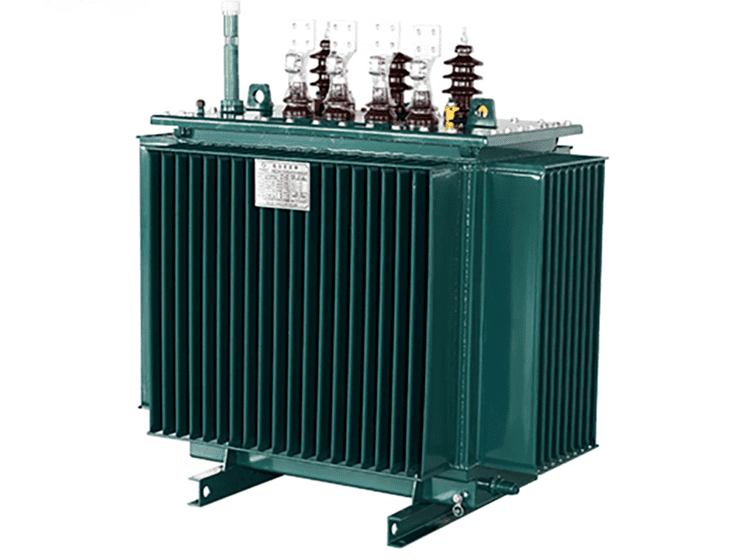

In older oil-filled transformers, mineral oil is used for its strong electrical resistance. But it can catch fire easily, which is risky for the environment.
These greener options don’t burn as easily and break down naturally over time. They’re becoming popular in city areas or places where fire safety is a must.
Gas systems like SF6 are awesome for tight spaces because they block electricity so well. Mixed systems blend solids with liquids or gases for unique needs, like in underground setups.
Even with the best materials, transformer insulation gets old due to things around it and how it’s used.
Constant heating and cooling wear out insulation bit by bit. Heavy use speeds up this wear if cooling isn’t good enough. SHENGTE transformers fight this with strong moisture protection. They can work in full humidity and start back up after a shutdown without needing to dry out first. This shows how smart design helps against heat damage.
Water weakens insulation a lot. In wet places, dry-type transformers with special coatings do better. Oil-filled ones need regular checks to make sure water doesn’t sneak in.
Sudden high voltage can cause tiny sparks inside the insulation. These are called partial discharges (PD), and they slowly break it down. SHENGTE uses vacuum-cast epoxy resin with fillers in high-voltage windings. This keeps PD very low and shows a smart way to reduce damage.
Over time, insulating oils can mix with oxygen or dirt. This creates sludge that blocks heat from escaping, making things worse.
Ignoring insulation care can mess up power networks in serious ways.
Old insulation raises the risk of breakdowns, even under normal use. This cuts short the transformer’s life if regular care isn’t done.
Bad insulation can cause sudden stops in power. For important places like hospitals or airports using pad-mounted transformers, this is a huge problem. SHENGTE products are widely used in cities, homes, hotels, and hospitals. Their added safety shows why steady operation through good care is a must.
When insulation fails, emergency fixes cost way more than regular checks. Plus, weak insulation can start fires, which is super risky in crowded areas.
To keep electrical transformers safe and long-lasting, checking them often is a must.
Regular checks spot early trouble before it turns into a big fail.
DGA finds gases from breaking down insulation. It’s an early clue to hidden issues in oil-filled transformers.
This test checks at what voltage the insulation gives out. It’s key to knowing how healthy the material is over time.
Heat cameras find hot spots from bad connections or worn insulation. This lets you fix things without turning off the power.
Getting rid of water is vital to bring back insulation strength after floods or damp buildup.
Vacuum setups pull water out of solid insulation without heat harm. They’re perfect for fixing or testing in factories.
In oil transformers, hot oil flowing through pushes out water from paper parts. Done right, it brings back good performance fast.
New ideas have changed how we build transformers, focusing on being kind to nature and staying dependable.
Natural esters are now as good as mineral oils, and even better for safety. They don’t catch fire easily, which is great for indoor use where rules are strict.
Smart sensors using IoT track heat, dampness, and tiny sparks in transformers. They give live updates, so you fix issues before they blow up. This cuts costs over time.
New epoxy resins mixed with fiberglass are super tough under heavy loads. SHENGTE reinforces winding walls with glass fiber mesh plates. This helps transformers handle sudden short circuits, showing how new materials boost strength in distribution type transformers.
With many years of bringing solid power solutions worldwide, SHENGTE stands out as a top name in transformer advancements. They focus on great quality and smart engineering.

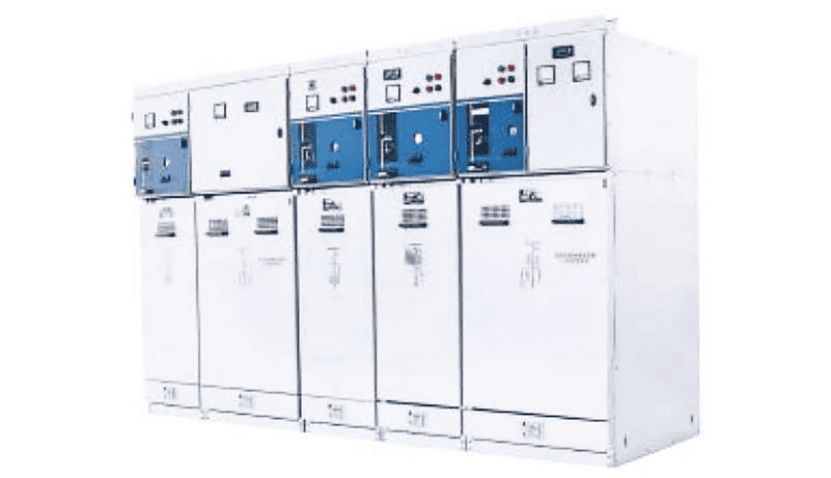

SHENGTE has a wide lineup, including dry type transformers, pad-mounted units, and ready-made substations with switchgear. All meet global rules and serve everything from city projects to big factories. Their epoxy resin cast dry transformers run safely and can handle 120% load with forced air cooling. This shows their drive for top-notch solutions everywhere.
Every item gets strict checks from start to finish. When putting together dry-type transformers, SHENGTE ensures top reliability. They also help customers after setup with training and online support, keeping things smooth long after the job is done.
Spending effort on regular transformer care is worth it. It means longer use and fewer surprise breakdowns. SHENGTE products are easy to set up and need no upkeep, with a long life. Whether it’s a small power setup or a big factory grid, good insulation care is the key to running things well.
Q1: How often should I check my distribution type transformer’s insulation?
A: To keep things running great, do a quick look every three months. Deep tests like DGA or heat scans should happen once a year, based on how much it’s used. Wet places might need more checks, especially for older gear without new coatings like those on SHENGTE epoxy resin dry types.
Q2: Can water really mess up a transformer badly?
A: Yes, for sure! Water drops insulation strength a ton. If ignored, it can lead to huge short circuits. New designs fight this with tough coatings. SHENGTE transformers have strong water resistance and can start again after stopping without drying out. This makes them good even in humid spots.
Q3: Are there green choices for insulating liquids?
A: Totally! Natural esters break down naturally and don’t burn easily compared to old mineral oils. They’re perfect for places like city substations or eco-friendly buildings aiming for green awards like LEED.
