Views: 0 Author: Site Editor Publish Time: 2025-08-30 Origin: Site
In environments where a single spark can lead to disaster, your electrical equipment can't be a weak link. This guide dives into why dry-type transformers are a critical safety component in high-risk zones, breaking down their fire-resistant features, the hidden dangers to watch for, and the essential practices to ensure they run safely and reliably when it matters most.
In rough spots like chemical plants, oil refineries, mines, or offshore rigs, keeping electrical gear safe ain’t just about following some checklist. It’s about saving workers’ lives. It’s about keeping expensive equipment from breaking down. These places deal with nasty stuff—explosive gases, soaking wet air, harsh chemicals, or temperatures that swing from freezing to roasting. That’s why stuff like dry-type transformers has to be built real tough, passing strict safety standards to take on those brutal conditions without a problem.
Places with hazardous setups need gear that can tough out crazy hot or cold weather, wetness over 90%, and constant exposure to dust or nasty chemicals. Old-school oil-filled transformers can be risky in such spots because they can catch fire easily and need lots of upkeep. On the other hand, dry-type transformers are a better pick. Their sealed build and fire-safe design make them a solid choice for these rough environments.
Dry type transformer adopts the special insulation materials to isolate current and prevent arcing, its iron core and winding are not immersed in the insulating oil. This setup works great for indoor or tight spaces where you’ve got to keep fire dangers as low as possible.
If a transformer breaks down in a risky area, it can set off a chain of awful events. Think about what happens when a transformer fails. It's not pretty. You could have fires, poisonous gas leaking out, or the whole system could just crash. And that's not the worst of it—people can get hurt, or even killed. A simple thing, like it getting too hot or the insulation giving out, can cause dangerous sparks and short circuits. This is exactly why you have to pick transformers that were built with safety in mind right from the start.
The safety of dry-type transformers comes from their smart design. They ditch flammable stuff, handle heat really well, and don’t need much care. These traits make them super dependable, especially for critical jobs where there’s no room for error.
Epoxy resin cast dry transformer is safe in operation, flame-retardant, and fireproof. The epoxy resin wrapping the windings acts like a fire-stopper. So, even if something nearby catches fire or a fault inside builds up heat, this transformer won’t help the flames spread. That’s a huge plus in tight or closed-off spaces.
Unlike oil-filled options that might release harmful fumes when they fail, dry-type transformers give off very little toxic stuff if something goes wrong. It is fire-resistant and non-polluting, which helps meet eco-friendly rules. This is extra important in sensitive spots like hospitals or food factories, where clean air matters a lot.
Keeping heat under control is a big deal to stop overheating. It is with low loss, low partial discharge, low noise, strong heat dissipation, and can operate at 120% rated load if under the condition of forced air cooling. This means they can keep working steadily even when pushed hard, without putting safety at risk.
Even though dry-type transformers are much safer than oil-filled ones, they’re not perfect. If you set them up wrong or don’t take care of them, they can still run into problems.
Pushing a transformer too hard without enough air around it can make it dangerously hot. If there’s not enough space for air to flow near the casing, or if it’s always running close to its limit without a cooling fan, the insulation might start to break down from the heat. That’s a recipe for trouble.
If the insulation gets old or damaged from wear and tear, it can cause risky electrical sparks. These sparks can harm the insides or even start a fire. The high-voltage winding is vacuum cast with epoxy resin filled with fillers, which increases the mechanical strength of the coil and improves the ability of the transformer to withstand sudden short circuits. That extra strength helps a lot in preventing such dangers.
Things like dust piling up on the windings or rust from salty air can slowly weaken the insulation. Picking a transformer that can handle dampness is a must. They feature robust moisture resistance operating in 100% humidity and resuming post-shutdown without pre-drying. This toughness keeps them working well even in harsh conditions.
To get the most out of a dry-type transformer’s safety perks and avoid possible issues, follow some smart steps when setting them up and running them day-to-day.
Put your transformer in a spot with plenty of fresh air and enough room around it for cooling. Keep it far from anything that can burn easily. Make sure the grounding is done right, following local electrical rules. Place it where it’s easy to check on but safe from bumps or knocks that could damage it.

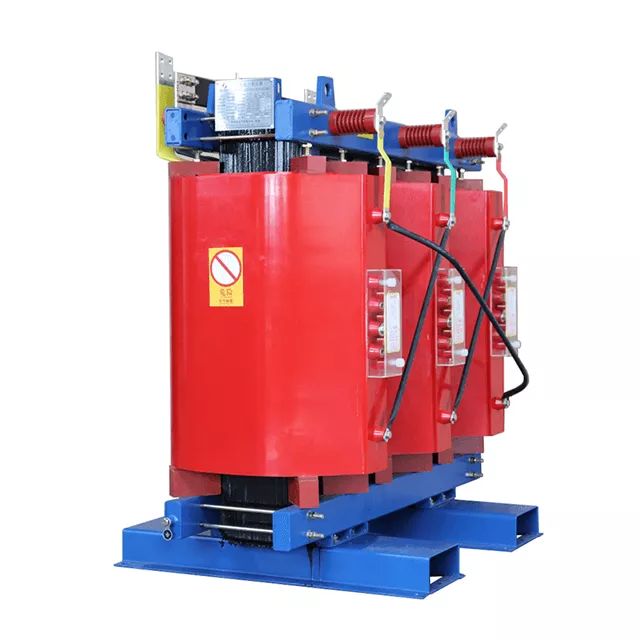

For example, if you need a strong option for tough places like industrial areas or power stations near busy towns, check out the SCB10 400kVA 6kV 400V High Low Voltage 3Phase Epoxy Resin Cast Dry Type Transformer. It’s got awesome fire protection and heat control, perfect for such demanding spots.
Even though the epoxy resin cast dry transformer is maintenance-free, taking a quick look now and then can catch small problems early. Look for dust buildup or odd color changes that might mean it’s getting too hot. Use heat-sensing cameras to spot hot areas when it’s working hard. Watching how much load it handles over time can also help stop breakdowns before they start.
Make sure your gear meets big global standards like the IEC 60076 series or IEEE C57 rules, plus any local guidelines where you are. Having official certifications proves it’s trustworthy. The test results meet the test basis standards samples are qualified (Test certificate No: CEST/T ---19086). That’s a good sign you’ve got reliable equipment.
Safety starts right from the planning stage. The materials you choose play a huge part in how well a transformer holds up under tough situations like overloads or sudden power faults.
The kind of resin used makes a big difference in how strong the insulation is and how well it stops fires. Modern epoxy resins aren’t just for keeping electricity in check. They’re also made to put out flames on their own if a fire starts. This is super helpful when transformers are in buildings or underground spots where getting out fast isn’t easy.
A nicely built magnetic core cuts down on energy waste and stays strong even when electrical forces push hard during problems. The iron core adopts the stacked structure composed of silicon steel sheets with a thickness of less than 0.35mm, which boosts how well it uses power while keeping annoying humming sounds low. That’s a win for both performance and quiet operation.
If you’re hunting for dependable dry transformer safety options with top-notch design behind them, SHENGTE is a name you can count on. They’re a leader in the field, always pushing for new ideas, sticking to strict rules, and ensuring quality in everything they make.
Their SCB10 model line shows this promise loud and clear. It offers better fire safety with epoxy resin casting tech and tough coils that can take sudden power surges without bending out of shape. Every piece goes through hard tests, including regular checks, special type tests, and noise level checks. These are all backed by national quality centers in China’s power industry.
Whether you’re fixing up old systems or setting up new ones in tricky places like hospitals or factories, the SCB10 brings worry-free use and saves money over time with its low-energy-waste design. It’s a smart pick for anyone looking to balance safety with cost. Welcome to contact SHENGTE!
Q1: What makes dry-type transformers safer than oil-filled ones?
A: Dry-type transformers don’t use flammable oil at all. Instead, they rely on solid epoxy resin for insulation. It is fire-resistant and non-polluting, which makes it a safer bet, especially inside buildings where you can’t afford a fire risk.
Q2: Can I install a dry-type transformer directly inside my facility?
A: Yes, you can. It can operate more safely and can be installed directly in the load center, since its closed-off design doesn’t need extra setups like oil spill barriers.
Q3: How often should I inspect my dry-type transformer?
A: They don’t need much care, but routine inspections help ensure optimal performance. A good rule is to take a quick look every three months and do a full check once a year, depending on how much work it’s doing.
