The Importance of Electrical Transformers in Underground Substations
SHENGTE: A Trusted Supplier for Power Infrastructure Solutions
As cities grow bigger and more crowded, the need for dependable, subtle, and eco-friendly ways to distribute power has become stronger. Underground substations have come forward as a smart answer to these issues. They provide great dependability and better looks while using less land. With cutting-edge tools and small builds, these substations are changing the way we think about electrical systems for the future.
Substations are vital parts of the electrical grid. They act as key points where voltage is changed to make sure power moves and reaches homes and businesses smoothly.
Electrical substations handle several important jobs. They lower high-voltage power from big lines to safer levels for nearby use. They also spot and separate problems in the system. Plus, they keep voltage steady to make sure everything runs without issues. These tasks help deliver electricity to people in a safe and effective way.
Substations do more than just change voltage. They play a big role in keeping the grid strong. They control how power flows, stop overloads, and help fix faults. In busy city areas where power needs can jump suddenly, substations are even more crucial. They ensure the lights stay on without any breaks.
Switching from old above-ground substations to underground setups brings many perks. These match well with what modern cities need as they grow and change.

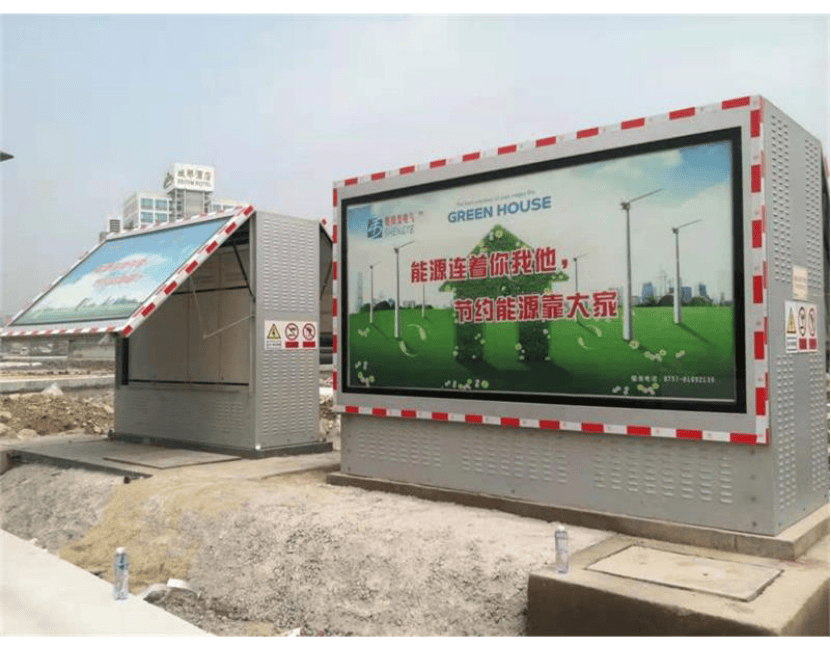

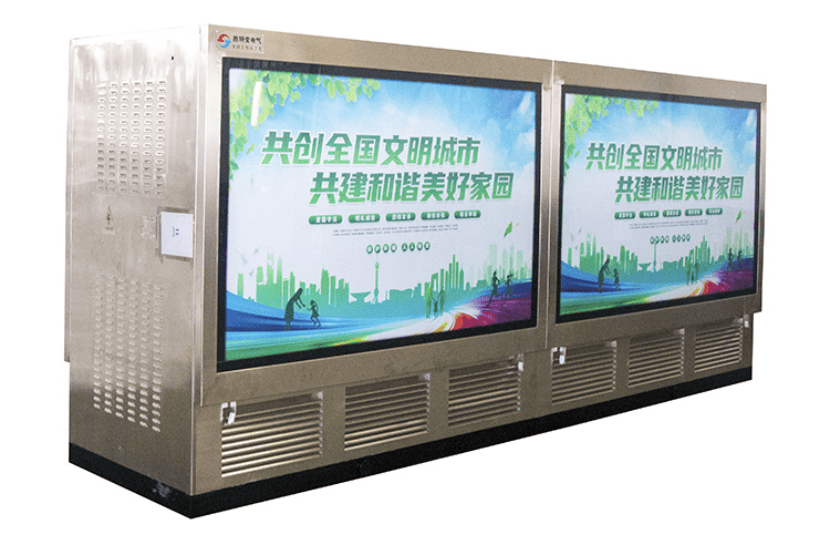

Underground substations face fewer dangers from outside threats like falling branches or car crashes. The ZBW-D Series underground combined substation, created by our team, meets the demands of city growth and nature care. Its tight design cuts down on weak spots and boosts its trustworthiness.
Being placed under the ground shields these substations from harsh weather like heavy rain or strong winds. The oil tank, built from stainless steel with an IP68 safety rating, works well even if fully underwater. This keeps power running smoothly no matter the conditions.
City land is hard to come by, so using it wisely is a must. With the main part buried partly or fully underground, it takes up almost no space above. This saves land, raises its use value, and blends nicely with nearby surroundings. As a result, the freed-up surface can be turned into parks or streets for everyone to enjoy.
Building an underground substation needs careful thought across many areas of work to keep things safe and working well.
Picking the right spot means looking at soil type, water levels underground, earthquake risks, and how close it is to places needing power. Soil studies help shape the building plans, which affect how well it lasts over time.
Handling heat in tight spaces is super important. The setup uses new tools to better its tasks. It comes with automatic heat control, emergency water removal, moisture balance, and a far-off watching system. These help keep things running at the right level while cutting fire dangers with special materials and strong builds.
Getting it to work with current power lines and systems is key to a smooth setup. Flexible designs let it connect easily using SF6 insulated switchgear or ring main units. These support both ring and straight-line setups. In power sharing, it fits ring network systems or can work as a double power source or end-point system.
Transformers are at the heart of any substation’s job. They adjust voltage to meet what the grid needs at any time.
In underground setups, transformers are often placed below the surface in sealed boxes. These buried cases resist rust and pressure very well, with total sealing power. This not only guards them but also cuts down on noise heard above ground.
Good cooling comes from oil-based designs with wavy tanks to let heat out. The oil tank uses ridged panels that adjust to oil volume shifts from heat changes. Also, dry-type transformers might be picked for spots where no oil is safer due to fire worries. The coil has a straight cooling path, which helps get rid of heat better.
Getting to underground units for fixes can be tough. But the transformer goes into the buried box first, so checks can happen through above-ground entry spots. Systems that watch from afar cut down on hands-on work by guessing when fixes might be needed.
Underground substations don’t just help with tech needs. They also make city life nicer in many ways.
Unlike old substations that take up big fenced spaces, an underground substation hides transformers in fully buried boxes. You can’t see them from above. This helps make cities prettier without losing any power services.
The sound from transformers stays below ground. So, the noise doesn’t reach the surface. This is a big plus near homes or quiet public spots where peace matters a lot.
Safety rules must tackle both real-world dangers and online risks tied to today’s smart power grids.
Buried setups naturally keep out unwanted visitors. The box has a locked, theft-proof build with tough strength. This keeps the gear safe from damage or stealing.
Modern substations use SCADA systems for control from a distance. They have smart builds and let you set how they run from far away. Strong online safety steps, like coded messages, keep things running right against web-based dangers.
While starting costs might be more than usual setups, underground substations give big savings over time.
Underground setups need special building ways. Yet, products already in use work great. They fight rust and stand strong against pressure. This means fewer fixes over many years of use.
With fewer power cuts from bad weather or damage, the transformer keeps working even underwater. This helps a lot in cutting running costs over time by keeping power on more often.
SHENGTE focuses on bringing new ideas for today’s energy systems, including underground uses.
SHENGTE offers many tools made to work well under tough settings. They’re great for big factory areas and packed city spots alike.
SHENGTE’s low-loss, energy-saving oil-immersed transformer has a layered iron core for top results. These transformers cut energy waste and stay strong even in rough surroundings.
The pad-mounted transformer is a key power unit in cable networks. Its small size fits well in tight city spaces while keeping up safety and work standards.
The high-voltage unit uses SF6 insulated ring network switchgear. It’s small, very dependable, and needs no upkeep. SHENGTE’s switchgear ensures safe use while helping with smart grid tasks like far-off checks.
Putting money into underground substation designs gives cities a smart way to mix usefulness with good looks. It provides steady power while saving important land above ground. With partners like SHENGTE offering trusty parts—from electrical transformers to switchgear—cities can build systems ready for more demand while caring for the planet.
Q1: What is the primary benefit of underground substations over traditional ones?
A: The biggest plus is how they save space while staying very dependable. Being underground, the underground combined substation uses almost no land. This makes them perfect for crowded city spots without hurting looks or safety rules.
Q2: Are underground substations more expensive to build?
A: Yes, they cost more at the start because of digging and special gear setups. But products already running work nicely with steady results. This leads to lower fix costs over time, balancing out the early spend.
Q3: Can underground substations be used in all geographic areas?
A: They fit many places, even where floods happen, thanks to IP68-rated boxes. The transformer keeps working even fully underwater. Still, deep soil checks must come before building, especially where ground steadiness changes a lot.
