S11-M-500/10
SHENGTE
| Quantity: | |
|---|---|

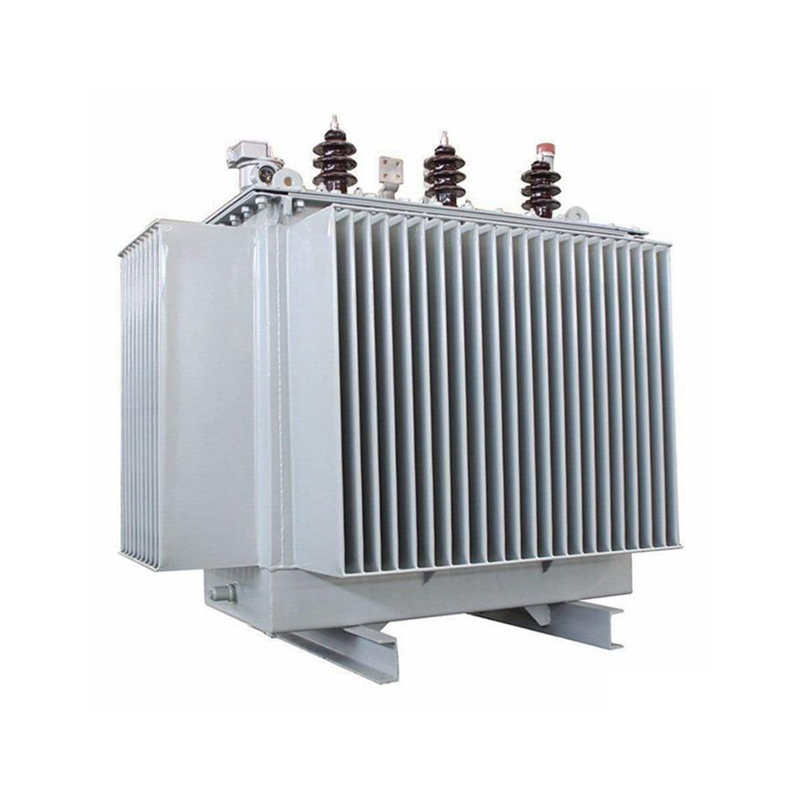

Oil immersed transformer use oil as the main insulation medium and rely on oil as the cooling medium. It adopts a sealed structure to completely isolate the transformer oil from the surrounding air, making the operation of the transformer safer, more reliable, and easier to maintain.
Shengte's low-loss energy-saving transformer features a laminated iron core structure. Leveraging advanced technology and oil-immersed transformer processes, along with our technical expertise, we ensure product reliability, achieving significant reductions in no-load loss and no-load current.
Features:
1. Minimized Axial Short-Circuit Force Coil: Reduces axial short-circuit force, enhancing short-circuit resistance.
2. Robust Supporting Structure: Ensures reliable compression of coil parts, offering strong short-circuit resistance.
3. Low Magnetic Flux Density: Reduces no-load loss and prevents core magnetic flux saturation, minimizing harmonic distortion.
4. 304 Stainless Steel Hardware: Improves surface rust resistance of the transformer.
5. Premium Sealing Rubber Rings: Utilizing high-quality raw materials for sealing rubber extends the transformer's service life.
Our Advantages:
1. Superior Heat Dissipation and Structural Integrity: The spiral coil with longitudinal oil ducts offers excellent heat dissipation, low magnetic leakage, and high mechanical strength. The supporting structure enhances short-circuit withstand capability.
2. Efficient Iron Core: Composed of silicon steel sheets less than 0.35mm thick and with high magnetic conductivity, the core reduces no-load loss and current, improving efficiency.
3. High-Quality Insulation: Materials with high heat resistance withstand overvoltage and overcurrent, ensuring durability and reliability.
4. Superior Transformer Oil: Features low viscosity and excellent heat transfer and insulation properties, protecting the core and windings, reducing insulation material aging, and extending service life.
5. Durable Oil Tank: Made from high-quality cold-rolled steel plates, treated with de-oiling, rust removal, and phosphating, and coated with three-proof paint, enhancing reliability and reducing maintenance costs.
6. Effective Sealing Rings: High-quality rubber materials slow aging, isolate external air, and prevent oil leakage.
| Model | Rated Capacity (KVA) | Rated Voltage (KV) | Connection Method | No-load Loss (W) | Load Loss (W) | No-load Current (%) | Short Circuit Impedance (%) | ||
| High Voltage | Voltage Regulation Range | Low Voltage | |||||||
| S11-M-30 | 30 | 6 6.3 10 10.5 11 | ±5% ±2×2.5% | 0.4 | Yyn0 Dyn11 | 100 | 630/600 | 1.5 | 4 |
S11-M-50 | 50 | 130 | 910/870 | 1.3 | 4 | ||||
S11-M-63 | 63 | 150 | 1090/1040 | 1.2 | 4 | ||||
S11-M-80 | 80 | 180 | 1310/1250 | 1.2 | 4 | ||||
S11-M-100 | 100 | 200 | 1580/1500 | 1.1 | 4 | ||||
S11-M-125 | 125 | 240 | 1890/1800 | 1.1 | 4 | ||||
S11-M-160 | 160 | 280 | 2310/2200 | 1 | 4 | ||||
S11-M-200 | 200 | 340 | 2730/2600 | 1 | 4 | ||||
S11-M-250 | 250 | 400 | 3200/3050 | 0.9 | 4 | ||||
S11-M-315 | 315 | 480 | 3830/3650 | 0.9 | 4 | ||||
S11-M-400 | 400 | 570 | 4520/4300 | 0.8 | 4 | ||||
S11-M-500 | 500 | 680 | 5410/5150 | 0.8 | 4 | ||||
S11-M-630 | 630 | 810 | 6200 | 0.6 | 4.5 | ||||
S11-M-800 | 800 | 980 | 7500 | 0.6 | 4.5 | ||||
S11-M-1000 | 1000 | 1150 | 10300 | 0.6 | 4.5 | ||||
S11-M-1250 | 1250 | 1360 | 12000 | 0.5 | 4.5 | ||||
S11-M-1600 | 1600 | 1640 | 14500 | 0.5 | 4.5 | ||||
S11-M-2000 | 2000 | 1940 | 18300 | 0.4 | 5 | ||||
S11-M-2500 | 2500 | 2290 | 21200 | 0.4 | 5 | ||||
S11-M-3150 | 3150 | 2730 | 24300 | 0.4 | 5 | ||||
Guangdong Shengte Electric Co., Ltd., based in Foshan, China, is a distinguished transformer manufacturer known for reliability and exceptional after-sales service. With over a decade of experience, we've provided high-quality, cost-efficient transformers for governmental and private sector projects worldwide, earning a reputation for excellence.
Our commitment to quality is demonstrated by meeting the rigorous standards of our German Power Utility clients, ensuring only the highest quality solutions.
Spanning 10,000 square meters, our Foshan facility is equipped with cutting-edge production and testing equipment, enabling us to offer customized solutions, including OEM and ODM services. Our product range includes oil-immersed transformers, resin cast dry-type transformers, pad mounted transformers, prefabricated substations, and more.
Certified by ILAC-MRA and CNAS, our IEC certificate underscores our dedication to international quality standards. Additionally, we hold ISO9001, CE, and Innovative Product Certifications, with active pursuit of the UL certificate to further demonstrate our commitment to global compliance.
Q1: Are you a manufacturer or trading company?
A1: Our factory covers an area of over 10000m2, we can produce 2000 more transformers each year.
Q2: Do you have the relevant certifications and test reports?
A2: Yes, we have ISO9001 and CE certification, and can provide the test reports according to IEC standard.
Q3: How long is the warranty period?
A3: It is 12 months.
Q4: Would you accept using customer's logo?
A4: Yes, we can provide OEM and ODM service.
Q5: What's the MOQ?
A5: It is 1 set.
Q6: What are the payment methods and terms?
A6: We accept T/T, Western Union, PayPal, etc. 30% advance payment before production, 70% balance payment before delivery.
Q7: How long is the delivery time?
A7: Generally it is 20-30 days, it depends on the order quantity.
Q8: What is the standard of package?
A8: Wooden case or special package according to customer's requirement.
