1.The Foundation: Power Capacity & Voltage Requirements
2.Environmental Adaptability: Built to Withstand the Elements
3.Internal Component Quality: The Heart of Reliability
4.Supplier Expertise & After-Sales Support: Your Long-Term Partnership
If you’re in the market for a prefabricated substation—maybe you’re overseeing a new commercial build, upgrading an industrial site, or just trying to keep power flowing smoothly in a residential area—you know it’s not as simple as picking the first one off the shelf. These units, often called box transformers or compact substations, pack a lot into a small footprint. They handle everything from voltage transformation to distribution, and getting it wrong can lead to downtime, extra costs, or worse. I’ve seen projects where a mismatched substation turned a straightforward installation into a headache that dragged on for months. So, let’s break down the top four factors you really need to think about. Skipping anyone can bite you later. Let’s start with the core: power needs.
Power capacity and voltage levels form the backbone of any transformer substation. Choosing a substation that’s too small will result in frequent overloads, while choosing one that’s too large will waste money due to inefficiencies.
At first, figure out your current load. For a mid-sized factory pulling 800kVA on average with peaks at 1000kVA, you’d want a unit that handles that without breaking a sweat. Add in future growth—maybe 20-30% extra capacity if you’re planning expansions. Voltage is just as crucial. Medium-voltage setups, like 10kV input to 400V output, are common for industrial use. Check local grid standards too—some areas demand specific tolerances to avoid penalties.

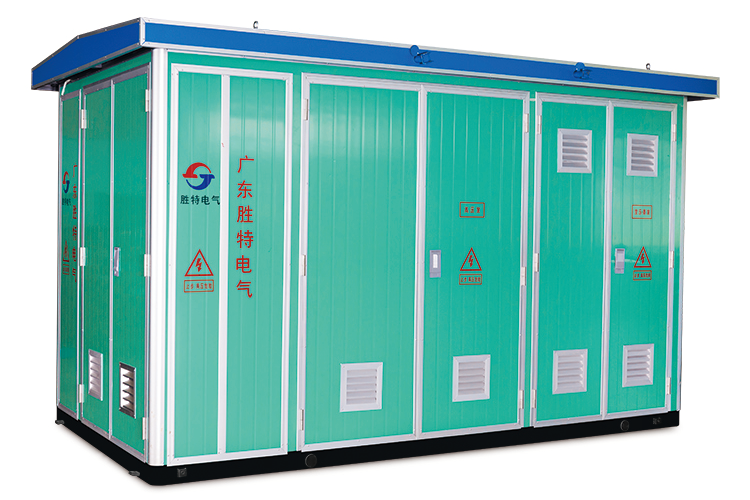

SHENGTE’s prefabricated substations shine here. They offer a broad range from 100kVA up to 1000kVA, with customizable voltage options that fit everything from small commercial spots to heavy-duty mining ops. The YBP-1000kVA model, for example, perfectly handles voltage step-down from 10kV to 400V, supporting both oil-immersed and dry-type transformers for flexibility.
Moving from power basics to how the unit holds up in the real world, environmental factors can make or break longevity. After all, these aren’t sitting in climate-controlled rooms—they’re out there facing the elements.

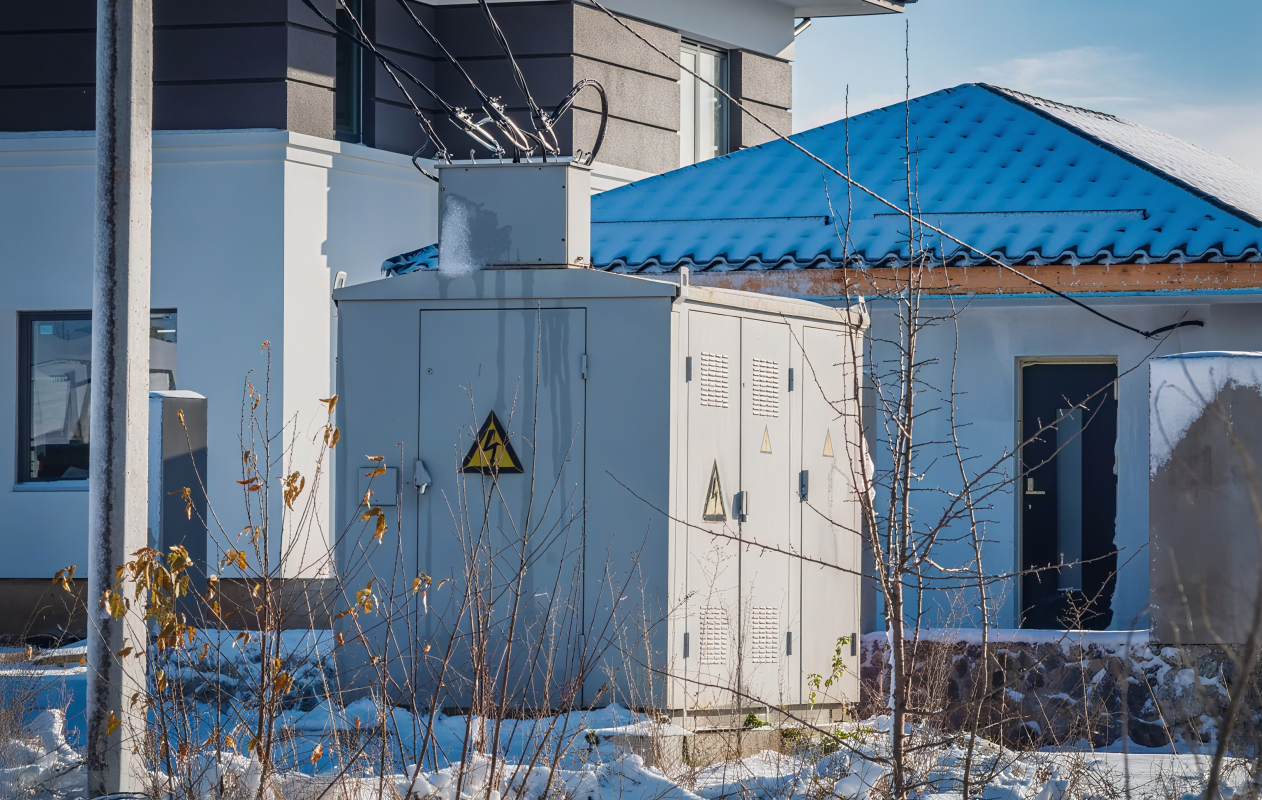

No one wants substation equipment that rusts out after a rainy season or shakes apart in a minor quake. Environmental adaptability covers protection against weather, corrosion, and even seismic activity.
Protection Level: Aim for at least IP23 for basic dust and water resistance, but in harsh spots like coastal areas, push for IP54 or higher.
Anti-Corrosion Treatment: Especially for coastal areas or areas with severe industrial pollution, the enclosure must be constructed from high-strength aluminum alloy or high-quality stainless steel. Furthermore, the steel is treated with a high-quality spray coating. This coating not only looks beautiful but also effectively isolates air and moisture, providing long-term corrosion protection and resisting UV aging.
Weather Resistance: The equipment needs to be able to operate stably in an ambient temperature of -30℃~50℃. For severely cold areas, anti-cold and anti-freeze measures need to be strengthened; for high-temperature areas, the cooling system needs to be reinforced. In hot climates, poor ventilation can spike internal temperatures, cutting transformer life by 50% or more, based on what I've seen in field reports.
Earthquake Resistance: The substation’s entire structure required a reinforced frame design to ensure overall steel structural strength. Furthermore, the internal equipment required careful calculations to comply with relevant seismic fortification requirements, ensuring maximum structural integrity and functionality during an earthquake, supporting emergency rescue and restoration efforts for the power grid.
SHENGTE integrates these well. Our boxes use 304 stainless steel for rust-proofing, plus foam-filled double tops that keep things cool and dry. They’ve got anti-condensation tech too, which is a lifesaver in humid spots.
Of course, the outer shell is just the start. What's inside counts even more for day-to-day reliability. Let’s shift to the components that keep the power flowing smoothly.
Choosing a prefabricated substation involves much more than selecting a steel enclosure. Its true value and long-term reliability depend almost entirely on the electrical components within. Two externally identical boxes can have vastly different performance, lifespan, and total cost of ownership depending on the quality of the components within. Investing in a substation with inferior components means facing a higher risk of future failures, more frequent maintenance, and staggering downtime costs. Therefore, scrutinizing internal components is not only a wise move, but a necessity.
Transformers are the energy conversion core of substations, and their quality directly determines the operating efficiency and long-term stability of the entire system. SHENGTE insists on using high-quality, high-permeability, low-loss cold-rolled silicon steel sheets. This material significantly reduces no-load losses. This translates into significant long-term energy savings for equipment operating 24/7.
High-voltage ring main units (RMUs) are the entry point for power grid connections, making their safety paramount. SHENGTE’s vacuum switchgear technology completely seals high-voltage components within the gas tank, achieving full insulation and maintenance-free operation. This completely prevents interphase short circuits or ground faults caused by the external environment, significantly improving personal safety and power supply reliability.
The low-voltage side is the final link in distributing electrical energy to the final load. Its configuration determines the accuracy and flexibility of control. SHENGTE's low-voltage system uses MNS, GCK, or GCS switchgear. These systems offer a high degree of modularity and configurability.
Choosing prefabricated substation manufacturers isn’t just about the product; it's about the people. You need expertise from day one—detailed specs, installation help, and ongoing support.
Good suppliers offer custom solutions, like SHENGTE’s OEM service and after-sales support. We could guarantee a rapid response, within 24 hours, and warranties of at least 12 months. Certifications matter too—ISO9001, CE, and IEC compliance show we’re legit. With over 15 years in the electrical industry, SHENGTE has been supplying governments and big projects worldwide. It’s worth mentioning that we can even customize the color to suit the surroundings, which is very convenient for attractions.
These are the four most important factors: power specification, environmental resilience, component quality, and supplier support. Get these four things right, and your substation will run like clockwork, saving you time and money in the long run.

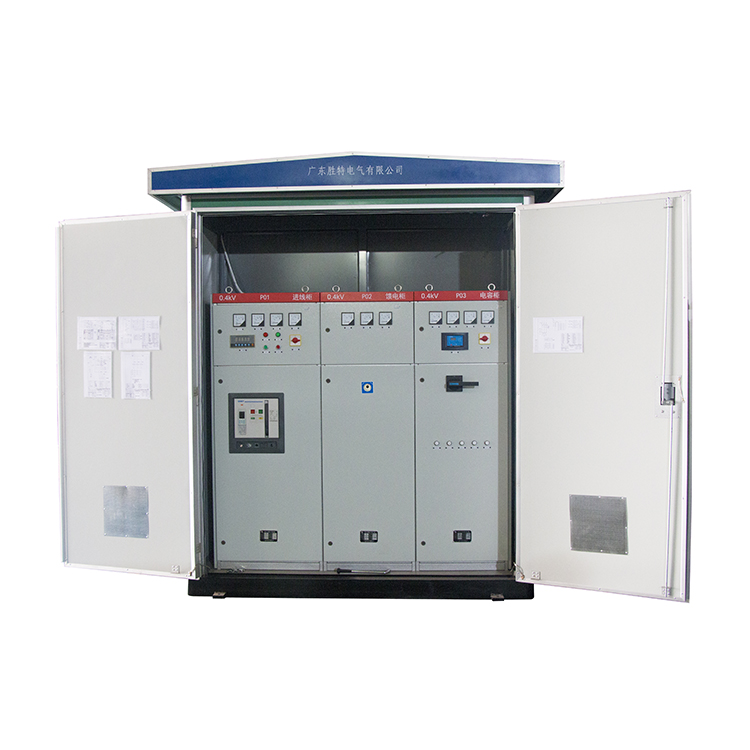

If you resonate with this, consider the SHENGTE’s YBP-10/0.4-1000 model. As a leading prefabricated substation manufacturer, SHENGTE backs the products with international certifications like IEC, ISO9001, and CE. We also offer tailored solutions, like OEM service, along with a hands-on after-sales team to help you find the power setup that actually works for you. Whether it’s meeting harsh outdoor environments or reducing long-term energy consumption and costs, our technology can meet your needs. Please contact our experts at juanie@SHENGTEtransformer.com for more details and a customized quote!
