High-voltage switchgear is a huge deal. Building a good one means you're juggling a whole bunch of things at once. It has to perform well, it has to be safe, and it needs to be tough enough to last out in the real world—all while playing by some very strict rules.
You've got to sweat the details. Stuff like the voltage and current ratings, how it'll behave during a fault, making sure the insulation is solid, and trying to save on floor space. And you can't forget about making it easy to work on down the road. Nail all that, and you get switchgear that keeps the power flowing smoothly, protects both people and equipment, and just reliably does its job, no matter what the conditions are.
When picking or building high-voltage switchgear, the first thing to think about is how well it performs electrically. This means making sure it can manage certain levels of voltage and current, whether things are running smoothly or during a problem.

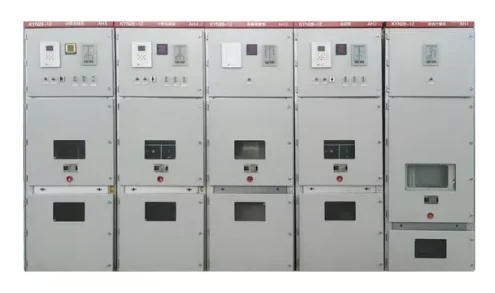

High-voltage switchgear needs to match the system’s usual voltage and the highest amount of current it will carry. The current rating shows how much load the gear can handle without getting too hot. Meanwhile, the voltage rating decides how much insulation is needed to stop dangerous sparks. Take the KYN28A-12 Indoor Metal-Clad Withdrawable High Voltage Switchgear as an example. It’s built to handle up to 12kV and a current range of 630A to 3150A. This makes it a good fit for medium-voltage setups in places like power stations, electrical hubs, and factories.
Another big factor is how well the switchgear can take a short-circuit. This rating tells you if it can stand up to huge fault currents without breaking or overheating. A strong build keeps the system steady when unexpected issues pop up. The prefabricated substation meets GB/T17467-1998 and IEC1330 rules. It’s tough against short-circuits and heavy loads. Following these standards means you can trust its strength even in rough situations.
Insulation coordination makes sure every part of the switchgear can handle sudden spikes in voltage, whether from inside or outside the system. A good insulation setup stops breakdowns between different phases or from a phase to the ground. Designs like fully sealed gas-insulated switchgear (GIS) are great at this. Their closed-off setup keeps things safe and secure.
Air-insulated switchgear (AIS) is straightforward to build and easy to take care of. But it needs a lot of space because of the wide gaps required for safety. On the other hand, GIS uses SF6 gas to keep things insulated. This allows for a smaller size, which is perfect for city areas or underground spots. The underground combined substation brings together high-voltage switchgear, hidden transformers, and low-voltage panels into one neat, tiny setup. These are often picked when space is tight or looks matter.
Modular setups give you options. They use standard parts that are easy to add to or swap out. Metal-clad builds, like the KYN28A-12, focus on safety. Each working part is wrapped in grounded metal walls. This is a top choice for places that need high dependability and protection for workers. If you want a reliable option that mixes ease with strong safety, check out SHENGTE’s KYN28A-12 Indoor Metal-Clad Withdrawable High Voltage Switchgear. It’s made for tough settings where keeping things running is a must.
Safety isn’t something you can skip. It’s a core part of any high-voltage switchgear. The one you pick must have features that guard both people and the equipment when things go wrong.
Internal arc faults are risky. They can cause huge bursts of pressure and heat. Today’s metal-clad designs come with special sections that push dangerous pressure away from workers. They use high-tech tools like vacuum switchgear, with no open live parts and a fully sealed build. This cuts down on the chances of an arc starting and keeps things contained if it does happen.
Mechanical locks stop risky moves, like turning off breakers while they’re still carrying power or opening up live areas. These locks are key to avoiding mistakes by workers during repairs or switching tasks.
Backup systems make sure things keep going even if one part fails. For example, having two power sources lets you switch between them without stopping service. This is often used in important places like hospitals or data hubs where downtime isn’t an option.
Being able to adapt to different surroundings is vital when setting up high voltage switchgear in various places, from seaside areas to busy city spots.
Things like extreme heat or cold, dampness, dust, or harsh air can affect what materials and protection levels you need. The oil tank uses wavy fins to let out heat and fights off rust well. Using stuff like stainless steel helps gear last longer in tough spots.
Indoor setups need to be small but still easy to reach. Outdoor ones must stand up to weather and stay secure from tampering. They come with a tight build and take up little room, cutting down on the space needed. These small designs work well in city projects where land costs a lot.
Switchgear using SF6 gas has to follow strict green rules because it can harm the planet. Other options, like vacuum interrupters, are kinder to the earth while still working just as well.
Regular preventative maintenance—actually getting in there, cleaning out the dust, torquing connections, and testing the circuit breakers—is what separates equipment that runs reliably for decades from equipment that causes a catastrophic failure out of the blue. It’s how you find the small issue before it becomes a plant-wide outage and a massive, expensive problem.
The design should let you safely look over things without stopping work. Pull-out parts make swapping pieces quick and easy, cutting down on delays. This is a huge plus in factories where every minute counts.
New systems have sensors that watch things like heat levels, small electrical leaks, or wear on parts as they happen. This kind of early warning lets you fix stuff before it breaks, making the gear last much longer. They use smart designs. Each piece works on its own and lets you adjust settings from far away.
Don’t just look at the price tag upfront. Think about the full cost over time. This includes energy waste, how often you need repairs, getting spare parts, how long it will last, and what to do with it at the end. This matters a lot when handling big projects that span many years.
Your high-voltage switchgear has to meet global rules. This ensures it works with other systems and hits performance goals under tough tests.
Following rules like the IEC 62271 series for high-voltage gear or ANSI C37 standards shows your system meets worldwide safety standards. This is key if you’re working on big projects across countries or for public services with tight guidelines. The prefabricated substation sticks to GB/T17467-1998 and IEC1330 standards.
Tests like Factory Acceptance Tests (FAT), checks for electrical strength, regular checks for contact issues, and heat tests all prove the gear works before it’s set up. Trusted makers keep track of everything with papers that follow ISO rules.
When you can’t afford mistakes, especially in critical jobs, you need more than just equipment. You need a team with real know-how and a history of success in the field.SHENGTE focuses on making top-notch power distribution tools, including indoor metal-clad withdrawable high voltage switchgear built for heavy-duty use. Their KYN28A-12 model stands out with features like arc fault safety zones, easy-to-pull-out parts, full insulation, vacuum breakers, and built-in tracking options. It’s all packed into one solid unit meant to last long in fields like energy, transport centers, and factories around the world. Their support doesn’t stop at selling. They help from the planning stage to getting things running, plus offer long-term care to keep costs down and systems up for years. Welcome to contact SHENGTE!
Q1: What makes metal-clad withdrawable switchgear safer than fixed types?
A: Metal-clad withdrawable designs keep each working part in grounded sections. This boosts safety for workers during fixes by stopping accidental touches to live parts or risks from arc flashes.
Q2: How do I figure out if AIS or GIS fits my project better?
A: Go for AIS if you’ve got plenty of room and want lower starting costs. Pick GIS if you need a small setup and tight sealing, like in city power hubs or seaside spots with rust and dirt issues.
Q3: Can SHENGTE tweak their KYN28A-12 model for my specific needs?
A: Yes! SHENGTE can adjust things like current levels, control setups, and outer materials to match your exact working conditions and rules.
