KYN28A-12 Indoor Metal-Clad Withdrawable High Voltage Switchgear
KYN28A-12
SHENGTE
| Quantity: | |
|---|---|
The KYN28A-12 indoor metal-clad withdrawable switchgear is primarily designed for power reception, distribution, and the starting of large motors in power plants, industrial and mining enterprises, and secondary substations of power systems. It is utilized for control, protection, real-time monitoring, and measurement purposes.
This switchgear can be equipped with several types of vacuum circuit breakers, including the domestically-manufactured VS1 (ZN63A-12) vacuum circuit breakers, ABB's VD4 vacuum circuit breakers, the HS (ZN82-12) vacuum circuit breakers from Shanghai Fuji Electric Switchgear Co., Ltd., and the VEP (ZN96-12) vacuum circuit breakers from Xiamen Huadian Switchgear Co., Ltd., a Sino-foreign joint venture. The KYN28A-12 holds a significant presence in the 12kV market.

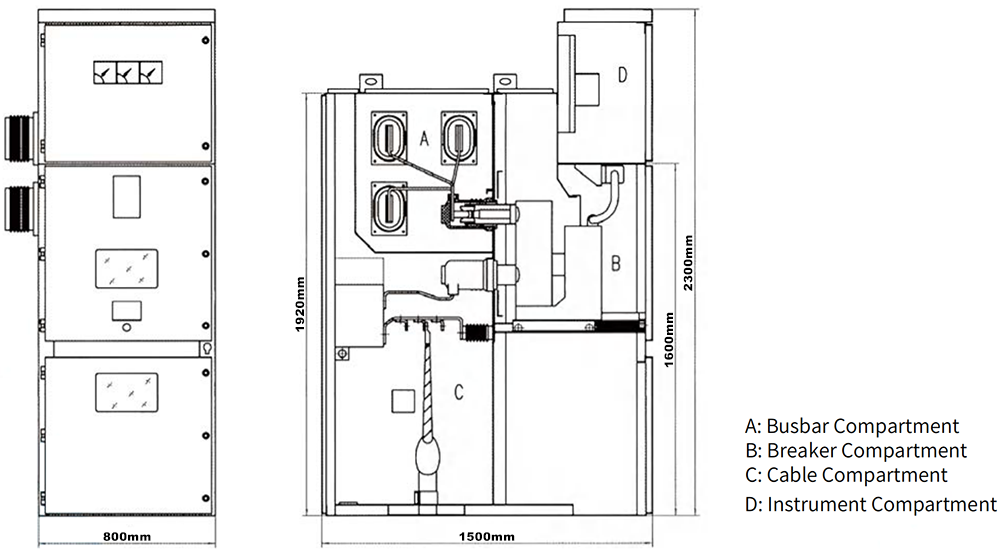

Cabinet Exterior Dimensions:
Standard Schemes for Cable Inlet and Outlet Lines and Connection Cabinets:
1. Width 800(1000) x Depth 1500 x Height 2300
2. Width 800(1000) x Depth 1660 x Height 2300
3. Width 800(1000) x Depth 1800 x Height 2300
Standard Schemes for Overhead Inlet and Outlet Lines:
1. Width 800(1000) x Depth 1660 x Height 2300
2. Width 800(1000) x Depth 1800 x Height 2300
Note:
GZS1 + Standard Scheme for Cable Inlet and Outlet Lines and Connection Cabinets:
1. Width 650 x Depth 1500 x Height 2300
2. Phase spacing is 150mm
3. The phase spacing of the GZS1 cabinet with a width of 800 is 210mm
4. The phase spacing of a cabinet with a width of 1000 is 275mm
| Item | Unit | Data |
| Rated Voltage | kV | 12 |
| 1min Power Frequency Withstand Voltage (Rated Insulation Level) | kV | 42 (Relatively and Interphase) 48 (Isolated Fracture) |
| Lightning Impulse Withstand Voltage (Rated Insulation Level) | kV | 75 (Relatively and Interphase) 85 (Isolated Fracture) |
| Rated Frequency | Hz | 50 |
| Main Busbar Rated Current | A | 630 1250 1600 2000 2500 3150 4000 |
| Branch Busbar Rated Current | A | 630 1250 1600 2000 2500 3150 4000 |
| 4s Thermally Stable Current | kA | 16 20 25 31.5 40 |
| Rated Dynamic Stable Current | kA | 40 50 63 80 100 |
| Protection Class | The enclosure is IP4X, the compartment and door are IP2X when opened. |
Guangdong Shengte Electric Co., Ltd., based in Foshan, China, is a distinguished transformer manufacturer known for reliability and exceptional after-sales service. With over a decade of experience, we've provided high-quality, cost-efficient transformers for governmental and private sector projects worldwide, earning a reputation for excellence.
Our commitment to quality is demonstrated by meeting the rigorous standards of our German Power Utility clients, ensuring only the highest quality solutions.
Spanning 10,000 square meters, our Foshan facility is equipped with cutting-edge production and testing equipment, enabling us to offer customized solutions, including OEM and ODM services. Our product range includes oil-immersed transformers, resin cast dry-type transformers, pad mounted transformers, prefabricated substations, and more.
Certified by ILAC-MRA and CNAS, our IEC certificate underscores our dedication to international quality standards. Additionally, we hold ISO9001, CE, and Innovative Product Certifications, with active pursuit of the UL certificate to further demonstrate our commitment to global compliance.
