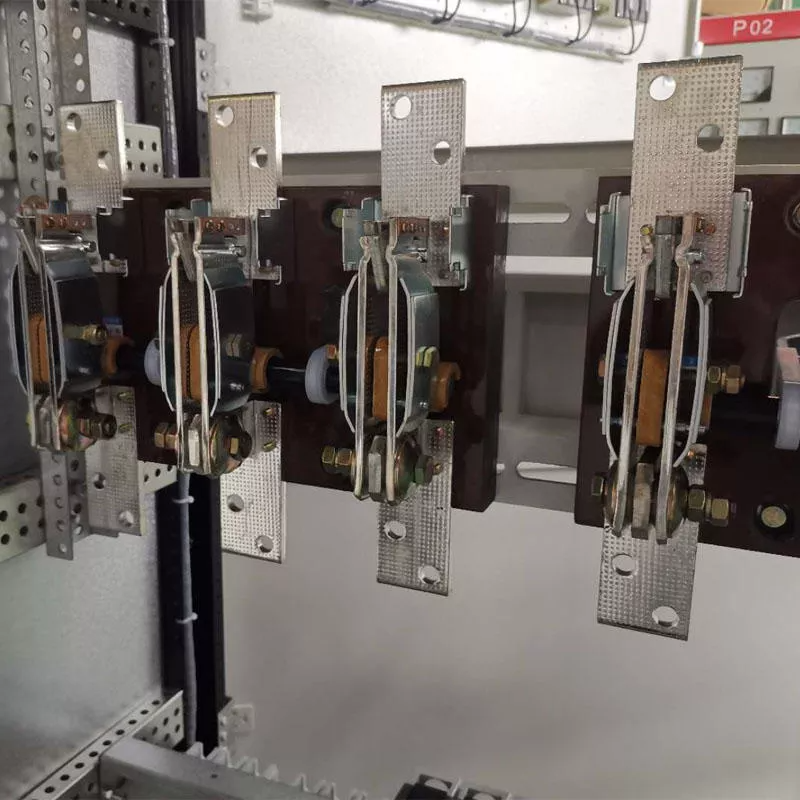

Role of Low Voltage Switchgear in Electrical Power Infrastructure
Integration with Modern Power Systems and Digital Technologies
Summary of Why Low Voltage Switchgear is Indispensable Today
Low voltage switchgear is incredibly important for keeping modern electrical power setups safe, smooth, and dependable. It plays a big part in handling how electricity is shared, guarding equipment against problems, and working well with digital tools. This piece dives into what it does, its main pieces, the rules it follows, and why it’s a must-have in today’s energy world.
Low voltage switchgear acts like the foundation of power-sharing networks. It makes sure electricity is delivered safely and protected at levels usually below 1000V.

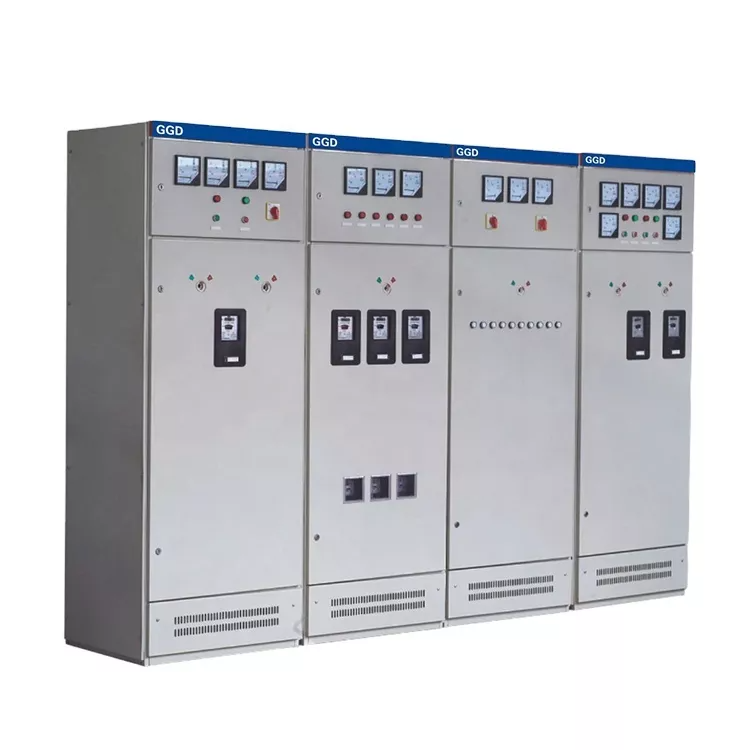

Switchgear setups are mainly there to manage, separate, and shield electrical paths. They come with circuit breakers, fuses, and relays that spot issues like short circuits or too much load. When trouble happens, they act fast to stop any harm. The GGD type AC low voltage switchgear is built for AC 50Hz systems, with a set voltage of 380V and current reaching up to 3150A. It shines in changing, sharing, and controlling power in places like power plants, substations, and factories. This keeps equipment safe and cuts down on delays when things go wrong.
Switchgear helps keep things steady by splitting electrical loads into smaller, easier-to-handle chunks. If something goes wrong in one area, the rest can keep running without a hitch. This split-up method is key for backup plans in critical spots like hospitals or data hubs where every second counts.
Low voltage switchgear is made up of different parts that team up to watch and guide power flow, whether everything’s normal or something’s off.
Circuit breakers stop the current right away if there’s too much load or a short circuit. Contactors take care of regular switching for things like motors or lights. Relays act like sensors, kicking off safety steps when needed. Together, these parts give tight control over power sharing while keeping connected gear safe.
Today’s switchgear often comes in flexible, piece-by-piece designs that can be adjusted to fit specific needs at a site. The cabinet is a standard kind, built with a frame of 8MF cold-formed steel. This allows easy setup of inner parts like meters or control boxes. Whether it’s a main substation or spread-out setups in schools or plants, this flexible design grows with your needs without losing strength.
Picking the right low voltage switchgear means looking at several technical details to match what you need for your work.
Important points to check are the set voltage (often 380V), current limit (up to 3150A), short-circuit stopping power (up to 50kA), and insulation quality that sets safety boundaries. The peak tolerance current can hit up to 105kA, showing it can handle tough fault moments. These numbers show how well the switchgear can deal with heat stress during issues while keeping safe gaps between live wires.
Sticking to worldwide rules makes sure gear from different makers can work together. The GGD cabinet follows IEC439 and GB7251.1 guidelines, matching global safety, use, and design standards. This is super important for projects across countries or in tightly controlled settings.
As power setups turn into smart grids powered by IoT tools, low voltage switchgear has to keep up with the changes.
Modern switchgear includes sensors to check things like heat levels, load currents, and breaker conditions. They send live updates for planning repairs before breakdowns happen. This cuts unexpected stops and makes the best use of equipment over time. Some advanced setups even let you switch things from afar using SCADA systems or online dashboards. This means quicker fixes without needing to be right there.
Saving energy is now a big goal everywhere. Switchgear that works with smart systems can join larger energy management setups (EMS). It helps drop loads during busy times or fix power balance automatically with capacitor banks. This boosts power factor and lowers bills from utility companies.
Safety is a top concern when dealing with high-energy electrical gear. Low voltage switchgear tackles this with strong design features.
Arc flash accidents can badly hurt or even kill if not handled properly. Enclosures come with IP-rated safety levels. The GGD cabinet has choices like IP20, IP30, or IP40 based on where it’s used. Inner walls keep live parts separate during checks or fixes, protecting workers from risky contact. Plus, grounding safety paths make sure any stray current is moved away from people, adding another layer of safety at work.
Regular checks mean looking at wear on breakers or contactors. Using heat cameras can spot hot areas. Adjusting relays makes sure they trip on time during faults. Easy-to-remove top covers help with quick setup changes, saving time and cutting costs for delays over the gear’s life.
If you’re hunting for solid low-voltage options with expert backing, SHENGTE is a name you can trust, relied on by industries all over the world. Located in Foshan City with a long history of top-notch production, they focus on crafting sturdy GGD AC low-voltage distribution cabinets perfect for tough jobs in places like substations or mining sites.
Their gear comes with handy rotating hinges for easy setup, tough coatings that last in rough conditions, and most of all, they’re made to meet global safety rules like IEC439 and GB7251.1. This gives you confidence no matter where you use them. Whether you need basic setups or custom builds for tricky systems, SHENGTE offers quality you can count on, supported by helpful tech teams ready to help anywhere in the world.
Low voltage switchgear is the heart of safe energy handling in all kinds of areas, from big power grids to office buildings. It guards equipment from faults and lets you control shared loads with ease. This makes it a key player in our ever-growing electric world. With new features like smart tracking and following worldwide rules, it not only keeps things running but also supports long-term green goals by fitting smoothly into modern EMS designs.
When you choose top-grade systems like those from SHENGTE, you’re not just buying equipment. You’re putting your trust in dependability that’s built into every link of your power network.
Q1: What’s the difference between low voltage switchgear and distribution cabinets?
A: Both help manage electricity at lower levels, usually under 1000V. But switchgear is a broader term for setups with safety tools like circuit breakers or relays. Distribution cabinets, on the other hand, are more about guiding power through busbars, meters, or outgoing lines in specific spots like buildings or plants.
Q2: How often should I maintain my low voltage switchgear?
A: You should plan full checks at least once a year. For important setups with heavy use or non-stop running, like in factories or hospitals, quick look-overs every three months are a good idea to keep things up and running.
Q3: Can smart low voltage switchgear reduce my energy bills?
A: Yes, it can! Smart systems give you real-time info on power use, helping you make better choices. When linked to EMS tools, they can automatically adjust to lower costs during peak times, saving you money in the long run.
