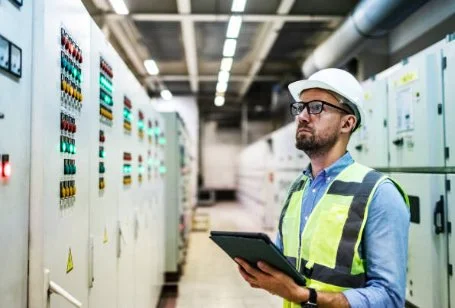

Switchgear is a basic part of electrical power systems. It’s like the main hub for controlling, protecting, and isolating electrical gear. What it mainly does is cut power to equipment so people can do maintenance, and also clear up faults that pop up downstream. In power distribution networks, it makes sure electricity gets delivered safely and efficiently—managing how current flows, and letting you disconnect just the right parts when something goes wrong.
Switchgear can cut off fault currents. It can also isolate the parts that got hit. This prevents failures from escalating and keeps the power on. So you’ll always see it in substations, factories, big commercial buildings, utility grids—places where keeping the power flowing without a glitch matters a lot. How Switchgear Maintains System Stability and Safety Switchgear is key for keeping the system stable. It spots problems fast—like short circuits or overloads—and jumps into action to protect things. It works with protection relays and circuit breakers. Only the faulty part gets shut off; the rest keeps running. It’s good for keeping people safe too. Barriers, interlocks, insulated enclosures—they all keep live parts away from people. The fancier switchgear designs? They’ve got ways to reduce arc flashes. Makes working in high-energy spots safer, that’s for sure.
To truly grasp how switchgear safeguards complex electrical networks, it's essential to break it down into its fundamental building blocks and understand how it's categorized. Each component has a distinct role in the system's overall operation, from interrupting massive fault currents to providing safe isolation for maintenance. Furthermore, the design and construction of switchgear are fundamentally determined by the voltage level it is intended to manage, which dictates its application and capabilities.
Switchgear is composed of several core components.They work together to handle switching and protection stuff.
At its core, switchgear comprises several key components that work together to perform switching and protection functions:
· Circuit Breakers: These things are automatic. They cut off current when there’s a fault. And they can take high fault currents without breaking.
· Disconnectors (Isolators): Mostly used to keep things safe during maintenance. They physically separate a part of the circuit.
· Protection Relays: These are smart devices. They pick up on weird conditions—like too much current or differential faults. Then they send a signal to the circuit breakers to trip.
Every part matters. They make sure electrical systems run steady, whether everything’s normal or there’s a glitch.
Switchgear gets grouped by the voltage it handles. Like this:
· Low Voltage (LV) Switchgear: Usually for systems up to 1 kV. You see them a lot in houses, small shops, light industrial places.
· Medium Voltage (MV) Switchgear: It works with 1 kV to 36 kV. They are widely in secondary substations, infrastructure jobs, medium-sized factories.
· High Voltage (HV) Switchgear: It runs above 36 kV. Found in transmission networks, big industrial areas, power plants, utility substations—places that need to handle heavy power.

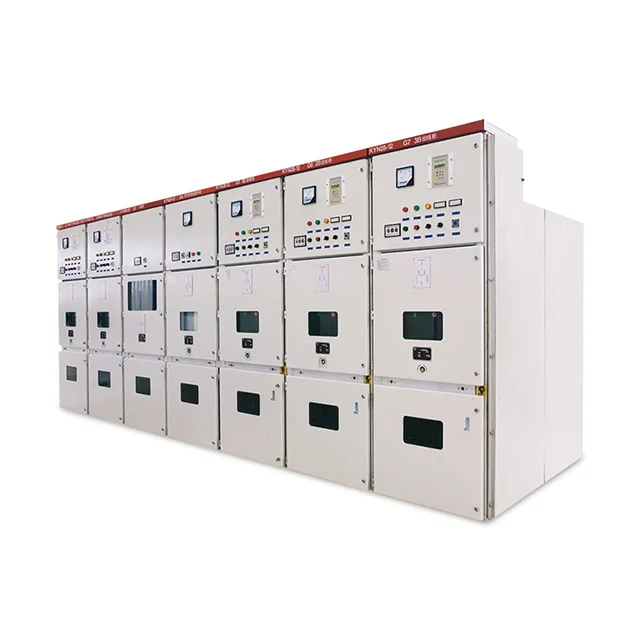

High voltage switchgear is essential wherever large-scale power transmission or distribution takes place. Applications include:
· Transmission substations linking generation plants with distribution networks
· Industrial plants with high energy demands such as steel mills or chemical refineries
· Renewable energy farms like wind or solar parks feeding into national grids
· Rail electrification systems requiring stable high-voltage supply for traction systems
Its ability to handle large voltages while maintaining operational integrity makes HV switchgear indispensable for national infrastructure resilience.
The fancy high voltage switchgear? It’s good at spotting faults, and quick to cut things off. That means less damage to equipment, and way less time where everything’s shut down.
Modern HV switchgears have little sensors watching things. They give real-time info—like how much load’s on, if temps are rising, partial discharges, and other similar parameters. Helps plan maintenance before things break, so they stay running more.
Power demand keeps going up, and the grid’s changing too—what with solar panels, battery storage, all that distributed generation. But HV switchgears are built in modules. So you can expand easily, no big redesigns needed. Simple as that.
When selecting switchgear, it is important to start by checking by evaluating the electrical load characteristics. Like, what's the peak demand? What kind of load is it—resistive or inductive? And you must calculate fault levels too. Then match all that up with the right breaker ratings. Insulation levels, busbar setups—those need to fit, too.System topology—radial vs ring vs mesh—also influences protection schemes embedded within the switchgear design.
Indoor installations typically use metal-enclosed switchgears protected from weather elements but require adequate ventilation. Outdoor-rated units must withstand UV exposure, rain ingress (IP ratings), corrosion resistance (especially near coastal areas), and mechanical stress from wind loads.
Ambient temperature affects thermal derating; humidity can cause condensation leading to insulation failure; high altitudes reduce dielectric strength—requiring derated equipment or pressurized enclosures. These environmental factors must be considered early during specification stages.
Modern digital relays integrated into switchgears enable real-time monitoring of parameters like current imbalance or harmonic distortion. They support IEC 61850 protocols for seamless communication across SCADA platforms enabling remote diagnostics and control functionalities—essential for smart grid integration.
By dividing live parts into separate compartments (busbar chamber / breaker chamber / cable chamber), any arc event can be contained locally without affecting adjacent components—a key design strategy in metal-clad MV/HV gear.Vacuum interrupters or SF6-based quenching mediums allow rapid arc extinction within milliseconds—limiting thermal stress on contacts while safeguarding operators from blast injuries when combined with pressure relief flaps or arc ducts venting externally.
In the world of high-voltage power systems, reliability isn't just a feature—it's the bedrock of safe and continuous operation. Engineers and project managers know that the choice of a supplier goes far beyond a simple transaction. It’s about forging a partnership with a manufacturer who understands the immense pressures and technical complexities involved. This is where SHENGTE stands apart, earning the confidence of industry professionals by consistently delivering equipment that performs when it matters most.
SHENGTE has established itself as a trusted name among engineers seeking robust solutions for medium-to-high voltage applications. Their range includes oil-immersed transformers integrated with HV switchgears designed for optimal performance under demanding grid conditions.
SHENGTE’s products undergo rigorous testing conforming to international standards like IEC 62271 series, ensuring reliability even under extreme environmental stresses.
With a dedicated engineering team offering customized design services—from layout optimization to relay coordination studies—SHENGTE supports clients through every phase from concept through commissioning. Their ability to deliver turnkey packaged substations accelerates project timelines while maintaining compliance with regulatory codes. Welcome to contact SHENGTE!
Q1: What is the main purpose of using switchgear?
A: To protect electrical circuits from faults by isolating affected sections quickly while maintaining continuous operation elsewhere.
Q2: What’s the difference between LV/MV/HV switchgears?
A: They differ based on operating voltage levels—with LV up to 1kV; MV between 1kV–36kV; HV above 36kV—each suited for specific application scales from residential loads up to transmission networks.
Q3: How do I choose between indoor vs outdoor installation?
A: Consider environmental exposure risks; indoor units offer better control over climate but need space/ventilation; outdoor units must be weatherproofed accordingly using IP-rated enclosures.
