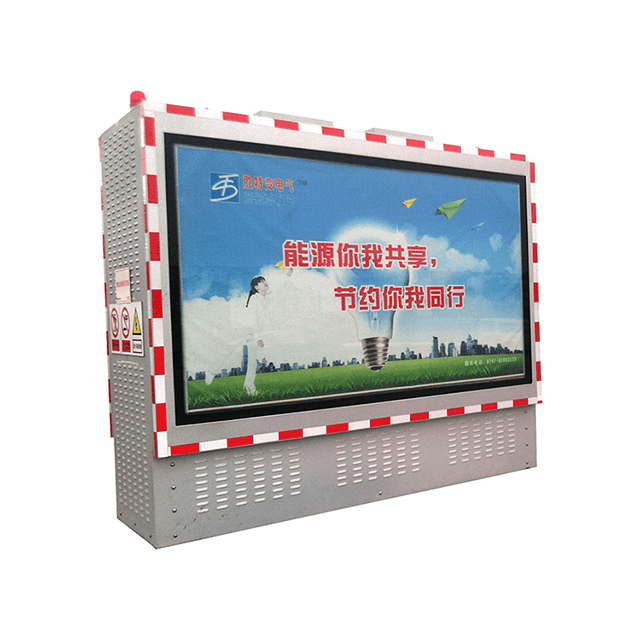

YBD-12/0.4-125
SHENGTE
| Quantity: | |
|---|---|
Features:
1. It is developed and designed on the basis of the combined substation, with compact structure, small floor area, beautiful appearance, low noise, energy saving and environmental protection, safe and reliable operation, convenient maintenance.
2. It adopts advanced technology to improve and optimize functions, equipping with automatic temperature control, automatic emergency drainage, automatic humidity control and remote monitoring system, with reliable performance.
3. In the power distribution system, it can be used for ring network power distribution system, as well as dual power supply or radial terminal power distribution system.
Our Advantages:
· Compact Integration: Merges high-voltage switchgear, an underground transformer, and low-voltage distribution panels into a single, efficient unit.
· Modular Construction: Includes above-ground parts (high-voltage switchgear, low-voltage distribution cabinets, and outer shell) and underground sections (transformer and its casing).
· High-Voltage Section: Utilizes SF6 insulated ring main units or load switch cabinets that are compact and require minimal maintenance.
· Low-Voltage Section: Features GGD cabinets, customizable with metering, measurement, and automatic capacitance compensation devices.
· Transformer Section: Employs a buried transformer with low temperature rise and loss, featuring fully sealed, fully insulated connections, operational even when submerged.
· Casing Design: Constructed from aluminum-zinc sheets with a wood covering and a metal glazed tile roof; the double-layered top cover provides good ventilation and reduces heat radiation.
· Aesthetic and Environmental Benefits: A modern, visually appealing design that conserves space and reduces environmental impact through underground installation.
· Safety and Durability: Includes fireproof, waterproof, and explosion-proof properties, along with a sophisticated monitoring system for secure operation.
Main Part | Item | Unit | Parameter |
High Voltage Unit | Rated Voltage | KV | 12 |
Rated Frequency | Hz | 50 | |
Rated Current Of Main Bus | A | 630 | |
1mm Power Frequcency Withstand Volage Carth And Inter-Phase / Isolation Clearance | KV | 42 / 48 | |
Lightning Impulse To Earth And Phase To Phase Withstand / Isolation Clearance | KV | 75 / 85 | |
Rated Short-Time Withstand Current | KA/S | 20 / 2 | |
Rated Peak Withstand Current | KA | 50 | |
Rated Short-Time Making Current | KA | 50 | |
Rated Transfer Current | A | 1400 | |
Fuse Drop Out Current | KA | 31.5 / 40 | |
Low Voltage Unit | Rated Voltage | V | 400 |
Main Circuit Rated Current | A | 100 ~ 1200 | |
Rated Limit Short-Circuit Breaking Capacity | KA | 80 | |
Rated Running Short-Circuit Breaking Capacity | KA | 50 (65) | |
Rated Short-Time Withstand Current | KA/S | 50 (65) | |
Branch Current, Compensating Capacity | -- | As Per The Users' Requirements | |
Transformer Unit | Rated Power | KVA | 30 ~ 630 |
Impedance Votage | % | 4 / 4.5 | |
Tapping Range | % | ±2 × 2.5% / ±5% | |
Vector Group | -- | Yyn0 / Dyn11 |
Guangdong Shengte Electric Co., Ltd., based in Foshan, China, is a distinguished transformer manufacturer known for reliability and exceptional after-sales service. With over a decade of experience, we've provided high-quality, cost-efficient transformers for governmental and private sector projects worldwide, earning a reputation for excellence.
Our commitment to quality is demonstrated by meeting the rigorous standards of our German Power Utility clients, ensuring only the highest quality solutions.
Spanning 10,000 square meters, our Foshan facility is equipped with cutting-edge production and testing equipment, enabling us to offer customized solutions, including OEM and ODM services. Our product range includes oil-immersed transformers, resin cast dry-type transformers, pad mounted transformers, prefabricated substations, and more.
Certified by ILAC-MRA and CNAS, our IEC certificate underscores our dedication to international quality standards. Additionally, we hold ISO9001, CE, and Innovative Product Certifications, with active pursuit of the UL certificate to further demonstrate our commitment to global compliance.
Q1: Are you a manufacturer or trading company?
A1: Our factory covers an area of over 10000m2, we can produce 2000 more transformers each year.
Q2: Do you have the relevant certifications and test reports?
A2: Yes, we have ISO9001 and CE certification, and can provide the test reports according to IEC standard.
Q3: How long is the warranty period?
A3: It is 12 months.
Q4: Would you accept using customer's logo?
A4: Yes, we can provide OEM and ODM service.
Q5: What's the MOQ?
A5: It is 1 set.
Q6: What are the payment methods and terms?
A6: We accept T/T, Western Union, PayPal, etc. 30% advance payment before production, 70% balance payment before delivery.
Q7: How long is the delivery time?
A7: Generally it is 20-30 days, it depends on the order quantity.
Q8: What is the standard of package?
A8: Wooden case or special package according to customer's requirement.
