OEM Factory 10KV Class S11 Series Oil-immersed Transformer Fully Sealed Power Transformer-shengte

short description:


  • MOQ: 1pcs
  • Payment: UnionPay
  • Place of Origin: FoShan, Guangdong, China
  • Brand: SHENGTE
  • Delivery Time: 10-12 days for sample, 10-15 days for mass production after payment confirmed
  • Start Port: FoShan
  • Product Detail

    Product Tags

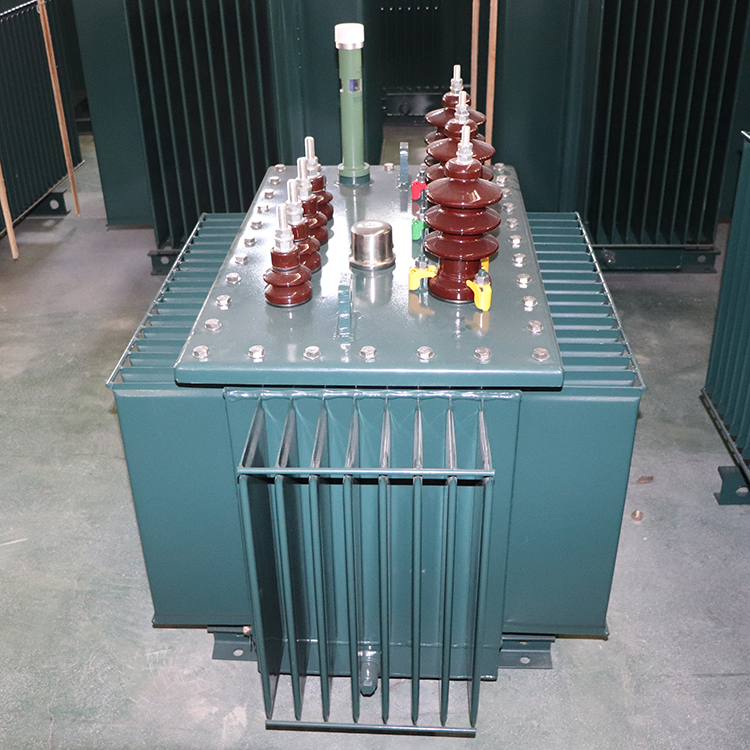

    PRODUCT INTRODUCTION

    The core of S11-M series low-loss energy-saving transformer produced by our company adopts laminated structure.

    This product is based on fully absorbing the advanced technology and technology of domestic oil-immersed transformer and combining the technical level of our company, putting the reliability of the product in the first place, while greatly reducing the no-load loss and no-load current of the product.

    1-11

    PRODUCT CHARACTERISTICS

    01.

    The coil adopts the structure of low axial short-circuit force. When the transformer is short-circuit, the structure can greatly reduce the axial short-circuit force of the transformer and greatly improve the ability of the transformer to withstand short-circuit.

    02.

    The transformer body adopts a high reliability supporting structure to ensure the reliable compression of the upper and lower parts of the coil. The whole body structure makes the transformer withstand short circuit very strong.

    03.

    Selecting a lower flux density in the design can not only reduce the no-load loss of transformer, but also ensure that the core flux is unsaturated when the transformer runs under voltage, so that the third harmonic of the transformer is very small when it moves.

    04.

    The bolts and nuts on the cover of the box are all made of 304 stainless steel, which enhances the anti-rust ability of the transformer.

    05.

    All the sealing aprons adopt the best domestic aprons, which greatly prolongs the service life of the sealing aprons.

    PRODUCT CHARACTERISTICS

    Technical parameters of 10KVS11 series distribution transformers

    Scope of application: The product is suitable for all kinds of distribution places, but also for European box transformer, mobile substation and so on.

    S11 series product features: Compared with GB6451-2008, no-load loss decreases by more than 30% on average and no-load current decreases by 40%.

    S13series product features: Compared with GB6451-2008, the no-load loss decreases by more than 50% on average and the no-load current decreases by 60%. This series of products have strong resistance to short circuit, practical and durable.

    1. The coil adopts the structure of low axial short-circuit force, when the transformer short-circuit occurs, the use of this structure can greatly reduce the transformer's axial short-circuit force, greatly improve the transformer's ability to withstand short circuit.

    2. The transformer body adopts high reliability support structure to ensure reliable compression on the upper and lower coils. The whole body structure makes the transformer strong ability to withstand short circuit.

    3. The lower flux density is selected in the design, which can not only reduce the no-load loss of transformer, but also ensure that the iron core flux is unsaturated when the transformer operates at voltage, so that the third harmonic of transformer movement is very small.

    4. The bolts and nuts on the cover of the box are all made of 304 stainless steel, which enhances the rust resistance of the transformer.

    5. Each sealing gasket adopts the best one in China, which greatly extends the service life of the sealing gasket.

    Model Rated capacity Rated capacity connection symbol No-load Loss (W) Load Loss (W) No-load current (%) Short circuit impedance (%) Weight (kg) Profile (mm) Gauge (mm)
    High Voltage Low Voltage Oil weight Body weight Gross weight long wide hight
    S11-M-30/10 30 11 0.4 Yyn0 95 600 1.3 4 90 200 400 1050 660 1140 400×400
    S11-M-50/10 50 10.5 Dyn11 130 870 1.1 100 220 460 1070 710 1180
    S11-M-63/10 63 10 150 1040 1 110 250 500 1110 720 1190
    S11-M-80/10 80 6.3 170 1250 0.9 115 290 550 1120 730 1200
    S11-M-100/10 100 6 200 1500 0.8 120 350 620 1140 740 1220
    S11-M-125/10 125 Voltage regulation range 230 1800 0.8 145 390 700 1180 760 1280
    S11-M-160/10 160 ±5% 270 2200 0.7 175 460 830 1210 780 1280 550×550
    S11-M-200/10 200 or ±2 330 2600 0.7 190 520 910 1240 780 1360
    S11-M-250/10 250 ×2.5% 390 3050 0.6 200 610 1000 1280 800 1380
    S11-M-315/10 315 470 3650 0.6 220 730 1190 1330 860 1390
    S11-M-400/10 400 560 4300 0.5 260 900 1430 1360 860 1440 660×660
    S11-M-500/10 500 670 5100 0.5 280 1000 1600 1439 920 1480
    S11-M-630/10 630 800 6200 0.5 4.5 330 1100 1830 1540 1010 1510
    S11-M-800/10 800 980 7500 0.4 450 1280 2300 1610 1030 1660 820×820
    S11-M-1000/10 1000 1150 10300 0.4 550 1450 2700 1750 1160 1750
    S11-M-1250/10 1250 1360 12000 0.3 630 1800 3200 1800 1260 1810
    S11-M-1600/10 1600 1640 14500 0.3 800 2100 3700 1930 1300 1890
    S11-M-2000/10 2000 1940 18300 0.3 5 1050 2600 4500 2030 1340 2000 920×920
    S11-M-2500/10 2500 2290 21200 0.3 1200 3100 5500 2410 1610 2400
    S11-M-3150/10 3150 2730 24300 0.3 1400 4100 7200 2750 1810 2600
