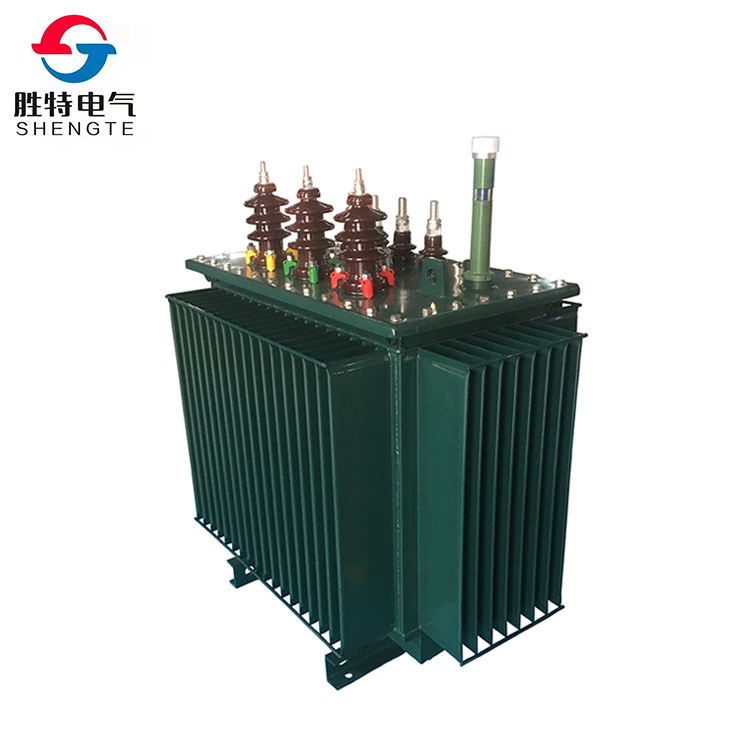

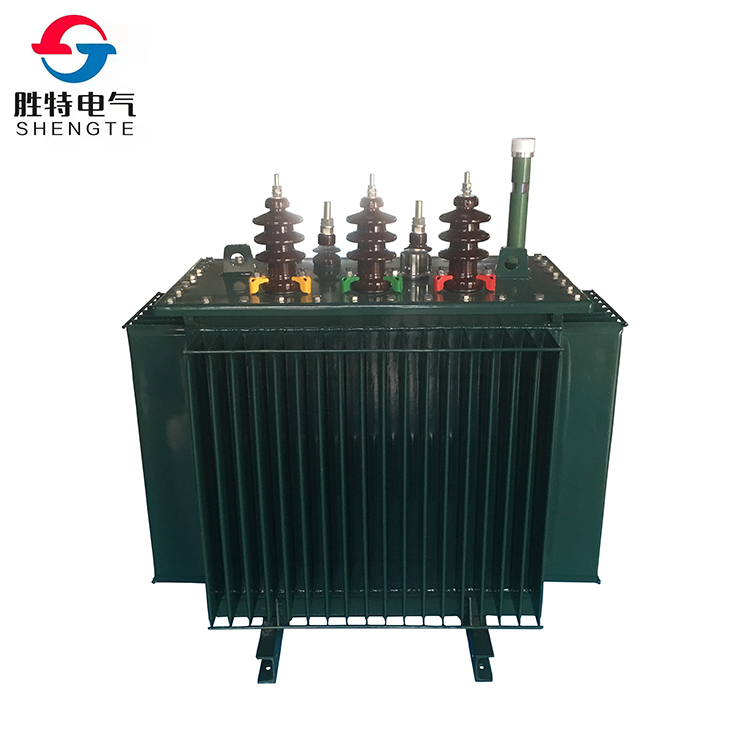

SZ11-200/10
SHENGTE
| Quantity: | |
|---|---|
This new energy-saving product is developed in the conventional S9/S11-M series, with better short-circuit resistance and safety. It is especially suitable for the users with large fluctuation of power grid and stable voltage requirement. At the same time, it can be automatically (or manually) regulated voltage without interruption of power supply (with load).
Features:
1. The voltage regulation range of transformer is generally designed to be 10±4x2.5%KV, and tapping range can also be designed according to the user's requirements.
2. With the voltage regulation switch, it has a wide range of voltage regulation. It can be automatically (or manually) regulated voltage under the condition of load (without interruption of power supply) and remotely controlled. It can also achieve parallel operation of multiple on load voltage regulating transformers.
Our Advantages:
1. Superior Heat Dissipation and Structural Strength: The spiral coil with longitudinal oil ducts provides excellent heat dissipation, low magnetic leakage, and high mechanical strength. The reliable supporting structure enhances short-circuit withstand capability.
2. Efficient Iron Core: Composed of silicon steel sheets with a thickness of less than 0.35mm and high magnetic conductivity, the core reduces no-load loss and current, improving efficiency.
3. High-Quality Insulation: Materials with high heat resistance withstand overvoltage and overcurrent, ensuring durability and reliability.
4. Superior Transformer Oil: Low viscosity oil with excellent heat transfer and insulation properties protects the core and windings, reducing insulation material aging and extending service life.
5. Durable Oil Tank: Made from high-quality cold-rolled steel plates, treated with de-oiling, rust removal, and phosphating, and coated with three-proof paint, enhancing reliability and reducing maintenance costs.
6. Effective Sealing Rings: Made from high-quality rubber, these rings slow aging, isolate external air, and prevent oil leakage.
| Model | Rated Capacity (KVA) | Rated Voltage (KV) | Connection Method | No-load Loss (W) | Load Loss (W) | No-load Current (%) | Short Circuit Impedance (%) | ||
| High Voltage | Voltage Regulation Range | Low Voltage | |||||||
SZ11-M-200 | 200 | 6 6.3 10 10.5 | ±4×2.5% | 0.4 | Yyn0 Dyn11 | 380 | 2900 | 1 | 4 |
SZ11-M-250 | 250 | 440 | 3420 | 0.9 | 4 | ||||
SZ11-M-315 | 315 | 530 | 4100 | 0.9 | 4 | ||||
SZ11-M-400 | 400 | 640 | 4950 | 0.8 | 4 | ||||
SZ11-M-500 | 500 | 760 | 5890 | 0.8 | 4 | ||||
SZ11-M-630 | 630 | 960 | 7260 | 0.6 | 4 | ||||
SZ11-M-800 | 800 | 1120 | 8890 | 0.6 | 4 | ||||
SZ11-M-1000 | 1000 | 1360 | 10400 | 0.6 | 4 | ||||
SZ11-M-1250 | 1250 | 1560 | 12300 | 0.5 | 4 | ||||
SZ11-M-1600 | 1600 | 1920 | 14700 | 0.5 | 5 | ||||
SZ11-M-2000 | 2000 | 2270 | 18600 | 0.4 | 5 | ||||
SZ11-M-2500 | 2500 | 2680 | 21600 | 0.4 | 5 | ||||
Guangdong Shengte Electric Co., Ltd., based in Foshan, China, is a distinguished transformer manufacturer known for reliability and exceptional after-sales service. With over a decade of experience, we've provided high-quality, cost-efficient transformers for governmental and private sector projects worldwide, earning a reputation for excellence.
Our commitment to quality is demonstrated by meeting the rigorous standards of our German Power Utility clients, ensuring only the highest quality solutions.
Spanning 10,000 square meters, our Foshan facility is equipped with cutting-edge production and testing equipment, enabling us to offer customized solutions, including OEM and ODM services. Our product range includes oil-immersed transformers, resin cast dry-type transformers, pad mounted transformers, prefabricated substations, and more.
Certified by ILAC-MRA and CNAS, our IEC certificate underscores our dedication to international quality standards. Additionally, we hold ISO9001, CE, and Innovative Product Certifications, with active pursuit of the UL certificate to further demonstrate our commitment to global compliance.
Q1: Are you a manufacturer or trading company?
A1: Our factory covers an area of over 10000m2, we can produce 2000 more transformers each year.
Q2: Do you have the relevant certifications and test reports?
A2: Yes, we have ISO9001 and CE certification, and can provide the test reports according to IEC standard.
Q3: How long is the warranty period?
A3: It is 12 months.
Q4: Would you accept using customer's logo?
A4: Yes, we can provide OEM and ODM service.
Q5: What's the MOQ?
A5: It is 1 set.
Q6: What are the payment methods and terms?
A6: We accept T/T, Western Union, PayPal, etc. 30% advance payment before production, 70% balance payment before delivery.
Q7: How long is the delivery time?
A7: Generally it is 20-30 days, it depends on the order quantity.
Q8: What is the standard of package?
A8: Wooden case or special package according to customer's requirement.
