Picture the raw power of a seaside storm or the quiet chill of a tall mountain area during winter. In such spots, the power network serves more than a simple aid. It acts as a vital support. When bad weather hits, people often think about strong winds or heavy rain first. However, the true struggle takes place within those steel units on road edges. These are the three phase transformer devices. Many overlook them in daily life. But with harsh weather turning into the usual pattern, these pieces face their full strain. The task now goes beyond shifting power from one spot to another. It involves creating a 3 phase transformer that handles water surges, copes with rarefied air in high places like the Himalayas, and remains steady in deep Siberian cold. In this piece, we explore the tough side of current transformer building. We also look at how a solid oil immersed distribution transformer steps up as a key player in keeping the grid strong.
Nature is incredibly good at breaking things. If you place a standard three phase oil immersed transformer in a high-altitude region without the right modifications, it will likely overheat or leak within months. The lower air pressure at 3,000 meters above sea level means heat doesn't dissipate as easily as it does at the coast. Similarly, in coastal regions, salty air eats away at metal tanks, and typhoon-force winds can literally push moisture into the cooling fins of an oil type distribution transformer.
Designers now turn their attention from simple output to making units tough against their surroundings. This approach checks each seal, each fastener, and each unit of oil with a focus on lasting through tough spots. To achieve this well, those in charge of projects often seek out a focused China oil-immersed transformer factory. Such places have knowledge in crafting for varied weather, from wet lowlands to icy highlands.
In high-altitude areas, the "dielectric strength" of the air changes. This is a fancy way of saying electricity can jump (or arc) more easily through thin air than through dense air. For a three phase transformer, this requires a complete rethink of external bushings and internal insulation. If the design isn't adjusted for the 2,500-meter mark, the internal temperature can rise by an extra 5 to 10 degrees Celsius, which silently kills the transformer's lifespan.
To combat this, leading oil immersed transformer manufacturers are using oversized cooling fins and higher-grade insulating papers. By increasing the surface area of the radiator, the oil immersed distribution transformer can stay cool even when the air is too thin to do the job effectively. It’s a delicate balance of physics and mechanical engineering that only experienced factories can pull off.
When the temperature drops to -40°C, ordinary materials become as brittle as glass. The oil inside a three phase oil immersed transformer can become sluggish, losing its ability to circulate and cool the core. If the transformer is turned off for maintenance and then restarted in these temperatures, the "thermal shock" can cause the metal tank to crack or the seals to fail.
Advanced oil immersed distribution transformer units now use special low-pour-point mineral oils that remain fluid even in a deep freeze. Moreover, the steel used by a top-tier china oil-immersed transformer factory is often treated with cold-resistant alloys to prevent brittle fractures. For those living in high-latitude zones, these design choices are the difference between a warm home and a frozen pipe disaster during a winter blackout.
If there is one thing that kills an oil type distribution transformer faster than anything else, it’s moisture. Even a few drops of water in 500 liters of oil can ruin its ability to insulate high voltage. In the past, transformers "breathed" through a desiccant breather, which meant they were constantly sucking in outside air. In a typhoon-prone or high-humidity area, this was a recipe for disaster.
The industry has largely moved toward "fully sealed" technology. By removing the air space at the top of the tank and using corrugated cooling fins that can expand and contract like an accordion, the three phase oil immersed transformer is now a hermetically sealed vault. This keeps the moisture out and the reliability in, regardless of how much rain is falling outside.
The corrugated tank is a brilliant piece of engineering. Instead of using a separate oil conservator tank on top, the walls of the 3 phase transformer itself are designed to flex. When the oil gets hot and expands, the fins push out; when it cools, they pull back in. This eliminates the need for any contact between the oil and the outside atmosphere.

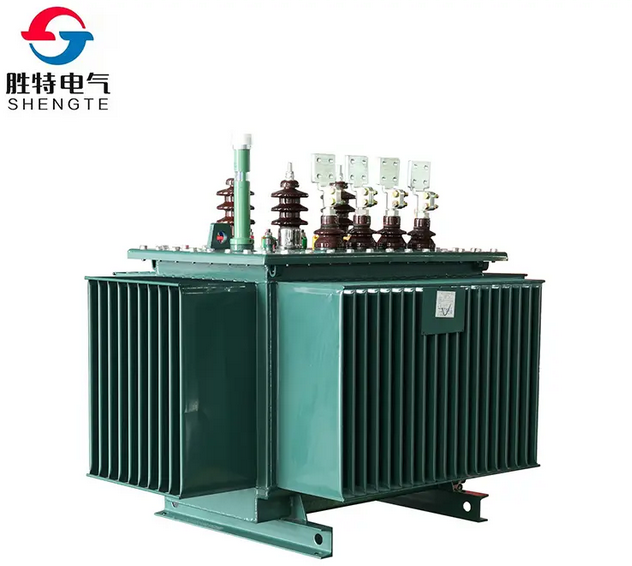

For oil immersed transformer manufacturers, the welding quality on these fins is where the battle is won or lost. A single weak weld can lead to a leak that drains the unit over several years. High-end models, like the S11-M-800/10 from SHENGTE, utilize automatic argon arc welding to ensure that the tank stays 100% leak-proof for its entire 20-30 year lifespan. This level of precision is why modern oil immersed distribution transformer units are so much more reliable than the ones built thirty years ago.
Anti-Corrosion for Coastal and Typhoon Zones
Salt spray is a silent killer. In coastal regions, the humidity is packed with salt, which creates a corrosive battery effect on the metal surfaces of a three phase transformer. During a typhoon, this salt is driven deep into every nook and cranny. If the paint job isn't perfect, the tank will rust through in less than a decade.
Top-rated oil immersed transformer manufacturers now use a multi-stage coating process. This involves sandblasting the steel to a "white metal" finish, followed by a zinc-rich primer and multiple layers of weather-resistant epoxy. This "armor" allows the three phase oil immersed transformer to sit in a salty, wind-swept substation for decades without a single spot of rust. It’s about building something that can ignore the environment rather than just enduring it.
At the end of the day, a transformer is only as good as the factory that built it. The global market is flooded with cheap units, but when you are dealing with a 10kV or 35kV grid, "cheap" often turns out to be very expensive. A china oil-immersed transformer factory that invests in high-purity copper and cold-rolled grain-oriented silicon steel will always produce a more resilient unit than one cutting corners.

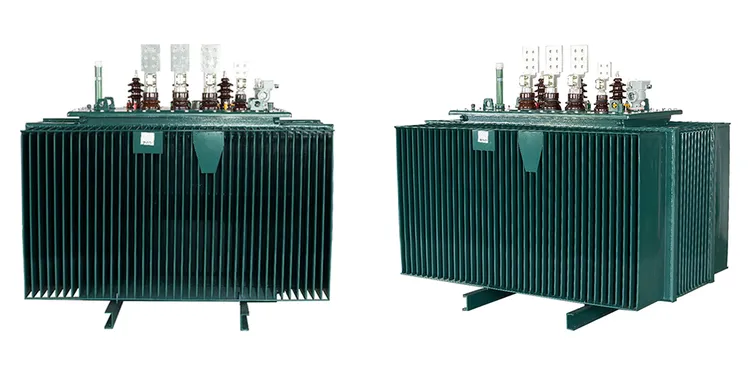

The S11-M series has become a global benchmark for this type of "extreme environment" performance. By focusing on a fully sealed design and low-loss core materials, it significantly reduces the risk of thermal runaway and oil oxidation. This isn't just about meeting a specification; it's about providing peace of mind to the engineers who have to maintain the grid in the middle of a storm.
Trust is built through testing. A professional oil immersed distribution transformer isn't just shipped out the door once the paint is dry. It goes through a series of "ordeals." This includes pressure tests to ensure the seals hold under stress, and impulse tests that simulate a lightning strike. When you buy from reputable oil immersed transformer manufacturers, you are buying the results of those tests.
In SHENGTE, each three phase transformer is care as a main network part. The fine work in the air-free fill step leaves no tiny air spots in the fluid. This stops "partial discharge," a gradual power failure that might make a 3-phase transformer burst suddenly. By picking a team that values these hidden points, network runners can avoid huge fix bills in crises.
Building a resilient power grid is a bit like building a fortress; it's only as strong as its weakest point. In many cases, that point is an aging or poorly designed three phase oil immersed transformer. By embracing modern sealing technologies, better materials, and environmental hardening, we can create a grid that stands tall against typhoons, extreme cold, and the challenges of high altitude. Whether you are managing a remote mining site or a coastal city, the quality of your oil type distribution transformer matters. If you're ready to upgrade your system with hardware that's built for the real world, contact SHENGTE at juanie@shengtetransformer.com today. Our team is ready to help you find the perfect 3 phase transformer to keep your community powered, no matter what the weather has in store.
