Views: 0 Author: Site Editor Publish Time: 2026-01-07 Origin: Site
Three-phase transformers serve a key part in today's power systems. They allow effective high-voltage sending, steady power supply, and flexible voltage changes across grid stages. Through even three-phase work and adjustable links like delta and wye, they raise system strength, fault handling, and power quality. Their results depend on right link plans, core and coil parts, oil-sealed blocking, and exact load fit. Built-in tools like current transformers aid watching and guarding. Well-built goods and skilled suppliers make sure long-term savings, safety, and growth in power, factory, and business uses.
Three-phase transformers form basic parts of current power grids because of their savings and growth ability. Their use permits sending of large amounts of electric power with less setup and work losses. A big benefit comes from their skill to support effective sending of high-voltage power over long paths. This savings results from the even three-phase setup. It cuts the amount of wire needed and raises power thickness.
In a three-phase setup, each phase carries the same current but shifts by 120 degrees. This creates steady power flow. The trait lowers ripples in power supply. It adds to better steadiness and smoother running of motors and factory tools. Even loads in three-phase systems also improve overall steadiness and results. They cut voltage changes and lower overload dangers.
Transformers hold a vital place in changing voltage levels at different grid steps. Step-up transformers work at power plants to raise voltage for sending. High-voltage sending cuts I²R losses—where ‘I’ stands for current and ‘R’ for resistance. This raises full system savings.
Step-down transformers, on the other hand, sit nearer to use points. They lower high send voltages to safer levels for business and home uses. Voltage control from transformers makes sure fit with end tools while keeping grid strength.

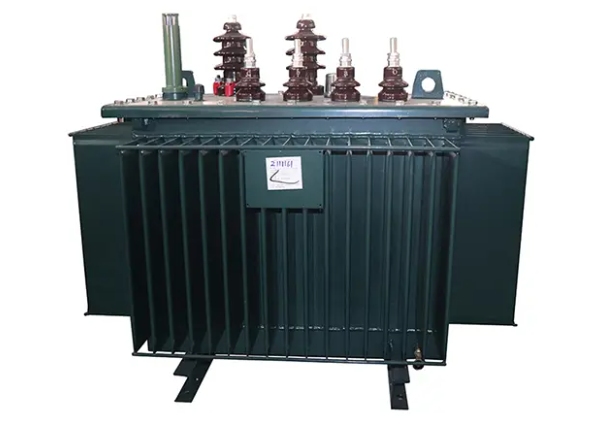

For example, units like the S11 63kVA 10kV 400V Delta Connection 3 Phase Oil Fully Sealed Distribution Transformer build for such voltage lower cases. These models feature sealed oil-filled structure. This raises work strength in city or country places.
Transformer coils connect in several ways to meet different use needs:
l Delta-Delta: This setup often serves heavy factory uses where tools need high start force. It skips neutral link and holds up well under uneven loads.
l Delta-Wye (Δ-Y): This stands as one of the most common setups in supply networks. It gives a neutral point that grounds. This allows single-phase loads along with three-phase ones.
l Wye-Wye (Y-Y): Less usual because of issues like third wave currents and possible match problems. Yet, Wye-Wye setups work well when loads stay even.
These setups go beyond simple shape. They decide how the transformer handles faults, load types, and wave content in the system.
Each link type brings special power traits that shape transformer results:
l Delta links offer fault handling. They let the transformer keep working even if one coil fails. They also help separate phase unevenness by moving uneven currents inside the delta circle.
l Wye links support neutral grounding. This aids better guard plans like overcurrent or ground fault finding. Grounded neutrals also steady system voltage during upsets.
The link way also affects phase move between main and side coils (e.g., Dyn11 means a 30-degree shift). This impacts match in side-by-side work. Wave action receives influence too—delta coils tend to hold back triple waves inside. This raises power quality further down.
A 3 phase current transformer (CT) serves as a key extra for watching and guarding in three-phase power setups. It measures current flow in each phase. It turns high main currents into lower side currents fit for measuring and relay tools.
This build allows safe links to watch systems without high voltages or currents. CTs also play a needed part in guard plans. They supply exact current facts to guard relays. These act fast to separate faults.
Current transformers place at important spots across a power grid:
l Substation feeder exits, where they track outgoing power and spot overload or fault states.
l Switchgear boards, linking with relays and meters for center control and guard.
l Send lines, where they help find line faults by measuring current oddities. This allows quick separate of hurt parts.
Their placement raises work safety, fault answer time, and full grid strength.
The transformer core acts as the magnetic path for flux link between main and side coils. Core item and shape greatly affect savings through magnetic losses:
The iron core is made of high-quality cold rolled silicon steel sheets, with a three-stage fully inclined joint structure. The core column is bound with F-class weft free straps, and the surface is wrapped with epoxy resin to reduce no-load loss, no-load current, and core noise.
This better core build cuts both lag and swirl current losses—two main causes of energy waste in transformers. Good core work also helps control sound levels and heat results under load.
Choice between copper and aluminum coils depends on tech and money factors:
Copper coils bring low resistance and high flow for good power move. Aluminum coils give money-saving answers with fair results trade-offs.
Coil setup also affects short-circuit strength and heat lasting. Plans must keep machine strength under moving fault states while holding good heat escape paths.
Oil-filled transformers gain favor for handling heat pressure and giving strong blocking:
The transformer oil has low viscosity, good heat transfer performance and insulation performance, which can effectively protect the iron core and winding, reduce the aging of the insulation materials, and extend the service life of the transformer.
Sealing ways also add greatly to lasting strength:
The sealing rings are made of the high-quality rubber materials, which can effectively slow the aging process, isolate the external air and prevent the transformer oil leakage.
These traits cut usual care needs while backing long work life even in hard outside states.
A strong example appears in the S11 63kVA 10kV 400V Delta Connection 3 Phase Oil Fully Sealed Distribution Transformer. Its small size, good delta setup, and sealed oil system fit tight or far places needing high strength.
Transformer load size must fit close with real grid need for steady work:
l Too small transformers may overheat in overloads. This speeds blocking harm or starts heat cuts.
l Too large transformers avoid overload danger. Yet, they show wasteful money use without matching gains.
Right sizing keeps heat balance across load rounds. It aids voltage control and raises life savings.

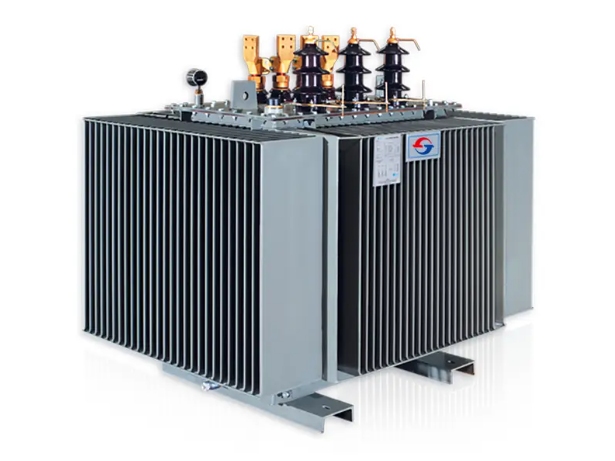

The S11 400kVA 10kV 400V Aluminium Copper Winding 3 Phase Oil Type Distribution Transformer brings a mixed coil answer that balances money savings with heat results. It fits medium factory sites needing steady output under changing loads.
SHENGTE has built its name as a steady supplier of transformer answers made for current grid issues in power, factory, and business fields. Their building skill makes sure best energy move savings under varied outside limits.
Their item range covers oil-sealed three-phase supply transformers with both delta and wye links—built for small size without losing results. The corrugated oil tank is manufactured from high-quality cold-rolled steel plates on a dedicated production line, its surface is treated with deoiling, rust removal, and phosphating before being coated with a three proof (rain proof, moisture proof, and salt spray proof) paint, enhancing durability even in harsh climates.
SHENGTE also brings full tech help through plan, buying, and join steps—making sure follow of world rules like IEC60076 or ANSI C57. This promise makes SHENGTE a perfect partner for growth power grid answers.
Q: Can three-phase transformers operate under unbalanced loads?
A: Yes, delta-connected configurations are particularly tolerant of unbalanced loads due to their closed-loop nature which helps maintain voltage stability across phases.
Q: What determines whether copper or aluminum windings are used in a transformer?
A: The decision depends on cost constraints, efficiency targets, weight considerations, and installation environment; copper offers higher conductivity while aluminum is lighter and more economical.
Q: How often should oil-sealed transformers be maintained?
A: Properly sealed units require minimal maintenance; however, periodic inspections of insulation resistance and oil quality are recommended every few years depending on operational conditions.
