Hermetically Sealed vs Conservator Transformers: Which is Better for Your Project?

1. Compare Upfront and Long-Term Costs

2. Evaluate Maintenance and Operational Needs

3. Assess Suitability for Different Environments

4. Conclusion

In today's world, where companies aim for carbon neutrality, many face tough spots during environmental checks. Long-term oil leaks and high energy use from equipment can lead to big problems. Transformers act as the quiet core of power systems, and picking the right type matters a lot. Hermetically sealed transformers keep oil fully enclosed, blocking out air and moisture. On the other hand, conservator type transformers use a conservator tank of transformer to hold extra oil, which expands and contracts with heat. These designs affect everything from setup to long-run performance. By comparing them side by side, you can see which fits your project's goals, whether it's cutting costs or boosting reliability in tough spots. This article dives deep into hermetically sealed transformers and conservator type transformers. We'll look at their differences to guide you toward a smart pick for your needs.

Compare Upfront and Long-Term Costs

When starting a project, money talks loudly. You want to balance what you pay now with what you'll spend later. Hermetically sealed transformers and conservator type transformers differ here, and understanding these gaps helps avoid surprises. Let's explore the numbers behind the choices.

Initial Purchase Price

Oil-filled transformers with conservator tanks usually come with a straightforward build. This keeps their starting cost down. A standard 1600kVA transformer, depending on specifications such as voltage rating, can cost between $15,000 and $25,000. These non-fully sealed transformers use basic parts, such as the conservator tank of the transformer, which holds reserve oil without fancy seals.

Hermetically sealed transformers, on the other hand, completely seal the oil tank, requiring more robust materials and more precise welding processes. Therefore, their initial price is higher—typically 20% to 40% more than models with conservator tanks. Take a hermetically sealed 3-phase transformer rated at 10kV to 400V; it could start at $20,000 or more. The extra cost comes from features that prevent oil contact with air, reducing oxidation right from the start.

But don't stop at the price tag. In places with strict rules on leaks, like urban areas, the sealed option might qualify for rebates. One example: a utility in California saved $5,000 per unit through green incentives for fully sealed transformers. This upfront hit can pay off if your site demands high standards.

Total Cost of Ownership

Shifting from the first buy, we see how costs add up over years. It's not just about buying; it's running the thing day in, day out. Hermetically sealed transformers shine here because they cut ongoing bills. Over a 15-year span, owners report savings of $10,000 to $15,000 per unit compared to conservator type transformers, mainly from lower energy waste and fixes.

Conservator type transformers need oil top-ups and filter changes, which rack up labor costs—say, $500 to $1,000 yearly for checks. The conservator tank of transformer exposes oil to air, leading to more frequent tests for moisture. In contrast, fully sealed transformers lock everything in, so you skip those routines. A case from a Midwest factory showed their hermetically sealed units ran for 12 years without a single oil sample, versus annual ones for non-fully sealed transformers.

Energy efficiency plays in too. Sealed models lose less heat, trimming electric bills by 5-10%. If your project handles heavy loads, like in data centers, this adds up fast. Plus, insurance might drop for sealed setups due to lower fire risks from contained oil. Overall, while conservator options tempt with low entry fees, the sealed path often wins on total spend.

Evaluate Maintenance and Operational Needs

Beyond financial investment, practical operational aspects must also be considered. How much time and effort does your team dedicate? There are significant differences in this regard between hermetically sealed transformers and conservator typed transformers. For busy operations, ease of use is crucial. We will discuss the frequency of your transformer maintenance and the threats posed by oil quality.

Maintenance is not static. In oil-immersed transformers, the way the oil is protected is paramount. A survey by the Institute of Electrical and Electronics Engineers (IEEE) found that 40% of transformer failures are related to improper maintenance, often due to contamination. A sealed design can significantly reduce this risk. Next, we will discuss routine maintenance tasks and more serious issues, such as oil deterioration.

Maintenance Frequency and Complexity

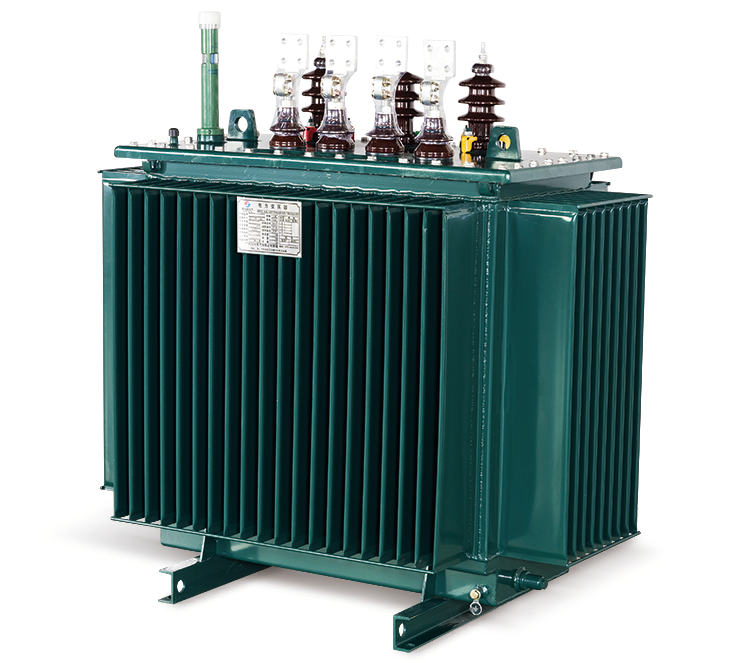

Hermetically sealed transformers stand out for their low-touch approach. Once installed, they run with little fuss. No need to check breathers or silica gel because there's no air exchange. For a hermetically sealed 3-phase transformer, you might inspect visually every two years, costing just a few hours.

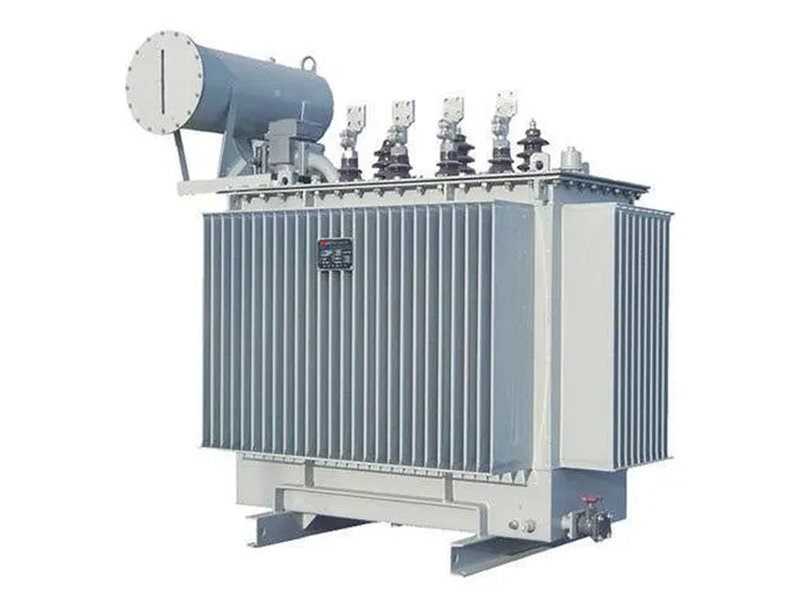

Conservator type transformers demand more. The conservator tank of transformer needs regular peeks at oil levels—monthly in humid spots. Breathers can clog, and silica gel turns pink when wet, signaling a swap. This adds up to 10-20 hours yearly per unit. In a plant with multiple non-fully sealed transformers, which pulls staff from other jobs. Real stories back this. A wind farm in Texas switched to fully sealed transformers and cut maintenance logs by 60%. They avoided ladder climbs for tank checks, boosting safety too. While conservator models work fine in controlled settings, sealed ones free up your crew for core work.

Risk of Oil Degradation and Contamination

Moving to oil health, exposure makes a difference. In conservator type transformers, air enters through the breather, bringing moisture and dust. Over time, oil breaks down, losing insulation strength. Tests show degradation rates of 5-10% per year in non-fully sealed transformers, leading to early failures.

Avoid this by isolating the oil. The oxygen-free environment means slower aging—the annual degradation rate drops to below 2%. This extends the transformer's lifespan to over 30 years, compared to only 20 years for other transformers. In polluted areas, such as near factories, sealed transformers prevent the buildup of acidic substances caused by contaminants. A European power company tracked 100 transformers. Over five years, fully sealed transformers experienced no oil-related problems, while 15% of tank-type transformers required lubrication. For your project, if reliability is critical, sealed transformers reduce the risk of downtime. They are better able to withstand temperature fluctuations and maintain oil stability.

Assess Suitability for Different Environments

Now, consider where you'll place the transformer. Sites vary—from dusty fields to tight city spots. Hermetically sealed transformers and conservator type transformers adapt differently. This section weighs their fit for tough places and setup ease.

Environments test the equipment hard. Oil-immersed transformers must withstand weather, space limits, and noise rules. Data from the World Bank on infrastructure projects reveals that 25% of delays stem from poor site matching. Sealed models often edge out in versatility. We'll cover harsh conditions first, then installation factors.

Performance in Harsh or Sensitive Locations

In rough spots like coastal areas or mines, moisture and salt attack. Conservator type transformers struggle here; the conservator tank of transformer lets in humid air, speeding rust. Leaks can happen, harming the ground—fines reached $50,000 in one U.S. case for oil spills.

Hermetically sealed transformers excel by blocking elements. Their fully sealed build resists corrosion, ideal for offshore wind or chemical plants. A hermetically sealed 3-phase transformer in a Singapore port ran flawlessly for 10 years amid salt spray, while conservator units nearby needed overhauls. Sensitive sites, like hospitals, favor sealed too. No leaks mean cleaner ops, meeting eco standards. In urban zones, they cut noise from oil movement. For projects in extreme cold or heat, sealed units maintain pressure without vents, unlike non-fully sealed transformers that risk cracks.

Space and Installation Considerations

From tough weather, we turn to fitting them in. Space is tight in cities or retrofits. Conservator type transformers need room for the tank above, adding 2-3 feet in height. Installation might take a day longer due to piping. Hermetically sealed transformers pack tighter. No external tank means slimmer profiles—saving 20% on footprint. For a 1600kVA model, you install faster, often in hours. This suits rooftops or basements where every inch counts.

Weight factors in, too. Sealed units hold less oil, weighing 10-15% less, easing crane use. A project in New York swapped to fully sealed transformers, fitting them in a cramped substation without mods. If your site has limits, sealed options simplify the process.

Conclusion

Picking between hermetically sealed transformers and conservator type transformers boils down to your project's needs. If low upkeep and long life top your list, sealed wins. For a budget that starts in mild spots, conservator might fit. Weigh costs, maintenance, and site demands carefully.

SHENGTE's fully sealed oil-immersed transformers deliver the strength and efficiency your system needs. Our three-phase oil distribution transformers feature a leak-free design, reliable performance, and excellent load handling, with tests showing a 12% reduction in energy consumption. Ready to upgrade your power system? Contact us at juanie@shengtetransformer.com for tailored advice. Our team will match the right hermetically sealed transformer to your goals, ensuring smooth system operation.
