Oil-immersed transformers prove highly dependable in power networks because of their oil that serves both as insulation and coolant. This setup delivers excellent heat control. It stops hot spots from forming and lengthens part lifespan by spreading heat well. The closed tank build with strong seals and wavy steel sides blocks water entry and rusting. This supports lasting work. Sturdy core and winding setups plus smooth oil flow allow steady results during load changes and network problems. These units bring lasting money savings through less upkeep, strong energy use, and lower running costs. Makers like SHENGTE boost dependability with careful building, good materials, and designs that fit different needs.
Distribution transformer oil forms a key part of oil-immersed transformers， working as both insulator and cooling agent. SHENGTE applies top-quality transformer oil when building oil-immersed transformers. This oil shows low thickness, strong heat movement, and solid insulation traits, which guards the core and windings well. It slows insulation wear and adds years to transformer life.
Top-level transformer oil keeps its blocking strength under heavy loads, which provides sure separation between live parts and grounded sections. Poor or dirty oil causes insulation failure, faster heat damage, and spark events. Such issues harm transformer steadiness and may lead to major breakdowns.
Good oil movement in oil-immersed setups aids heat handling through natural flow. Warm oil near the core moves up while cooler oil drops down, creating even temperature spread. The spiral coil with lengthwise oil paths offers fine heat release, low field leaks, and high strength. It strengthens the transformer's skill in dealing with heat stress.
This ongoing heat exchange prevents hot spots from forming on windings or core layers, which are areas prone to thermal stress, so internal components wear more slowly, extending service life. Consequently, the risk of insulation failure is significantly reduced.

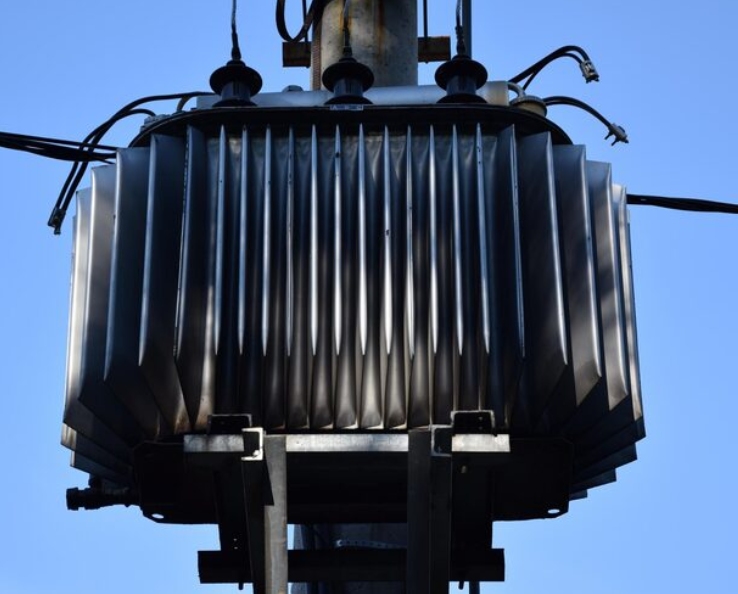

A main trait of oil-filled transformers appears in their closed tank setup. It uses a sealed build to fully separate transformer oil from outside air that makes transformer running safer, steadier, and simpler to care for. The wavy tank shape handles heat growth and serves as a passive heat spreader.
The corrugated tank comes from fine cold-rolled steel sheets made on special lines with, whose surface cleaned of oil, rust removed, and treated before coating with special paint that fights rain, damp, and salt. As a result, operational stability and service life are improved, while maintenance costs are reduced. Sealing rings use high-grade rubber that slows aging, blocks outside air, and stops oil leaks. These build features together limit rusting and water entry, two big dangers to blocking power.
Mechanical firmness stands basic when transformers face short circuits or changing loads. High-voltage and low-voltage windings in oil-immersed distribution transformer usually take a round shape, giving balanced current spread and cuts field imbalance that might cause shaking.
The iron core uses a laminated structure made from silicon steel sheets thinner than 0.35 mm with high magnetic permeability, which reduces no-load losses and magnetizing current. Vacuum drying of coils and core before oil fill keeps strength during heat swell and shrink cycles. Oil soaking also softens windings against shake harm by allowing even heat growth.
In changing grid settings with constant load shifts, transformer oil acts as a key buffer. The oil has low thickness, good heat movement, and insulation traits, quickly takeing in heat that rises from sudden load jumps. This heat delay keeps winding temperatures steady and stops local overheat that could harm insulation early.
These heat features build strength during grid issues like voltage drops or quick changes, ensuring ongoing service without safety stops.
Transformer voltage control depends heavily on stable insulation resistance. Because transformer oil provides high dielectric strength, it effectively separates conductive components during transient events such as switching surges or lightning strikes. So oil-immersed distribution transformers shhow good insulation performance and heat dissipation.
This strong dielectric capability significantly reduces the risk of arcing during high-voltage conditions. Effective heat transfer lowers resistive losses in the windings, thus helping maintain stable voltage levels across different load levels.
Oil-filled transformers give big lasting savings with fewer care. Oil transformer stays free of upkeep for that regular oil testing for dielectric strength and moisture content is usually sufficient to assess its overall condition.
Compared to dry types that need often inside cleaning or coil swaps from exposure, oil-filled models like SHENGTE’s sealed ones greatly reduce fix times. Little part wear means fewer fixes over years.
Energy-saving transformers help network-wide cost cuts by lowering empty and load losses. SHENGTE low-loss, energy-saving oil-immersed transformer uses layered iron core for better results, bringing clear drops in empty loss and current, raising overall savings.
By cutting power waste in idle times and heavy use, power firms gain better sending efficiency. These gains also meet rule standards, earning rewards or cuts.
Best results start with core choice. The iron core uses layered structure made from silicon steel sheets thinner than 0.35mm thick with high field flow, which reduces magnetizing losses. Windings from high-conductivity copper lower resistive losses and help heat spread.
The oil tank uses wavy plates to handle oil volume shifts due to temperature. This passive growth feature boosts cooling without hurting build strength, vital for far or unmanned sites.
Matching the apparent power rating to actual load requirements helps prevent both underutilization and overloading, since either condition can cause long-term damage. Voltage ratings must align with the main supply levels so that grid connection remains stable and straightforward.
Site conditions such as altitude and ambient temperature should be considered, as they directly influence cooling method selection. For example, fully sealed units are better suited for humid environments, for which they effectively prevent moisture ingress and condensation buildup.
SHENGTE serves as a trusted maker focused on high-work distribution transformers built for grid steadiness and energy savings in tough settings. Their skill lies in exact making, strict quality checks, and client-focused designs that follow world rules.

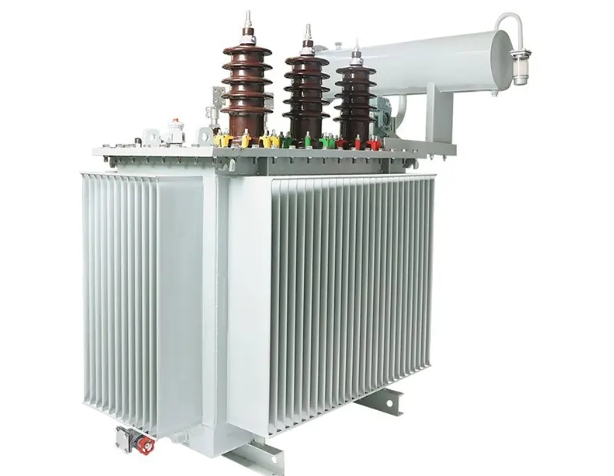

For example, the S11-M-1250/10 Three Phase Oil Immersed Distribution Power Transformer uses low-loss silicon steel cores and advanced sealing for lasting strength in hard outdoor use.
Also, the S11-M-2500/10 Three Phase Fully Sealed Oil Immersed Distribution Power Transformer shows strong build with its full-seal tank that removes rust risks while keeping best heat control under heavy loads.
SHENGTE’s building team works closely with buyers to adjust transformer details like voltage, cooling way, or cover type to fit project needs without hurting delivery or steady results. SHENGTE remains a solid pick for power firms wanting lasting worth from sturdy building and quick help.
Q: What is the typical maintenance schedule for an oil-filled transformer?
A: Regular checks every 6–12 months cover oil amounts, blocking strength tests, seal leak views, and heat gauge confirms.
Q: Can fully sealed oil-filled transformers be used in an efficient way in a wet environment?
A: Yes, full-seal builds block water entry completely. This fits them for shore or warm wet places where damp causes worry.
Q: How does transformer oil degradation affect performance over time?
A: Worn oil loses blocking traits and raises spark or overheat risks. Regular tests spot problems before breakdowns.
