What Does a Distribution Transformer Drawing Reveal About Structure and Performance?

1. What Can Engineers Learn from a Distribution Transformer Drawing?

2. How Does the Drawing Reflect Mechanical Strength and Durability?

3. How Do Cooling Methods Appear in the Drawing—and What Do They Tell?

4. How Does a Drawing Help Check Installation Compatibility?

5. Which Performance Parameters Are Embedded Within the Drawing Details?

6. Is There a Real Example Where All These Factors Work Together?

7. FAQs

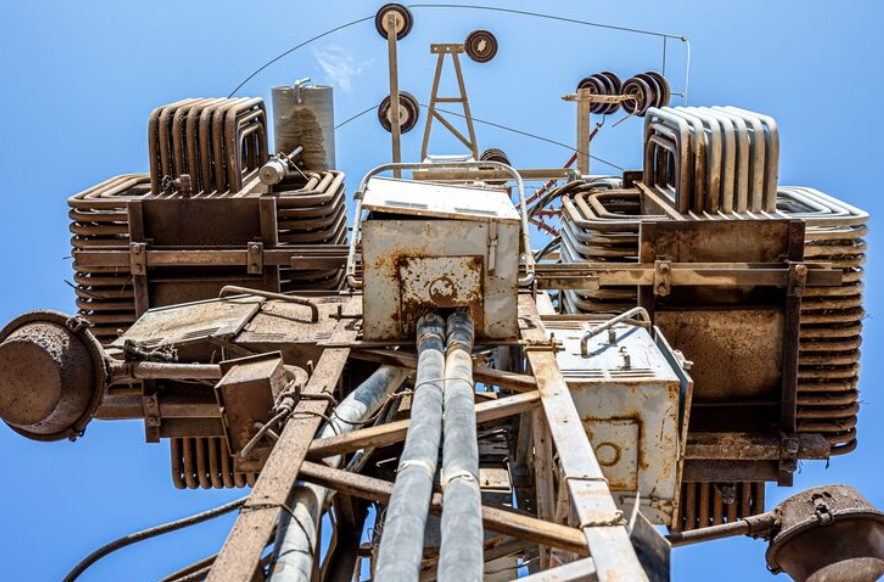

A distribution transformer drawing shows the hidden inner layout that decides how well the unit works, how long it lasts, and how safe it remains in daily use. It displays the exact position of core pieces, windings, insulation layers, and cooling routes. These details control heat removal, magnetic behavior, and strength against shocks or heavy loads. Engineers can check clamping parts, bushing locations, and overall size to make sure the transformer fits the site and runs without trouble. By studying these plans carefully, buyers and designers confirm that losses stay low, temperature never climbs too high, and future repairs remain simple. In short, the drawing becomes the most important paper for proving the transformer will perform correctly before money changes hands.

What Can Engineers Learn from a Distribution Transformer Drawing?

Why does the internal layout matter in real-world applications?

The drawing gives a clear picture of how windings, magnetic core, insulation walls, and cooling passages sit inside the tank. This arrangement controls how heat leaves the unit and how the magnetic field behaves under different loads. Proper spacing keeps voltage steady even when power demand jumps suddenly. For example, dry-type units often show axial air channels running along the coils. These channels let cool air flow straight through the center and carry heat away faster during hot summer days or heavy loading periods.

How do structure and winding configuration affect efficiency and losses?

Drawings always mark whether the core follows shell-type or core-type design. Each shape changes the path that magnetic force takes inside the iron, and that path decides how much energy turns into waste heat. The same plan also shows if coils are built as round cylinders or flat discs. Tight, even winding placement cuts stray magnetic fields and lowers extra losses. In the SCB10-250 model, the low-voltage side uses foil winding instead of normal wire. This choice removes the spiral twist problem common in wire coils and keeps current balance perfect across the whole height. The result brings fewer hot places and much lower idle losses.

How Does the Drawing Reflect Mechanical Strength and Durability?

What role do clamping systems and tank shape play in mechanical stability?

Side views and cut-away sections always include strong clamps that hold the core and coils firmly in place. These parts stop movement when the transformer travels by truck or faces sudden short-circuit forces. The tank itself shows extra ribs, corner plates, and bottom supports that fight against shaking, earthquakes, or heat growth. Special surface coatings on clamps and bolts protect against rust while keeping everything tight for many years.

Why is insulation coordination visible in a drawing critical for long-term operation?

Clear gaps between live parts and the grounded tank prevent dangerous sparks or breakdown even at full voltage. The drawing marks every distance so engineers can confirm the design meets safety rules for the voltage class. Between coil layers, many modern units use DMD epoxy pre-impregnated cloth that hardens into one solid block. This strong insulation fights moisture and aging much better than old paper types.

How Do Cooling Methods Appear in the Drawing—and What Do They Tell?

What can fin structure, oil ducts, or radiators reveal about heat dissipation capacity?

Plans clearly mark oil flow routes, radiator banks, and fin patterns on the tank walls. These parts decide how fast heat moves from the core and coils to the outside air. In SHENGTE’s S11 315kVA 10kV 400V China Manufactured Three-Phase Oil Cooled Type Distribution Transformer, oil channels run carefully around core legs. This layout helps natural oil movement carry heat upward smoothly and keeps temperature even across all winding sections.

How does the drawing help you identify whether forced or natural cooling is used effectively?

Natural cooling units (ONAN) show large fin surfaces and tall radiators without extra fans. Forced cooling plans include marked blowers or pumps connected to the tank bottom or sides. Dry-type models often display top-mounted cross-flow fans with low noise and strong air pressure. Those fans raise the overload limit while still staying within safe heat limits.

How Does a Drawing Help Check Installation Compatibility?

Why are terminal arrangements and bushing positions important for field integration?

The plan marks exact locations for high-voltage and low-voltage bushings. Correct placement makes cable bending easy and keeps safe distance from walls or other gear. SHENGTE’s S11 400kVA 10kV 400V Aluminium Copper Winding 3 Phase Oil Type Distribution Transformer shows bushings placed for simple front connection and full safety clearance according to IEC rules.

What mounting dimensions should be considered before selecting a transformer model?

Base plate length, width, bolt hole pattern, and lifting points all appear clearly. For example, the SCB10-400 model lists exact size (MM): Length: 1240; Width: 860; Height: 1195. These numbers let civil teams prepare the concrete pad correctly the first time. Some units come with wheels or skid rails for easier movement during service years.

Which Performance Parameters Are Embedded Within the Drawing Details?

How do nameplate values connect to schematic dimensions and material layout?

Rated power, impedance percentage, and no-load loss numbers on the nameplate come directly from core size, winding thickness, and insulation distance shown in the drawing. A larger core cross-section usually means lower losses for the same kVA. The SCB10-315 model lists Rated Capacity 315 kVA, No-load Loss 880 W, and Impedance 4%. These figures prove the designer chose balanced proportions for good daily economy and strong fault strength.

Why is it necessary to check tap changer position and accessibility in the diagram?

Tap changers keep output voltage steady when load changes. The drawing shows if the changer works while the unit runs (on-load) or only when power is off. Good plans place the handle or motor drive where workers can reach it without draining oil or removing heavy covers.

Is There a Real Example Where All These Factors Work Together?

SHENGTE’s S11 315kVA 10kV 400V China Manufactured Three-Phase Oil Cooled Type Distribution Transformer offers a perfect case. Its technical drawing marks every bushing spot and oil path clearly. The design makes site wiring fast and keeps safe distances. Natural oil flow around the core limbs removes heat evenly and extends winding life. The same careful planning appears in the S11 400kVA 10kV 400V Aluminium Copper Winding 3 Phase Oil Type Distribution Transformer. The hybrid winding choice saves cost yet keeps mechanical strength thanks to clever copper reinforcement points. Both models prove how SHENGTE uses open, detailed drawings to build trust and help customers choose with confidence.

FAQs

Q: Can impedance values be read straight from the drawing?
A: No direct number appears, but core size and winding spacing let experienced engineers estimate the final percentage quite closely.

Q: Must both electrical and mechanical drawings be studied before buying?
A: Yes. Electrical plans show correct connections while mechanical plans prove the unit will fit the site and last under local conditions.

Q: When two models have close ratings, which details matter most?
A: Pay special attention to insulation thickness, cooling channel size, winding tightness, and bushing reach. These points decide safety and running cost for many years.
