Views: 0 Author: Site Editor Publish Time: 2025-11-27 Origin: Site
What Are the Critical Site Requirements Before Installing a Distribution Transformer?
How Do You Determine the Right Transformer Specification for Your Application?
What Installation Procedures Are Essential to Ensure Safe Commissioning?
Why Is Periodic Inspection Crucial Even After Proper Installation?
Why Should SHENGTE Be Your Preferred Partner for Transformer Solutions?
Getting a distribution transformer installed the right way and keeping it running for many years is not hard if you follow some basic but important rules. You need to pick a good spot that is safe, dry, and steady. You must choose the correct size and type for the job. And you have to connect everything carefully – the base, the ground wires, and the cables. After that, you test everything before turning it on. Finally, you set up a simple check-up plan so the cooling stays good and the transformer stays healthy for a long time.
Choosing the right place for your distribution transformer installation is the first big step. A bad spot can hurt the transformer for many years. It can even make it unsafe.
You want ground that does not shake or move much. Soft or wet soil can make the heavy transformer sink or tilt later. Pick a place that almost never floods. Water is very bad for transformers.
Leave plenty of empty space around it. Keep it away from houses, walls, or other machines. This space stops fire from spreading fast. It also lets workers walk in safely when they need to fix or check something.
Good drainage is a must, especially for oil-filled units. Rain water must run away quickly. If water sits under or around the transformer, it can rust parts or let moisture sneak inside. Moisture ruins the oil and the insulation.
You cannot turn on the power without a strong grounding system. Good grounding keeps people safe. It sends any extra electricity that goes wrong straight into the earth. Without it, metal parts can become dangerous to touch.
Grounding also stops radio noise and protects nearby computers or phones from strange signals.
Before you say “the job is done,” someone must test the ground with a meter. The number has to be low enough. Only then do you know it will really work when trouble happens.
First, look at how much electricity your place really needs. Check the busiest times. Think about new machines you might add later. This helps you pick a transformer that is not too small and not too big.
The voltage has to match on both sides – the power coming in and the power going out. Wrong voltage makes lights flicker or motors burn.
Hot places or salty air near the sea can make a normal transformer work too hard. In those areas you may need a stronger one or a smaller load.

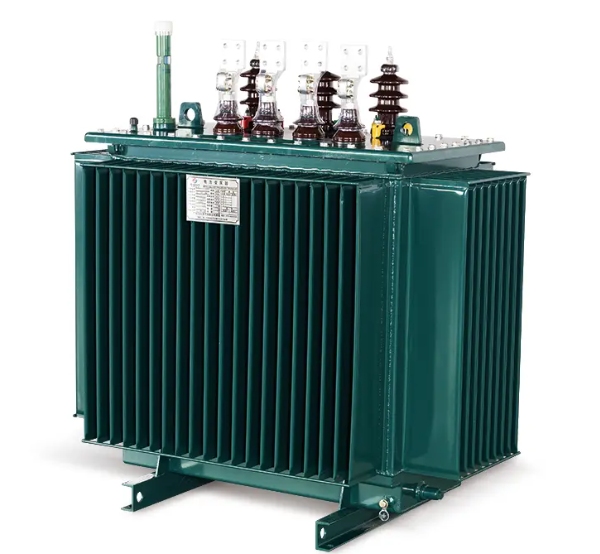

Oil-filled transformers are great outside or where you need lots of power. They stay cool better and cost less for big jobs. The S11 125kVA 10kV 400V Oil-Immersed Power Distribution Transformer is built tough with a sealed tank, so rain and dust cannot get in easily.
Dry-type transformers are safer inside buildings because they have no oil to catch fire. The low-voltage winding adopts a foil structure, which solves the problem of axial spiral angle when using wire winding, making the ampere turn more balanced. The coil adopts axial cooling air duct, enhancing the heat dissipation capacity. Their DMD epoxy resin pre impregnated cloth is used between the winding layers, forming an overall solid structure with no flammable liquids.
The transformer must sit perfectly level on its base. Even a small tilt can push extra weight on one side. That stress can crack bushings or make oil move the wrong way inside.
When the base is not flat, the whole unit can shake when it runs. Too much shaking makes noise and slowly breaks parts.
Loose or wrong cable connections cause most transformer problems. Always tighten bolts exactly as the book says. Check the color or letters on each cable so the phases stay in the right order.
Outside transformers need extra protection from rain. Workers use heat-shrink covers or sealed boxes so water never touches the bare metal ends.
Hot weather makes any transformer work harder to stay cool. In very warm places you might need extra fans or bigger radiators.
Cooler areas can often use just the natural air. But always double-check with real temperature numbers from your location.
The transformer is equipped with a cross flow top blowing cooling fan, it is with low noise, high wind pressure, and beautiful appearance, enhancing the overload capacity of the transformer.
Dust and dirt love to stick on radiator fins. Dirty fins cannot move heat away fast. The transformer gets too hot inside and ages quicker.
Every few months someone should clean the fins with air or soft brushes. Check oil level marks too. Look for wet spots around pipes. The sealing rings are made of the high-quality rubber materials, which can effectively slow the aging process, isolate the external air and prevent the transformer oil leakage.
Never switch on power without testing first. Use a megger tool to check insulation – it must show very high numbers. Do a turns-ratio test to prove the voltages will be correct.
If you skip these checks, the first power surge can blow the transformer apart.
Keep everyone far away when you first turn it on. Put signs and tape around the area. Use a long switch or remote control if you have one.
Follow lock-out/tag-out rules until every test paper says “good.”
Check oil temperature often. Watch the pressure valve. Send oil samples to a lab once a year. Strange gases in the oil can warn you about hidden problems long before smoke appears.
Uneven current on the three phases can mean a loose connection or broken winding.
New transformers can send messages to your phone or computer. If something gets too hot or the voltage jumps, you know right away – even at night. This helps you fix small issues before they become big expensive ones.
SHENGTE builds transformers the right way in modern factories. They follow strict ISO rules and have smart engineers who really understand power.
Their oil units use special drying methods so no air or water stays inside. The tanks are completely sealed. The cores are made of top-quality steel that wastes very little electricity.
For medium jobs that need strong and steady power, many people choose the S11 63kVA 10kV 400V Delta Connection 3 Phase Oil Fully Sealed Distribution Transformer. It needs almost no care and works fine in hot, cold, or dusty places.
No matter if you are fixing an old system or building a new one, SHENGTE helps you pick the best unit and answers every question fast.
Q: How long does it usually take from ordering to full working transformer?
A: Most orders take 4 to 8 weeks. This covers factory tests, shipping, setting the base, and final checks.
Q: Is it okay to put an oil-filled transformer inside a building?
A: Usually not safe unless you build special fire walls and oil catch pans. Dry-type is much safer indoors.
Q: How soon after starting should I take the first oil sample?
A: Take one about six months after the first day. After that, once every year is enough unless it runs very hard.
