What Role Do Unit Substation Transformers Play in Power Distribution Networks?
How Do Different Configurations of Unit Substation Transformers Affect Your Application?
Where Can You Find Reliable Solutions for Complex Power Distribution Requirements?
What Installation Considerations Should You Prioritize When Deploying a Unit Substation Transformer?
How Can You Ensure Long-Term Performance From Your Transformer Investment?
Which Product Suits High-Density Urban Power Applications Best?
Unit substation transformers are smart, all-in-one boxes that change medium voltage down to low voltage. They put the transformer, switchgear, and safety parts together inside one strong case. This small size saves room, keeps people safe, and makes setup fast. They work great in shops, factories, and busy cities. You can pick the best cooling way, core type, and voltage numbers so everything fits your needs. SHENGTE makes pad-mounted and underground kinds that you can change however you want. They give good protection, many choices, and smart screens to watch the power for many years.
Unit substation transformers are super important in today’s power systems. They take the high voltage from the big power lines and turn it into lower voltage that homes and offices can use safely. This change makes sure lights, machines, and tools all get the right power.
The best part is everything is built together at the factory. Normal setups have the transformer in one place, switches in another, and panels somewhere else. But unit substation transformers put them all in one box. This makes putting them in place much quicker and easier. Workers make fewer mistakes.
People also call them American style box transformer or pad mounted transformer. Inside you find the transformer, high-voltage load switch, protection parts, low-voltage panels, meters, and even power fixing tools. They work well in shopping malls, factories, airports, and city streets.
You see pad mounted transformers a lot in towns, neighborhoods, hotels, hospitals, factories, gas stations, train stations, ports, and many outdoor spots.
The whole box is closed tight. No live wires stick out. Nobody can touch them by mistake or break them on purpose. It is fully sealed and fully insulated. You do not need big empty spaces around it. People stay safe.
Because they are small, you can put them where land is hard to find. Their size is only about 1/3 to 1/5 of the same power European box. They save a lot of ground space.
Inside there are strong safety tools like high-voltage fuses, SF6 switches, or vacuum breakers. If something goes wrong, the problem stays inside the box. Power keeps running for everyone else.

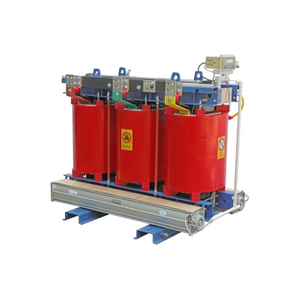

Unit substation transformers come in different styles to fit different places. Dry-type ones are perfect inside buildings. They have no oil, so no fire worry.
Oil-filled ones cool better and work great outside or when the power need is very high.
The metal inside the core also matters. New amorphous metal cores waste much less power when the transformer is just waiting. Old silicon steel cores lose more. If your power use goes up and down a lot, the new cores save money every day.
The top side voltage must match what the power company gives you. If it does not match, things can break or catch fire.
The bottom side voltage must be exactly what your building needs. This keeps everything running smooth.
Many boxes have little taps you can move. They change the voltage a bit, like ±2 × 2.5% or ±5%. This helps when the load changes or when wires are long and lose some power on the way.

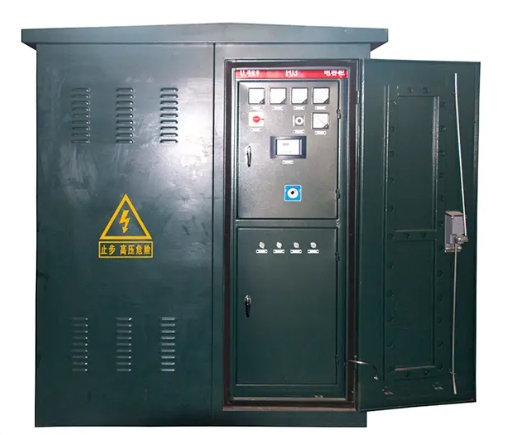

SHENGTE makes some of the best unit substation transformers. They know how to build strong ones for tough jobs. One great model is the ZGS11 800kVA 10kV 400V Pad Mount Transformer Unit Substation.
Everything fits in a small box. The high-voltage switch and fuse sit inside the oil tank. This makes the whole thing smaller and easier to place anywhere.
You can use it for simple end-of-line setups or for big ring networks in cities and huge factories.
SHENGTE gives OEM/ODM help. You can pick normal steel or stainless steel for the outside. You choose how strong the box needs to be against rain and dust. You pick dry or oil cooling. You can even add smart screens. They make the box just for your project.
Every change still keeps the transformer safe and saves power.
Where you put the box changes what kind you need. In places that flood, you need super sealed boxes. SHENGTE uses stainless steel oil tanks with IP68 level. Even if water covers the whole box, it still works fine.
In very hot sunny places, the box gets sun shields and lots of air holes plus heat-proof layers. Nothing inside gets too hot.
Leave enough room around the box so workers can open doors and check things. Good space now saves headaches later.
New boxes have digital watchers inside. They check oil temperature, oil level, pressure, and more all the time. You can see problems on a screen before anything breaks.
Check the transformer often. For oil ones, test the oil sometimes. Bad oil means trouble coming.
Use a heat camera to look for hot spots. Fix loose wires before they cause big stops.
Little smart sensors inside send numbers to your phone or computer all day long. Special programs look at the numbers and warn you early. You fix small things before they turn into big expensive stops.
This way the transformer works for many many years with almost no surprise breaks.
Cities love putting transformers under the ground now. You see only grass or flowers on top. No big boxes spoil the view. And there is no noise up on the street.
They stay safe from storms, cars, or bad people.

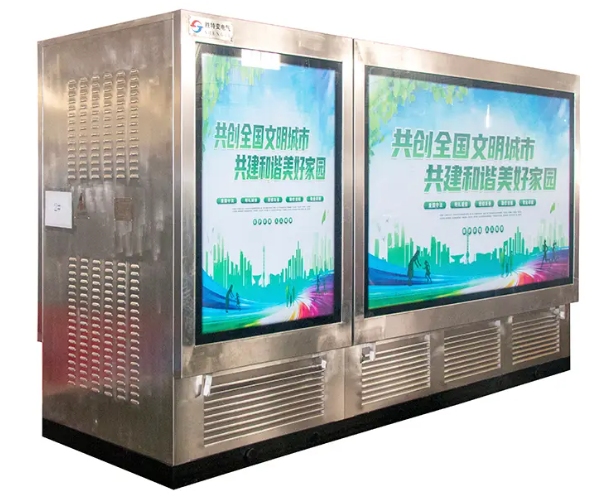

SHENGTE makes the YBD 1000 KVA 12 KV 400 V Underground Transformer Unit Substation for city needs. The ZBW-D Series is built for modern towns and green living.
High-voltage parts stay a little above ground. The main transformer hides safely below in a strong box. The outside is aluminum-zinc steel with double roof for good air. Everything has IP68 protection. It works perfectly even deep under water or dirt.
Q: What distinguishes a unit substation transformer from a traditional transformer setup?
A: Unit substation transformers put the transformer, switches, and safety gear all in one ready box from the factory. It is faster to install and much safer.
Q: Can I request specific configurations such as voltage ratings or enclosure types?
A: Yes! SHENGTE and many makers give OEM/ODM. You can choose voltage, cooling, box material, and smart controls to fit your job exactly.
Q: Are underground unit substations safe from flooding or water ingress?
A: When they have good seals like SHENGTE’s YBD series with IP68 boxes, water cannot get in. They keep working even fully under water.
