Views: 0 Author: Site Editor Publish Time: 2025-10-30 Origin: Site
High voltage switchgear plays a key role in today's power systems. It acts as the main guard to keep electricity moving safely and steadily to many places. These smart tools control, shield, and separate electrical gear in systems that run above 1kV. Knowing the various kinds, uses, and pick rules for high voltage switchgear matters a lot for engineers, site bosses, and folks who plan power setups. The right pick of switchgear shapes how dependable, safe, and smooth the system works in fields from power plants to factories.

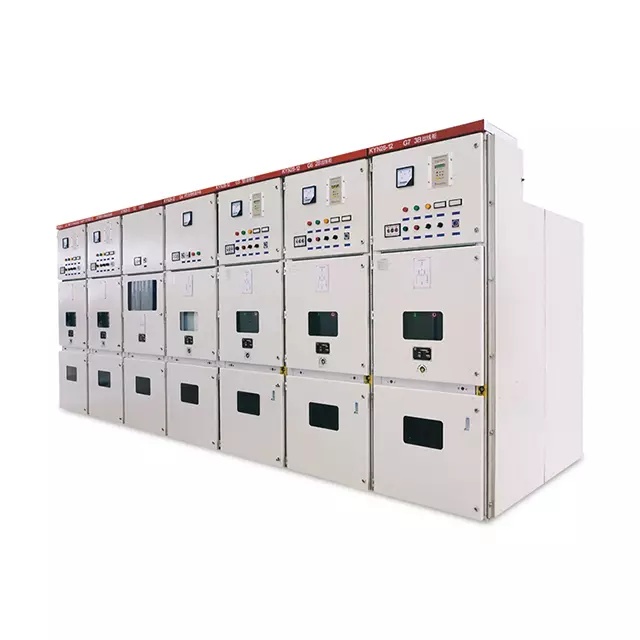

High voltage switchgear gets grouped by the stuff used to stop power faults and keep things safe. Each kind brings special plus points based on job needs and surroundings.
Air-insulated switchgear (AIS) uses air to prevent leaks. It's the oldest and most common for outdoor use. AIS is tough. It handles extreme heat, cold, humidity, and dirt. Best for substations, power plants, and large industrial sites with plenty of space. Open design allows easy inspection and natural cooling. But it needs much room and safe clearances. This makes it unsuitable for crowded urban areas.
Gas-insulated switchgear (GIS) uses SF6 gas to block leaks and extinguish arcs. It delivers top performance in compact designs. GIS offers excellent electrical properties and needs far less space than air types. Ideal for urban substations, underground sites, and land-scarce areas. Sealed compartments protect against dust, moisture, and pollution, ensuring higher reliability and lower maintenance. The enclosed design prevents accidental contact with live parts.
Hybrid switchgear mixes parts from air and gas types. It gives a middle path that balances cost, room, and work quality. These setups often use GIS for key switch tasks. They apply AIS for simpler jobs in the same spot. This lets planners shape switchgear to fit site rules, money limits, and work goals. Hybrid picks shine in fix-up jobs on old AIS. Or in new builds that add GIS step by step.
The spot where switchgear goes changes its build a lot. This leads to groups made for certain setups.

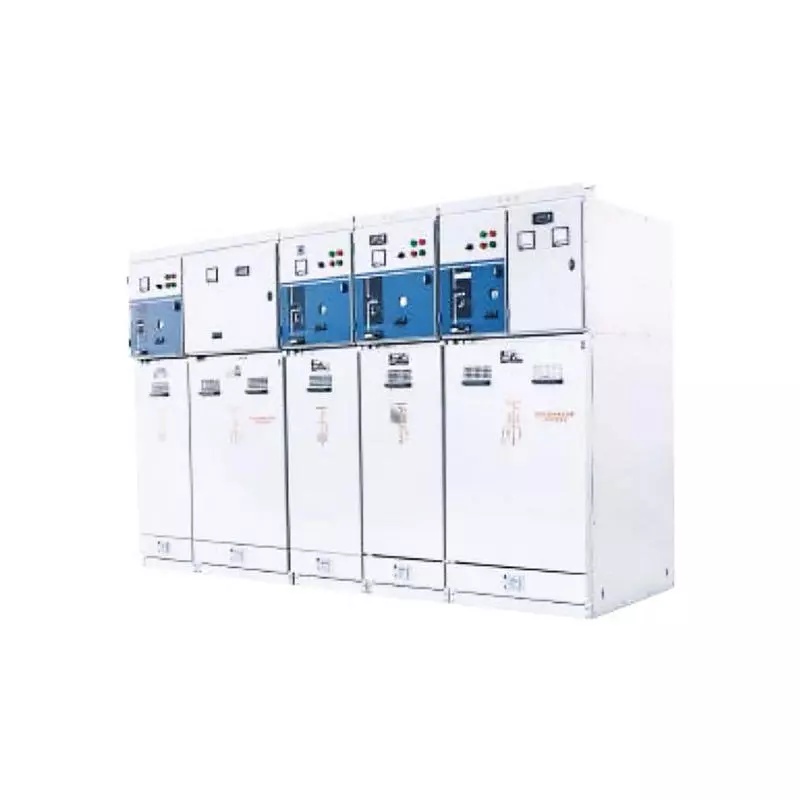

Indoor switchgear is designed for buildings, control rooms, or enclosed spaces. The structure protects it from weather. It features compact designs for limited space, with arc-resistant builds and good ventilation. It integrates easily with building controls. The stable environment supports sensitive electronics and precise operations. Ideal for malls, hospitals, data centers, and factories needing reliable power.
Outdoor switchgear handles extreme weather: temperature changes, rain, wind, and sun. It features weatherproof enclosures, corrosion protection, and durable materials. Includes heaters to prevent condensation, UV-resistant parts, and tight seals. Design accounts for ice loads, seismic activity, and pollution. Used in transmission/distribution substations, renewable energy sites, and outdoor industrial areas.
The way to stop power flow in faults or switches defines how switchgear works and fits jobs.
Vacuum circuit breakers use the strong block power of empty space to kill arcs when stopping flow. The vacuum part sits in sealed rooms. Contacts move in deep empty space. No oil or gas needed to kill arcs. VCBs bring many good points. They need little fix work. They stay kind to nature. They come small. And they switch well. These breakers handle often switches great. They guard against too much flow and short links. No bad gases or fire risks make VCBs good for inside spots and green areas.
SF6 circuit breakers use sulfur hexafluoride gas to insulate and extinguish arcs. They provide excellent interrupting power in compact designs. Ideal for transmission levels with high fault currents and fast clearing. They operate reliably across wide temperatures and protect against lightning and surges. However, environmental concerns over SF6 drive alternatives and strict handling rules.
Oil circuit breakers stood as early high power switch tools. They used mineral oil to block and kill arcs. These units served well for years. Yet they bring downsides like fire chance, nature worries, and more fix needs. New picks use vacuum or SF6 ways. They bring better safety, green fit, and less fix. Knowing oil breaker rules still helps for old fix and change plans. The shift from oil to new tech often needs full system updates. This keeps fit and guard links.
High voltage switchgear fits many fields and jobs. Each has its own needs and hurdles.
Power plants rely on high voltage switchgear for complex systems that convert energy to usable power. It supports ring networks, dual feeds, or radial setups. Generator switchgear handles sync, excitation, and auxiliary needs. It protects against faults, grid issues, and equipment failure, enabling safe grid connection. Modern plants with renewables need switchgear for variable output and grid stability.
Transmission substations are vital grid nodes. They require robust switchgear for high power flows and fault protection. These sites feature multiple voltage levels, advanced protection schemes, and intelligent controls to maintain stability and reliability. The high-voltage unit uses SF6 insulated ring network switchgear or SF6 load switchgear—compact, small, highly reliable, long-lasting, and maintenance-free. Transmission switchgear coordinates with grid-wide protection for selective fault clearing and stability during disturbances.
Work sites need special switchgear to back big machines, process gear, and key making tasks. It finds wide use in city spots, home areas, hotels, care centers, work sites, oil stops, air fields, rail lines, docks, and other outside power spots. Industrial switchgear must take big motor start flows, change speed drives, and process loads that hate long stops. The systems often add smart watch and control to cut energy use. And they give guess fix skills.
Green energy setups bring special hurdles for switchgear build. This includes changing make patterns, grid link rules, and far spots. Underground substation means transformers, high and low voltage cabinets and other gear go in full buried boxes. This stops noise bother on ground. It can green and pretty the ground. Or use as roads and park lots. This saves land and build cost a lot. Wind and solar farms need switchgear to handle quick power changes. They give grid help. And they work steady in hard weather.
Picking the right high voltage switchgear needs close look at many tech, money, and work points.
The basic power numbers of voltage level and flow size start the switchgear pick. Voltage levels must fit normal work and short high volts in upsets. Flow size needs cover steady flow, short time stand flow, and stop power for faults. These must match system wants. And they give safe room for future load rise and changes.
Surroundings shape switchgear build and pick a lot. This is true for outside spots. Hot and cold ends, wet levels, dirt states, and shake rules all change gear specs and set costs. It adopts new tech to better and fine functions. It equips with auto hot control, auto emergency water out, auto wet control and far watch system. It has steady work. Room limits in cities often need small answers like GIS or below ground spots. These cut land use but keep easy reach.
Long work costs and trust rest on fix needs and gear life. The high-voltage unit adopts SF6 insulated ring network switchgear or SF6 load switchgear. It has small build, tiny size, high trust, long life and no fix needs. New switchgear tech gives less fix than old systems. But the pick must think about fix know-how, spare parts, and life cost effects. Plan fix times must fit work needs and system back-up.
Switchgear pick must follow country and world rules on build, test, and set needs. Compliant with standards like IEC439 and GB7251.1, it serves as a swap for low-voltage switchgear. Rules fit ensures gear match, safety work, and rule okay. It eases future growth and changes.
Knowing the hard parts of high voltage switchgear pick and set needs team work with skilled makers. They give full answers and ongoing help.
SHENGTE is a top distribution transformer maker. The company has built a name for giving high quality electrical gear. It meets tough needs of new power systems. We have a group of pro R & D and design people. They have over 10 years of know-how and country okay. This deep know-how lets SHENGTE grasp special hurdles in different fields. And they make fit answers that better work and trust.

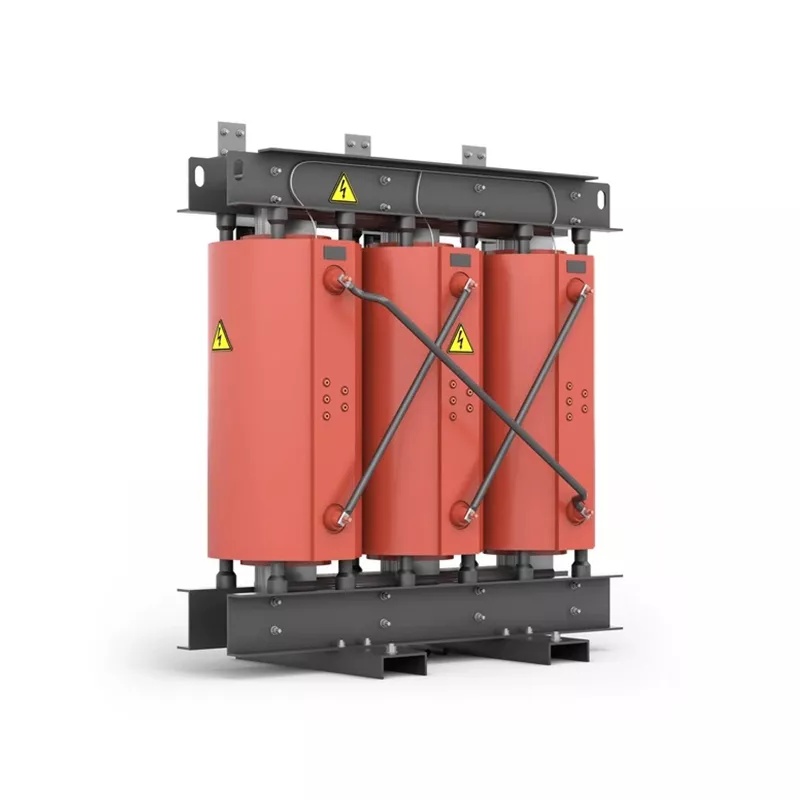

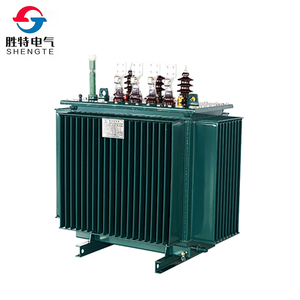

SHENGTE gives a full set of trusty gear for new power systems. As skilled transformer makers, we supply dry-type distribution transformers, oil-immersed transformers, integrated low voltage switchgear, and high voltage switchgear. This ensures safe and smooth work in different jobs. This wide product list lets buyers get many parts from one trusty source. It ensures fit and easy project control. The link of transformers and switchgear systems gives best work and simple fix steps.
In summary, picking the right high voltage switchgear matters a lot. It keeps power systems safe, steady, and smooth. Think about block stuff, set spot, stop way, and job needs. New tech brings less fix work and better green fit. Team up with trusty makers like SHENGTE. They give top gear and full help. This ensures long trust and easy work in all fields.
Q1: What is the difference between medium voltage and high voltage switchgear?
A: The key gap is in voltage levels. Medium voltage switchgear runs from 1kV to 35kV. High voltage switchgear handles above 35kV, up to 800kV or more in transmission. It needs better insulation, larger gaps, and stronger safety due to higher stress and arc risk.
Q2: How often does high voltage switchgear require maintenance?
A: It depends on type and conditions. Vacuum and SF6 types need checks every 2-5 years and major service every 10-15 years. Oil-filled units require oil tests and changes every 3-5 years. Regular monitoring helps set ideal schedules and avoid sudden failures.
Q3: Can existing switchgear be upgraded or retrofitted with modern technology?
A: Yes, upgrades are often possible. Options include digital controls, added sensors, or vacuum/SF6 breakers. Major changes may need full replacement to meet current standards. A skilled engineer’s review finds the most cost-effective path.
