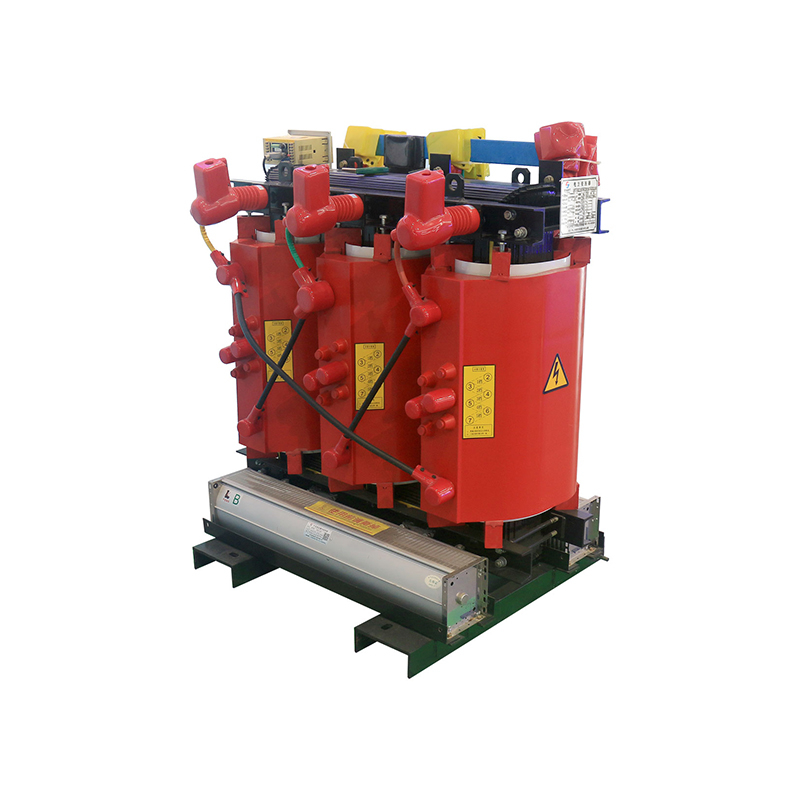

The design of dry type transformers incorporates exclusive insulation materials that block current and prevent arcing. These transformers do not use insulating oil for their cores and windings, relying instead on air cooling—either natural or forced. This makes them safer and more reliable, plus they are free from maintenance requirements.

Attributes:

1. Superb Efficiency: This transformer boasts low operational losses and quiet operation, with a significant reduction in partial discharges. Its outstanding heat dissipation capability allows it to operate at 120% of its nominal load when utilizing forced air cooling.

2. Durable Against Humidity: Capable of functioning flawlessly in conditions of up to 100% humidity, it can resume operations after a shutdown without pre-drying.

3. Environmental and Safety Standards: The transformer is both fire-resistant and pollution-free, ensuring safe integration in various environments.

4. Precise Temperature Oversight: Equipped with an advanced temperature monitoring system to ensure ongoing reliability and safety.

5. Effortless Installation and No Maintenance: Specially designed for easy installation and to remain maintenance-free, thus lowering total operating costs.

6. Established Reliability: Ongoing field studies support its alignment with the most stringent global reliability standards.

Our Advantages:

1. The high-voltage winding is vacuum cast with epoxy resin filled with fillers, with low partial discharge and high electrical strength of the coil. The inner and outer walls of the winding are reinforced with glass fiber mesh plates, which increases the mechanical strength of the coil and improves the ability of the transformer to withstand sudden short circuits.

2. The low-voltage winding adopts a foil structure, which solves the problem of axial spiral angle when using wire winding, making the ampere turn more balanced. At the same time, the coil adopts axial cooling air duct, enhancing the heat dissipation capacity. The DMD epoxy resin pre impregnated cloth is used between the winding layers, and the overall solidification is formed.

3. The iron core is made of high-quality cold rolled silicon steel sheets, with a three-stage fully inclined joint structure. The core column is bound with F-class weft free straps, and the surface is wrapped with epoxy resin to reduce no-load loss, no-load current, and core noise. The clamps and fasteners are with special surface treatment, further improving the appearance quality of the transformer.

4. The transformer is equipped with a cross flow top blowing cooling fan, it is with low noise, high wind pressure, and beautiful appearance, enhancing the overload capacity of the transformer.

5. The transformer is equipped with an intelligent temperature controller, which improves the operational safety and reliability.

6. The casing can provide the further safety protection for the transformer, with the protection levels of IP20, IP23, IP30, IP33, etc. And the casing materials include aluminum alloy, cold rolled steel plate, stainless steel, etc.

Product Parameters

Production Process

Company Profile

Guangdong Shengte Electric Co., Ltd., based in Foshan, China, is a distinguished transformer manufacturer known for reliability and exceptional after-sales service. With over a decade of experience, we've provided high-quality, cost-efficient transformers for governmental and private sector projects worldwide, earning a reputation for excellence.
Our commitment to quality is demonstrated by meeting the rigorous standards of our German Power Utility clients, ensuring only the highest quality solutions.
Spanning 10,000 square meters, our Foshan facility is equipped with cutting-edge production and testing equipment, enabling us to offer customized solutions, including OEM and ODM services. Our product range includes oil-immersed transformers, resin cast dry-type transformers, pad mounted transformers, prefabricated substations, and more.
Certified by ILAC-MRA and CNAS, our IEC certificate underscores our dedication to international quality standards. Additionally, we hold ISO9001, CE, and Innovative Product Certifications, with active pursuit of the UL certificate to further demonstrate our commitment to global compliance.

Project Cases

Certifications

Exhibition

Packaging & Shipping

FAQ

Q1: Are you a manufacturer or trading company?

A1: Our factory covers an area of over 10000m², we can produce 2000 more transformers each year.

Q2: Do you have the relevant certifications and test reports?

A2: Yes, we have ISO9001 and CE certification, and can provide the test reports according to IEC standard.

Q3: How long is the warranty period?

A3: It is 12 months.

Q4: Would you accept using customer's logo?

A4: Yes, we can provide OEM and ODM service.

Q5: What's the MOQ?

A5: It is 1 set.

Q6: What are the payment methods and terms?

A6: We accept T/T, Western Union, PayPal, etc. 30% advance payment before production, 70% balance payment before delivery.

Q7: How long is the delivery time?

A7: Generally it is 20-30 days, it depends on the order quantity.

Q8: What is the standard of package?

A8: Wooden case or special package according to customer's requirement.
