Switchgear plays a vital role in keeping electrical power systems safe and effective. It shields equipment from harm and separates faulty sections to stop problems from spreading widely. This equipment comes in categories based on voltage: low, medium, and high-voltage versions, each designed for particular uses. Major parts consist of circuit breakers, disconnect switches, and protective relays. Structures range from fixed to removable kinds, while newer models include intelligent monitoring and arc protection for better security. People apply switchgear in industrial, business, and utility areas to maintain dependability. Companies such as SHENGTE deliver customized, top-quality options that follow international rules for various power supply requirements.

What Is Switchgear and Why Is It Critical in Power Systems?

Switchgear forms a basic part of secure and smooth running in electrical power networks. It goes beyond simple containers and interrupters; instead, this equipment handles important tasks in energy sharing, safeguarding, and overall control. SHENGTE’s electrical switchgear serves as the main support for delivering power without risks and interruptions.

How Does Switchgear Contribute to Electrical Safety and System Stability?

Switchgear improves electrical safety by separating problems so they do not cause failures throughout the entire network. When an issue arises, like a short circuit or earth fault, the equipment limits the trouble to one specific zone. As a result, the rest of the setup remains intact. Moreover, it permits repair tasks without turning off the whole system, which matters greatly in factories or places that cannot afford stops.

During unusual conditions, switchgear guards people and machines by stopping excessive currents with circuit breakers. This quick action avoids damage to devices, flash events, and fires caused by electricity. Many view switchgear as only enclosures and interrupters, yet industrial switchgear actually determines if a problem affects just one section or brings down the entire facility.

What Are the Main Classifications of Switchgear Based on Voltage Levels?

Experts divide switchgear mainly into low-voltage (LV), medium-voltage (MV), and high-voltage (HV) groups:

l Low-voltage switchgear works usually under 1,000V. Workers install it often in office buildings, housing areas, and smaller factory settings.

l Medium-voltage switchgear functions between 1kV and 35kV. It appears frequently in power stations, production sites, and big buildings.

l High-voltage switchgear goes above 35kV. Teams use it in transmission lines and large-scale grid energy sharing.

Which Components Make Up a Typical Switchgear Assembly?

Switchgear setups include complicated arrangements that combine various essential parts. These parts handle control, protection, and observation duties.

What Are the Key Functional Elements Inside a Switchgear Unit?

Essential items in every switchgear unit include:

l Circuit breakers that stop current when problems occur. They prove necessary for guarding devices further along and keeping the system running.

l Disconnect switches that separate parts safely for fixes or checks.

l Instrument transformers, such as voltage and current types, which supply reduced signals for measurement and relay safeguarding.

Workers connect the cabinet's frame parts with bolts to form the base structure. Then, they add doors, covers, dividers, drawers, supports, busbars, and electrical items to finish the complete switchgear unit.

How Do Protection Relays Work Within the System Architecture?

Protection relays act as smart tools that spot irregularities like too much current, low voltage, earth faults, or unbalanced phases. When they notice a problem, these relays send commands to open circuit breakers and separate troubled areas before harm spreads further.

Current digital relays feature adjustable settings that permit flexible protection plans. Such systems can change their response levels according to load changes or surrounding factors, which boosts overall steadiness.

How Are Different Types of Switchgear Designed for Specific Applications?

The build and purpose of switchgear differ a lot based on where it will operate—whether in permanent setups or places needing constant operation.

What Distinguishes Fixed-Type from Withdrawable-Type Switchgear Designs?

Fixed-type switchgear stays firmly in place inside cabinets. Its small size fits well in spots with little room and rare need for service. However, these units provide less ease during repairs.

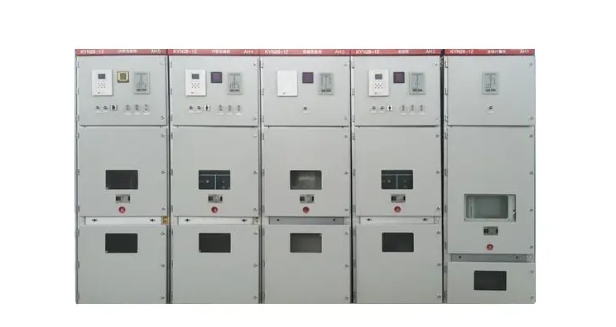

Withdrawable-type models give better access for upkeep. Designs like the KYN28A-12 indoor metal-clad withdrawable high-voltage switchgear allow quick changes without total stops. This approach suits locations such as medical centers or computing facilities where breaks cannot happen. The option to swap modules fast cuts down on downtime and improves availability.

Why Is Arc Resistance an Important Design Consideration?

Arc-resistant switchgear gets built to hold in and direct flash energy away from workers. This protection element proves essential in avoiding harm during problem events.

Such enclosures need to meet rules like IEC 62271-200 or ANSI C37.20.7 for trustworthy behavior in severe fault situations. These builds safeguard lives and keep machines working even when internal flashes occur.

In Which Industries Is Switchgear Most Widely Used Today?

Switchgear finds use in many fields—from factory production to business properties—each requiring special setups matched to their settings.

How Does Industrial Infrastructure Depend on Reliable Switching Equipment?

Production activities count heavily on solid switchgear for managing loads and system guarding. SHENGTE advanced industrial switchgear solutions ensure your operation safety and reliability.

In oil and gas fields, explosion-proof units operate in dangerous areas to stop sparks from flammable gases. Mining work needs tough equipment that handles dirt, water, shaking, and temperature changes.

What Role Does Low Voltage Equipment Play in Commercial Settings?

Office structures rely much on low-voltage switchgear for lights, lifts, air systems, fire controls, and data links.

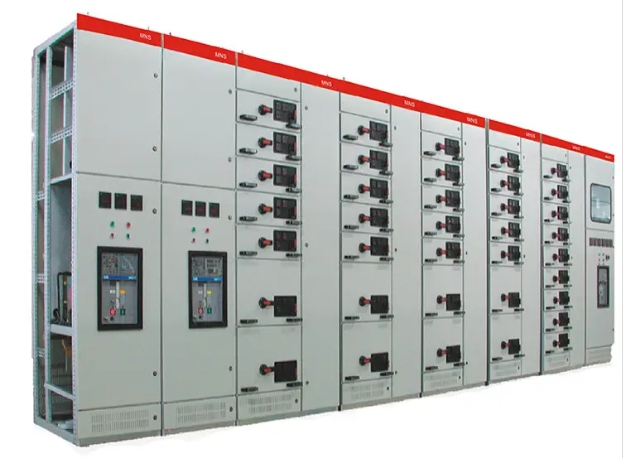

The GCS low-voltage extractive switchgear provides flexibility and simple upkeep in crowded spaces. Its modular build allows growth later without big changes to wires. These setups offer central management while permitting increases in capacity without major rebuilds.

It can meet the special needs of computer interface in power use occasions such as power plants with large single capacity, low-voltage power control centers and motor control centers in large-scale petrochemical industries.

How Does Modern Technology Enhance Switchgear Performance?

Recent developments have greatly improved how current switchgear works, adding smart abilities to what used to be basic structures.

What Advancements Have Been Made in Monitoring and Remote Control Capabilities?

Today's switchgear includes IoT devices that track factors like heat in conductors, moisture in cases, insulation levels, and current amounts constantly.

These setups allow distant checks that find early wear signs, so teams can act before major breaks. Linking with SCADA systems provides operators clear views over several stations or sites.

How Do Smart Features Improve Operational Efficiency and Asset Management?

Intelligent tools like forecasting analysis use past data to plan better upkeep times. This approach lowers unneeded checks and lengthens part lifespan.

Load tracking spots high-use times on lines to support balancing methods. Also, built-in meters record energy use trends, which helps follow rules and divide costs.

Who Is SHENGTE, And Why Do Professionals Trust Their Products?

SHENGTE stands as a well-known expert in power distribution work. SHENGTE is a leading manufacturer specializing in high-performance power distribution equipment, offering tailored solutions that meet global standards across multiple industries — from utilities to industrial plants and commercial complexes.

With more than 15 years in providing custom options, SHENGTE stresses quality building. Their items, including high-voltage switchgears, transformers, and modular substations, handle tough conditions. Their focus on safety, personalization, and effectiveness has gained respect from engineers who want reliable electrical parts that follow IEC and ANSI rules.

Users appreciate SHENGTE for steady item quality, quick shipping, helpful technical aid, and following worldwide quality marks. Experts aiming to strengthen system strength frequently pick SHENGTE because of their reliable quality checks, rapid delivery, and quick support—turning them into a dependable ally in energy setup growth.

FAQs

Q: What is the difference between metal-clad and metal-enclosed switchgear?
A: Metal-clad switchgear separates each part in grounded metal sections for greater safety, whereas metal-enclosed versions keep all parts together but with fewer barriers.

Q: Can low-voltage switchgear be used in renewable energy applications?
A: Yes, low-voltage equipment often handles power sharing in solar sites or wind setups at the inverter stage before connecting to higher voltage lines.

Q: How often should switchgear be maintained or tested?
A: Service intervals vary with surroundings and usage but usually happen yearly or every few years; forecasting tools can adjust plans based on device condition data.
