In utility projects, transformer pricing often looks inconsistent across tenders, even when ratings appear similar. You may see large deviations between quotations for equipment that nominally shares the same kVA class, voltage level, and installation type. This is not accidental. It reflects how manufacturers translate system risk into design margins, material selection, and validation effort.
Price becomes opaque when it is treated as a standalone number rather than as a compressed summary of engineering intent. A low figure may signal minimal thermal headroom, reduced mechanical reinforcement, simplified insulation coordination, or a shallow testing scope. In contrast, a higher figure often indicates that the manufacturer has built additional layers of reliability into the design long before the quotation reaches your desk.
At the substation level, risk is defined by failure modes rather than by nameplate data. Short-circuit withstand strength, winding deformation tolerance, partial-discharge behavior, and cooling reserve all shape the probability of catastrophic events. When these elements are reinforced through epoxy vacuum casting, glass-fiber coil support, or foil low-voltage windings, cost inevitably rises because material volume, processing time, and quality control increase.
Transformers are capital assets expected to operate for decades. Designs that support 120% load under forced-air cooling, tolerate 100% humidity without pre-drying, and maintain low partial discharge over long periods tend to require more complex structures and stricter manufacturing technology. Such characteristics reduce outage risk but increase initial price.
Once pricing logic is framed as risk management, electrical parameters become the first boundary conditions.
Raising rated capacity does not scale linearly with copper mass alone. Higher kVA requires larger conductor cross-sections to control current density, stronger axial and radial coil reinforcement to withstand electromagnetic forces, and larger cooling surfaces or forced-air channels to manage thermal gradients.
Each layer increases fabrication time and mechanical complexity. In dry-type transformers, this is visible in the transition from small SCB10 units to 1600–2500 kVA classes, where winding structure, core weight, and casing dimensions expand rapidly.
Voltage class changes the insulation system more than the conductor system. Higher voltage requires thicker resin insulation layers, larger creepage distances, more complex stress-grading at coil ends, and stricter partial-discharge thresholds during factory testing.
These requirements raise not only material cost but also risks of failure during testing, which manufacturers must take into account when pricing.
Cost is determined not only by electrical design, but also by structural architecture.
A box-type or pad-mounted substation transformer is not only a transformer; it is an integrated safety enclosure, switching compartment, and environmental barrier. Steel thickness, corrosion protection, internal segregation, and tamper resistance all add cost layers unrelated to copper or silicon steel.

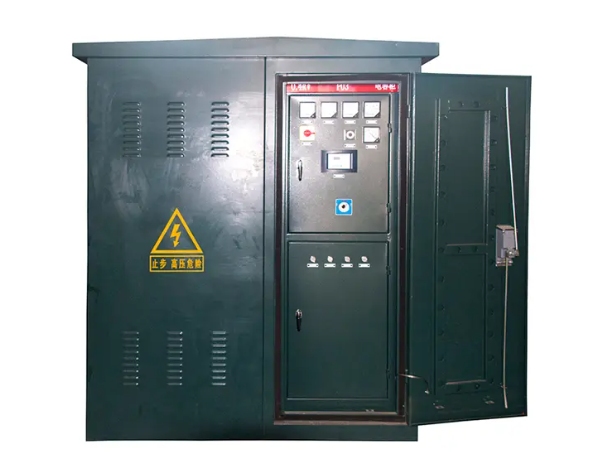

A practical illustration is the ZGS11 630kVA 10kV 0.4kV American Style Box-Type Power Pad-Mount Substation Transformer, where enclosure engineering, compartment separation, and outdoor protection account for a substantial portion of total pricing beyond the electromagnetic core.
If the project is located in a coastal high-humidity environment, an industrially polluted area, or under extreme temperature differences, the treatment of the outer shell and structure becomes a structural design requirement rather than a cosmetic one, which involves stainless or coated steel panels, enhanced IP protection (IP23–IP33), anti-condensation design, and thermal derating compensation. These features reduce operational risk but directly raise manufacturing costs.
Material decisions remain the least visible but most decisive pricing factor.
In epoxy resin dry-type transformers, high-voltage windings are vacuum-cast with filled epoxy to suppress voids and reduce partial discharge, and low-voltage windings adopt foil structures to stabilize ampere-turn distribution and improve short-circuit resistance. Besides, axial cooling ducts are integrated between layers to raise heat dissipation capacity.
This design of structure tends to increase copper or aluminum usage, extend curing cycles, require controlled casting equipment, and raise inspection standards, but it directly improves mechanical endurance during short-circuit events.
High-quality cold-rolled silicon steel with multi-step lap joints reduces no-load loss and noise but costs more than generic laminations. Surface epoxy coating and special fastener treatment further suppress vibration and corrosion. These steps explain why two transformers with identical ratings can diverge significantly in price while sharing the same specification sheet.
Certification is not paperwork overhead but structured proof of survivability.
Routine testing confirms basic functionality. Type testing and special testing verify thermal rise under overload, dielectric strength, mechanical stability during short-circuit, and partial discharge performance.
Each test consumes laboratory time, sample units, and engineering labor. Manufacturers who submit products to accredited national test centers must embed this cost into final pricing.
SHENGTE’s transformers and combined substations have passed multiple national inspections and type tests aligned with GB and IEC frameworks, including models such as SCB11-200/10, SCB11-1000/10, and ZGS11 combined transformers.
Becoming a qualified supplier to major grid operators and infrastructure owners requires consistent compliance history and traceable documentation. SHENGTE is listed as a supplier to China Southern Power Grid, State Grid, and major railway and real-estate infrastructure groups, reflecting long-term acceptance into high-reliability procurement systems.
When transformer pricing is evaluated correctly, the manufacturer’s internal structure becomes as relevant as the product itself.
SHENGTE is a distribution-transformer manufacturer established in Guangdong in 2011, specializing in oil-immersed transformers, epoxy resin dry-type transformers, pad-mounted combined substations, prefabricated substations, and complete high- and low-voltage equipment systems. We focus on green power distribution, energy efficiency, and environmental protection, with more than 15 years of manufacturing experience and ISO9001 certification.
Our factory covers over 12,000 square meters and integrates design, machining, casting, testing, assembly, and inspection within a single production chain. This full-process control allows consistent execution of insulation systems, coil reinforcement strategies, and thermal management designs rather than fragmented outsourcing. Annual output exceeds 2,000 transformer units, supported by dedicated R&D, quality testing, and technical service teams.
From a project perspective, this structure matters because transformer pricing becomes predictable—design drawings, material standards, and test procedures remain stable across batches.

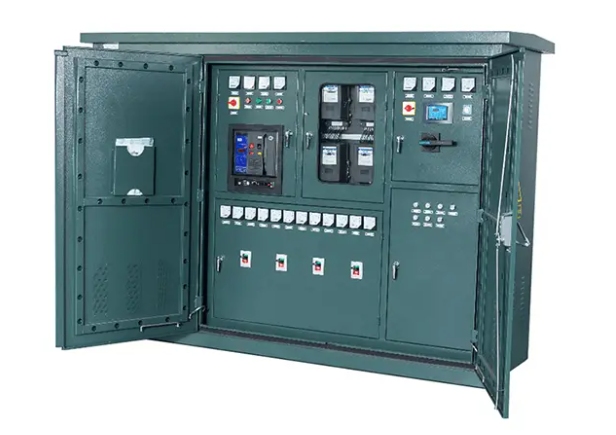

This approach is visible in larger integrated platforms such as the ZGS11 1600kVA 10kV 0.4kV Dyn11 Connection Box Type Pad-Mounted Substation Transformer, where the transformer body, enclosure, and connection configuration are engineered as a single system rather than assembled from generic modules.
SHENGTE provides multi-layer technical support during inspection, installation, commissioning, and operation, including remote diagnostics, video-based guidance, and on-site assistance when required. During warranty periods, component replacement caused by manufacturing defects is covered under structured service procedures.
Our project workflow links quotation, technical design, drawing confirmation, production scheduling, and post-installation support into one system. Marketing teams coordinate pricing, technical teams define parameters, and production teams control quality and delivery rhythm. This reduces interface risk, which indirectly lowers total project cost even if the equipment price itself is not the lowest.
Instead of benchmarking quotations by kVA alone, treat price as a technical signal.
Ask for data on:
Overload capability
Cooling mode
Short-circuit withstand design
Partial-discharge limits
Request information about:
Routine and type test reports
Applicable IEC/GB references
Factory quality certifications
Evaluate:
Commissioning guidance
Spare-part continuity
Response procedures for faults
When these elements are visible, pricing becomes transparent, while it is only speculative without them.
Q: Does a higher-priced substation transformer always mean better quality?
A: Not automatically. However, documented improvements in insulation structure, thermal design, testing scope, and mechanical reinforcement usually translate into higher manufacturing costs and lower operational risk.
Q: Why do pad-mounted box substations cost significantly more than conventional transformers?
A: Because you are purchasing enclosure engineering, safety segregation, environmental protection, and integrated system coordination in addition to the transformer itself.
Q: What documentation best verifies that pricing is technically justified?
A: Accredited type-test reports, routine test records, IEC/GB compliance references, and evidence of deployment in grid-level projects provide the strongest validation.
