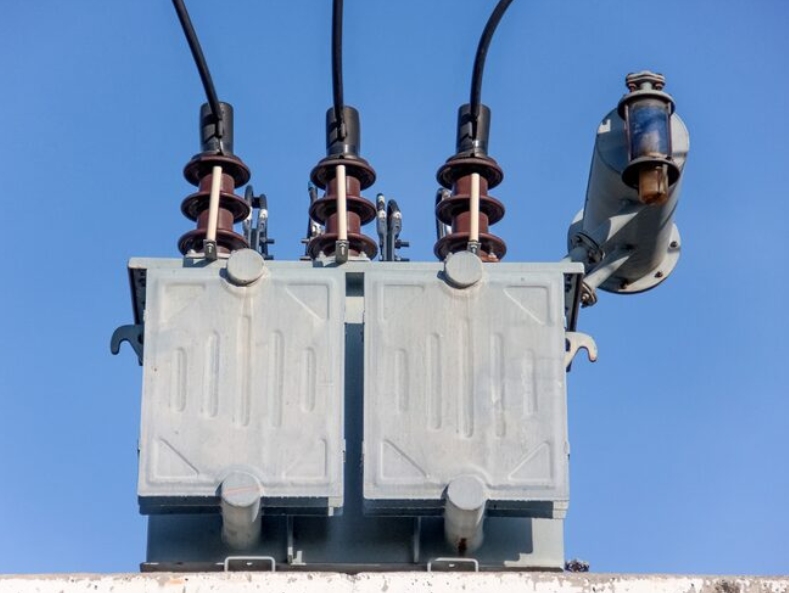

Distribution Transformers: How They Work and Where They Are Used？

Distribution transformers serve as key parts that lower high-voltage power from transmission lines to safe levels suitable for homes and companies. These units operate based on electromagnetic induction by using cores and coils to change voltage while keeping the grid stability. Commonly installed as pad-mounted, pole-mounted, or in substations, their design depends on the environment and load requirements, whether oil-immersed or dry-type. Main choice factors cover rated capacity, voltage class, and efficiency standards to ensure reliability and cost-effectiveness. Regular service and timely updates remain vital for long-term function in power distribution networks.

What Role Do Distribution Transformers Play in Power Systems?

Why Are Distribution Transformers Essential in Electrical Networks?

Distribution transformers are the last step in the power delivery process, which ensures electricity is delivered safely and efficiently to the users. These transformers reduce high-voltage power from transmission lines to practical levels for houses, offices, and factories. Without this important voltage change, direct power delivery from substations to customers would be dangerous and difficult to achieve.

The value of distribution transformers extends beyond simple voltage adjustment. Their careful placement across power networks keeps even voltage levels, which is critical for reliable running and safe use of electrical equipment. Without such units, energy transfer from plants to users would waste energy and create risks. Moreover, distribution transformers support both central and spread-out supply systems like ring networks or radial terminals, contributing to a flexible and strong power infrastructure. In the power distribution system, it can be used for a ring network power distribution system, as well as a dual power supply or radial terminal power distribution system.

How Do Distribution Transformers Keep Voltage Stability?

Distribution transformers help greatly in keeping the voltage steady and handling changes caused by shifting load conditions. These units control voltage changes from load differences and protect equipment. They work as buffers that take in short disturbances and separate faults. As a result, local problems affect the larger grid less.

Correct transformer sizing is necessary to limit energy waste during transmission. Too-large units can cause unnecessary no-load losses, while too-small units risk overloading and overheating. By selecting transformers that are ideal for load patterns, engineers can maintain voltage consistency and extend equipment life.

How Does a Distribution Transformer Work Internally?

What Happens Inside the Core and Windings During Operation?

The internal working of a distribution transformer follows electromagnetic induction. When high-voltage current passes through the primary coil, it creates a magnetic field in the layered core. This magnetic flux creates a proportional voltage in the secondary winding based on the transformer's turn ratio.

The core, typically constructed from cold-rolled silicon steel sheets with optimized joint structures, enhances magnetic efficiency and reduces energy losses. The iron core is made of high-quality cold-rolled silicon steel sheets, with a three-stage fully inclined joint structure. Insulation oil or air cools internal parts and stops heat damage. In dry-type units, axial cooling ducts and forced-air fans are employed to enhance heat dissipation. The coil adopts axial cooling air duct, enhancing the heat dissipation capacity.

Why Is Oil Immersion Common in Modern Transformer Designs?

Oil immersion is widely used in current distribution transformers for its dual role in cooling and insulation. Oil immersion improves cooling efficiency and extends working life by reducing thermal stress. The insulating oil not only cools the coils but also insulates them from each other and from the grounded case.

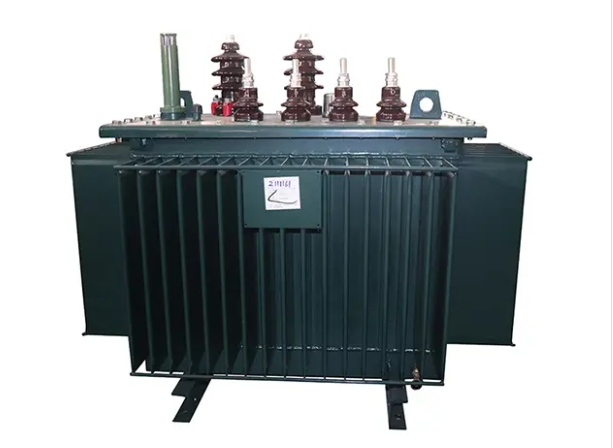

This method stops arcing or insulation failure inside the unit and raises lasting strength. It acts as an insulating medium, preventing arcing or dielectric breakdown inside the unit. Units like the S11 125kVA 10kV 400V Tri Phase Oil-Immersed Power Distribution Transformer are designed for steady long-term function under demanding conditions. It is equipped with the S11 type transformer, with excellent performance, low loss, low noise, and low temperature rise, also with strong overload capacity, short circuit withstand ability, and impact resistance.

Where Are Distribution Transformers Installed?

Which Environments Require Different Transformer Configurations?

Transformer layouts change greatly with the placement environment. City areas prefer small designs like pad-mounted units to save space and lower noise. With its compact size, lightweight construction, and convenient installation and maintenance features, this transformer offers enhanced safety, reliability, and aesthetic appeal.

Rural sites often choose pole-mounted units for lower cost and accessibility for maintenance. Industrial zones need high-capacity oil-immersed models capable of handling heavy loads continuously without performance degradation. Underground combined substations are ideal for modern urban growth where space is limited, and aesthetics matter. An underground combined substation is a complete set of power transformation and distribution devices integrating high-voltage switchgear, buried transformer, low-voltage distributor, etc.

How Do You Choose Between Indoor and Outdoor Installations?

Weather exposure forms a main factor. Outdoor units need protection against water, heat swings, and dust entry. The box is a fully sealed anti-theft structure with high mechanical strength. It is equipped with sufficient air vents and heat insulation layers to ensure that the temperature of all electrical equipment inside does not exceed its maximum allowable temperature during operation. Indoor units require vent systems to remove heat well.

Service access also matters—outdoor placements allow easier checks but may need extra grounding or shields. Safety rules further guide placement practices with clearance needs and case types based on IEC or ANSI standards.

What Are the Key Specifications You Should Evaluate Before Purchase?

Which Technical Parameters Determine Performance and Suitability?

Rated capacity (in kVA) is vital to match expected load needs correctly. Choosing an appropriate rating avoids both overloading and underutilization. Voltage class must be suitable for the main supply voltage and intended secondary application.

Cooling type, oil-cooled versus dry-type, depends on setting limits like moisture or fire safety requirements. For example, dry-type units are preferred indoors due to the absence of flammable fluids. The transformer is equipped with a cross-flow top-blowing cooling fan, which has low noise, high wind pressure, and a beautiful appearance.

How Do Efficiency Standards Affect Your Operational Costs?

No-load losses show energy consumed when the unit runs without a load, cutting these lowers basic running costs, while load losses, which occur at full capacity, must be minimized to achieve long-term efficiency gains, particularly in high-utilization installations.

No-load losses, representing the energy consumed when the transformer is energized but not supplying a load, directly impact baseline operating costs—minimizing these losses (e.g., 190 W) reduces fixed operational expenses. Meanwhile, load losses, which occur under full-load conditions (e.g., 710 W), affect long-term efficiency; reducing them is particularly critical for high-use installations to enhance overall energy performance.

Following the global standards, like IEC or ANSI, ensures steady results across areas, and certified units are also easier to integrate into global power systems.

How Can You Ensure Long-Term Reliability of Your Transformer Investment?

What Maintenance Practices Extend Service Life Most Effectively?

Regular oil testing helps watch insulation strength and spot dirt early before breakdown. Visual inspections for corrosion or oil leaks around bushings keep structural integrity. Thermographic scans are invaluable for identifying thermal hotspots that indicate impending component failure.

Distribution transformers with strong cases or smart monitoring systems offer better strength under changing conditions. It adopts advanced technology to improve and optimize functions, equipped with automatic temperature control, automatic emergency drainage, automatic humidity control, and a remote monitoring system.

When Should You Upgrade or Replace an Aging Unit?

Load expansion may exceed the current unit capacity, requiring an update. An efficiency decline from core degradation or insulation damage affects loss rates and heat generation.

Regulatory changes toward greener systems may demand higher efficiency standards or eco-friendly materials, leading to replacement even before mechanical issues appear.

Why Should You Consider SHENGTE for Your Transformer Needs?

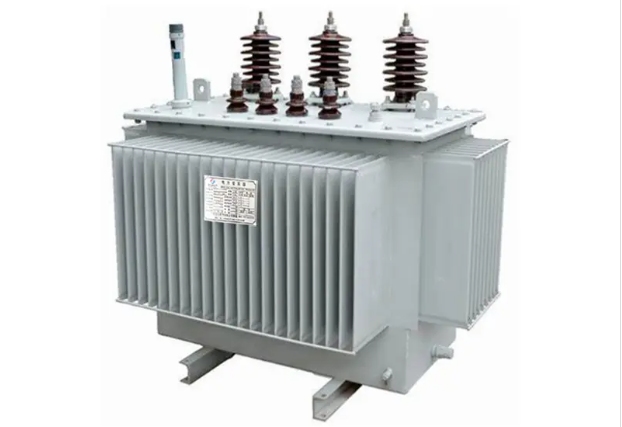

SHENGTE has established itself as a trusted name in transformer making with a strong focus on exact engineering, flexible tailoring, and lasting result assurance.  We have the experience of manufacturing transformers for over 15 years, and our production line includes advanced units like the S11 200kVA 10kV 400V Electric Power Triphase Oil Filled Type Distribution Transformer, which shows current transformer design.

This model brings the best heat results, low idle and load losses, and smooth links into medium-voltage systems for office or factory uses. Supported by many years of skill and quick technical help teams, SHENGTE aids in cutting stop times while raising return on setup spending.

FAQs

Q: What is the typical lifespan of an oil-filled distribution transformer?

A: With correct service like regular oil checks and heat watching, these units can run reliably for over 25 years.

Q: Can I use a single distribution transformer for multiple buildings or facilities?

A: Yes, but the rated capacity must match the total expected load plus room for future growth.

Q: What certifications should I look for when selecting a distribution transformer supplier?

A: Seek ISO certification along with the following IEC or ANSI standards based on regional needs.
