Views: 0 Author: Site Editor Publish Time: 2026-02-10 Origin: Site
Energy-efficient distribution transformers now occupy a central position in decisions concerning grid layout, overall ownership expenses, safety considerations, and environmental responsibility. With rising electrification across transportation systems, industrial facilities, and city infrastructure, every transformer today will affect grid performance over many decades. For specialists responsible for specification, network planning, and long-term asset management, the discussion no longer centers on whether efficiency holds value, but rather on the extent to which transformer engineering can influence the evolution of electrical distribution systems.
What were acceptable losses in individual devices now add up to structural inefficiencies. Regulators, utilities, and private sector operators are assessing the performance from the network perspective. Because distribution transformers are operating continuously, no-load loss is always present, which changed the focus from efficiency as a desirable attribute to a strategic necessity.
Core losses define the permanent energy cost of a transformer. Even modest reductions in magnetic loss translate into significant operational savings when projected across a 25–30 year service life. Cold-rolled silicon steel cores with optimized joint geometry are increasingly adopted because they reduce magnetizing current, suppress acoustic noise, and lower idle power draw. In long-term financial models, this loss profile often outweighs the initial procurement price.
The structure of demand has changed. EV charging clusters, rooftop PV backfeed, data centers, and automated manufacturing create fluctuating load profiles rather than predictable baseload curves. Copper losses rise nonlinearly with current, which makes winding architecture and thermal stability decisive factors. Designs that balance ampere-turn distribution and maintain temperature control under dynamic load help preserve efficiency while extending insulation life.
Today, efficiency is a consequence of materials engineering, electromagnetic symmetry, thermal behavior, and protective integration. It cannot be claimed through nameplate efficiency alone, but must be demonstrated through structural design.
Vacuum-cast epoxy resin windings reduce internal voids and suppress partial discharges, enhancing dielectric performance and limiting gradual energy dissipation caused by microscopic discharges. High-voltage coils reinforced with fiberglass mesh gain superior mechanical strength, increasing their ability to withstand short-circuit forces. Low-voltage sections frequently employ foil winding structures that eliminate helical winding discrepancies, improving electromagnetic balance and decreasing stray losses. These approaches deliver reduced operational losses combined with enhanced dependability margins.
The electrical losses finally manifest as thermal energy, and inadequate heat removal accelerates material deterioration. Modern dry-type configurations incorporate longitudinal ventilation channels within coil assemblies to promote effective natural convection cooling. Cross-flow top-mounted cooling fans extend this capacity further, enabling stable operation at up to 120% rated load under forced air cooling. Intelligent temperature controllers add another layer of operational security, ensuring that efficiency gains are not offset by thermal stress.
A transformer may achieve a high efficiency rating in a laboratory but fail to perform well in real life, due to environmental factors that compromise the insulation and cooling systems. The true efficiency is only achieved when the design is resistant to moisture.
Dry-type transformers with robust resin systems show consistent performance even in 100% humidity conditions. They can show the ability to resume operation from a shut-down condition without pre-drying, ensuring high availability in high-humidity substations, basements, tunnels, and coastal areas. The ability to resume operation from a shut-down condition without pre-drying is not only a matter of reliability, but also ensures electrical performance by avoiding any deterioration in insulation, which could otherwise lead to increased losses.
Oil-free insulation systems eliminate the fire risk associated with liquid dielectrics. This allows installation closer to load centers such as hospitals, commercial complexes, transportation hubs, and industrial facilities. The result is shorter low-voltage runs, reduced distribution loss, and simplified civil protection requirements. Therefore, fire-resistant construction contributes directly to both efficiency and infrastructure optimization.
Efficiency theory becomes meaningful only when translated into deployable equipment. Certain dry-type configurations clearly illustrate how material choice, winding geometry, and cooling integration converge in practical systems.

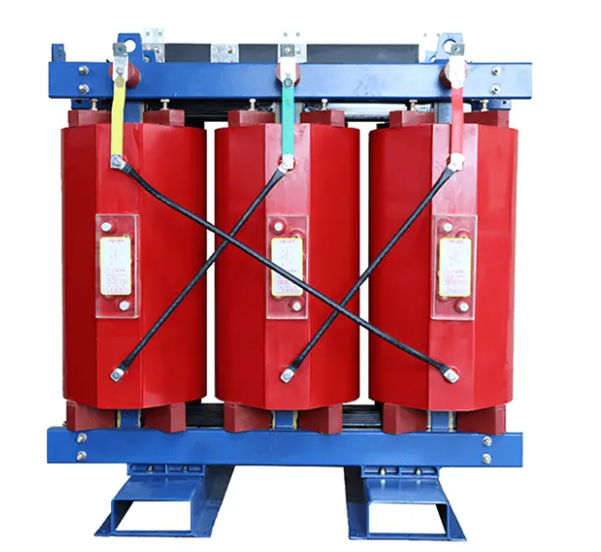

The SCB10 400kVA 6kV 400V High Low Voltage 3Phase Epoxy Resin Cast Dry Type Transformer reflects a design optimized for commercial buildings, industrial plants, and compact substations. The design of epoxy cast insulation, balanced winding structure, and enhanced cooling channels allow low loss operation while maintaining strong mechanical resilience. Such architecture supports installations where reliability, safety, and efficiency must coexist within limited spatial constraints.

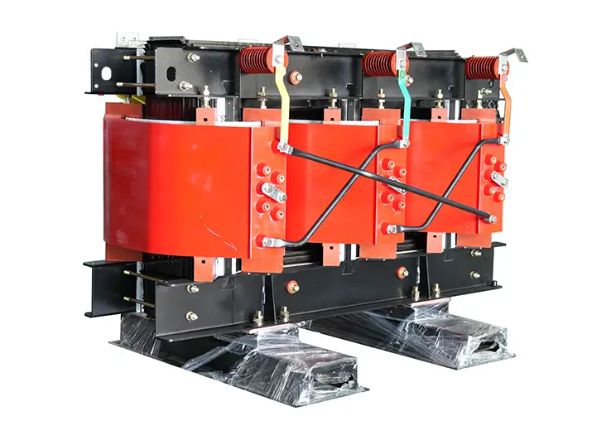

As capacity grows, the potential losses are also increasing. The SCB11/10 800 KVA 10 / 11 -0.4 Kv 3 Phase High Voltage Cast Resin Dry Type Power Transformer illustrates how larger units integrate low-loss magnetic design, reinforced insulation, and advanced temperature management to maintain performance stability. At these capacities, the integrity of the insulation system, the quality of the core material, and the effectiveness of the cooling system are non-negotiable items, as any design compromise would result in considerable system loss.
Technological direction is shaped by manufacturers that invest consistently in engineering depth rather than short-term output. Established in Guangdong with more than 15 years of specialization in distribution transformer manufacturing, SHENGTE operates as an enterprise focused on green power distribution, energy saving, and environmental protection. Our product scope covers cast-resin dry transformers, oil-immersed transformers, prefabricated substations, and integrated distribution equipment. Our products comply with the ISO9001 certification and IEC standards, which reflect not only compliance but also a structural commitment to quality systems. What distinguishes us from other manufacturers is not scale alone, but the fact that design, testing, production, assembly, and quality control are completed in-house, allowing direct control over material selection, electromagnetic design, and performance verification.
Internal control over core magnetic design, conductor arrangement details, and insulation system formulation facilitates greater consistency across production batches compared with reliance upon external suppliers. Furthermore, the direct access to field performance data enables continuous iterative improvement grounded in actual operating experience. For grid planners and project developers, this capability translates into more predictable equipment behavior across batches and across years of deployment.
The transition toward efficient infrastructure requires reliable supply capacity. A manufacturer capable of sustained production supports utilities and industrial clients in executing large-scale replacement programs rather than isolated upgrades. That continuity is essential if national efficiency targets are to be met rather than discussed abstractly.
The implications of efficiency not only affect the transformer component itself, but also influence the places of installed equipment, the way of structuring the network, and the evaluation of the asset value over time.
Fire-resistant dry-type transformers featuring minimal maintenance permit strategic positioning directly adjacent to major load concentrations, which supports shorter feeder lengths, reduced secondary loss, and greater resilience in distributed architectures such as microgrids. Over time, these capabilities support the development of flatter, more modular network structures rather than traditional centralized distribution corridors.
Procurement criteria are shifting from purchase price toward total cost of ownership. Predictable energy savings, reduced maintenance intervention, extended service life, and lower failure risk collectively outweigh modest price differences at acquisition. In organizations managing extensive asset inventories, emphasis on lifecycle efficiency has evolved into a fundamental financial consideration rather than merely a technical preference.
Q: How significant is the impact of no-load loss on long-term operating cost?
A: No-load losses remain uninterrupted throughout the entire life span of the equipment. Over several decades of continuous energization, they often represent one of the largest components of the total cost of energy, so the quality of core materials and design optimization become critical considerations.
Q: Can dry-type transformers function in high-humidity conditions?
A: Well-designed epoxy-cast transformers will function properly even under conditions of complete humidity saturation and will return to normal operation immediately after power restoration without drying.
Q: Why is overload capability relevant to efficiency discussions?
A: Equipment able to handle elevated loading without accelerated insulation aging permits higher utilization rates, reduces the need for oversizing, and provides greater operational flexibility, all contributing directly to improved overall system efficiency objectives.
