With the development of new energy sources, we are now adept at extracting clean energy from nature—vast solar panels bask in the sunlight, and rows of wind turbines spin in the breeze. But the electricity they create isn't set to go right into your wall plug. It changes a lot with the weather—bright sun one moment, clouds the next. Before this power gets to homes and factories, it needs careful control to stay safe and even. That's what electrical switchgear does. This gear works like a guard for electricity. It guides flows, stops faults, and keeps things going well. In renewable setups, electrical switchgear turns even more important. The power isn't steady like from old coal plants. It guards the grid from big jumps and falls. As more solar and wind farms show up around the world, knowing how electrical switchgear works in can make a project win or lose. Think about it. Without strong switchgear, you risk power cuts or broken lines.
Renewable energy brings fresh challenges to power systems. Unlike steady fossil fuel generators, solar and wind output changes fast. This puts extra stress on electrical switchgear. You need gear that can switch quickly and reliably. Let's dive into what makes renewables tricky for grid tie-ins.

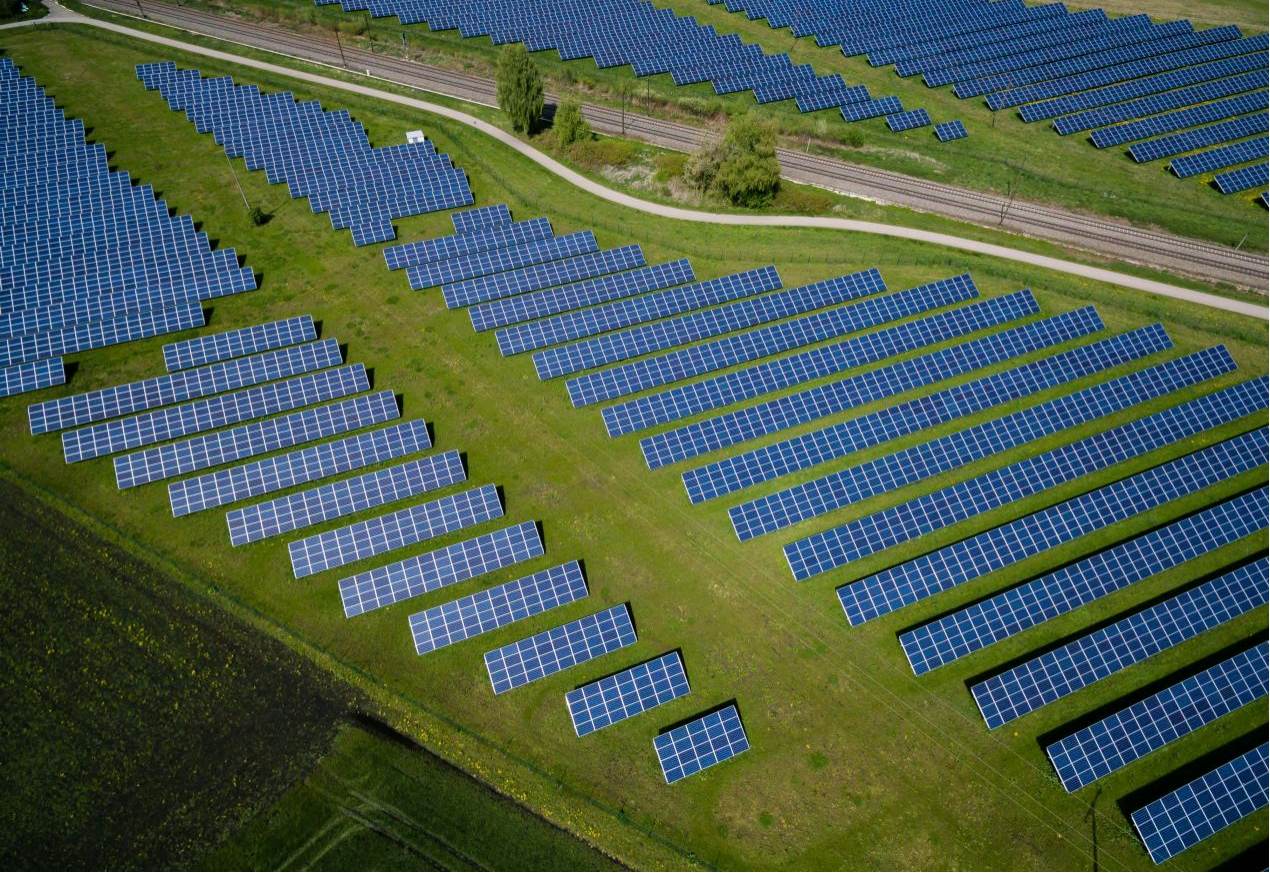

Solar panels crank out power during daylight, but clouds can slash output by 50% in seconds. Wind turbines depend on gusts; calm days mean zero generation. These ups and downs cause voltage swings that traditional grids weren't built for. Electrical switchgear must detect these shifts and adjust. For instance, in a 100 MW solar farm, fluctuations might hit 20-30% hourly without proper controls. High voltage switchgear often includes sensors to monitor this. SF6 switchgear, known for its strong insulation, helps here by quenching arcs fast during faults from these swings. Low voltage switchgear at the user end smooths out smaller ripples. Custom switchgear from electrical switchgear manufacturers can tailor solutions, say, with built-in capacitors to buffer drops.
Intermittency isn't just about weather; it's tied to how power moves both ways in modern grids. As homes with solar panels feed excess back, the flow reverses. This shift demands electrical switchgear that handles two-directional traffic without hiccups. Traditional one-way designs fall short here. Understanding this bidirectional nature helps in picking the right setup for stable integration.
In old grids, power flowed one way: from plant to user. Now, with rooftop solar, it's a two-way street. Excess from your panels might feed neighbors or even the main grid. This reverse flow can overload lines if not managed. Electrical switchgear steps in with breakers that trip on overloads from either direction. Three-phase transformers in the switchgear balance these flows, ensuring phases stay even. High voltage switchgear at substations might handle up to 220 kV in reverse without issues. But low voltage switchgear, say at 400 V, needs upgrades for homes pushing power back. Custom switchgear allows for relays that sense direction and adjust. Electrical switchgear manufacturers like SHENGTE offer models with smart relays for this. In a study of German grids, bidirectional flows increased faults by 15% without proper gear. SF6 switchgear excels in high-pressure spots but consider eco-friendly options.
Beyond direction, renewables mean more on-off cycles. Wind farms start and stop often, wearing down components. Electrical switchgear must endure frequent operations without failing. This higher switching rate tests durability, pushing for designs that last longer under stress. Getting this right prevents costly downtime.
Traditional coal-fired power plants operate stably and may switch on and off once a day. Renewable energy power plants, in areas with strong winds, can switch on and off up to 10 times per hour. This wears contacts and insulators fast. Electrical switchgear needs robust builds—think vacuum interrupters that handle 30,000 operations versus 10,000 in older types. High voltage switchgear for wind farms often uses SF6 for its arc-quenching speed, but regulations push for alternatives. Low voltage switchgear in solar inverters switches even more, up to 50 Hz. Custom switchgear can include cooling systems to manage heat from frequent use. In California grids, higher frequencies caused 25% more maintenance without upgraded gear.
Picking electrical switchgear for renewables means looking at specs that match these demands. Not all gear is equal; some shine in harsh conditions. Focus on what keeps the system safe and efficient.
Arcs happen when circuits break under load—sparks that can damage gear. In renewables, with frequent faults, good interruption is key. SF6 switchgear uses gas to snuff arcs in milliseconds. High voltage switchgear often pairs this with magnetic blowouts. Low voltage switchgear might use air blasts. Custom switchgear allows mixing tech for specific needs. Electrical switchgear manufacturers rate interruption capacity, like 50 kA for big faults. In tests, poor arc control led to 40% equipment failures in variable grids.
Arc tech ties into digital security, as switchgear now connects online. With more data flowing, protecting against hacks is crucial. Electrical switchgear must include protocols to safeguard communications. This ensures reliable operation in smart setups. Skipping this risks vulnerabilities in integrated systems.
Modern electrical switchgear talks to the grid via protocols like IEC 61850. This lets remote monitoring but opens hack risks. In 2023, cyber attacks on US grids rose 20%. Secure gear uses encryption and firewalls. High voltage switchgear at key points needs this most. Low voltage switchgear in distributed solar might use Modbus with added security. Custom switchgear can embed VPNs. Electrical switchgear manufacturers like SHENGTE build in compliance. Without it, a breach could shut down a 500 MW farm.
Security links to toughness against weather. Renewables often sit in exposed spots—dusty deserts or salty coasts. Electrical switchgear ratings for environment matter. Durable designs withstand extremes, tying back to overall reliability in grid ties.
IP ratings show dust and water resistance—IP65 for outdoor gear blocks jets of water. Corrosion-resistant materials like stainless steel last in humid areas. High voltage switchgear might rate for -40°C to 60°C. Low voltage switchgear needs seismic ratings in quake zones. Custom switchgear adapts to sites, say with heaters for cold. In Australia, poor ratings caused 30% early failures in wind farms.
Electrical switchgear in renewables isn't just switches; it's part of smarter grids. It collects data to predict issues, boosting uptime.
Switchgear now has sensors tracking temperature, vibration, and current. This data feeds grid operators. In a smart setup, electrical switchgear acts as a hub, sending alerts via IoT. High voltage switchgear monitors 100+ parameters. Low voltage switchgear at edges adds local insights. Custom switchgear integrates. In Europe, data hubs cut outages by 35%.
Data enables foresight on wear. Instead of fixed schedules, predict when parts fail. This shifts maintenance, saving costs in renewable ops. Electrical switchgear with this cuts downtime significantly.

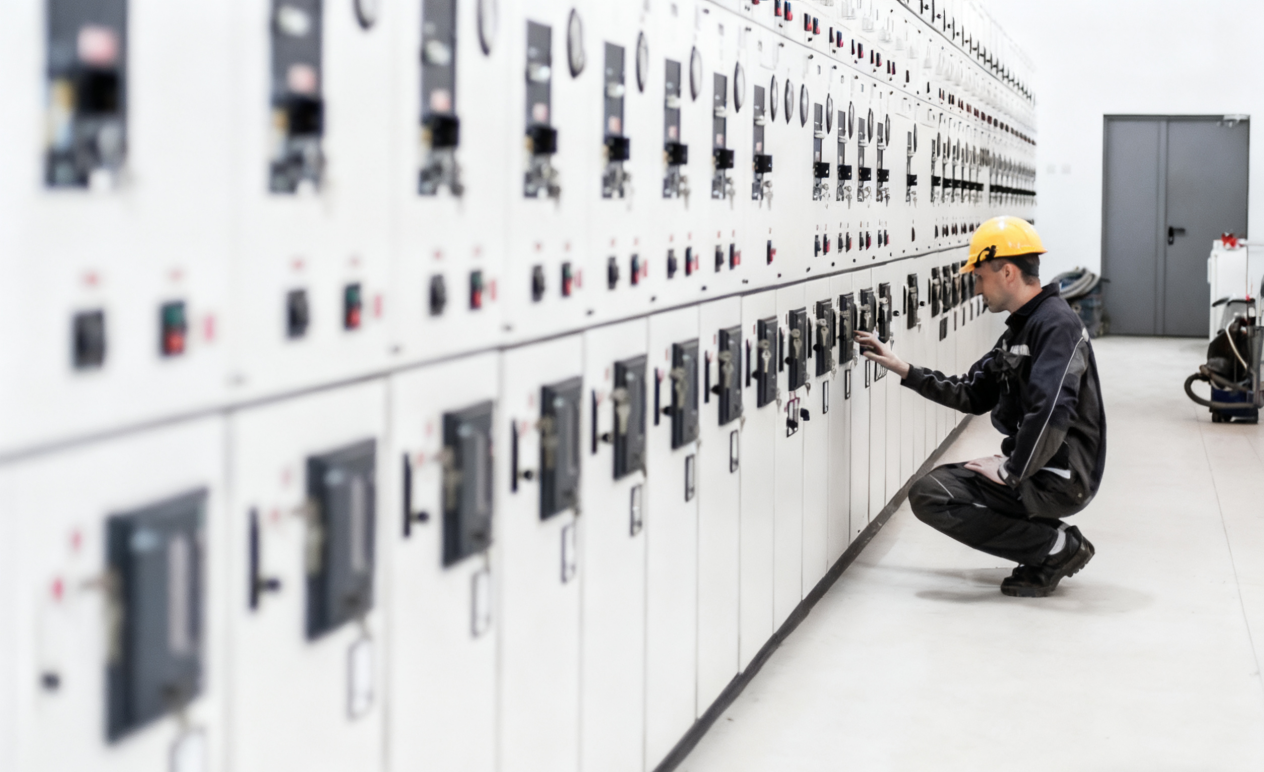

Using analytics, spot trends like rising heat signaling bad contacts. Software predicts failure weeks ahead. For SF6 switchgear, monitor gas levels to avoid leaks. Three-phase transformers get vibration checks. In a 200 MW wind farm, predictive tools saved $500,000 yearly in repairs.
Maintenance boosts grid strength. With fewer surprises, the whole system runs better. Electrical switchgear ties into wider reliability, ensuring power flows steady. This matters for renewables' variable nature.
Predictive data helps balance loads across regions. If one farm drops, switchgear reroutes power. High voltage switchgear coordinates with others. Low voltage switchgear fine-tunes for users. Custom switchgear scales for growth. Studies show 40% reliability gains in smart grids.
Reduced outages: From 2% to 0.5% annually.
Cost savings: Up to 25% on maintenance.
Extended life: Gear lasts 30 years vs. 20.
Finding the right electrical switchgear manufacturer means checking their track record. Look for ones versed in renewables.
Proven Experience in Renewable Projects: Seek suppliers with 10+ years in solar and wind. SHENGTE has installed electrical switchgear in over 50 projects worldwide, handling 1 GW total. Experience links to green practices. Suppliers should use low-impact materials. This aligns with renewable goals. Electrical switchgear manufacturers committed to sustainability offer SF6-free options.
Commitment to Sustainability: Eco-friendly designs cut carbon footprints. Avoid high GWP gases; opt for air-insulated. SHENGTE's lines include recyclable components, and its high-efficiency core 3-phase transformers save significant energy. It also holds certifications such as ISO 14001.
Global Standards and Local Support: Comply with IEC, ANSI. SHENGTE meets these, and also offers on-site teams. For custom switchgear, local engineers tweak designs.
In the changing world of renewable energy, the pick of electrical switchgear is a key choice that goes far past basic work. It is a smart spend in the strength, smarts, and long life of your whole power system. Making the right pick makes sure that your renewable project is not just a source of clean energy but a strong and trusty asset for years to come. It is the vital link that turns changing natural forces into a steady and safe power supply.
As a professional electrical switchgear manufacturer, SHENGTE stands ready to support your grid integration efforts. Contact us at juanie@shengtetransformer.com to explore our full range of electrical switchgear solutions designed to meet the specific needs of renewable energy grid integration.
