What Should You Know Before Planning an Underground Substation?
What Should You Know Before Planning an Underground Substation?
What Technical Specifications Are Non-Negotiable for Safety and Performance?
How Can Lifecycle Costs Be Managed Without Compromising Quality?
How Do You Choose a Partner That Supports Project Success End-to-End?
When you plan an underground substation, several important things matter a lot. You must pick the right location by checking soil type and how close it is to places that use power. You also need to follow local rules and wait for permits. In crowded cities, smart designs help save space. Key technical details cover correct transformer size, strong fire protection, and good waterproofing. The choice of equipment—like transformer kind and ready-made units—affects how long it lasts and how fast you can install it. Good care over many years includes regular checks and choosing energy-saving options. Working with a skilled, full-service company gives you help from start to finish. This ensures the underground substation works well and stays strong for decades.
Choosing the right spot is the base for any underground substation project. It decides how well the station runs for many years. The type of soil affects digging work, waterproof design, and how sturdy the structure stays over time. For instance, sandy ground often needs special pumps to remove water. Clay soil, however, can make air flow and water drainage harder.
Placing the underground substation close to areas that need electricity is very important. It cuts down power loss during delivery and makes the grid more dependable. Shorter cables mean less voltage drop, the system works better and workers fix problems less often.
You must also check what lies beneath the ground already. Cities usually have many buried pipes and cables—water lines, gas pipes, internet wires, and sewer systems. Missing them causes expensive changes, slow work, or even danger. Early surveys with ground-penetrating radar and 3D maps are a smart move, which show exactly what is down there before anyone digs.
Local laws can change both the design and the schedule a great deal. City rules may limit how deep you can build, and sometimes set noise limits. Or they restrict transformer size in homes or shops. In many urban places, you need environmental reports, especially near parks or protected natural areas.
Getting permits differs from one city to another. In big towns, the process can take several months when many government offices review the plans.So it is essential to plan these waiting times into your calendar. Otherwise, buying equipment or starting work gets delayed. Therefore, talking early with city officials and power companies speeds things up, which can help everyone stay on the same page from day one.
Cities rarely offer much room for regular above-ground stations. That is why modular layouts work so well. You can add capacity step by step as more power is needed. The same underground space stays useful without big changes.
Smaller equipment fits perfectly, and compact switchgear and sealed transformers keep the surface almost untouched. As a result, these choices matter on busy sidewalks or city squares, where people barely notice them. Smart cable paths—for both main and local lines—stop clashes with old utilities and futher make future repairs easier.
In parks or main squares, looks count as much as performance, so clever designs blend the underground substation into the scenery. Stone covers, grass on top, or nice fences hide the equipment well.
However, noise is another concern for nearby residents, which means cooling fans need sound-proof covers yet still move enough air. Besides, access hatches and air shafts on the surface should look neat, yet they must meet safety rules and allow workers quick entry when required.
Picking the right transformer size is not just a number on paper, because it keeps the whole system stable and helps the equipment last longer. If a transformer is too small, it gets too hot, the insulation breaks down, and power cuts happen more often. Conversely, choosing one that is far too big wastes money, as efficiency does not improve much.
Therefore, studying past power use and estimating future needs helps determine the best size. This way, the transformer works near its normal level on most days, which saves energy, and it still has extra room for hot days or sudden high demand.
Fire safety underground needs several layers of protection, so strong walls separate dangerous sections from anything that can burn, and automatic fire-fighting systems add extra safety whenever possible.
Meanwhile, water getting inside is a major risk below street level; therefore, fully sealed boxes, tight cable seals, and backup drains are must-have features. In addition, air systems should include sensors, which alert operators to dangerous gases—such as hydrogen from batteries or oil vapors from transformers—so nothing explodes.
The kind of transformer you pick changes daily operation and repair work, so dry-type transformers—which contain no oil—lower fire danger; however, they need strong fans to stay cool.
In contrast, oil-filled transformers handle heavy loads better and stay cooler naturally, yet they require leak sensors and oil-cleaning plans to protect the environment. Moreover, built-in switchgear—where switches sit inside the same box—saves room and makes wiring simpler

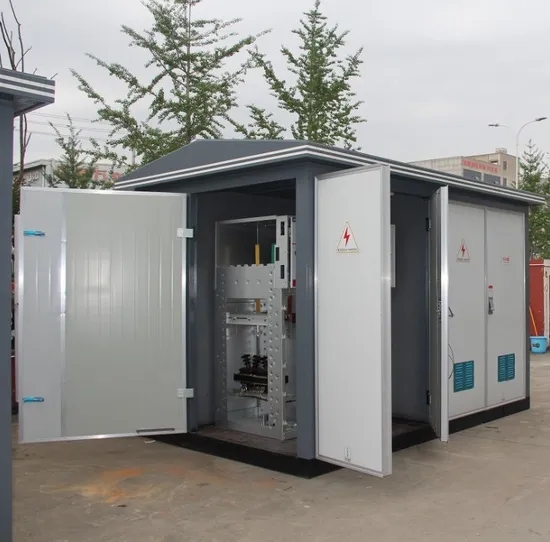

Ready-made underground substations speed things up greatly. Factories build and test them completely before shipping. Workers on site only connect cables and fill concrete. Quality stays high because everything happens in controlled conditions.

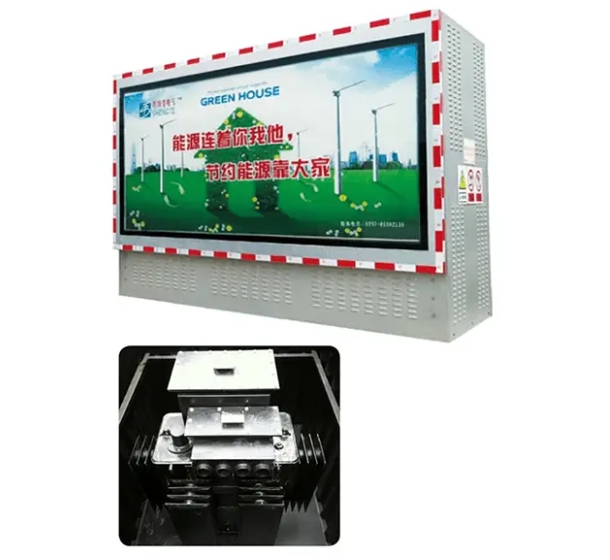

A good example is the YBD 100kVA 12kV 400V Box Type Underground Combined Distribution Transformer Substation. It fits tight city spaces perfectly. The all-in-one design cuts installation weeks into days while keeping strong performance.
Keeping an underground substation healthy should disturb people as little as possible, so remote monitors are a huge help. They watch temperature, current, insulation health, and gas levels all the time, meaning technicians visit only when truly needed
In addition, regular tests—such as insulation checks and partial discharge scans—catch small problems early. Moreover, modular parts let crews swap only one section, while the rest of the station keeps serving power without interruption, which is essential in places that never sleep.
Equipment that wastes less power costs more at first; however, it pays back year after year. This is because modern high-efficiency transformers lose less energy as heat, so electricity bills drop, and the reduced heat also means cooler operation and longer service life.

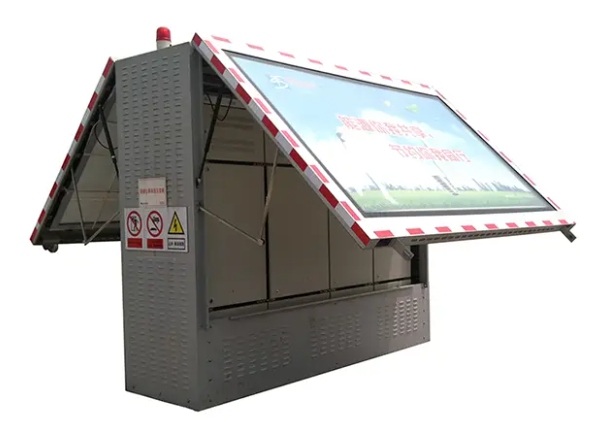

Smart control systems share load evenly among cables. This avoids expensive peak charges from the utility company. The YBD 125kVA 12kV 0.4kV Outdoor Buried Type Combined Transformer Landscape Substation shows this well. It saves energy and still looks good in parks or green areas.
Picking a supplier is more than comparing prices. You need a team that helps from the first sketch until years after start-up. Look for companies that guide planning, adjust designs, oversee installation, and answer questions long after the project ends.
SHENGTE stands out in this field. For over ten years, they have served customers worldwide. They deliver complete transformer solutions built for safety, strong performance, and long life—even in tough underground settings. Their compact substations follow IEC standards. At the same time, engineers gladly change details to match exact space limits or power needs.
SHENGTE uses modern factories and strict checks. Every unit leaves ready for decades of service. Their helpful team stays ready to update designs as cities grow and demand changes.
Q: What’s the typical lifespan of an underground substation transformer?
A: With good care, underground transformers usually run 25–35 years. Exact time depends on weather, daily load changes, and build quality.
Q: Are underground substations suitable for areas prone to flooding?
A: Yes, they work fine if built right. Strong waterproof cases, drainage pumps, and special insulation keep water out.
Q: Can I upgrade capacity later if demand increases after installation?
A: Yes. Modular designs let you add new units or swap bigger parts later. Major digging is rarely needed.
