In today’s power setup for buildings and plants, knowing how switchgear and switchboards differ matters a lot. This helps engineers, building bosses, and planners pick the right gear. Both items work in power lines, but they do separate jobs. They fit different needs. The gaps between switchgear and switchboards cover jobs, voltage limits, build style, and safety rules.
First, let’s define each one clearly. We need to grasp their basic roles in power flow.
Switchgear is a full safety and control setup. It handles high and medium voltage tasks. It holds breakers, cut-off switches, and fuses. Plus, it has control and guard tools. All sit inside a metal box. Switchgear forms the main spine of power networks. It guards against faults, splits loads, and runs the system. These smart units manage big power loads. They keep work safe and steady.

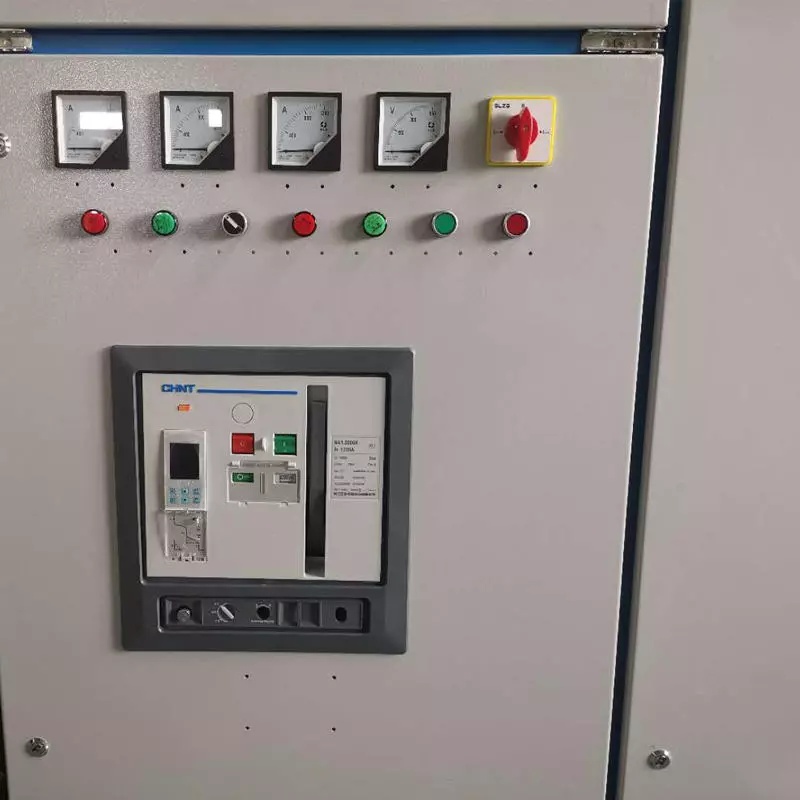

A switchboard acts as a central power split panel. It directs electric flow inside buildings. It works at low voltage. It serves as the key spot to send power to many circuits. Switchboards contain breakers, meters, and switches. These are set in order. This setup allows easy power control and circuit guard. Unlike switchgear, switchboards focus on splitting power, not full system guard.
The biggest gap lies in what each does and why it exists in power setups.
Switchgear runs as a complete guard and control unit for power grids. Its main job is to shield gear and people from faults, too much current, and short paths. Switchgear watches power signs all the time. And it cuts off bad parts fast. This stops harm to the whole setup. It also gives hand control for fixes and changes. Built-in guard plans cover gap guard, current guard, and ground fault guard. This brings top safety and trust.
Switchboards focus on smooth power split and circuit handling in buildings. Their key task is to take power from the supply. Then, they send it to different paths and loads. Switchboards offer easy spots to turn circuits on or off by hand. And they include simple guard items like breakers and fuses. These stop overload on single paths. The stress stays on useful power handling, not deep system guard.
How much voltage each can take marks another big gap. This decides where they fit and work.

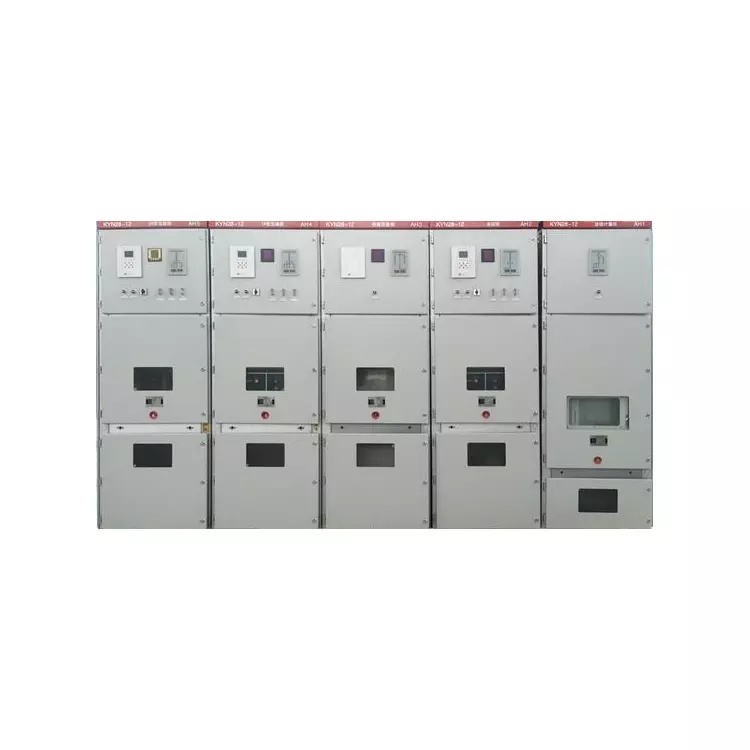

Switchgear is built for high and medium voltage jobs. It covers from 1kV to hundreds of kilovolts. This makes switchgear vital for power stations, big factories, and huge plants. Strong build and good insulation let it run safe at high levels. And it keeps people and gear okay. High voltage switchgear often uses gas or air insulation. This handles the stress from high power.
Switchboards work only in low voltage areas. They handle up to 1000V in most cases. This range suits shops, homes, and mid-size plants. Low voltage means simpler build and fewer safety steps. Switchboards serve offices, malls, clinics, and schools well. There, steady low power split keeps daily work going.
Inside parts and build depth show their different needs and voltage skills.
Switchgear has a tricky inside layout. Many special parts work together. It includes smart guard relays, talk systems, control wires, and watch tools. High voltage switchgear adds gas rooms, arc stop methods, and lock systems. The build handles high power stress, like sparks and heat growth. And it also has backup safety and full fault spot skills. This keeps the system strong always.
Switchboards use simple build rules. They aim for useful work and easy reach. The inside plan groups circuits clearly. Parts include normal breakers, meters, switches, and basic controls. They are placed in clear sets. Build stuff fits low voltage stress. This allows cheaper plans. Switchboards put user ease and fix comfort first, not tricky guard plans.
Safety steps and fix needs vary a lot. This comes from their work places and voltage levels.
Switchgear has full safety tools. These guard people and gear in high voltage spots. They include spark flash guard, gas watch, pressure release, and smart lock systems. These stop unsafe moves. To reach switchgear, you need special training and safe steps. Fixes often need system stop and strict rules. Modern watch lets guess fixes. This stops breaks before they start.
Switchboards use simple safety ways. These fit low voltage jobs. Key features cover good ground, circuit guard, and clear labels. Safety matters, but low voltage cuts risk level. Fix steps for switchboards are easier. You can often do them with part power on, if you follow safe rules. Normal fixes include look checks, tight links, and simple tests on guard items.
Knowing these key gaps helps pick the right gear for power plans and setup.

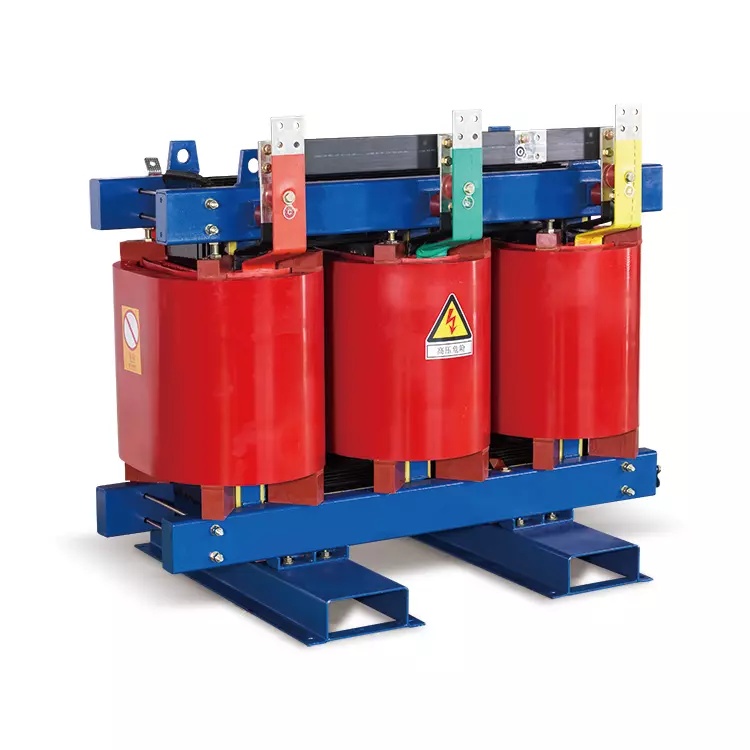

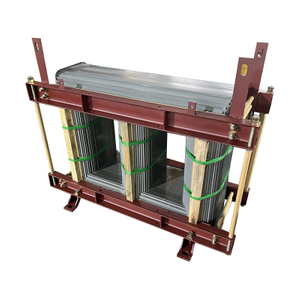

SHENGTE offers a full line of trusty gear for new power systems. As skilled transformer makers, we supply dry-type split transformers, oil-filled transformers, joined low voltage switchgear, and high voltage switchgear, and more. This ensures safe and smooth work in many uses. SHENGTE leads in split transformer making. Our focus on quality and new ideas means every item meets top field rules for work and trust.
We have a team of skilled R & D and plan workers. They hold over 10 years of skill and state okay. To keep growing R & D, boost new skills, and lead with tech plans, we link close with many schools and study centers in China. This builds a mix of make, learn, study, run, and sell. Our team way brings fresh answers. These meet changing needs of today’s power systems.
The gaps between switchgear and switchboards cover basic diffs in jobs, voltage skills, build depth, and safety needs. Switchgear acts as smart guard and control units for high and medium voltage uses. But switchboards work as handy power split panels for low voltage spots. Knowing these gaps ensures right pick of gear. It leads to best system work in any power setup. If you plan a new site or fix old lines, spotting each type’s strengths and limits brings better and safer power installs.
Q1: What is the main advantage of using switchgear over a switchboard?
A: The top plus of switchgear is its full guard skills. It also handles high voltage jobs. Switchgear offers smart fault spot, auto guard plans, and deep control tasks. These are key for big power grids and large plants. Switchboards shine in low voltage split. Yet, they lack the guard depth and voltage power that switchgear gives for hard power systems.
Q2: Can a switchboard be used in place of switchgear for high voltage applications?
A: No, switchboards cannot take switchgear’s place in high voltage tasks. Switchboards are made only for low voltage work, up to 1000V. They miss insulation, guard plans, and strong build for high voltage areas. Using a switchboard there would bring big safety risks and trust problems. High voltage needs the special plan and safety that true switchgear supplies.
Q3: How do I choose between a switchboard and switchgear for my electrical system?
A: Your pick depends on voltage level, guard needs, and job depth. For low voltage in shops, homes, or small plants, switchboards give enough split and basic guard. However, for medium to high voltage, power posts, or big plants that need smart guard and control, choose switchgear. Think about voltage, fault current, guard wants, and fix skills when you decide.
