Evaluating the Efficiency and Performance of Oil Immersed Distribution Transformers
Why Choose SHENGTE’s Oil-Immersed Distribution Transformers?

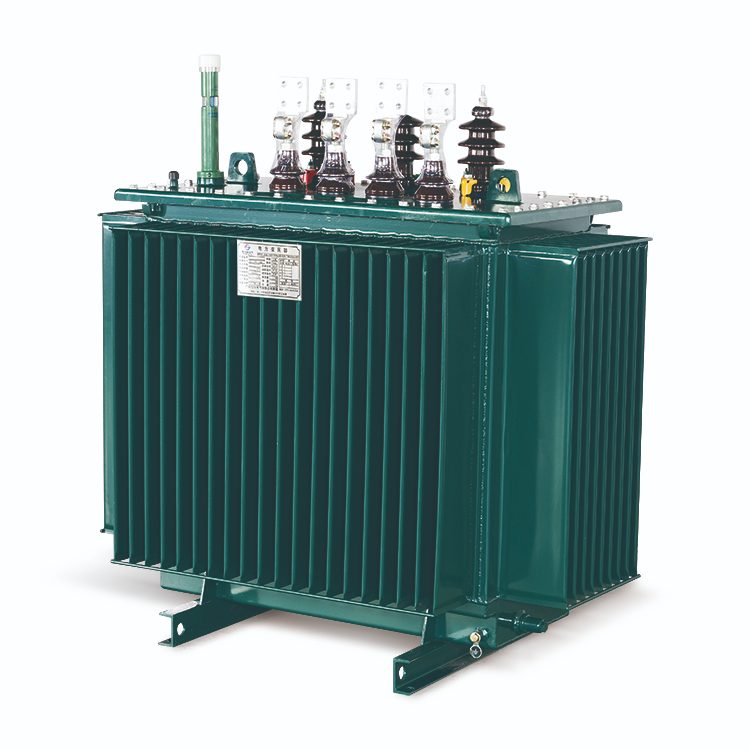

An oil immersed distribution transformer serves as a vital part in electrical power systems. It changes high-voltage electricity from transmission lines into lower voltages that fit residential, commercial, and industrial needs. These transformers contain insulating oil. This oil acts as both a coolant and an insulator. It helps ensure smooth operation under different load situations.
Oil immersed transformers use oil as the primary insulation material. They depend on oil for cooling too. These units feature a sealed design. This setup fully separates the transformer oil from the outside air. As a result, the transformer runs more safely. It also operates more reliably. Maintenance becomes simpler. This approach provides long-term steadiness. It cuts down on contact with outside pollutants.
Oil immersed distribution transformers stand out for their toughness, strong insulation qualities, and great cooling ability. The transformer oil boasts low thickness. It offers solid heat transfer and insulation traits. These properties safeguard the iron core and windings well. They slow down the wear on insulation materials. Thus, they prolong the transformer's working life. High-quality oil allows effective heat removal even during intense loads.
People often use these transformers in outdoor settings. Examples include substations, factory sites, and countryside power grids. There, strong defense against temperature changes matters a lot. Oil transformers need no upkeep. They show high dependability against shocks and disruptions. They resist lightning too. Plus, they provide solid insulation and fine heat conduction. All this makes them perfect for areas that need steady voltage control and little servicing.

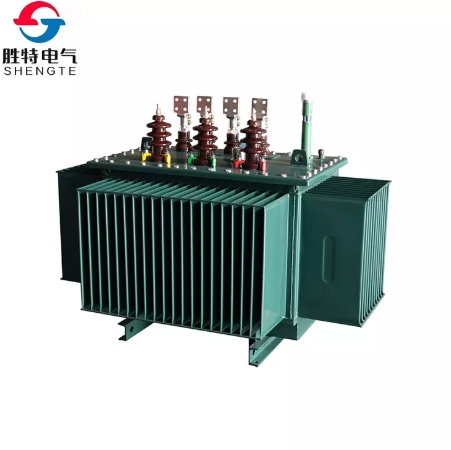

Start with load capacity and voltage needs. Every transformer model handles certain ratings. For example, S11-M-630 oil immersed distribution transformer’s rated capacity is 630. Rated Voltage-High Voltage options include 6, 10, 11. Rated Voltage-Low Voltage is 0.4. Select a model with enough power to avoid overloads. This keeps things running smoothly and effectively.
Site conditions matter greatly too. For outside setups, choose weather-tough materials like rippled steel tanks. The rippled oil tank comes from top-grade cold-rolled steel sheets. A special production line makes it. The surface gets cleaned of oil, cleared of rust, and treated with phosphate first. Then, it receives a three-proof coating. This includes rain resistance, dampness resistance, and salt spray resistance. Such preparation boosts lasting strength in tough weather.
Transformer efficiency ratings show how well electrical energy moves between circuits with few losses. SHENGTE low loss, energy-saving oil immersed transformer has a layered iron core build. This setup aims for top-notch results. The layered core cuts down magnetic waste. At the same time, it boosts general efficiency.
Energy waste mainly comes from no-load loss, which is core loss, and load loss, which is copper loss. Thanks to cutting-edge methods and detailed oil immersed transformer techniques, our firm blends deep technical know-how. We ensure outstanding product trustworthiness. This leads to big drops in both no-load loss and no-load current. Opting for models with smaller no-load losses aids major energy savings in the long run.
Before starting the setup, prepare the site well. This means creating firm bases that can hold the unit's full weight. For some models, total weight (KG) is 910. Leave enough airflow space around the unit. This supports good cooling.
Follow safety steps closely during setup. These include proper grounding, keeping away from active circuits while working, and sticking to fire safety rules. The oil inside the system makes fire risks a concern.
Regular care ensures a long life and steady output. Check routinely for oil leaks or shifts in oil color. Such signs might point to dirt or breakdown problems. The sealing rings use fine rubber materials. They help delay aging effectively. They block outside air and stop transformer oil from leaking. Intact seals prevent air from entering. This avoids harm to insulation quality.
Besides that, do regular checks on dielectric strength. These tests reveal if oil needs changing based on its insulation state over time.
At SHENGTE, we focus on making high-performing oil immersed distribution transformers. We build them to meet the changing needs of today's power systems. Our items use forward-thinking production ways. These stress trustworthiness and energy thrift in all sizes. They range from small units for minor sites to big ones for factory use.
Our lineup covers various models like the S11-M series. These offer capacities up to thousands of KVA. They come with fine-tuned electrical traits for many work settings. The iron core uses a stacked build. It consists of silicon steel sheets under 0.35mm thick. These have high magnetic flow. Such features lower no-load loss and no-load current in the transformer. This careful design assures top stability under diverse loads.
We value using prime materials like excellent insulating oils that match world standards. SHENGTE uses the superior quality transformer oil for manufacturing the oil immersed transformers. Every item faces strict tests before shipping. This confirms it meets global safety marks while staying affordable over its work life.
For more details about our product range or specifications tailored to your project requirements.
A: Oil type transformers offer better cooling efficiency, are more cost-effective for larger capacities, and have a longer lifespan compared to dry type transformers.
A: The oil should be tested annually for dielectric strength, moisture content, and other parameters. Replacement depends on test results or every five years as a general guideline.
A: Yes. Regulations may include containment measures to prevent oil leaks, noise level restrictions, and adherence to local environmental protection standards.
