Transformer Maintenance Guide: When And How To Service Your Equipment

1. Transformer Types and Maintenance Requirements

2. Transformer Maintenance Services: Preventive and Corrective Approaches

3. Best Practices for Transformer Maintenance

4. SHENGTE Transformer Solutions: Reliable and Low Maintenance Transformers

5. Conclusion

Transformers form the core of modern electrical power systems. They transfer energy across long distances with good efficiency. They also support steady operation in industrial, commercial, and residential networks. Proper transformer maintenance helps lengthen equipment life. It improves performance as well. And it cuts the chance of costly downtime. At SHENGTE, we bring over 15 years of skill in making high-quality transformers and electrical switchgear. We see that both preventive and corrective maintenance play a key role in keeping systems running well.

This guide looks at the different types of transformers we build. It covers their maintenance needs. It also shares good practices for safe and steady use. We discuss oil-filled distribution transformers, fully sealed transformers, high-voltage transformers, and low maintenance transformers. Other points for industrial power transformers come up, too.

Transformer Types and Maintenance Requirements

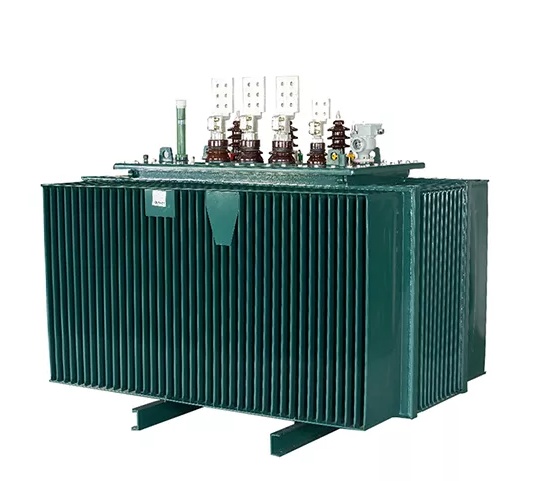

Oil-Filled Distribution Transformers

Oil-filled transformers see wide use because they give strong insulation and solid cooling. These units rely on transformer oil 25 as both a dielectric medium and a cooling agent. At SHENGTE, our oil-immersed transformers, such as the S11-M series, use a fully sealed structure. This blocks contamination and lowers maintenance needs. The transformer oil goes through vacuum drying and filtering before it enters the unit. That step supports top insulation and steady thermal results.

Regular electrical transformer maintenance covers oil level checks, leak searches, and tests for the dielectric strength of the oil. The maintenance of transformer oil matters greatly. Bad oil can cause insulation failure, overheating, or worse breakdowns. Key values to watch include the transformer oil freezing point and the density of transformer oil. Both affect how the transformer works, especially in very hot or cold weather.

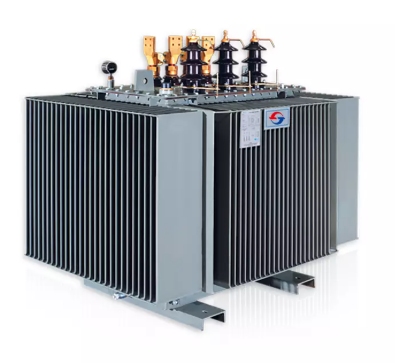

Fully Sealed Transformer vs Conservator Type Maintenance

We build fully sealed transformers and hermetically sealed transformers. These choices cut maintenance work and raise reliability. Unlike conservator-type transformers that use an oil conservator tank to handle expansion, hermetically sealed transformer vs conservator type units run without letting oil meet outside air. This stops moisture from getting in and lowers contamination risks. Service gaps grow longer as a result.

Our fully sealed transformers fit places that need low-maintenance transformers. Remote substations and industrial sites often face hard-to-do frequent checks. Routine maintenance for these units centers on outside looks, temperature checks, and oil tests from time to time. These jobs can happen at longer gaps than with standard conservator-type units.

High-voltage Transformer and Industrial Power Transformer Care

High-voltage transformers need careful attention. Large currents and high-voltage put heavy stress on them. SHENGTE high-voltage transformers use laminated silicon steel cores and spiral coils with long oil ducts. These features give balanced ampere-turn spread, good heat release, and a stronger build to handle short-circuit events.

Industrial power transformers often meet tough weather, heavy loads, and complex electrical setups. Our products aim for solid reliability. Yet electrical transformer maintenance stays vital. Key maintenance steps include:

· Inspecting bushings and insulation for cracks or wear

· Testing insulation resistance

· Monitoring transformer oil density and temperature

· Checking for unusual sounds, vibrations, or oil discoloration

These steps catch early wear signs. Timely fixes follow and help avoid big downtime costs.

Transformer Maintenance Services: Preventive and Corrective Approaches

At SHENGTE, we supply full transformer maintenance services tailored to the client's needs. Preventive maintenance centers on regular checks, tests, and small fixes to stop failures early. Corrective maintenance handles problems that show up in use, such as oil leaks, odd heating, or insulation wear.

Routine Electrical Transformer Maintenance Inspections

Routine inspections form the base of steady transformer work. Our trained engineers look for:

· Oil leaks and signs of contamination

· Proper functioning of cooling systems

· Integrity of gaskets and seals

· Temperature and pressure readings

· Mechanical alignment of windings and core

Routine inspections also cover checks on transformer accessories like Buchholz relays, pressure relief devices, and tap changers to confirm correct operation.

Maintenance of Transformer Oil and Oil Testing

Regular testing of transformer oil holds great value. At SHENGTE, we review:

· Dielectric strength

· Moisture content

· Acidity

· Density of transformer oil

· Viscosity and freezing point

These tests show if the oil can still deliver enough insulation and cooling. When oil shows wear, we carry out oil replacement or filtration to bring performance back to normal levels.

Cleaning and Mechanical Maintenance for Power Transformers

Dust, dirt, and other buildup can hurt transformer operation. We suggest regular cleaning of outside surfaces, bushings, and air paths. For cast resin transformer maintenance, these units need little work thanks to epoxy insulation. We still do visual checks and test connections for hot spots.

Mechanical maintenance covers checks on bolted connections, tap changers, and operating parts for correct torque and alignment. This keeps mechanical wear low and supports steady long-term results.

Thermal Imaging and Electrical Testing for Transformers

Advanced tools such as thermal imaging cameras help spot hotspots in windings, bushings, and connections. Electrical testing covers insulation resistance, turns ratio tests, and partial discharge checks. These let us find possible failures before they grow.

Best Practices for Transformer Maintenance

A clear transformer maintenance plan boosts daily efficiency and stretches equipment life. We suggest these best practices:

Follow Manufacturer Guidelines for Low Maintenance Transformers

Our SHENGTE transformers include full maintenance guides. Sticking to these steps makes sure all preventive work happens the right way and lowers failure risks.

Maintain a Consistent Inspection Schedule for Low Maintenance Transformers

Even low-maintenance transformers gain from planned checks. For oil-filled distribution transformers, we usually advise quarterly visual looks and full electrical testing once a year.

Monitor Transformer Oil Density and Freezing Point

Transformer oil serves as the lifeblood of oil-immersed units. Regular sampling and tests, including checks on the transformer oil freezing point and density of transformer oil, help keep insulation strong and block heat damage.

Keep Accurate Electrical Transformer Maintenance Records

Writing down all maintenance work, checks, and test results proves essential. Records let us follow performance trends and plan early actions.

Train Staff for Industrial Power Transformer Operation

Good training helps staff spot early warning signs like odd noises, oil leaks, or temperature jumps. At SHENGTE, we offer technical training and guidance so customers can handle transformer care with skill.

SHENGTE Transformer Solutions: Reliable and Low Maintenance Transformers

We at SHENGTE take pride in supplying transformers that mix strong performance, long life, and easy care. Our product range includes:

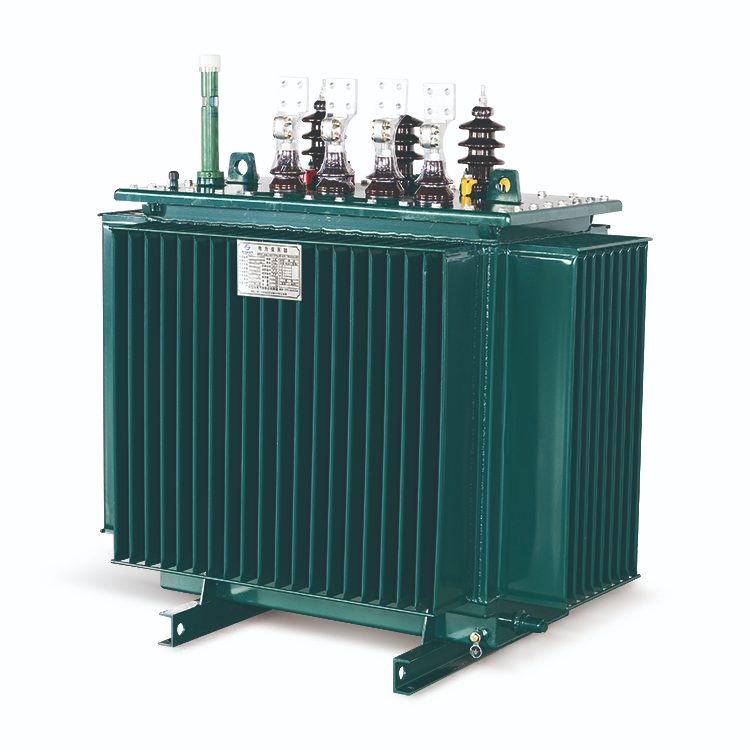

· Oil-Immersed Transformers: These feature low-loss laminated cores, spiral coil setups with long oil ducts, and corrugated tanks for heat expansion. The fully sealed transformers run with good energy use and support long-term reliability.

· Dry-Type Epoxy Resin Transformers: These maintenance-free units bring low running losses, fire safety, and strong moisture resistance. They suit indoor spots and load centers where safety comes first.

· Cast Resin Transformers: They offer easy setup, low overall running costs, and solid mechanical and thermal strength. These units fit high-reliability needs that call for little intervention.

Box Transformer China Supplier for Industrial Applications

As a trusted box transformer China supplier, SHENGTE offers many oil-immersed and dry-type transformers for industrial, commercial, and utility work. Our products pass strict tests for insulation strength, short-circuit hold, and running efficiency.

Specialized Transformer Maintenance Services for SHENGTE Transformers

For our customers, we supply tailored transformer maintenance services, including:

· Scheduled inspections and preventive maintenance

· On-site support and troubleshooting

· Transformer oil testing and conditioning

· Repair and replacement of worn components

With our know-how, we make sure each transformer keeps reliable performance over its full life. This cuts downtime and raises return on investment.

Advantages of SHENGTE Fully Sealed and High-voltage Transformers

· Low Maintenance Design: Our fully sealed transformers have lower maintenance needs compared with traditional conservator-type units.

· Durable Construction: High-quality silicon steel cores, vacuum-cast windings, and strong oil tanks add mechanical toughness.

· Energy Efficiency: Low no-load loss and lower daily energy use stand out.

· Global Standards Compliance: All products meet IEC and GB standards.

· Expert Support: Our skilled install and after-sales team ensures smooth setup and ongoing help.

Conclusion

Transformer maintenance plays a vital part in safe, reliable, and efficient power flow. Knowing the differences among oil-filled distribution transformers, fully sealed transformers, high-voltage transformers, and low maintenance transformers helps build a proactive plan. That plan stretches transformer life and lowers running risks.

At SHENGTE, we mix many years of skill, strict quality rules, and a full set of transformer solutions to back your power needs. From maintenance of transformer oil to mechanical checks and electrical testing, we deliver full transformer maintenance services to protect your investment.

Whether you seek a low-maintenance industrial power transformer, a hermetically sealed transformer, or a high-voltage transformer for tough jobs, SHENGTE stands as your steady partner. Our products deliver lasting performance, energy savings, and calm operation backed by skilled technical and after-sales support.
