An oil immersed transformer runs quietly during normal operation. Yet, if you start to hear humming or buzzing sounds that are louder than typical, this might suggest problems with magnetic flux or vibrations in the core. Clicking or popping sounds, however, could indicate electrical discharges or loose parts inside. You should never overlook these noises. They frequently come before mechanical wear or breakdown of insulation.
Shifts in noise patterns often serve as early signs of trouble inside. Steady changes in noise may point to problems with internal parts. For example, they could involve winding deformation or loosening in the core. Abrupt rises in noise might signal loose components or overheating in the transformer's core assembly. Regular listening for sounds helps spot these issues. It allows detection before they grow into expensive breakdowns.
Tracking temperature stands as one of the key parts of transformer upkeep. Too much heat can harm the insulating oil and damage parts. This leads to lower efficiency and possible failures. The insulation materials offer strong resistance to heat. They can handle overvoltage and overcurrent while running. If temperature jumps happen often, they may show overload situations or bad airflow around the unit.
Infrared thermography works well to find hot spots. These spots might not show up in standard checks. Thermometers and temperature gauges give ongoing readings. They allow operators to watch changes in real time. By spotting odd heating patterns soon, maintenance teams can stop insulation wear. This also helps lengthen the unit's working life.
Oil leaks create major dangers to both operation and safety. Losing insulating oil cuts down cooling power and insulation strength. As a result, the transformer becomes more prone to electrical problems. The sealing rings use top-grade rubber materials. These can slow down aging effectively. They also keep out outside air and stop transformer oil from leaking. If you do not fix leaks quickly, they can raise fire risks. This happens due to weaker dielectric strength.
Look around seals, gaskets, and joints. Pressure changes often cause leaks in these spots. The corrugated tank design appears in many newer transformers. It handles thermal growth well. Still, you need to check it regularly to confirm its condition.
Transformer oil acts as both an insulator and a coolant. So, its state directly impacts how well the unit works. Color changes or cloudiness show contamination or oxidation in the setup. Strange smells point to chemical changes from overheating or water getting in. The transformer oil features low viscosity. It has good heat transfer and insulation qualities. These properties protect the iron core and winding well. They also slow down aging of insulation materials and lengthen the transformer's service life. Any shift from this condition means you need testing right away.
Regular checks on oil quality must form part of every upkeep plan to prevent problems. Testing measures moisture levels, dielectric strength, acidity, and gases dissolved in the oil. All these serve as key signs of inner health. Experts suggest yearly testing for steady systems. But older transformers or those under heavy use may need checks more often.
Odd electrical behaviors often reveal deeper mechanical or heat-related troubles. Breakers or fuses tripping often may indicate overcurrent. This could link to short circuits or faults in windings. Voltage swings that affect linked equipment might mean weak regulation. Such issues could stem from failing insulation or wear on contacts in tap changers.
Standard electrical checks build a strong shield against surprise power cuts. Regular tests of insulation resistance make sure windings stay separated from each other and from ground. Power quality analyzers track voltage steadiness and harmonic issues. Both matter for keeping steady output despite varying loads.

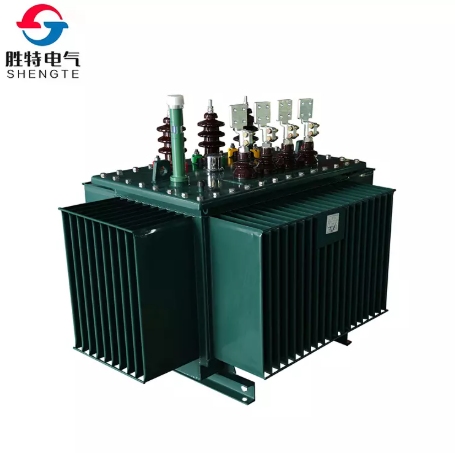

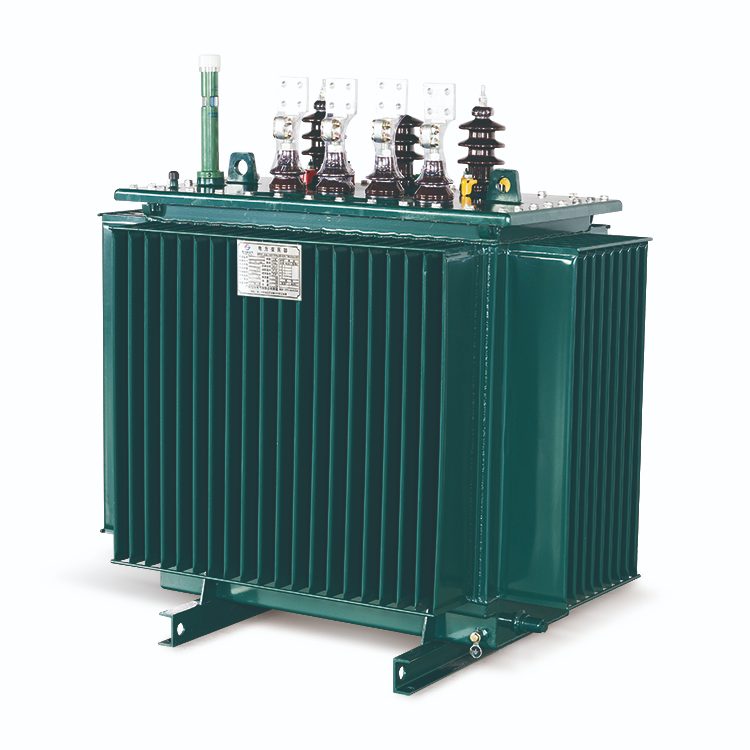

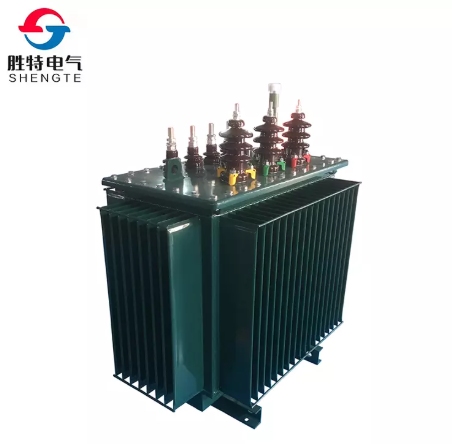

At SHENGTE, we build our oil immersed transformers with dependability and long life as main goals. SHENGTE low loss, energy-saving oil immersed transformer features a laminated iron core structure designed for superior performance. Our products use cutting-edge technology. This guarantees low no-load loss and better energy use in all sizes. Capacities range from 30 KVA up to 3150 KVA oil immersed transformer. Each unit delivers steady power for factories, utilities, and building projects.
We follow global manufacturing rules closely. We do thorough tests at each building step. By using modern technology and detailed oil immersed transformer methods, we draw on our firm's deep technical knowledge to guarantee top reliability. Each transformer gets vacuum drying for coils and cores. Then, filtered oil goes in via a managed vacuum step for clean filling. The corrugated oil tank comes from fine cold-rolled steel sheets on a special line. Its surface gets cleaning to remove oil and rust, plus phosphating. After that, it receives a three proof (rain proof, moisture proof, and salt spray proof) paint coating. This boosts working reliability and cuts costs for upkeep over time.
Our designs focus on solid build quality. Spiral coils include lengthwise oil paths for good heat release. They also offer strong mechanical strength during short-circuit stress. This ensures steady running even in tough settings.
A: Overloading, poor ventilation, and aging components are typical causes of overheating in an oil immersed transformer system.
A: Routine maintenance is recommended annually to inspect physical condition, electrical parameters, and oil quality—with more frequent checks if operational anomalies are detected.
A: Operating with leaks is risky as it can lead to insulation failure and increased fire hazards; repairs should be done promptly by qualified technicians using proper sealing materials compatible with transformer oil systems.
Through careful watching—listening for odd noises, tracking temperature changes, looking for leaks, evaluating oil quality shifts, and noting electrical oddities—you protect your gear's lasting power. You also ensure smooth power supply from your SHENGTE oil immersed transformer options made for top quality in every part.
