Views: 0 Author: Site Editor Publish Time: 2025-12-19 Origin: Site
Cities keep growing, packing more people and buildings into tight spaces. At the same time, storms and floods get stronger because of changing weather. Picking between underground substations and pad-mounted transformers is not just a tech choice. It's about keeping the lights on while blending into everyday life. Think about how these picks affect things from street looks to quick fixes in emergencies. Underground electrical substations hide the equipment deep down, out of view. Pad-mounted options sit on the ground in strong boxes. Both act as main transformer substations in power setups. But they deal with space, appearance, and dangers in their own ways. This guide will use real-world examples, such as how underground substations can reduce visual disturbance in busy areas and how surface-mounted transformers can remain stable in flood-prone regions, to help you weigh your options.
When planning power systems in crowded cities, space turns into a premium resource. Underground substations and pad-mounted transformers both try to make electrical gear take up less room. But they do it differently. One hides it all below ground, which saves open areas for parks or paths. The other keeps things easy to reach on top without spreading out too much. This mix affects not just the build. It also changes how the area feels in general. Let's take a closer look at each type.

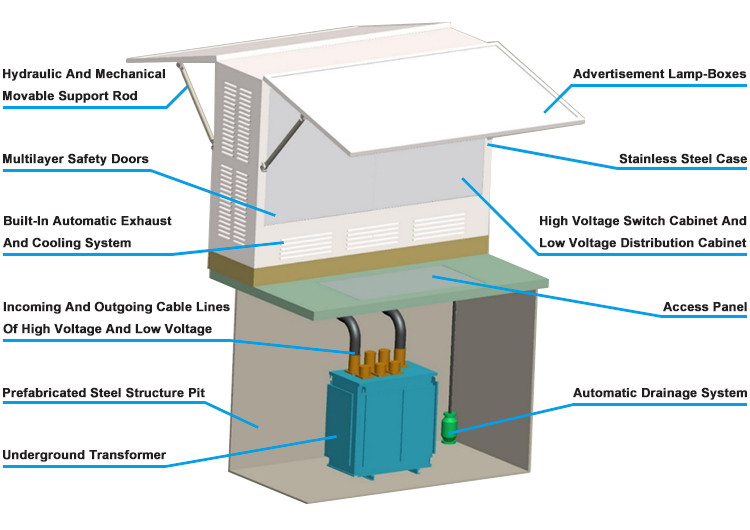

Underground substations tuck away the entire setup beneath the surface, making them a go-to for spots where every square foot counts. These box-type transformer substations, often rated at 1000 kVA with voltages stepping down from 12 kV to 400 V, combine transformers and switchgear into a single unit. Their footprint is usually just a tiny access point on top, like a manhole cover. This frees up land for other things.

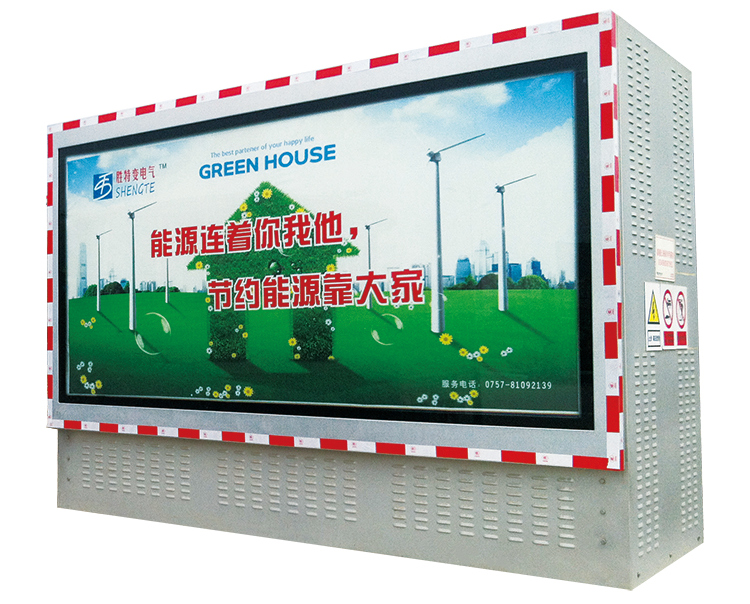

In high-rise districts, this means no bulky structures blocking views or pathways. Landscape impact stays minimal—think seamless integration into green spaces or sidewalks. Safety comes from the enclosed design, shielding components from vandalism or weather, though access requires digging in for repairs. For instance, SHENGTE's YBD series uses buried construction that meets IEC standards, ensuring reliable power without visual disruption. Urban planners favor these in historic areas where preserving aesthetics matters most. They handle loads up to 1000 kVA efficiently, but the key draw is how they vanish from sight, letting cities expand upward without ground-level clutter.

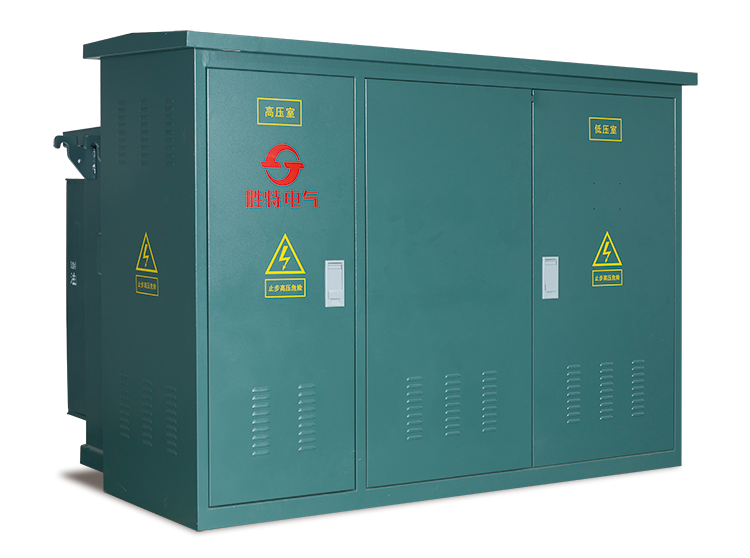

Moving from hidden spots underground to setups on the surface, pad-mounted transformers give a fresh way to handle space. These compact substation transformers rest on concrete pads. They stay inside green steel cabinets that fit into spots like street corners or back areas. Unlike underground choices, they skip the need for digging. This makes setup faster and lowers starting costs.
A typical unit, such as one with 1000 kVA capacity at 10 kV input and 400 V output, occupies about one-third to one-fifth the space of older European-style substations. This makes them great for home areas or shopping spots where land is tight but not hidden. Effects on the land are mild. The locked boxes look like plain utility cases, not ugly sights. And they last 20 to 30 years with good care. Safety stands out here, with sealed doors stopping folks from getting into live parts. In real use, these fit well near houses or plants. They give reliable power without taking over the scene.
Beyond space, weather threats like heavy rains push the need for tough designs. Underground substations face unique water risks due to their location, while pad-mounted ones gain an edge from elevation. Both types, as transformer substations, must stand up to environmental pressures, but their designs influence how they cope. This section explores those vulnerabilities and strengths, helping you match gear to local conditions.
Buried deep, underground electrical substations give cover from dangers above ground. But water getting in stays a major worry. These units, often in box-type setups, count on sealed covers to block dampness. Yet in places that flood a lot, rising ground water can leak in if seals break. For instance, a 630 kVA model at 12 kV might run okay in normal times. But during things like the 2021 New York floods, similar ones had breaks from water harm.
Safety rules include water-proof stuff and drain systems. But checks for upkeep are vital to catch breaks early. Landscape-wise, they minimize surface disruption, preserving green areas even in wet climates. Applicable in coastal cities or riverfronts, they suit scenarios where aesthetics trump easy access. Electrical substation manufacturers add features like epoxy coatings for extra defense, but the risk means they're better for drier urban cores than flood plains. Overall, while resilient, these demand careful site prep to avoid costly outages.
On the flip side, pad-mounted transformers rise above flood worries by sitting on raised pads, often 12 to 18 inches off the ground. This design, common in compact substation transformers, lets water flow underneath without touching critical parts. A 1000 kVA unit at 50 Hz frequency, for instance, uses sealed oil tanks that block rainwater and dust, extending life in humid spots.
Environmental defense extends to wind and debris, with sturdy steel holding firm. Safety gets a boost from the elevated position, reducing animal interference or accidental contact. In urban setups like industrial parks, they apply well where quick recovery post-storm matters. Unlike buried options, these allow visual inspections without tools, cutting response times. Compact substation manufacturers incorporate zinc oxide arresters for surge protection, making them reliable in variable weather. This approach fits cost-conscious projects in flood-prone suburbs, balancing resilience with everyday practicality.
Running these systems smoothly involves more than installation—ongoing care and long-term expenses play huge roles. Underground substations might save on visuals but add complexity to fixes, while pad-mounted ones prioritize ease. As key players in power distribution, both transformer substations require weighing these factors against budgets and downtime tolerance. Here's a deeper look at what keeps them humming.
Getting to the heart of underground substations means dealing with buried access, which can slow things down. These units, like a 500 kVA model at 12 kV, enclose everything in a pit, so routine checks involve lifting covers and possibly pumping water. This setup boosts safety by limiting exposure but raises labor needs—think specialized crews for confined spaces.
In contrast, pad-mounted transformers open up with simple locks, allowing techs to inspect high-voltage fuses or oil levels quickly. A three-phase unit with Dyn11 connections might need checks every six months, far less invasive than digging. Applicable in busy areas, they reduce outage risks during maintenance. Electrical substation manufacturers design them with modular parts for swift swaps, keeping urban power flowing. The difference shows in real scenarios: underground might suit stable grids, but pad-mounted excels where frequent tweaks are expected.
Over time, costs add up differently for each type. Underground electrical substations often front-load expenses with digging and sealing, but they cut vandalism and repairs thanks to hidden placement. A 315 kVA unit could run $50,000 to install, with annual maintenance around $2,000, lasting 25 years if protected well.
Pad-mounted options, meanwhile, start cheaper—say $30,000 for an 800 kVA model—due to surface setup. Their sealed designs mean lower upkeep, perhaps $1,500 yearly, with overload capacity handling peaks without extra wear. Box-type transformer substations like these factor in energy losses too: no-load at 1.15 kW versus higher in some buried units. For budget-tight projects, pad-mounted wins on total ownership, especially in moderate climates. Compact substation manufacturers highlight this in custom builds, helping match costs to needs.
With basics covered, it's time to align these with specific demands. High-density spots lean one way, while budget-focused ones pull another. Both as transformer substations, they adapt via customization from makers like SHENGTE. This tailoring ensures safety and efficiency, whether buried or surfaced.
In packed city centers or critical facilities, underground substations shine by vanishing into the background. These underground electrical substations handle heavy loads, like 1000 kVA at 12 kV, without eating surface space—perfect for hospitals or data centers where downtime isn't an option.
Safety features include fused protection and sealed boxes, minimizing risks in populated zones. Landscape remains untouched, ideal for scenic districts. SHENGTE provides customized underground substations, such as the YBD series, with modular builds for precise fits. They suit scenarios demanding zero visual impact, like downtowns with 24/7 power needs. Clients report 99.9% uptime, thanks to robust insulation. If your project prioritizes stealth and reliability, this path delivers.
When budgets tighten and ease of care tops the list, pad-mounted transformers step up. These compact substation transformers install fast on pads, covering capacities up to 1600 kVA for factories or neighborhoods.
Their elevated design dodges floods, while locked cabinets boost safety in public spots. Maintenance stays simple—visual checks suffice, cutting crew time. SHENGTE's compact prefabricated substations, like the ZGS11 model, offer flexible configurations with low losses. They apply best in suburbs or industrial sites where quick fixes matter more than hiding gear. With costs 20% lower upfront, they fit value-driven builds without skimping on performance.
Looking ahead, urban power grids will mix underground substations and pad-mounted transformers to tackle growing demands. Underground options bring invisibility and space savings, suiting dense cores, while pad-mounted ones offer quick setup and flood resistance for flexible edges. This hybrid strategy builds resilience against weather shifts and population booms. Electrical substation manufacturers continue innovating, like with smarter monitoring in box-type transformer substations. Utility teams can create networks that adapt, ensuring a steady supply amid challenges. In the end, the right pick hinges on site specifics, but blending strengths paves the way for sustainable cities.
SHENGTE's professional team is ready to support you. Contact us now at juanie@shengtetransformer.com, and we can provide customized product selection and solution recommendations based on your project needs.
