Power systems need sturdy and helpful transformers. They keep electricity steady for many uses. Pad mounted distribution transformers are a great pick for new power setups. They blend safety, good looks, and strong work in one unit. These transformers show big progress in power technology. They offer power companies and building managers an easy way to meet electricity needs.
Knowing the main features and build of these transformers shows why they’re used in many places.

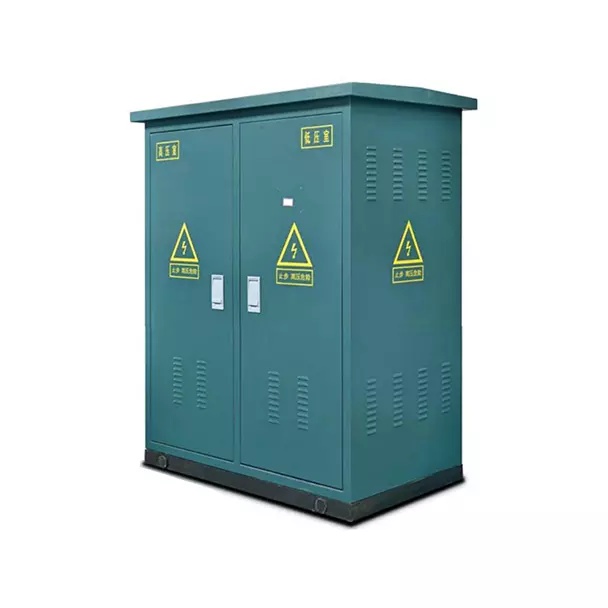

The pad mounted transformer, also called the American Box Transformer or combined transformer, is a key power unit in cable networks. These complete units sit on concrete pads at ground level. They avoid overhead lines and old pole setups. The unit holds high-voltage switches and fuses inside the transformer box. Its small size works well in cities. Space is limited there, and looks matter.
The transformer has a fully sealed design. The oil tank provides great protection and heat spread for the oil inside. Main parts include the core, windings, cooling system, and tough cover. The combined transformer, often known as American style box transformer or pad mounted transformer, is a full set of power change and delivery tools. It links the transformer, load switch, and safety gear for the high-voltage part. It also includes low-voltage delivery tools, a low-voltage measure system, and a reactive power fix tool. The strong build ensures lasting trust and safe work.
Pad mounted transformers offer benefits beyond just power delivery. They provide many upsides that make them appealing for different uses.
The transformer is fully sealed with a protected structure. No extra safety gap is needed. This keeps people safe. The closed design stops unwanted access to live parts. It lowers the chance of shocks or bad acts. Strong locks and tamper-proof features add extra safety. These traits make the transformers perfect for public spaces where safety is key.
The transformer is small and light. It’s easy to set up and care for. This boosts safety, trust, and nice looks. Ground-level setup removes ugly overhead lines and poles. It helps keep areas looking neat. The compact build takes up little space—about 1/3 to 1/5 of a European style transformer with the same power. This saves a lot of ground space, which is great for city projects.
The design makes care simple. No special lift tools or long stop plans are needed. Workers can reach it easily at ground level. They can do checks, oil tests, and part swaps faster than with pole units. High-voltage wires work for both ring networks and end points. The power setup is flexible and very trusty. This ease cuts care costs and boosts system strength over its life.
Pad mounted distribution transformers serve many fields. Each gains from their special features and work benefits.
These transformers are used widely in cities, home areas, hotels, hospitals, factories, oil stations, airports, railways, docks, and other outdoor power spots. In homes, they provide steady electricity while keeping the area pretty. They run quietly and don’t stand out. This makes them great for suburban areas where nature and looks matter. Underground cables avoid overhead wires. This cuts weather-related power stops and improves service for homeowners.
Business places gain a lot from pad mounted transformers. They handle changing power needs and stay flexible. Shops, offices, and mixed buildings need steady power for busy times without losing quality. The block-style design allows for growth or power shifts as business needs change. This offers lasting value for land builders and site managers.
Factories need tough power solutions for big loads with little downtime. Pad mounted transformers shine here. They deliver steady power while taking up little space in work areas. Manufacturing plants, processing sites, and delivery centers rely on them to keep work going. Even short power breaks can cause big losses or harm tools.
Choosing the right transformer needs careful thought about many tech points. This ensures great work and long life.
Picking the right load size means looking at current needs and future growth. Model: ZGS11-100 Rated Capacity (KVA): 100 is one of many size options. Larger units fit bigger needs. A load check should look at busy times, mix factors, and growth plans. This prevents early limits or overly big setups that hurt efficiency.
Rated Voltage (KV)-High Voltage: 6, 6.3, 6.6, 10, 10.5, 11 and Rated Voltage (KV)-Low Voltage: 0.4 show flexible voltage choices. The high voltage depends on the power company’s setup. The low voltage must match user needs. Connection Method: Yyn0, Dyn11 offers setup options to fit specific uses and power link rules.
Local weather affects transformer choice and work. Factors include heat ranges, wet levels, ground shakes, flood risks, and dirt types. Protection Level IP33 shows how well it guards against weather. This ensures steady work in different conditions. Good site prep, like proper draining and airflow, helps the transformer work well and last longer.
SHENGTE offers a wide range of trusty gear for modern power systems. As skilled transformer makers, we provide dry-type distribution transformers, oil-immersed transformers, integrated low voltage switchgear, and high voltage switchgear, etc. These ensure safe and good work in many uses. The company focuses on quality and new ideas. This makes them a top name in the power delivery field.
We have a team of expert R&D and design workers. They have over 10 years of know-how and country approval. To grow research and new skills, we work closely with schools and study centers in China. This builds a model of making, learning, researching, running, and selling. This teamwork ensures products use the latest tech and best field practices.
Whether it’s a distribution transformer, an oil-immersed transformer, or matching low voltage switchgear and high voltage switchgear, we guide you step by step. We handle everything until delivery and even after-sale help. Their full service gives buyers complete fixes from first talks to ongoing care.
Pad-mounted distribution transformers are a trusty, safe, and good-looking solution for new power delivery in cities and suburbs. Their small, ground-level design makes setup and care easy. Careful checks of load size, voltage, and weather ensure the best pick. Many options provide affordable, steady solutions for different needs.
A: Pad mounted transformers usually last 25-30 years with normal use and good care. Weather, load patterns, and care habits affect life a lot. Regular oil tests, cooling care, and safety gear checks help extend life. They keep work steady over time.
A: These transformers are made for outdoor use. But they can go inside with good air and safety steps. Indoor spots need space for heat release, quick access, and rule-following. Extra care for fire safety and weather control ensures safe use inside.
A: Sizing needs a full look at current needs, future plans, and mix factors. Expert load checks should cover busy times, power traits, and safety buffers. Talking with skilled power experts and checking power link rules ensures the right size. This balances start costs with long-term good work and trust.
