PRODUCT INTRODUCTION

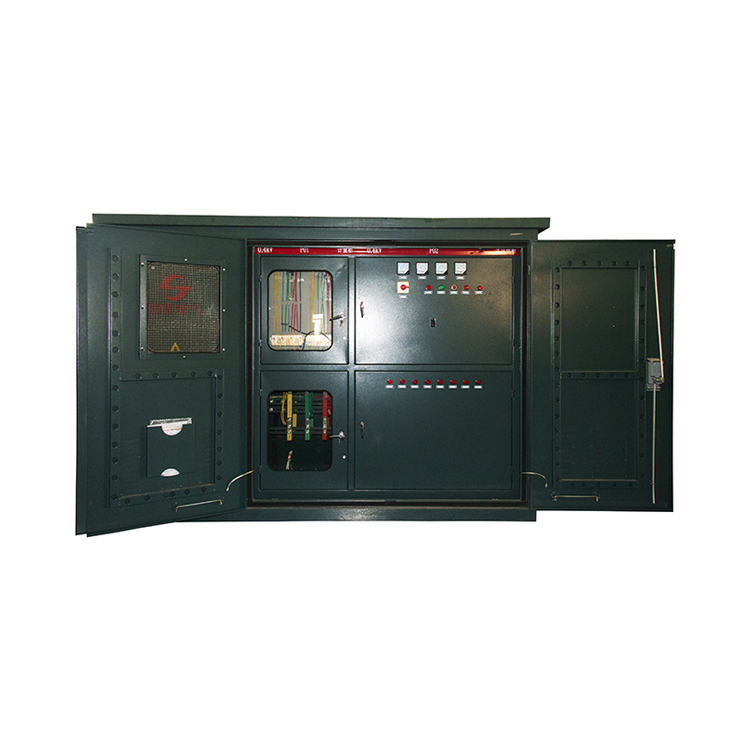

Combined transformer (also known as American box transformer), as an important power supply unit in cable distribution network, puts high-voltage load switch and high-voltage fuse in the transformer box.
Full-sealed structure is adopted in the tank. Transformer oil in the tank has good insulation and heat dissipation performance.
It has the advantages of small size, light weight, convenient installation and maintenance, safety and reliability, beautiful appearance and so on.
Widely used in cities, residential areas, hotels, hospitals, factories and mines, oil stations, airports, railways, wharfs and other outdoor power supply places.
PRODUCT CHARACTERISTICS
A: Substation structure is "eye" or "product" layout.
B. The shell material of the product is aluminium alloy plate, stainless steel plate, composite plate, glass fiber reinforced cement plate, etc.
C. The substation base is made of galvanized channel steel or cement with strong corrosion resistance and sufficient mechanical strength.
D. The top cover of the box body adopts a double-layer structure, which has good heat insulation, radiation protection and ventilation effect.
E. Each room of substation is separated by iron plate, and each room is equipped with lighting facilities. The top G of transformer is equipped with automatic exhaust device to adjust.
PRODUCT CHARACTERISTICS
Combined Transformer (American Box Transformer)
| Model | Rated capacity (KVA) | Voltage combination tapping range | Connection group number | No-load loss (w) | Load Loss (W) | No-load current (%) | Short circuit impedance (%) | Outline size | ||
| High Voltage (KV) | Distribution range (%) | Low Voltage (KV) | Length * width * height (mm) | |||||||
| ZGS11-100 | 100 | 0.4 | 200 | 1580/1500 | 1.8 | 4 | 11830x1355x1735 | |||
| ZGS11-125 | 125 | 240 | 1890/1800 | 1.7 | 1830x1365x1735 | |||||
| ZGS11-160 | 160 | 270 | 2310/2200 | 1.6 | 1830x1375x1735 | |||||
| ZGS11-200 | 200 | 6 | 340 | 2730/2600 | 1.5 | 1830x1375x1735 | ||||
| ZGS11-250 | 250 | 6.3 | ±5 | 400 | 3200/3050 | 1.4 | 1830x1405x1735 | |||
| ZGS11-315 | 315 | 6.6 | ±2×2.5 | Yyn0 | 480 | 3830/3650 | 1.4 | 1830x1425x1735 | ||
| ZGS11-400 | 400 | 10 | Dyn11 | 570 | 4520/4300 | 1.3 | 1830x1435x1805 | |||
| ZGS11-500 | 500 | 10.5 | 680 | 5410/5150 | 1.2 | 1830x1445x1860 | ||||
| ZGS11-630 | 630 | 11 | 810 | 6200 | 1.1 | 4.5 | 1830x1445x1860 | |||
| ZGS11-800 | 800 | 980 | 7500 | 1 | 1830x1490x1860 | |||||
| ZGS11-1000 | 1000 | 1150 | 10300 | 1 | 1830x1675x2005 | |||||
| ZGS11-1250 | 1250 | 1360 | 12000 | 0.9 | 2100x1845x2035 | |||||
| ZGS11-1600 | 1600 | 1640 | 14500 | 0.8 | 2100x1885x2135 | |||||
| Note: Product shape, size and weight are data for a certain period of time, which may change due to design improvements. | ||||||||||
PRODUCT INTRODUCTION
Combined transformer (also known as American box transformer), as an important power supply unit in cable distribution network, puts high-voltage load switch and high-voltage fuse in the transformer box.
Full-sealed structure is adopted in the tank. Transformer oil in the tank has good insulation and heat dissipation performance.
It has the advantages of small size, light weight, convenient installation and maintenance, safety and reliability, beautiful appearance and so on.
Widely used in cities, residential areas, hotels, hospitals, factories and mines, oil stations, airports, railways, wharfs and other outdoor power supply places.
PRODUCT CHARACTERISTICS
A: Substation structure is "eye" or "product" layout.
B. The shell material of the product is aluminium alloy plate, stainless steel plate, composite plate, glass fiber reinforced cement plate, etc.
C. The substation base is made of galvanized channel steel or cement with strong corrosion resistance and sufficient mechanical strength.
D. The top cover of the box body adopts a double-layer structure, which has good heat insulation, radiation protection and ventilation effect.
E. Each room of substation is separated by iron plate, and each room is equipped with lighting facilities. The top G of transformer is equipped with automatic exhaust device to adjust.
PRODUCT CHARACTERISTICS
Combined Transformer (American Box Transformer)
| Model | Rated capacity (KVA) | Voltage combination tapping range | Connection group number | No-load loss (w) | Load Loss (W) | No-load current (%) | Short circuit impedance (%) | Outline size | ||
| High Voltage (KV) | Distribution range (%) | Low Voltage (KV) | Length * width * height (mm) | |||||||
| ZGS11-100 | 100 | 0.4 | 200 | 1580/1500 | 1.8 | 4 | 11830x1355x1735 | |||
| ZGS11-125 | 125 | 240 | 1890/1800 | 1.7 | 1830x1365x1735 | |||||
| ZGS11-160 | 160 | 270 | 2310/2200 | 1.6 | 1830x1375x1735 | |||||
| ZGS11-200 | 200 | 6 | 340 | 2730/2600 | 1.5 | 1830x1375x1735 | ||||
| ZGS11-250 | 250 | 6.3 | ±5 | 400 | 3200/3050 | 1.4 | 1830x1405x1735 | |||
| ZGS11-315 | 315 | 6.6 | ±2×2.5 | Yyn0 | 480 | 3830/3650 | 1.4 | 1830x1425x1735 | ||
| ZGS11-400 | 400 | 10 | Dyn11 | 570 | 4520/4300 | 1.3 | 1830x1435x1805 | |||
| ZGS11-500 | 500 | 10.5 | 680 | 5410/5150 | 1.2 | 1830x1445x1860 | ||||
| ZGS11-630 | 630 | 11 | 810 | 6200 | 1.1 | 4.5 | 1830x1445x1860 | |||
| ZGS11-800 | 800 | 980 | 7500 | 1 | 1830x1490x1860 | |||||
| ZGS11-1000 | 1000 | 1150 | 10300 | 1 | 1830x1675x2005 | |||||
| ZGS11-1250 | 1250 | 1360 | 12000 | 0.9 | 2100x1845x2035 | |||||
| ZGS11-1600 | 1600 | 1640 | 14500 | 0.8 | 2100x1885x2135 | |||||
| Note: Product shape, size and weight are data for a certain period of time, which may change due to design improvements. | ||||||||||
