What Key Factors Should You Evaluate Before Choosing a Power Distribution Transformer?
How Do Core Design and Material Influence Transformer Efficiency?
What Cooling Methods Are Available, and Which One Suits Your Application?
How Important Is Energy Efficiency in Long-Term Operational Costs?
What Role Does Manufacturer Expertise Play in Your Selection Process?
Picking the best power distribution transformer means matching its voltage, size, and type to exactly what your system needs every day. You have to think about the weather and place where it will work. Some spots need oil-filled units; others do better with dry-type models. The way the core is built changes how much power it wastes and how loud it gets. Choosing good materials and low-loss designs saves money for many years. Also, make sure the transformer follows rules like IEC 60076. Finally, team up with a company that really knows its stuff. That way you get a strong, money-saving power distribution transformer that fits your needs perfectly and lasts a long time.
Getting the right power distribution transformer starts with simple matching. The voltage numbers must fit your power line and the machines that use the electricity. Common high-voltage sides are 11 kV, 10.5 kV, 10 kV, 6.3 kV, or 6 kV. The low-voltage side is usually 0.4 kV. You can see this in SHENGTE’s S11 and SCB10 series models. Rated Voltage (KV)-High Voltage: 11, 10.5, 10, 6.3, 6; Rated Voltage (KV)-Low Voltage: 0.4.
Size, or capacity, is just as important. Too big, and you spend extra money for nothing. Too small, and it gets hot fast and breaks early. Pick one that works near its sweet spot most of the time. That keeps it cool and saves power.

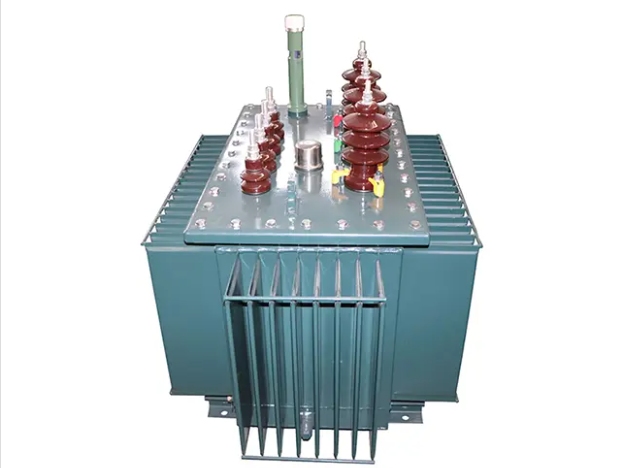

You also need to know if you want to step the voltage down or up. Most people need to step it down. The SHENGTE S11 50kVA 10kV 400V Step Down Power Three-Phase Oil-Immersed Distribution Transformer does exactly that job. It turns high grid voltage into the lower voltage factories and shops use every day.
Where the transformer lives changes how long and how well it works. Wet air, high mountains, or dirty factories hurt insulation and make heat move slower. Dry-type transformers, like the SCB10 series, fit inside buildings where the air is cleaner. They come with covers that give IP20 to IP33 protection. The casing can provide further safety protection for the transformer, with protection levels of IP20, IP23, IP30, IP33, etc.

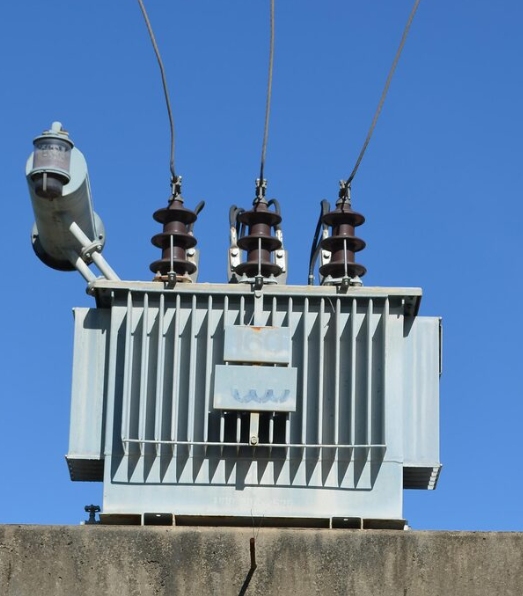

Will it sit inside or outside? That choice picks the cover material and strength. Outside units face rain and dust. Sealed oil-immersed transformers from the SHENGTE S11 series handle those tough conditions without trouble.
Think about reaching it later for checks and fixes. If the spot is hard to get to, workers waste time. That can hurt power supply when something goes wrong.
The shape of the iron core changes two big things: wasted power and sound. Core-type units stay more open. Heat leaves easier. So they suit very big jobs. Shell-type cores wrap the wires tighter. They block stray magnetic fields better. And they stay quieter. That helps in city areas where noise bothers people.
SHENGTE dry-type transformers use top-quality cold-rolled silicon steel sheets. The sheets stack in a three-step slanted way. This makes the core strong and smooth for power flow. The iron core is made of high-quality cold rolled silicon steel sheets, with a three-stage fully inclined joint structure.
Better steel in the core cuts power loss when the transformer just sits there. Take the SCB10-500 model. It loses only 1300 W when idle and pulls just 0.6% no-load current. That shows tight control of magnetism. No-load Loss (W): 1300; No-load Current (%): 0.6.
Cheap steel wastes more power every hour of every day. Over years, that adds up to big electric bills and extra heat. Good steel keeps bills low and the transformer healthy longer.

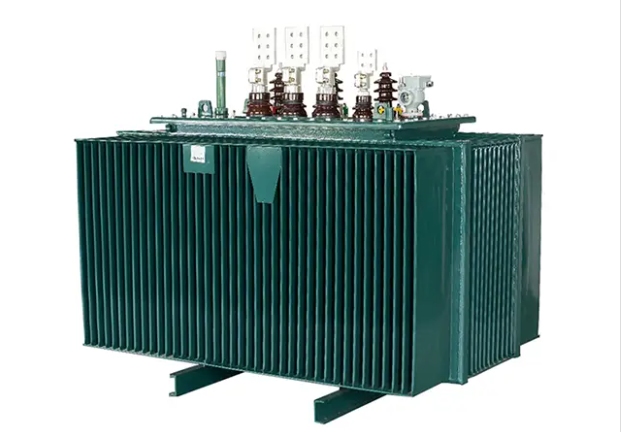

Cooling keeps the transformer alive under heavy work. Oil-immersed units move heat away fast. Oil flows around the coils and carries heat to the tank walls. The SHENGTE S11-M-630 loses only 810 W with no load and handles big jobs thanks to its oil cooling. No-load Loss (W):810 Load loss（W）: 6200.
Dry-type units use only air. They work great inside buildings where fire risk must stay low. But very heavy loads can push them too hard unless you add strong fans. The transformer is equipped with a cross flow top blowing cooling fan; it is with low noise, high wind pressure enhancing the overload capacity of the transformer.
Sometimes power demand jumps suddenly. Forced cooling helps the transformer take the extra load safely. Dry-type units get powerful cross-flow fans. Oil units can pump oil faster. SHENGTE dry-type models have smart temperature controls that turn fans on when needed. The transformer is equipped with an intelligent temperature controller, which improves the operational safety and reliability.
Hospitals, data centers, and big factories love this feature. Power never drops even when everyone turns everything on at once.
Transformers run 24 hours a day, every day. Even small cuts in wasted power save a lot of money. Look at the SCB10-1250. It handles 1250 kVA yet loses only 2090 W when idle. No-load Loss (W): 2090; Rated Capacity (KVA): 1250.
Less waste means lower bills and less harm to the planet. Many places give extra money back or tax breaks for green equipment.
Good transformers follow strict rules. The IEC 60076 family sets the world standard for testing and safety. In America, ANSI and IEEE rules add extra details that match local power systems.
A great company does more than sell a box. They help you pick the exact right size, taps, and cover. SHENGTE engineers sit with you from day one. They adjust voltage settings, cooling style, and core type so everything fits your job perfectly.
SHENGTE builds tough, smart power distribution transformers for factories, offices, and city grids. Their S11 oil-immersed line works hard in bad weather yet keeps costs fair. Take the S11 30kVA 10kV 400V model. It runs quiet, loses little power, and stands up to years of daily use.
Help does not stop at delivery. SHENGTE sends teams to start the unit and hands over clear guides. Any question years later, they still answer fast.
Choose a size that runs happily most days. Too big costs extra and never works hard enough to be efficient. Too small gets hot too often. The SCB10-315 hits a nice middle. Only 880 W idle loss and light enough to move easily. Model: SCB10-315; No-load Loss (W): 880; Weight (KG): 1450.
Factories need steady voltage even when machines turn on and off. The S11 50kVA 10kV 400V oil-immersed step-down transformer keeps voltage smooth and stays quiet. Sealed tanks let it live outside in rain or dust. It meets world rules and handles tough daily work without complaint.
Q: What is the difference between dry-type and oil-filled distribution transformers?
A: Dry-type ones cool with air and are safer inside buildings. Oil-filled ones move heat better and carry bigger loads for a long time.
Q: How do I determine the right kVA rating for my transformer?
A: Add up your highest power need plus a little room for growth. Then pick the size that runs best at that normal level.
Q: Are S11 series transformers suitable for outdoor use?
A: Yes. Their sealed tanks protect against rain, dust, and bad weather in factory yards or city streets.
