Why “safe distribution” is engineered, not assumed

Safe power distribution is not a feature you gain by purchasing a transformer or a switchboard. It is an outcome that emerges from coordinated engineering decisions across insulation systems, thermal design, mechanical strength, protection logic, enclosure architecture, testing discipline, and lifecycle support. When one of these points is weak, the entire system becomes fragile.

It is quite clear in real projects. For example, overheated windings reduce insulation life, poor moisture resistance leads to partial discharge, and weak short-circuit strength turns a transient fault into a permanent failure. These are not the issues of parameters, but engineering outcomes.

If you are responsible for specifying, evaluating, or operating substation equipment, the question is not whether the equipment “meets a standard” on paper but whether its design logic actively prevents faults, limits their impact, and sustains performance over years of service. Each of the following components should be examined from this perspective.

Who is SHENGTE and why does its manufacturing logic matter in modern substations?

SHENGTE is a distribution equipment manufacturer based in Foshan, Guangdong, focused on green power distribution, energy efficiency, and environmental protection. Established in 2011 with more than 15 years of transformer manufacturing experience, our company produces oil-immersed transformers, epoxy resin cast dry-type transformers, prefabricated substations, and high- and low-voltage electrical equipment. Our products comply with IEC requirements, and the company operates under ISO9001 quality management.

What distinguishes our manufacturing logic is the emphasis on internal process control and safety-oriented design rather than simple output volume. Design, raw material selection, production, assembly, testing, and inspection are carried out in-house to reduce uncontrolled variables that often become the root cause of latent failures.

For a project owner or technical evaluator, this kind of design matters because it directly affects operational risk, not just nameplate performance.

How does transformer design directly control fire risk and fault propagation?

How insulation systems, partial-discharge control, thermal margins, and short-circuit strength determine whether a fault stays local or becomes systemic

The transformer is the electrical and physical core of the substation, whose internal behavior largely determines whether abnormal conditions remain contained or escalate.

Dry-type transformers that use epoxy resin cast insulation do not rely on oil as a dielectric medium, eliminating one major fire load. More importantly, vacuum casting of the high-voltage winding reduces internal voids, thus lowering partial discharge activity and slowing insulation aging. Reinforced winding structures improve mechanical strength against sudden short-circuit forces, while foil low-voltage windings help balance ampere-turn distribution and limit axial stress.

Thermal behavior is just as critical. Strong axial cooling channels, optional forced-air cooling, and intelligent temperature controllers provide you with measurable thermal margins rather than relying on conservative derating. When equipment can safely sustain higher loads without excessive hotspot temperatures, both fire risk and premature insulation degradation will be reduced as much as possible.

In practical terms, good transformer design does not prevent all faults, but it ensures that when faults occur, they are less likely to develop into catastrophic events.

Why does enclosure and layout design matter as much as electrical ratings?

How IP protection levels, compartmentalization, cable routing, and ventilation geometry affect personnel safety and long-term reliability

Electrical performance alone does not define safety. Physical architecture matters just as much.

Enclosures with protection classes such as IP20, IP23, IP30, and IP33 limit accidental contact, reduce dust ingress, and mitigate exposure to moisture. These are not cosmetic features but the critical factors that directly affect insulation performance and operator safety. Material choices, such as aluminum alloy, cold-rolled steel, or stainless steel, also influence corrosion resistance and structural stability over decades of service.

Layout design determines whether heat accumulates, whether airflow remains stable, and whether cable terminations experience mechanical stress. Compartmentalization between high-voltage and low-voltage sections reduces the likelihood that a localized fault propagates through the entire assembly. When ventilation paths are engineered rather than improvised on site, thermal behavior becomes predictable instead of uncertain.

A large part of the real safety picture will be overlooked when evaluating substations only by electrical diagrams, and ignoring physical architecture.

How do prefabricated substations reduce human error during installation?

How factory integration, standardized wiring logic, and pre-tested protection coordination minimize commissioning risk

A large percentage of substation incidents originate not from design flaws, but from installation inconsistencies. Prefabricated substations address this by shifting critical integration work from the construction site to the factory.

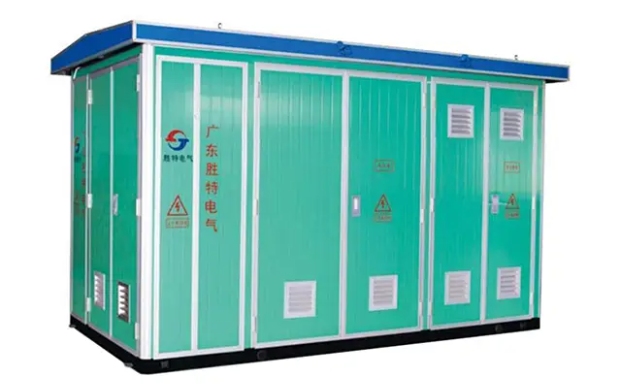

Units such as the YBP 160kVA 10kV 400V European Box Type Pre Fabricated Complete Transformer Substation illustrate this approach. Its internal wiring, protection coordination, grounding arrangements, and insulation clearances are completed and verified before shipment.

For users, this means fewer field terminations, fewer opportunities for torque errors or wiring inconsistencies, and shorter commissioning windows. In urban distribution networks, commercial buildings, or infrastructure nodes where site conditions are often constrained, this reduction in on-site complexity directly translates into improved safety outcomes.

How does a higher capacity compact design maintain safety instead of increasing risk?

How thermal channels, airflow management, fault-current coordination, and modular switch compartments allow dense installations to remain stable

Higher capacity normally means higher thermal density and higher fault energy. Compact substations must therefore compensate through more rigorous internal engineering rather than relying on size alone.

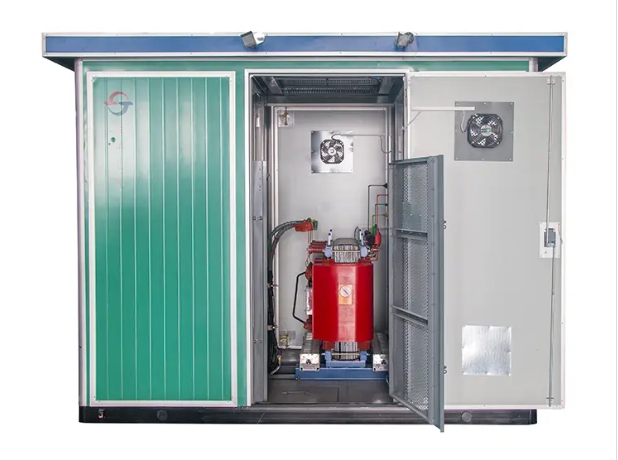

The YBP 1000kVA 10kV 400V Medium High Voltage Box Type Preinstalled Transformer Compact Substation is representative of this design logic. Safety at this scale depends on how effectively heat is dissipated, how airflow paths are controlled, and how protection devices are coordinated with transformer impedance and cable characteristics.

Compact design only works when thermal margins, mechanical clearances, and fault coordination are engineered as a system. When they are, you gain high power density without compromising stability. Otherwise, compactness becomes a hidden risk factor.

How does testing and certification translate into real operational safety?

How routine tests, type tests, temperature rise tests, short-circuit tests, and national inspection reports reduce hidden failure probability

Design intent must be validated by testing; otherwise, it remains a theoretical framework. Routine tests verify production consistency, type tests confirm that the design itself can withstand electrical, thermal, and mechanical stresses, and special tests, such as short-circuit withstand tests or temperature rise tests, expose weaknesses that normal operation would not reveal.

Inspection reports for transformers and prefabricated substations, issued by national quality supervision centers, demonstrate that products have passed routine, type, and special testing under recognized standards, including evaluations of short-circuit endurance, insulation performance, and thermal behavior.

For users, documented testing is not administrative paperwork but evidence that the equipment has already survived conditions similar to those that cause failures in the field.

Why does after-sales service support influence distribution safety more than most buyers expect?

How remote diagnostics, installation guidance, spare parts response, and lifecycle monitoring prevent small defects from becoming grid events

Even well-designed equipment depends on correct installation, configuration, and operation. However, after-sales services support bridges this gap.

Structured processes, such as remote troubleshooting, video-based commissioning support, coordinated technical review, and on-site assistance when required, help prevent minor anomalies from evolving into serious incidents. Organized spare-parts policies and warranty responses further reduce downtime when intervention is needed.

From a system perspective, safety is not a single event at commissioning but the results through continuous interaction between equipment behavior and technical support over its entire lifecycle.

Safe power distribution is built, verified, and maintained, rather than simply purchased

If you observe, safe power distribution is not created by one feature or one device. It is built through insulation strategy, mechanical robustness, thermal control, enclosure architecture, factory integration, rigorous testing, and sustained technical support.

When substation equipment follows coherent engineering logic rather than superficial specification matching, you gain more than compliance. You gain predictability, resilience, and long-term stability. That is what ultimately supports safe power distribution in real networks, under real operating conditions.

FAQ

Q1: Does choosing a dry-type transformer always improve substation fire safety?
A: Dry-type transformers eliminate oil fire risk and offer strong advantages for indoor or load-center installations. However, overall safety still depends on ventilation design, enclosure protection, load profile, and protection coordination. You should evaluate the whole system, not the transformer alone.

Q2: How can you judge whether a compact substation will remain thermally safe under your load conditions?
A: You should examine cooling methods, temperature rise margins, airflow design, harmonic content of the load, and future expansion plans. Nameplate rating alone does not reflect real thermal behavior.

Q3: What documentation should you request to verify equipment safety before procurement?
A: You should request routine and type test reports, short-circuit test evidence, temperature rise data, insulation class documentation, enclosure protection ratings, and factory inspection records. These documents show whether the design has been validated beyond theoretical calculations.
