Metal enclosed switchgear forms a vital part of current power supply setups, providing safe, compact, and stable control for medium- and high-voltage networks. By placing active parts inside grounded metal sections, it lowers arc-flash dangers, improves working safety, and supports automatic control through SCADA links. Various layouts—fixed, removable, air-insulated, and gas-insulated—allow systems to be tailored to space, maintenance, and reliability. Widely used in industrial plants, urban substations, and renewable energy projects, well-designed switchgear enhances uptime, simplifies maintenance, and lowers long-term lifecycle costs.
Metal-enclosed switchgear ensures safe, compact, and effective control of power distribution. These systems are fundamental in medium to high voltage networks, where they manage the reception, switching, and isolation of electrical power. The metal cover serves a key critical role by physically containing live elements and helping workers monitor and maintain the system safely.
Such switchgear supplies isolation and protection for electrical equipment, greatly reducing the risk of arc flash events and short circuits. For example, the KYN28A-12 indoor metal-clad withdrawable switchgear is suitable for power intake, distribution, and starting large motors in power stations, factories, and mining enterprises, showing how these units act as the main support for energy-intensive operations.
In modern networks, metal-enclosed switchgear supports automation and remote control. Integration with SCADA systems allows power plants and site managers to monitor performanceexecute control commands, and receive real-time fault alerts without manual intervention. It not only improves system running time and strength, but also aligns with current grid modernization efforts, where digital tools improve energy management.
The main way for metal-enclosed switchgear to boost work safety is by the ability to confine live components within grounded metal enclosures, which reduces worker contact risks during regular runs and fault times. In addition, top-quality switchgear incorporates internal arc rating traits that safely release gases in the event of an internal arc, thereby reducing damage to surrounding equipment.
For instance, the HXGN-12 AC high-voltage fixed metal closed loop switchgear is a three-phase AC rated voltage 12kV and frequency 50Hz for indoor high-voltage loop supply and terminal supply. Its safety locks force correct switching steps. The load switch, grounding switch, and cabinet door have a reliable mechanical interlock, which has realized the function of "five prevention", ensuring that no unsafe operations occur during maintenance or testing.
The choice between fixed-type and withdrawable switchgear configurations greatly influences system planning, expense, and maintainability.
Fixed-type switchgear brings a simpler build and lower starting cost. It’s easier to install and is well-suited for environments where minimal reconfiguration or maintenance access is required. The HXGN-12 AC high-voltage fixed metal closed loop switchgear stands as a strong example, optimizing for terminal and loop supply tasks with better mechanical interlocks.
Fixed-type switchgear offers a simplified structure and lower initial cost. It’s easier to install and is well-suited for environments where minimal reconfiguration or maintenance access is required. A prime example is the HXGN-12 AC high-voltage fixed metal closed loop switchgear, which is optimized for terminal and loop power supply applications with enhanced mechanical interlocks.
On the other hand, withdrawable layouts like the KYN28A-12 indoor metal-clad withdrawable switchgear allow for quick replacement of or servicing of internal components like circuit breakers without the need to de-energize the entire system. Such freedom is useful in key infrastructures where stopping times must be reduced.
Ultimately, your decision should reflect your maintenance strategy, available footprint, and tolerance for service interruptions.
Air-insulated switchgear (AIS) sees common use because of lower material costs and easy visual inspection, but it needs more space due to lower insulation strength against gas-insulated types.

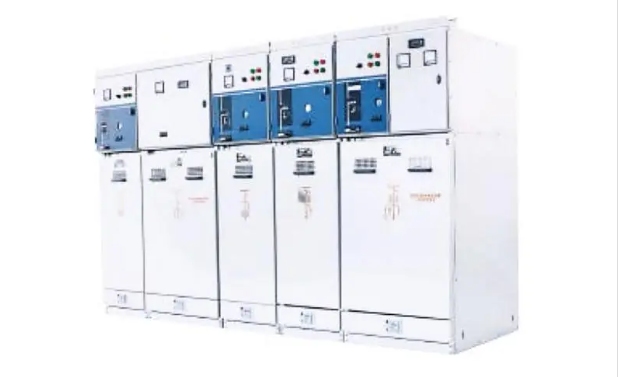

Gas-insulated systems (GIS), often with SF6 gas, deliver strong insulation in small sizes. The XGN15-12 box type fixed AC metal enclosed sulfur hexafluoride ring switchgear (SF6 switchgear) serves as an indoor distribution unit for three-phase current 12Kv and 50Hz single bus setups. Its modular design supports changeable layouts while keeping insulation integrity under adverse conditions.
With few seal points, it can keep gas leaks for long periods and avoid maintenance at last, making it ideal for tight spaces like urban power stations or underground sites. Nonetheless, environmental considerations regarding SF6's global warming potential must be addressed through sealed-for-life designs or alternatives when possible.
Metal-enclosed switchgear finds wide use in many fields:
l Factories: These sites need tough units able to manage heavy loads while keeping safety in rough conditions.
l Green energy plants: They gain from block placement choices through container power stations that join switchgear for gathering and supply.
l Urban power stations: Compact options like GIS prove popular due to limited land. The XGN15–12 box type fixed AC metal enclosed sulfur hexafluoride ring switchgear offers space-saving choices without losing results.
It has a beautiful appearance, strong corrosion resistance, and a compact and reasonable structure, allowing it to serve both functional and environmental constraints.
Configuration must align with network topology and operational requirements:
l In distribution networks with loop topologies, ring main units (RMUs) gain favor as they bring redundancy and improve fault resilience.
l For radial feeders or terminal substations with steady loads, simpler fixed layouts may work well.
It can consist of three units to form a ring network or or it can be extended to a terminal substation with more than four switchgears. These design flexibilities make it possible to tailor systems to certain load patterns, expected fault rates, and future expansion plans.
Every project brings its own power details, including voltage levels, current capacity, protection schemes, and must interface with legacy hardware or SCADA platforms. Customization ensures not only functional compatibility but also layout optimization for your site constraints.
A maker like SHENGTE stands out here. SF6 gas pressure gauge, auxiliary contact, trip coil, electric operation device, control circuit, measuring instrument, and relay protection device can be installed based on customer demands, offering fine control over system behavior.
Partnering with a supplier who knows the environment ensures compliance with local grid codes while optimizing technical performance.
Their initial purchase price is just one component of the total ownership cost. Maintenance cycles, spare part availability, energy efficiency through reduced thermal losses—all influence your long-term investment return.
A well-engineered enclosure minimizes thermal stress on internal components by using features such as ventilation windows, louver ventilation holes incandescent lamp installed on the inner panel of the cabinet door for lighting and moisture-proof function. These reduce wear-and-tear on components and extend service intervals.
Choosing a durable product upfront translates into fewer unplanned outages and reduced lifecycle costs—especially critical in mission-critical installations like hospitals or data centers.

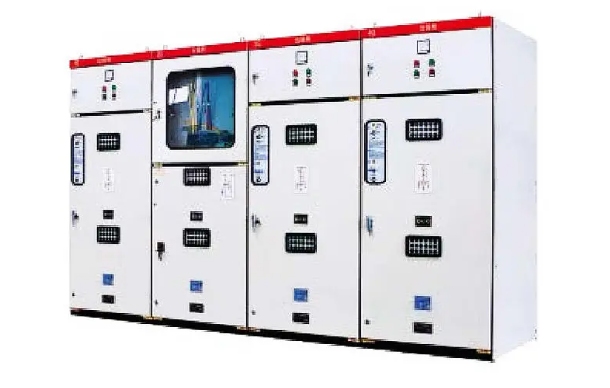

The HXGN-12 AC high-voltage fixed metal closed loop switchgear meets the safety and reliability needs of medium voltage grids. It supports looped configurations for increased redundancy while offering features like reliable mechanical interlock, epoxy polyester powder paint,and galvanized installation beam that enhance corrosion resistance and operator protection. Its side-mounted structure enables efficient use of internal space while simplifying maintenance tasks.
The XGN15–12 box type fixed AC metal enclosed sulfur hexafluoride ring switchgear uses SF6 insulation for outstanding strength in small builds. It can work with the CTI spring mechanism plus FLN sulfur hexafluoride load switch (F cabinet) or CTII double spring mechanism plus FLN sulfur hexafluoride load switch-fuse combination appliance (FR cabinet), making it flexible across many placement cases. Its sealed structure reduces environmental risk while supporting integration into automated networks.
If a partner who grasps power supply gear from both technical and running views proves useful, SHENGTE deserves attention. With many years in transformer setups and switchgear making, SHENGTE supplies tailored solutions that follow the global standards without losing flexibility or cost value.
What places SHENGTE ahead involves not just item strength, including our focus on project-specific tailoring backed by quick technical help teams that match industry needs. Whether you're deploying new infrastructure or retrofitting legacy systems, their product range, including advanced ring main units and modular substations, helps you deliver results with confidence.
You can explore more at SHENGTE’s official site, where innovation meets practicality across every product line.
Q: Can I integrate metal enclosed switchgear into existing SCADA systems without major modifications?
A: Yes, most current units include link interfaces like Modbus or IEC 61850 protocols. These support smooth SCADA joining.
Q: Is SF6 gas still widely accepted despite environmental concerns?
A: While SF6 shows high warming effects, its use remains common due to unmatched insulation traits. However, many makers now supply lifelong sealed builds to cut leak risks.
Q: How often should metal-enclosed switchgear be inspected or maintained?
A: Check frequency depends on the work setting, but usually falls from yearly to every three years. Key systems may need more regular state watching through sensors or heat imaging tools.
