Key Advantages of Custom Electrical Switchgear in Modern Power Systems

Modern power systems no longer operate in stable, single-direction patterns. Load volatility, distributed generation, levels of automation, and greater fault levels are pressuring the characteristics of distribution equipment. Under these conditions, customized switchgear is no longer a design parameter, but a design choice which has a broad impact on the issues of safety, continuity, and operating costs.

Why Has Custom Switchgear Become a Strategic Requirement in Today’s Power Networks?

The shift is not driven by fashion, but by structural changes in how power systems behave and expand.

What has changed in load behavior and grid architecture?

Power networks now integrate renewable generation, variable industrial loads, data-dense monitoring systems, and compact substations. Switchgear is no longer limited to simple on–off control, but performs coordinated switching, isolation, protection, measurement, and fault segmentation across generation, transmission, and distribution stages.

With rising short-circuit capacity and faster fault speed, the effects of cabinet design, busbar design, and compartmentalization become critical in ensuring that a fault either is localized or becomes an enterprise-wide problem.

Why does standardized configuration often fail in complex sites?

Fixed layouts assume predictable feeder types, uniform load distribution, and generous installation space. In practice, facilities combine mixed motor feeders, capacitor compensation, automation interfaces, and parallel incomers within constrained footprints.

Low-voltage withdrawable systems already demonstrate how flexible electrical schemes, modular functional units, and standardized structural dimensions allow dense circuit integration without sacrificing maintainability or safety. Customization extends this flexibility to match site-specific electrical topology instead of forcing the site to adapt to the cabinet.

How Does Custom Design Improve Operational Safety?

Safety performance depends less on appearance and more on structural and electrical coordination.

How does structural engineering affect fault containment?

Mechanical integrity defines the first barrier against cascading failure. Modern cabinets adopt shaped-steel welded frames, galvanized internal structures, and epoxy-coated external panels to resist deformation under thermal and electrodynamic stress. Modular mounting holes based on standardized spacing further ensure accurate assembly and stable component alignment.

Such structural choices are not cosmetic, but directly limit enclosure distortion, prevent door separation during arc events, and preserve grounding continuity across partitions and frames.

Why do short-time withstand and peak current ratings matter in real faults?

Short-time current withstand and peak current capacity determine whether the bus system survives a fault long enough for protection to clear it. Horizontal and vertical busbar systems designed for high thermal and dynamic stability, commonly up to 80 kA for one second with peak values exceeding 170 kA, dramatically reduce catastrophic cabinet damage.

In customized projects, these parameters are matched to the actual fault level of the installation rather than assumed averages, preventing under-designed infrastructure from becoming the weakest link.

How Does Customization Enhance Electrical Performance?

Electrical performance is shaped by architecture, not by components alone.

Why is busbar system architecture not universal?

Busbar selection depends on rated current, feeder density, and redundancy philosophy. Systems below 1250 A may adopt single horizontal busbars, while higher-capacity systems often require double busbars to control temperature rise and voltage drop.

Vertical busbars enclosed by metal partitions and transparent insulating panels further restrict arc diffusion and stabilize electric fields, especially in high-density assemblies. Neutral and protective conductors also shift position based on grounding strategy and cable routing, reinforcing why a single cabinet template rarely fits all projects.

How do tailored feeder and drawer configurations affect system efficiency?

Withdrawable functional units allow replacement without full shutdown, but their real advantage appears in layout customization. Cabinets rated for 630–2000 A feeders can host two vertical circuits in one frame, reducing floor area while maintaining separation.

In projects with mixed loads, this structure enables selective redundancy, fast isolation, and phased upgrades without dismantling entire lineups. Performance is no longer defined only by component rating but by how effectively the cabinet organizes current paths and maintenance access.

Why Does Custom Switchgear Reduce Lifecycle Cost Instead of Increasing It?

Upfront engineering effort often reduces total cost over decades of operation.

How does modularity lower maintenance disruption?

Draw-out designs allow faulted units to be isolated and replaced while adjacent circuits remain energized, which significantly reduces downtime when working with production lines, data centers, and transport infrastructure, since minutes of lost power mean significant losses.

A flexible combination of functional units, as well as standardized interfaces, can improve the intervals between repairs, thereby reducing the inventory of spare parts.

How does layout customization optimize footprint and construction cost?

Space optimization is often undervalued during procurement. Cabinets capable of hosting multiple high-current feeders or integrating compensation and metering compartments within the same lineup reduce substation building size, cabling length, and ventilation demand.

Top or bottom cable access can also be configured to match site civil design, eliminating unnecessary trenching or elevated routing. These structural efficiencies accumulate into measurable savings over decades of operation.

Where Does Product-Level Customization Deliver the Most Measurable Value?

Real value appears when product architecture aligns with actual application conditions.

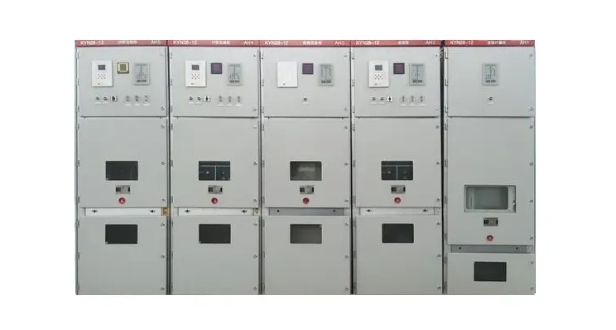

How does KYN28A-12 address medium-voltage system diversity?

Medium-voltage networks demand precise coordination between protection, switching, and monitoring. The KYN28A-12 indoor metal-clad withdrawable switchgear is widely applied for power reception, distribution, large-motor starting, and secondary-substation control and measurement in industrial plants and mining facilities.

Its compartmentalized structure, standardized phase spacing, and compatibility with multiple breaker formats allow project engineers to customize incoming feeders, bus coupling, and outgoing circuits without altering the safety envelope.

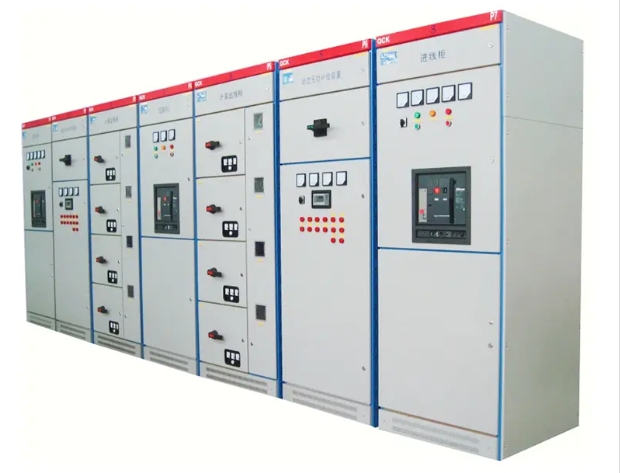

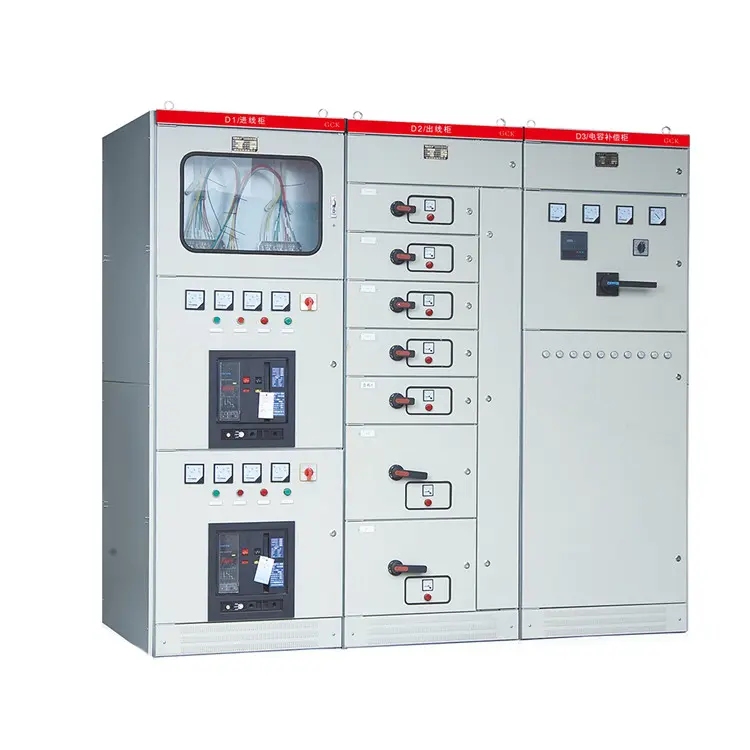

Why is the GCK(L) drawer structure effective for dense low-voltage distribution?

The low-voltage distribution centers adopt a compact structure and a high current load with frequent access during operation. The GCK (L) low-voltage extraction switchgear is divided into power distribution and motor control sections, which can support a rated current of up to 4000 A with good thermal and mechanical stability.

Its welded frame, modular drawers, and standardized 20-mm installation grid enable high circuit density and structured cable management, making it suitable for plants combining motors, lighting, automation loads, and compensation units in one lineup.

Why Does SHENGTE Enable Reliable Custom Switchgear Systems?

Hardware quality is only part of system reliability, and the manufacturer’s capability shapes the rest.

SHENGTE is a power distribution equipment manufacturer based in Foshan, China, operating for more than 15 years with ISO 9001 certification and compliance with IEC standards. Our product portfolio spans high- and low-voltage switchgear, oil-immersed and dry-type transformers, prefabricated substations, and integrated distribution systems.

What distinguishes such suppliers in customized projects is not only product range, but full in-house coverage of design, testing, assembly, installation guidance, and after-sales technical support.

Dedicated R&D teams, certified testing procedures, and structured OEM/ODM services provided by us allow electrical schemes, enclosure dimensions, protection logic, and busbar systems to be engineered around real site parameters instead of generic assumptions.

This level of integration shortens design cycles, reduces commissioning revisions, and improves long-term maintainability because the same engineering team that designs the cabinet also supports it in operation.

How Does OEM/ODM Capability Support True Customization?

Customization is only credible when engineering authority remains inside the factory.

Why does engineering depth matter more than catalog breadth?

True customization requires internal control over drawings, thermal calculations, mechanical tolerances, and protection coordination. Suppliers with internal engineering development centers or testing laboratories are capable of assessing the actual strengths of the component with respect to short circuits, temperature rise, and enclosure protection, without depending on theoretical ratings.

This ability also provides the facility for quick response in the event of a change in the conditions of the projects, like a rise in the fault level or a change in the number of feeders.

How does this affect project risk for EPCs and utilities?

Early-stage technical alignment reduces redesign during installation. It ensures that cable routing, grounding continuity, and protection interfaces match the site layout exactly, avoiding late-stage modifications that delay energization.

How Should You Evaluate Whether Custom Switchgear Is Worth It?

Evaluation should focus on system behavior rather than unit price.

Does the design match your fault level and load profile?

It should check rated short-circuit current, busbar configuration, compartment separation, and thermal design against actual network parameters, not nominal estimates.

Can the supplier support lifecycle collaboration?

It is necessary to assess technical documentation quality, drawing accuracy, spare-part strategy, and response procedures for installation and operation phases. Custom hardware yields value only when supported throughout its service life.

FAQs

Q: Does custom switchgear always increase delivery time?
A: Not necessarily. Modular platforms allow configuration without redesigning core structures, often reducing delays caused by late-stage layout conflicts.

Q: Is withdrawable architecture necessary for medium-scale facilities?
A: Yes. Even moderate systems benefit from faster maintenance, safer isolation, and phased expansion without full shutdown.

Q: What technical documents should you request before procurement?
A: Short-circuit test data, temperature-rise reports, wiring diagrams, busbar material specifications, and compliance certificates with IEC or equivalent standards.
