1.Why Medium Voltage Switchgear Is Critical for AI Data Centers
2.Designing Switchgear Power Systems for AI Infrastructure
3.Monitoring and Maintainability of Medium Voltage Switchgear
4.Coordinating Low and Medium Voltage Switchgear
5.SHENGTE GCK(L) Low Voltage Drawer Switchgear
AI data centers concentrate computing demand, cooling equipment, UPS systems, and essential auxiliaries behind a power chain that must remain stable as capacity grows. Incoming medium voltage switchgear is a central control and protection point, but reliability depends on correct ratings, selective protection, redundant paths, operating visibility, maintainability, and coordination between voltage layers.
The MV layer receives utility or campus power, divides the supply into controlled sections, and feeds transformers serving different load groups. The design must limit fault impact while providing clear switching states for operation, maintenance, and restoration.
A data-center single-line diagram may include two incoming sources, sectionalized buses, a bus coupler, and several transformer feeders. Two sources offer limited value if both depend on one bus or common control power. Designers should define normal source positions, transfer conditions, interlocks, and permitted bus loads before selecting ratings.
Electrical switchgear combines switching devices with control, measurement, signaling, and protection functions. Breakers, isolating devices, instrument transformers, operating mechanisms, relays, and grounding provisions work as an assembly. During a cable or feeder fault, protection should trip the correct breaker and isolate the intended zone. Healthy sections remain available only when the bus arrangement, protection study, and operating procedures support that outcome.
The main types of electrical switchgear are best separated by voltage class and function. The MV layer handles incoming sources, buses, and transformer feeders. Downstream LV assemblies supply UPS inputs, cooling motors, pumps, lighting, and support circuits. Distinct duties reduce rating errors and simplify protection review.
Reliable switchgear power systems begin with project data. Teams should confirm loads, future phases, fault levels, grounding, redundancy objectives, maintenance states, and monitoring requirements before freezing the one-line diagram.
Continuous current should reflect demand, diversity, transformer loading, and planned computing and cooling expansion. Short-circuit ratings must follow a study covering source strength, transformer impedance, relevant rotating contributions, and future network changes. Voltage class, insulation level, bus current, breaker duty, terminations, ambient conditions, and clearances should form one coordinated specification.
Protection zones should extend from incoming sources through transformers and downstream feeders. Relay settings must distinguish overloads and feeder, transformer, or bus faults while remaining within equipment capabilities. Coordination, grounding, transformer protection, and transfer logic require joint review. Commissioning should verify current-transformer ratios, trip circuits, interlocks, settings, and operating sequences.
Redundancy must be tested against credible operating states. Can one bus section be isolated while another serves prioritized loads? Can a transformer feeder be maintained without unsafe backfeed? Shared control power, protection, communications, or cable routes may create common-mode dependencies that undermine nominally independent paths.
After topology is established, operating visibility and maintenance planning determine lifecycle usability.
Useful points include breaker position, protection events, current, voltage, power, energy, alarms, and time-stamped trip records. Facility teams should define protocols, cybersecurity boundaries, alarm priorities, and local fallback operation. Each point should support diagnosis, capacity management, or a documented decision.
Maintenance plans should identify isolation boundaries, switching steps, access, inspection intervals, spares, and restoration checks. Redundancy is incomplete if technicians cannot safely isolate equipment requiring service. Reviews should cover electrical states, cable access, clearances, shutters, grounding points, and the consequences of removing one section.
AI capacity is often deployed in phases, so expansion requires more than spare amperes. Future work may need transformer feeders, bus capacity, protection ranges, cubicles, cable routes, floor area, ventilation, and monitoring addresses. Early reservations reduce later shutdowns and prevent unsuitable circuit additions.
The transformer separates the two switchgear voltage layers. Upstream equipment controls sources and transformer feeders; downstream equipment distributes transformed power to infrastructure loads. Both layers require consistent fault-level assumptions, grounding, selectivity objectives, and operating philosophy.
Primary protection, inrush behavior, thermal limits, and secondary fault contribution influence devices on both sides. The MV feeder should protect the transformer without tripping for acceptable energization. Downstream devices should clear LV faults selectively where studies permit. Settings cannot be independent because upstream protection also sees secondary faults through the transformer ratio.
In a coordinated LV and MV switchgear architecture, MV assemblies manage sources, bus sections, and transformer feeders. LV assemblies handle main distribution, UPS inputs, cooling and pump motors, lighting, and auxiliaries. Clear boundaries support consistent metering, protection, transfer logic, interlocks, and maintenance procedures.
Comparing switchgear manufacturers requires more than checking voltage and current. Buyers should evaluate one-line review, fault duty, protection, room and cable constraints, monitoring interfaces, documentation, testing, and expansion support. A useful proposal identifies assumptions and required project data instead of treating one configuration as universal.

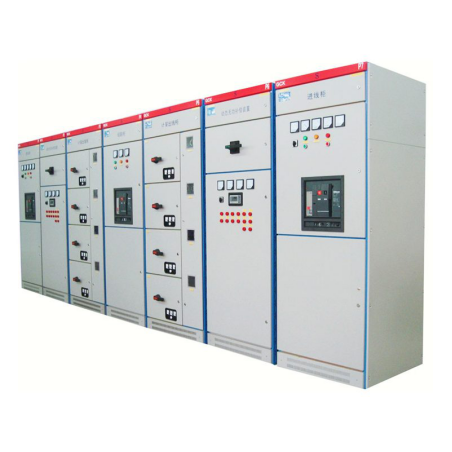

GCK(L) Low Voltage Drawer Switchgear supports downstream LV distribution after transformation. The product complements the upstream MV architecture and does not replace MV equipment.
After power is transformed to the required low voltage, our GCK(L) can organize power distribution, motor-control, and lighting circuits for applicable facility loads. This positioning is important for data-center specifications: the product belongs on the LV side of the transformer, while incoming source control and transformer-feeder protection remain upstream responsibilities.

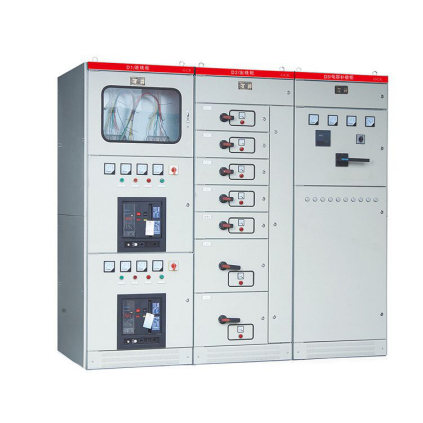

The verified GCK architecture combines power distribution center (PC) and motor control center (MCC) functions. The architecture is designed for AC 50/60 Hz systems, with working voltage up to 660 V and rated current up to 4000 A. Flexible unit combinations allow multiple circuits within a cabinet, while the draw-out arrangement supports convenient access for maintenance. We can configure the circuit arrangement for power distribution, motor control, lighting, and other project-defined LV duties within the verified operating range.
Before configuration review, buyers should provide SHENGTE with the single-line diagram, system voltage and frequency, circuit schedule, load currents, prospective fault duty, protection requirements, enclosure and environmental conditions, cable-entry direction, layout limits, monitoring interfaces, and continuity targets. These inputs allow the proposed GCK(L) arrangement to be checked against actual circuits rather than assumed loads.
Reliable AI infrastructure depends on a coordinated path from incoming medium voltage switchgear through transformers to downstream LV distribution. Buyers should verify ratings, selective protection, bus topology, monitoring, maintenance states, and expansion capacity before comparing proposals. With complete project data, SHENGTE can review where GCK(L) fits within the downstream low-voltage portion of that power chain.
